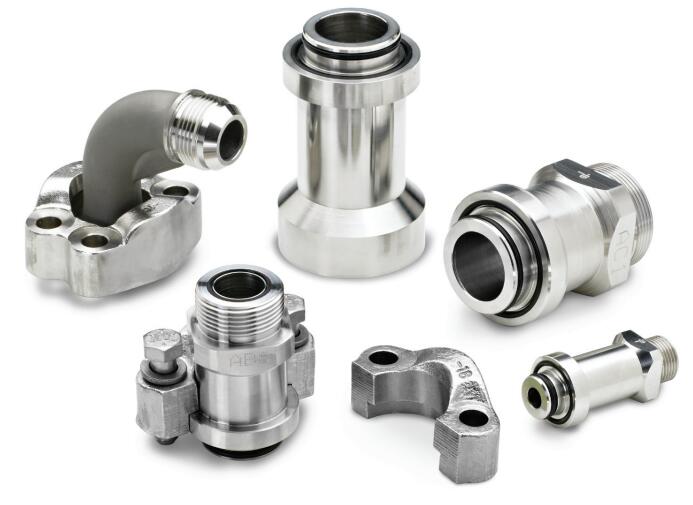

Dual Seal Subsea Flange Adapters 双密封海底法兰适配器
Parker Fittings接头 Parker Adapters

派克的双重密封法兰适配器产品线为海底高振动和冲击情况提供了解决方案。派克创新的双密封法兰适配器提高了关键石油和天然气应用中高振动，高冲击液压四螺栓连接的可靠性。结合了径向密封和端面密封技术，减少了由传统法兰端面密封连接的侧面载荷引起的系统泄漏以及空气或水进入的可能性。Parker's Dual Seal Flange Adapter product line provides a solution for subsea high-vibration and shock situations. Parker's innovative Dual Seal Flange Adapters improve the reliability of high-vibration, high-shock hydraulic four-bolt connections in critical oil and gas applications. Incorporating both radial and face seal technologies, which reduces the potential for system leakage and air or water ingression caused by side loading of traditional flange face seal connections.

Dual Seal Subsea Flange Adapters

市场：
- 油气 Oil & Gas

特性/优点：
- 符合NACE（美国腐蚀工程师协会）MR0175，并经过100万次脉冲周期测试，以证明其可靠性。
- 设计符合ISO 6162-2或SAE J518代码62的螺栓螺纹和螺栓样式尺寸。
- 提供超过28种端口配置：SAE直螺纹，三重，密封，管道，焊接插座和插头。
- 提供316 / 316L不锈钢，具有完全的热代码可追溯性，尺寸为?“，1”和1?“，工作压力高达7500 psi和515 bar

应用：
- 海底 Subsea
- BOP Stacks

Markets:
- Oil & Gas

Features/Benefits:
- NACE (National Association for Corrosion Engineers) MR0175 Compliant, and tested to 1 million impulse cycles for proven reliability.
- Designed to conform to bolt thread and bolt pattern dimensions of ISO 6162-2 or SAE J518 Code 62.
- Over 28 port configurations available: SAE Straight Thread, Triple-Lok, Seal-Lok, Pipe, Weld Socket and Plugs.
- Available in 316/316L stainless steel with full heat code traceability in sizes ?”, 1” and 1 ?” with working pressures up to 7500 psi and 515 bar

Applications:
- Subsea
- BOP Stacks

Technical Specifications

Dual Seal Subsea Flange Adapters型号
