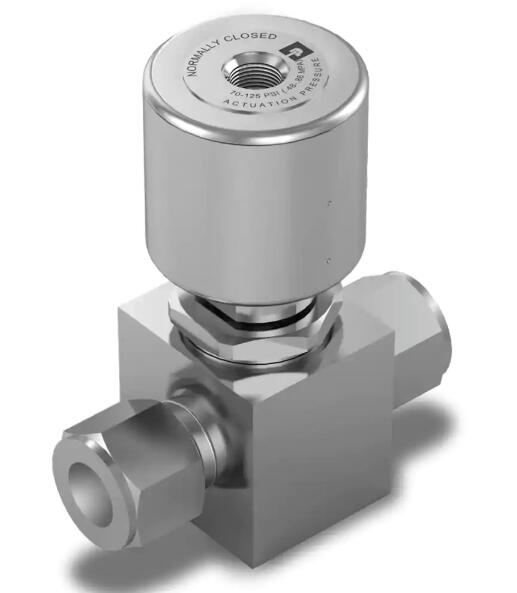

Parker High Flow, Compact Size Diaphragm Valve - NV70 Series
NV70 系列高流量紧凑型隔膜阀 | #54021227
High Flow, Compact Size Diaphragm Valve - NV70 Series | #54021227
PARKE NV70 是一种经济型、通用型、高流量隔膜阀，非常适用于流动大量腐蚀性和非腐蚀性流体。NV70 是一种经济型、通用型、高流量隔膜阀，非常适用于流动大量腐蚀性和非腐蚀性流体。这种紧凑的 316L 不锈钢阀门可确保通过手动或气动驱动实现可靠且一致的关闭。NV70 使用高疲劳强度隔膜 (Elgiloy)，形成外部金属密封，并提供可靠的大气密封。内部无螺纹和无弹簧。高循环寿命。紧凑的尺寸。积极、一致的关闭。金属对金属密封到大气。为 O2 服务清洁。高流量应用的理想选择。从真空到 AOPLPNO / AOPLPNC 阀门的 150 psig 和手动阀门的 250 psig 功能齐全。The NV70 is an economical, general purpose, high flow diaphragm valve ideally suited when flowing large volumes of corrosive and non-corrosive fluids. This compact, 316L stainless steel valve ensures positive and consistent shut off with manual or air actuation. The NV70 uses a high fatigue strength diaphragm (Elgiloy?) that creates an external metal seal, and provides a reliable seal to atmosphere. Internally threadless and springless. High cycle life. Compact size. Positive, consistent shut off. Metal-to-metal seal to atmosphere. Cleaned for O2 service. Ideal for high flow applications. Fully functional from vacuum to 150 psig for AOPLPNO / AOPLPNC valves and 250 psig for manual valves.
High Flow, Compact Size Diaphragm Valve - NV70 Series
The NV70 is an economical, general purpose, high flow diaphragm valve ideally suited when flowing large volumes of corrosive and non-corrosive fluids. The NV70 is an economical, general purpose, high flow diaphragm valve ideally suited when flowing large volumes of corrosive and non-corrosive fluids. This compact, 316L stainless steel valve ensures positive and consistent shut off with manual or air actuation. The NV70 uses a high fatigue strength diaphragm (Elgiloy) that creates an external metal seal, and provides a reliable seal to atmosphere. Internally threadless and springless. High cycle life. Compact size. Positive, consistent shut off. Metal-to-metal seal to atmosphere. Cleaned for O2 service. Ideal for high flow applications. Fully functional from vacuum to 150 psig for AOPLPNO / AOPLPNC valves and 250 psig for manual valves.
技术规格
- 驱动： 气动，低压，常闭
- 联系： 1/2" 内螺纹 NPT 输入和输出
- 机身材质： 316L不锈钢
- 隔膜材料： Elgiloy，等效
- 座椅材质： PCTFE (std), 聚酰亚胺
- 帽材料： 不适用
- 螺母材料： 17-4 PH 不锈钢
- 执行器外壳材料： 阳极氧化铝
- 爆破压力： 750 psig (52 barg)
- 证明压力： 375 psig (26 barg)
- 流量： Cv .7（AOP 版本，指示器旋钮，手轮）
- 内部泄漏率： 泡泡紧
- 外部泄漏率： 泡泡紧
- 体积： 4.90 立方厘米
- 重量： 1.2 磅，0.55 公斤
- 最大入口压力额定值： 150 psig (10.3 barg) psi
- 最小入口压力额定值： 真空压力
- 驱动压力： 70-125 psig
- 进气口连接尺寸： 1/8" NPT
- 最高工作温度： 66°C，150°F
- 最低工作温度： -40°C，-40°F
Technical Specifications
| Body Material: |
316L Stainless Steel |
| Diaphragm Material: |
Elgiloy, Equivalent |
| Seat Material: |
PCTFE (std), Polyimide |
| Cap Material: |
17-4 PH Stainless Steel, N/A |
| Nut Material: |
17-4 PH Stainless Steel |
| Actuator Housing Material: |
N/A, Anodized Aluminum |
| Burst Pressure: |
750 psig (52 barg) |
| Proof Pressure: |
375 psig (26 barg) |
| Flow Rate: |
Cv .7 (AOP versions, Indicator Knob, Handwheel) |
| Internal Leak Rate: |
Bubble Tight |
| External Leak Rate: |
Bubble Tight |
| Volume: |
4.9 cm3 |
| Weight: |
1.2 lb, 0.55 kg |
| Maximum Inlet Pressure Rating: |
150, 250 psig / 10.3, 17.2 barg |
| Minimum Inlet Pressure Rating: |
Vacuum |
| Actuation Pressure: |
N/A, 70-125 psig |
| Air Inlet Connection Size: |
N/A, 1/8" NPT |
| Maximum Operating Temperature: |
66 °C, 150 °F |
| Minimum Operating Temperature: |
-40 °C, -40 °F |
High Flow, Compact Size Diaphragm Valve - NV70 Series 型号
| Part |
Actuation |
Connection |
| 54020848 |
Spin Handwheel |
1/2" Male NPT In & Out |
| 54020928 |
Spin Handwheel |
1/2" Compression In & Out |
| 54020929 |
Spin Handwheel |
1/2" Female NPT In & Out |
| 54021157 |
Air Operated, Low Pressure, Normally Closed |
1/2" Compression In & Out |
| 54021158 |
Indicator Knob |
1/2" Compression In & Out |
| 54021227 |
Air Operated, Low Pressure, Normally Closed |
1/2" Female NPT In & Out |
| 54021228 |
Indicator Knob |
1/2" Female NPT In & Out |
| 54021409 |
Air Operated, Low Pressure, Normally Closed |
1/2" Male NPT In & Out |
| 54021410 |
Indicator Knob |
1/2" Male NPT In & Out |
| 54022501 |
Air Operated, Low Pressure, Normally Open |
1/2" Compression In & Out |
|
