Parker Adapters

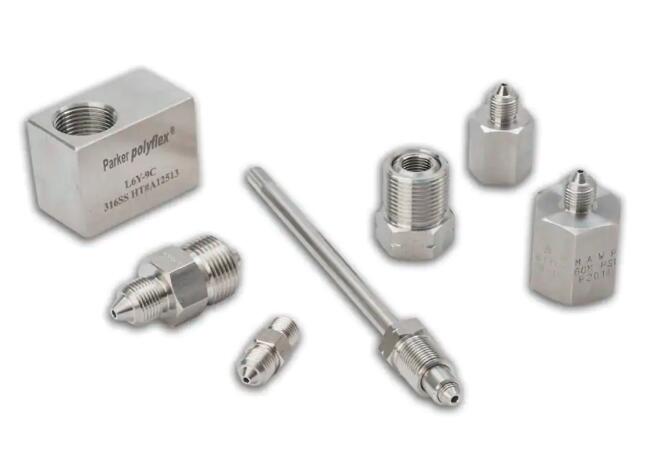

High Pressure Adapters

Stainless steel adapters with a 58/60 degree coned and threaded tubing design and maximum working pressure ratings up to 60,000 psi.





Parker's high pressure adapters have a small bore size which allows for higher working pressures, up to 60,000 psi. Typical applications include: waterblast applications and high pressure test stands.



High Pressure Adapters



Markets:
- Waterblast / Water Jetting
- High Pressure Hydraulics
- Oil & Gas

Features/Benefits:
- An industry standard for use at elevated pressures
- Suitable for repetitive assembly and disassembly

Applications:
- High pressure test stands
- High pressure hydraulic systems
- High pressure waterblast applications



Technical Specifications

Connection 1 Size: Female High Pressure, Male High Pressure, Low Angle Face Seal
Connection 2 Size: Male High Pressure, Female High Pressure, Male BSP
Connection 1 Thread Size: 9/16 - 18 UNF, 3/4 - 16 UNF, 1-1/8 - 12 UNF, 9/16-18 UNF inch
Connection 2 Thread Size: 3/4 - 16 UNF, 1-1/8 - 12 UNF, 9/16 - 18 UNF, G3/8 - 19 inch
Materials of Construction: 316 Stainless Steel
Overall Length: varies inch, varies mm
Hex Size: 0.75, 1.12, 1, 1.37, 1.375, 0.62, 1.125, 0.875 inch, 19.05, 28.448, 25.4, 34.798, 34.925, 15.748, 28.575, 22.225 mm
Maximum Operating Pressure: 60000, 30000 psi, 414, 207 MPa



High Pressure Adapters型号

Part Connection 1 Style Connection 2 Style Connection 1 Thread Size (inch) Connection 2 Thread Size (inch)
6Y6Y-4-4C Female High Pressure Female High Pressure 9/16 - 18 UNF 9/16 - 18 UNF
6Y6Y-4-6C Female High Pressure Female High Pressure 9/16 - 18 UNF 3/4 - 16 UNF
6Y6Y-4-9C Female High Pressure Female High Pressure 9/16 - 18 UNF 1-1/8 - 12 UNF
6Y6Y-6-6C Female High Pressure Female High Pressure 3/4 - 16 UNF 3/4 - 16 UNF
6Y6Y-6-9C Female High Pressure Female High Pressure 3/4 - 16 UNF 1-1/8 - 12 UNF
6Y6Y-9-9C Female High Pressure Female High Pressure 1-1/8 - 12 UNF 1-1/8 - 12 UNF
6YY6-4-6C Female High Pressure Male High Pressure 9/16 - 18 UNF 3/4 - 16 UNF
6YY6-4-9C Female High Pressure Male High Pressure 9/16 - 18 UNF 1-1/8 - 12 UNF
6YY6-6-4C Female High Pressure Male High Pressure 3/4 - 16 UNF 9/16 - 18 UNF
6YY6-6-9C Female High Pressure Male High Pressure 3/4 - 16 UNF 1-1/8 - 12 UNF
6YY6-9-4C Female High Pressure Male High Pressure 1-1/8 - 12 UNF 9/16 - 18 UNF
6YY6-9-6C Female High Pressure Male High Pressure 1-1/8 - 12 UNF 3/4 - 16 UNF
6YY6-9-9C Female High Pressure Male High Pressure 1-1/8 - 12 UNF 1-1/8 - 12 UNF
X6Y6-6-9C Low Angle Face Seal Male High Pressure 9/16 - 18 UNF 1-1/8 - 12 UNF
Y6D9-4-6C Male High Pressure Male BSP 9/16 - 18 UNF G3/8 - 19
Y6D9-6-6C Male High Pressure Male BSP 3/4 - 16 UNF G3/8 - 19
Y6Y6-4-4C Male High Pressure Male High Pressure 9/16 - 18 UNF 9/16 - 18 UNF
Y6Y6-4-6C Male High Pressure Male High Pressure 9/16 - 18 UNF 3/4 - 16 UNF
Y6Y6-4-9C Male High Pressure Male High Pressure 9/16 - 18 UNF 1-1/8 - 12 UNF
Y6Y6-6-6C Male High Pressure Male High Pressure 3/4 - 16 UNF 3/4 - 16 UNF
Y6Y6-6-9C Male High Pressure Male High Pressure 3/4 - 16 UNF 1-1/8 - 12 UNF
Y6Y6-9-9C Male High Pressure Male High Pressure 1-1/8 - 12 UNF 1-1/8 - 12 UNF
