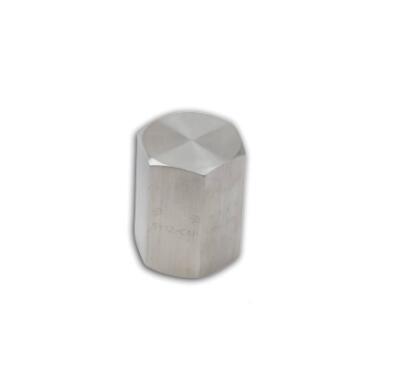

High Pressure Caps

High pressure caps are designed to be used with Polyflex high pressure fittings.





High pressure caps are designed to be used with Polyflex high pressure fittings.

Markets:
- Hydraulics
- Industrial
- Oil & Gas

Features:
- Keeps contaminants/dust from getting into the connection openings
- Protects connection ends from damage
- Easy to put on and remove







Technical Specifications

Product Type: JIC , Type "M", Med. Pressure, High Pressure, NPT
Tube Outside Diameter: 6 - 23 mm
Application: Oilfield, Marine
Connection Type: Field-Attachable
Hose Inside Diameter: 1/8, 1/4, 3/8, 1/2, 9/16, 5/8, 3/4 inch, 3, 6, 10, 13, 14, 16, 19 mm
Maximum Operating Pressure: 4140 bar, 414 MPa, 60,000 psi, 103, 69, 414, 207, 138 MPa
Shape: Straight
Connection 1 Thread Size: 7/16" - 20 UNF, 9/16" - 18 UNF, 3/4" - 16 UNF, 7/8" - 14 UNF, 1-1/16" - 12 UNF, 1" - 12 UNF, 1-5/16" - 12 UNF, 13/16" - 16 UNF, 3/4" - 14 NPSM, 1-3/8" - 12 UNF, 1/4" H.P., 3/8" H.P., 9/16" H.P., 1/8" - 27 NPT, 1/4" - 18 NPT, 3/8" - 18 NPT, 1/2" - 14 NPT, inch
Overall Length: 0.83, 0.93, 1.04, 1.16, 1.31, 0.85, 0.91, 1.2, 0.95, 1.38, 1.5, 1.85, 2.2, 1.07, 1.26, 0.9, 1.25, 1.43 inch, 21.08, 23.62, 26.42, 29.46, 33.27, 21.59, 23.11, 30.48, 24.13, 35.05, 38.1, 46.99, 55.88, 27.18, 32, 22.86, 31.75, 36.32 inch
Hex Size: 0.75, 0.875, 1, 1.25, 1.5, 0.69, 0.625, 1.375, 1.75 inch, 19.05, 22.23, 25.4, 31.75, 38.1, 17.53, 15.88, 34.93, 44.45 mm
Materials of Construction: Stainless Steel



High Pressure Caps 型号

Part Type Connection 1 Thread Size (inch)

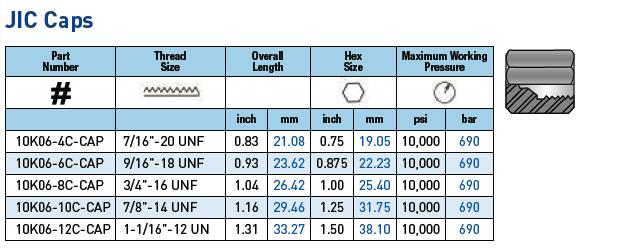

10K06-10C-CAP JIC 7/8" - 14 UNF
10K06-12C-CAP JIC 1-1/16" - 12 UNF
10K06-4C-CAP JIC 7/16" - 20 UNF
10K06-6C-CAP JIC 9/16" - 18 UNF
10K06-8C-CAP JIC 3/4" - 16 UNF

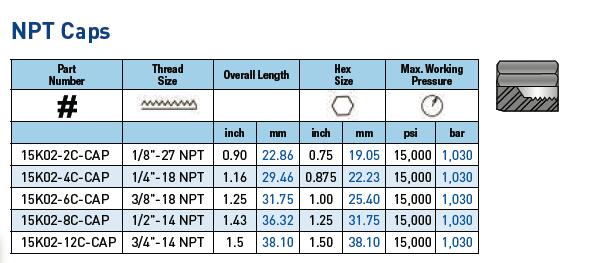

15K02-12C-CAP NPT 3/4" - 14 NPT
15K02-2C-CAP NPT 1/8" - 27 NPT
15K02-4C-CAP NPT 1/4" - 18 NPT
15K02-6C-CAP NPT 3/8" - 18 NPT
15K02-8C-CAP NPT 1/2" - 14 NPT

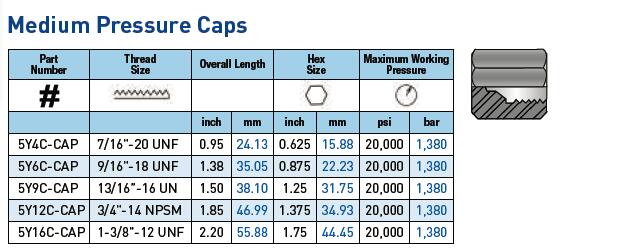

5Y12C-CAP Med. Pressure 3/4" - 14 NPSM
5Y16C-CAP Med. Pressure 1-3/8" - 12 UNF
5Y4C-CAP Med. Pressure 7/16" - 20 UNF
5Y6C-CAP Med. Pressure 9/16" - 18 UNF
5Y9C-CAP Med. Pressure 13/16" - 16 UNF

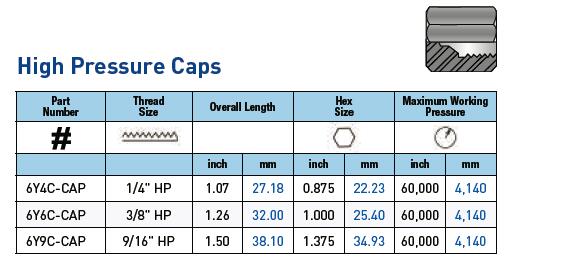

6Y4C-CAP High Pressure 1/4" H.P.
6Y6C-CAP High Pressure 3/8" H.P.
6Y9C-CAP High Pressure 9/16" H.P.

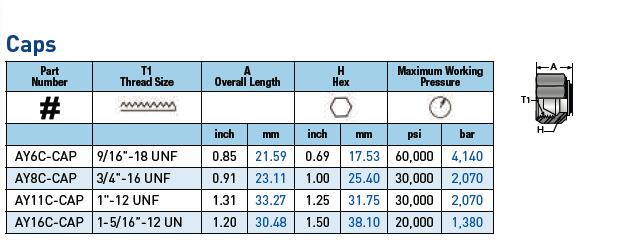

AY11C-CAP Type "M" 1" - 12 UNF
AY16C-CAP Type "M" 1-5/16" - 12 UNF
AY6C-CAP Type "M" 9/16" - 18 UNF
AY8C-CAP Type "M" 3/4" - 16 UNF
