High Pressure Fittings For HP/HP8 High Pressure Hose - HP Series

Note: This product is no longer available. Replacement series is HV Fittings that are used with HCR hose.





Note: This product is no longer available. Replacement series is HV Fittings that are used with HCR hose.

Parker HP high pressure fittings are designed to perfectly match Parker HP/HP8 High Pressure hoses, providing long service life and highest safety standards.



High Pressure Fittings For HP/HP8 High Pressure Hose - HP Series



Markets:
- Oil & Gas - Offshore and Oilfield

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times

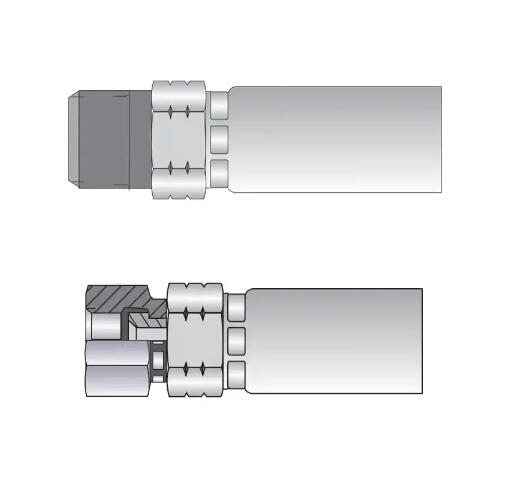

- NPT Male or JIC 37° Female Flare

Applications:
- Hydraulic
- High pressure tools
- Rigging jacks
- Test apparatus
- Oilfield pressure control devices

Technical Specifications:
- Working pressure is dependent on the lowest rated component
If fittings have a lower pressure rating than the hose, the working pressure of the fittings is the working pressure of the assembly



Technical Specifications

Hose I.D. (size): -3, -4, -6
Hose Inside Diameter: 3/16, 1/4, 3/8 inch, 4.8, 6.4, 9.5 mm
Connection Type: Crimped, NPT Male, JIC 37° Female Flare
Length: varies, varies mm
Shape: Straight
Maximum Operating Pressure: 69, 103 MPa, 690, 1030 bar
Application: Oilfield, Construction



High Pressure Fittings For HP/HP8 High Pressure Hose - HP Series 型号

Part Maximum Working Pressure (psi) Hose I.D. (DN) Connection Thread Size (inch) Material
101HP-2-3 15,000 5 1/8" - 27 Carbon steel, zinc-plated
101HP-2-4 15,000 6 1/8" - 27 Carbon steel, zinc-plated
101HP-4-3 15,000 5 1/4" - 18 Carbon steel, zinc-plated
101HP-4-4 15,000 6 1/4" - 18 Carbon steel, zinc-plated
101HP-4-6 15,000 10 1/4" - 18 Carbon steel, zinc-plated
101HP-6-3 15,000 5 3/8" - 18 Carbon steel, zinc-plated
101HP-6-4 15,000 6 3/8" - 18 Carbon steel, zinc-plated
101HP-6-4C 15,000 6 3/8" - 18 Stainless steel
101HP-6-6 15,000 10 3/8" - 18 Carbon steel, zinc-plated
101HP-8-6 15,000 10 1/2" - 18 Carbon steel, zinc-plated
106HP-4-3 10,000 5 7/16" - 20 Carbon steel, zinc-plated
106HP-4-4 10,000 6 7/16" - 20 Carbon steel, zinc-plated
106HP-4-4C 10,000 6 7/16" - 20 Stainless steel
106HP-6-4 10,000 6 9/16" - 18 Carbon steel, zinc-plated
106HP-6-6 10,000 10 9/16" - 18 Carbon steel, zinc-plated
106HP-6-6C 10,000 10 9/16" - 18 Stainless steel
106HP-8-6C 10,000 10 3/4" - 16 Stainless steel
