Hose Fittings
High Pressure Gland Nuts
High pressure gland nuts are designed to be used with Polyflex fittings.
![](pic/Hose%20Fittings_80.jpg)
High pressure gland nuts are designed to be used with Polyflex fittings.
Markets:
? Hydraulics
? Industrial
? Oil & Gas
Markets:
? Hydraulics
? Industrial
? Oil & Gas
Markets:
- Hydraulics
- Industrial
- Oil & Gas
![](pic/Hose%20Fittings_81.jpg)
![](pic/Hose%20Fittings_82.jpg)

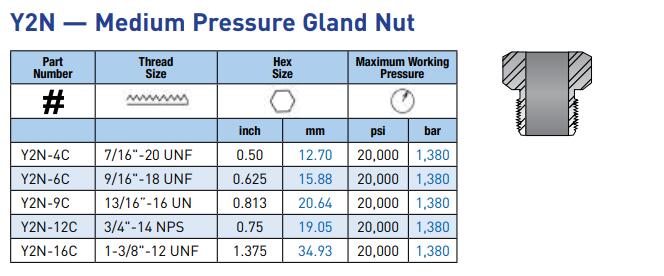

Technical Specifications
Connection Thread Size: |
7/16 (20 UNF), 9/16 (18 UNF), 13/16 (16 UNF), 3/4 (14 NPS), 1-3/8 (12 UNF), 3/4 (16 UNF), 1-1/8 (12 UNF) inch |
Shape: |
Straight |
Application: |
Oilfield, Marine |
Connection Type: |
Field-Attachable |
Hose Inside Diameter: |
1/4, 3/8, 9/16, 3/4, 1 inch, 6, 10, 14, 19, 25 mm |
Maximum Operating Pressure: |
4140 bar, 414 MPa, 60,000 psi, 20000, 60000 psi, 138, 414 MPa |
Hex Size: |
0.5, 0.625, 0.813, 0.75, 1.375, 1.188, 0.63, 0.68, 1.68 inch, 12.7, 15.88, 20.64, 19.05, 34.93, 15.89, 30.16, 16, 17.27, 42.67 mm |
Materials of Construction: |
Stainless Steel |
High Pressure Gland Nuts 型号
|
