Parker派克SMU-1 系列UHP PTFE 在线静态混合器（最大 1 英寸）

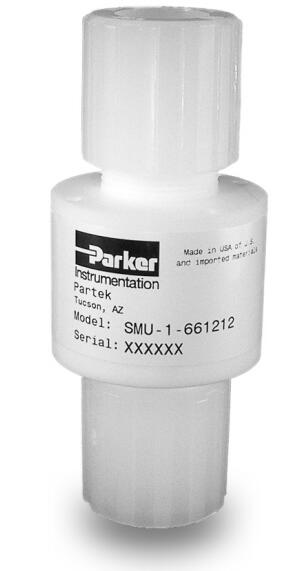

SMU-1 Series UHP PTFE Inline Static Mixer (up to 1 inch)
Parker Fittings接头 Tube Fittings

SMU-1 系列在线静态混合器专为 UHP 半导体流体、去离子水、腐蚀性化学品和 CMP 浆料介质应用而设计。其独特的混合技术改善了混合并确保快速、一致地混合工艺液体。SMU-1 系列是一种含氟聚合物 (PTFE) 在线静态混合器，设计用于超高纯度 (UHP) 半导体流体、去离子水、腐蚀性化学品和 CMP 浆料介质应用。它采用新开发的、正在申请专利的混合技术，可提高径向混合效率和一致性，并确保快速方便地混合工艺液体。SMU-1 系列组件完全由超纯和惰性 PTFE 材料制成，为混合器提供高循环寿命、极强的耐腐蚀性以及与各种腐蚀性工艺介质的兼容性。混合器本身非常紧凑，可以直接集成到定制的歧管中，从而减少死体积区域和高效的内部流动路径，以实现最佳混合。与其许多前代产品的 12 至 18 英寸尺寸相比，SMU-1 系列的占地面积更小，可在 OEM 系统中节省空间并允许在狭小区域内使用。总体而言，创新设计使混合器能够实现与四到五倍于其尺寸的产品相媲美的混合/混合性能。 SMU-1 系列没有活动部件，可最大限度地减少故障的可能性并延长产品寿命。它有 1/4、3/8、1/2、3/4 和 1 英寸端口尺寸和 Parflare 接头。这些配件减少了组装和安装时间，同时确保了在清洁度至关重要的应用中的密封性能。在线静态混合器的流量范围为 0.10 至 4.09 Cv。

UHP PTFE Inline Static Mixer (up to 1 inch) – SMU-1 Series

The SMU-1 Series Inline Static Mixer is designed for UHP semiconductor fluid, DI water, aggressive chemical, and CMP slurry media applications. Its unique mixing technology improves blending and ensures quick and consistent mixing of process liquids. The SMU-1 Series is a fluoropolymer (PTFE) inline static mixer that's designed for use in ultra-high purity (UHP) semiconductor fluid, DI water, aggressive chemical, and CMP slurry media applications. It utilizes a newly developed, patent-pending mixing technology that improves radial mixing efficiency and consistency, and ensures quick and convenient blending of process liquids.

SMU-1 Series components are fabricated entirely from ultra-pure and inert PTFE material, which afford the mixer high cycle life, extreme resistance to corrosion, and compatibility with a wide range of aggressive process media. The mixer itself is highly compact and can be integrated directly into custom manifolds, thus allowing for less dead volume areas and highly efficient internal flow paths for optimal mixing. Compared to many of its predecessors' 12 to 18 inch dimensions, the SMU-1 Series has a smaller footprint, offering space savings in OEM systems and enabling use in tight areas. Overall, the innovative design enables the mixer to achieve blending/mixing performance comparable to that of products four to five times its size. The SMU-1 Series has no moving parts, which minimizes the likelihood of failure and extends product life. It is available in 1/4, 3/8, 1/2, 3/4, and 1 inch port sizes with Parflare fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical. Flow capacities of the inline static mixer range from 0.10 to 4.09 Cv.

市场：
- 半导体
- 分析实验室
- 制药
- 生物制药
- 航空航天
- 工业

特性/优势：
- 提供 1/4、3/8、1/2、3/4 和 1 英寸端口尺寸
- 正在申请专利的混合技术提高了径向混合效率和一致性，可快速方便地混合工艺液体
- 与 12 英寸和 18 英寸竞争混合技术相比，整体尺寸紧凑，占地面积更小
- 100% 超高纯度 PTFE 结构材料提供一种具有耐化学性的纯净惰性材料
- 无活动部件可减少故障模式并延长产品寿命
- 功能齐全，压力
范围为 0 至 120 psig - 工作温度范围取决于尺寸

应用：
- 腐蚀性和特殊化学品、酸、碱和浆料
- 半导体工具连接
- 湿工作台
- 混合系统

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Available in 1/4, 3/8, 1/2, 3/4, and 1 inch port sizes
- Patent-pending mixing technology improves radial mixing efficiency and consistency for quick and convenient blending of process liquids
- Compact overall size and reduced footprint when compared to 12 inch and 18 inch competitive mixing technologies
- 100% ultra-high purity PTFE materials of construction provides a pure and inert material that is chemically resistant
- No moving parts yields fewer modes of failure and extended product life
- Fully functional from 0 to 120 psig
- Operating temperature range depends on size

Applications:
- Corrosive and specialty chemicals, acids, bases, and slurries
- Semiconductor tools hook-ups
- Wet benches
- Blending systems

Technical Specifications

UHP PTFE Inline Static Mixer (up to 1 inch) – SMU-1 Series 型号
