日本工业标准 JIS 过渡接头 Japanese Industrial Standard (JIS) Adapters
Parker 接头 - Parker Adapters

派克日本工业标准(JIS)过渡接头满足特定市场的OEM以及接头替换的需求,主要是为日本以及韩国设计生产的设备上的软管接头提供过渡连接。派克日本工业标准(JIS)过渡接头符合特定市场的OEM以及接头替换的需求,主要是为日本以及韩国设计或生产的设备上的软管接头提供过渡连接。JIS 接头符合JIS B2351以及B8363标准要求。

Parker's Japanese Industrial Standard (JIS) adapters address market requirements for OEM and replacement fittings used as hose adapters on equipment designed and/or manufactured in Japan and Korea. Parker's Japanese Industrial Standard (JIS) adapters address market requirements for OEM and replacement fittings used as hose adapters on equipment designed and/or manufactured in Japan and Korea. JIS adapters meet JIS B2351 and B8363 standards.

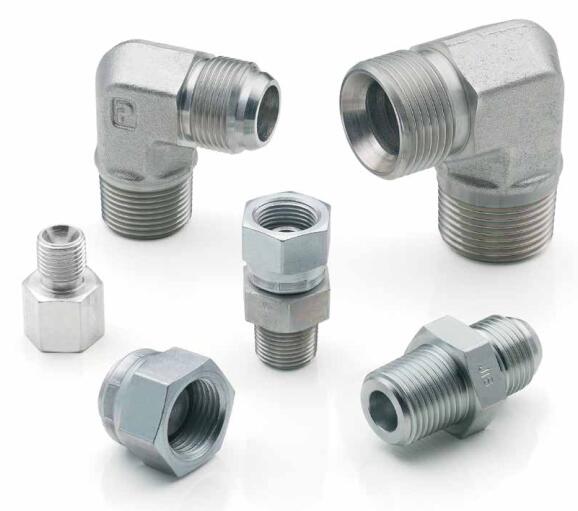

Japanese Industrial Standard (JIS) Adapters


市场:
- 建筑机械
- 工程机械

特征/优势:
- 接头油口螺纹有BSPP以及BSPT可选,与软管接头过渡连接有两种形式:T4,30°锥BSPP螺纹, P4, 60° 锥BSPP螺纹。
- T4, 30°锥BSPP螺纹,以及P4, 60°锥螺纹, 配合派克常用的软管接头系列:UT, GU, G1, G2以及FU,为客户提供了灵活的连接选择。
- 供货范围:?”至 1”,碳钢,工作压力可达5000psi。

应用:
- 液压连接


Markets:
- Construction
- Mobile Equipment

Features/Benefits:
- Designed with BSPP and BSPT port ends and two styles of hose ends: T4, 30° flare BSPP threads, and P4, 60° cone BSPP threads.
- The T4, 30° flare BSPP threads, and P4, 60° cone BSPP threads, interfaces provide end user flexibility of connecting to the most common Parker hose ends available: series UT, GU, G1, G2 and FU.
- Available in steel in sizes ?” through 1” with working pressures up to 5000 psi.

Applications:
- Hydraulic fluid handling connections



Technical Specifications

Maximum Operating Pressure: 5000 (Dynamic Pressure) psi, 34 (Dynamic Pressure) MPa, 345 (Dynamic Pressure) bar
Connection Type: Flare
Materials of Construction: Steel, Zinc Plated
Application: Various
Shape: 45°, 90°, and Straight
Fitting Type: Hose Adapter
Specifications Met: JIS B8363

Japanese Industrial Standard (JIS) Adapters型号

Part Shape Connection 1 Style Connection 1 Thread Size (inch) Connection 2 Style Connection 2 Thread Size (inch)
12C3P4S 90° Elbow Male 60° Cone BSPP 3/4-14 Male BSPT 3/4-14
12C3T4S 90° Elbow Male 30° Flare BSPP 3/4-14 Male BSPT 3/4-14
12F3P4S Straight Male 60° Cone BSPP 3/4-14 Male BSPT 3/4-14
12F3T4S Straight Male 30° Flare BSPP 3/4-14 Male BSPT 3/4-14
12F63P4S Straight Female 60° Cone BSPP Swivel 3/4-14 Male BSPT 3/4-14
12FNMP4S Cap Female 60° Cone BSPP 3/4-14 na na
12FNMT4S Cap Female 30° Flare BSPP 3/4-14 na na
12G3P4S Straight Male 60° Cone BSPP 3/4-14 Female BSPT 3/4-14
12G63P4S Straight Female 60° Cone BSPP Swivel 3/4-14 Female BSPT 3/4-14
12HP46S Straight Female 60° Cone BSPP Swivel 3/4-14 Female 60° Cone BSPP Swivel 3/4-14
12HP4S Straight Male 60° Cone BSPP 3/4-14 Male 60° Cone BSPP 3/4-14
12P47OMNS Plug Male BSPP O-ring Seal 3/4-14 na na
12PNMP4S Plug Male 60° Cone BSPP 3/4-14 na na
12PNMT4S Plug Male 30° Flare BSPP 3/4-14 na na
12V3P4S 45° Elbow Male 60° Cone BSPP 3/4-14 Male BSPT 3/4-14
12V3T4S 45° Elbow Male 30° Flare BSPP 3/4-14 Male BSPT 3/4-14
16C3P4S 90° Elbow Male 60° Cone BSPP 1-11 Male BSPT 1-11
16C3T4S 90° Elbow Male 30° Flare BSPP 1-11 Male BSPT 1-11
16F3P4S Straight Male 60° Cone BSPP 1-11 Male BSPT 1-11
16F3T4S Straight Male 30° Flare BSPP 1-11 Male BSPT 1-11
16F63P4S Straight Female 60° Cone BSPP Swivel 1-11 Male BSPT 1-11
16FNMP4S Cap Female 60° Cone BSPP 1-11 na na
16FNMT4S Cap Female 30° Flare BSPP 1-11 na na
16G3P4S Straight Male 60° Cone BSPP 1-11 Female BSPT 1-11
16G63P4S Straight Female 60° Cone BSPP Swivel 1-11 Female BSPT 1-11
16HP46S Straight Female 60° Cone BSPP Swivel 1-11 Female 60° Cone BSPP Swivel 1-11
16HP4S Straight Male 60° Cone BSPP 1-11 Male 60° Cone BSPP 1-11
16P47OMNS Plug Male BSPP O-ring Seal 1-11 na na
16PNMP4S Plug Male 60° Cone BSPP 1-11 na na
16PNMT4S Plug Male 30° Flare BSPP 1-11 na na
16V3P4S 45° Elbow Male 60° Cone BSPP 1-11 Male BSPT 1-11
16V3T4S 45° Elbow Male 30° Flare BSPP 1-11 Male BSPT 1-11
4-6F3T4S Straight Male 30° Flare BSPP 1/4-19 Male BSPT 3/8-19
4C3P4S 90° Elbow Male 60° Cone BSPP 1/4-19 Male BSPT 1/4-19
4C3T4S 90° Elbow Male 30° Flare BSPP 1/4-19 Male BSPT 1/4-19
4F3P4S Straight Male 60° Cone BSPP 1/4-19 Male BSPT 1/4-19
4F3T4S Straight Male 30° Flare BSPP 1/4-19 Male BSPT 1/4-19
4F63P4S Straight Female 60° Cone BSPP Swivel 1/4-19 Male BSPT 1/4-19
4FNMP4S Cap Female 60° Cone BSPP 1/4-19 na na
4FNMT4S Cap Female 30° Flare BSPP 1/4-19 na na
4G3P4S Straight Male 60° Cone BSPP 1/4-19 Female BSPT 1/4-19
4G63P4S Straight Female 60° Cone BSPP Swivel 1/4-19 Female BSPT 1/4-19
4HP46S Straight Female 60° Cone BSPP Swivel 1/4-19 Female 60° Cone BSPP Swivel 1/4-19
4HP4S Straight Male 60° Cone BSPP 1/4-19 Male 60° Cone BSPP 1/4-19
4P47OMNS Plug Male BSPP O-ring Seal 1/4-19 na na
4PNMP4S Plug Male 60° Cone BSPP 1/4-19 na na
4PNMT4S Plug Male 30° Flare BSPP 1/4-19 na na
4V3P4S 45° Elbow Male 60° Cone BSPP 1/4-19 Male BSPT 1/4-19
4V3T4S 45° Elbow Male 30° Flare BSPP 1/4-19 Male BSPT 1/4-19
6-4F3T4S Straight Male 30° Flare BSPP 3/8-19 Male BSPT 1/4-19
6C3P4S 90° Elbow Male 60° Cone BSPP 3/8-19 Male BSPT 3/8-19
6C3T4S 90° Elbow Male 30° Flare BSPP 3/8-19 Male BSPT 3/8-19
6F3P4S Straight Male 60° Cone BSPP 3/8-19 Male BSPT 3/8-19
6F3T4S Straight Male 30° Flare BSPP 3/8-19 Male BSPT 3/8-19
6F63P4S Straight Female 60° Cone BSPP Swivel 3/8-19 Male BSPT 3/8-19
6FNMP4S Cap Female 60° Cone BSPP 3/8-19 na na
6FNMT4S Cap Female 30° Flare BSPP 3/8-19 na na
6G3P4S Straight Male 60° Cone BSPP 3/8-19 Female BSPT 3/8-19
6G63P4S Straight Female 60° Cone BSPP Swivel 3/8-19 Female BSPT 3/8-19
6HP46S Straight Female 60° Cone BSPP Swivel 3/8-19 Female 60° Cone BSPP Swivel 3/8-19
6HP4S Straight Male 60° Cone BSPP 3/8-19 Male 60° Cone BSPP 3/8-19
6P47OMNS Plug Male BSPP O-ring Seal 3/8-19 na na
6PNMP4S Plug Male 60° Cone BSPP 3/8-19 na na
6PNMT4S Plug Male 30° Flare BSPP 3/8-19 na na
6V3P4S 45° Elbow Male 60° Cone BSPP 3/8-19 Male BSPT 3/8-19
6V3T4S 45° Elbow Male 30° Flare BSPP 3/8-19 Male BSPT 3/8-19
8-6F3T4S Straight Male 30° Flare BSPP 1/2-14 Male BSPT 3/8-19
8C3P4S 90° Elbow Male 60° Cone BSPP 1/2-14 Male BSPT 1/2-14
8C3T4S 90° Elbow Male 30° Flare BSPP 1/2-14 Male BSPT 1/2-14
8F3P4S Straight Male 60° Cone BSPP 1/2-14 Male BSPT 1/2-14
8F3T4S Straight Male 30° Flare BSPP 1/2-14 Male BSPT 1/2-14
8F63P4S Straight Female 60° Cone BSPP Swivel 1/2-14 Male BSPT 1/2-14
8FNMP4S Cap Female 60° Cone BSPP 1/2-14 na na
8FNMT4S Cap Female 30° Flare BSPP 1/2-14 na na
8G3P4S Straight Male 60° Cone BSPP 1/2-14 Female BSPT 1/2-14
8G63P4S Straight Female 60° Cone BSPP Swivel 1/2-14 Female BSPT 1/2-14
8HP46S Straight Female 60° Cone BSPP Swivel 1/2-14 Female 60° Cone BSPP Swivel 1/2-14
8HP4S Straight Male 60° Cone BSPP 1/2-14 Male 60° Cone BSPP 1/2-14
8P47OMNS Plug Male BSPP O-ring Seal 1/2-14 na na
8PNMP4S Plug Male 60° Cone BSPP 1/2-14 na na
8PNMT4S Plug Male 30° Flare BSPP 1/2-14 na na
8V3P4S 45° Elbow Male 60° Cone BSPP 1/2-14 Male BSPT 1/2-14
8V3T4S 45° Elbow Male 30° Flare BSPP 1/2-14 Male BSPT 1/2-14
