Parker Accessories for Push-In Fittings - LF 3000模块化快插接头
LF3000模块化气动快插接头

这些连接接头可在紧凑的空间内连接尽量多的管道。派克乐可利提供符合人体工程学的解决方案，以实现复杂的快速安装连接。这些接头可以在有限的空间内连接多个管路。派克乐可利提供了人体工程学解决方案，在复杂的安装场合实现管路的快速连接。

Parker Accessories for Push-In Fittings - LF 3000模块化快插接头
LF3000模块化气动快插接头

特点/优点：

- 面板安装
- 安装到机器或穿板式接头的面板
- 降低不正确安装的风险
- 可以实现串联式安装
- 使用加固的电镀金属并联管夹
- 串联
- 定位销可有效减少不正确的组装
- 保护盖引导管路并保护连接
- 部件为铝和工程塑料
- 可实现穿板式安装
- 根据要求可定制多管路接头
- DIN导轨
- 在电气接头旁边使用
- 压力指示
- 可以使用管夹并列固定到DIN导轨断面“[” 或“O”
- 用于管识别标签的通道或槽

市场：
- 工厂自动化
- 车辆装配设施
- 食物与饮料
- 半导体
- 服装
- 包装机械

应用：
- 气动机械设备
- 低压压缩空气输送
- 适用于真空应用

技术：
- 多管路接头
- 模块化快插式接头
- 多管路接头
- 快插接头
- 推动式连接接头
- 气动接头
- 即时接头
- 快速接头
- 连接件

技术特点：

- 流体：压缩空气，其他流体：请咨询我们
- 材料：工程聚合物, NBR
- 压力：真空至10bar
- 温度：-20°C至+ 80°C
- ? 公制：4mm 至 8 mm

法规：

- ISO 14743:气动流体动力，用于热塑管的快插接头
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- DI :1907/2006 (REACH)

产品类型：

- 模块化快插接头

Parker Legris has designed different accessories to improve safety and circuit identification. Those accessories are compatible with the LF 3000 Push-In Fittings , LIQUIfit ranges. Parker Legris has designed different accessories to protect operators and equipment, and prevent accidental disconnection of tubing. Colour-coding also allows for fluid circuit identification.

Features/Benefits:
- Safety
- Protection of operators and equipment
- Prevents accidental disconnection
- Disconnection only possible with tooling
- Resistance to grease and cleaning agents- Ergonomic
- Colour-coding for fluid circuit identification (6 colours)
- Setting and fixing of your circuits thanks to clips and release button covers
- Easy disconnection with tool where access is difficult
- Adapted to meet all installation configurations

Markets:
- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:
- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications

Technologies:
- Safety Accessories
- Safety Tools
- Circuit Identification
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:

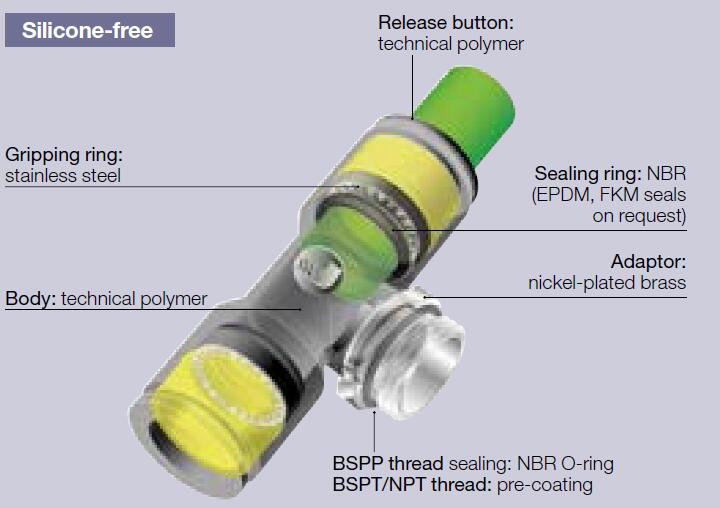

- Compatible ranges: LF 3000, LIQUIfit- Materials: Technical polymer, nickel-plated brass
- Pressure: Vacuum to 20 bar- Temperature: -20°C to +95°C
- ? Metric: 4mm to 14 mm

Product Types:

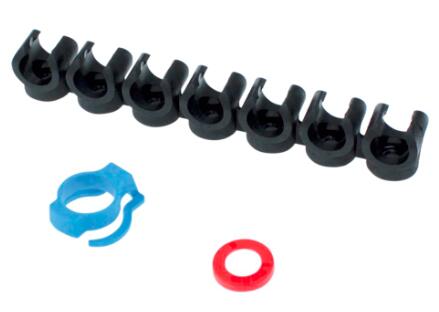

- Tamper-Proof Safety clips
- Clip Strip for Tubes and Fittings
- Disconnection Tool
- Coloured Release Button Covers
- Reducer
- Internal Hex plug

Technical Specifications

Accessories for Push-In Fittings - LF 3000 型号
