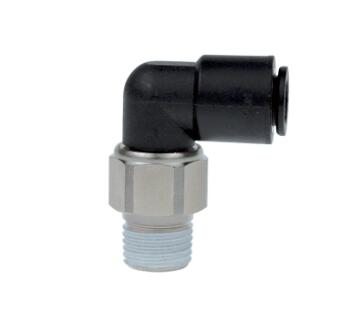

Pneumatic Self-Sealing and Oscillating Fittings - LF 3000

气动自密封和摆动配件- LF 3000 | #3091 04 10

Parker Legris 开发了两种创新的推入式接头，以集成各种功能并允许在气动回路上快速安装。Parker Legris 开发了两种创新的推入式接头，以集成各种功能并允许在气动回路上快速安装。Parker Legris has developed two innovative push-in fittings in order to integrate various functions and allow quick installation on pneumatic circuits. Parker Legris has developed two innovative push-in fittings in order to integrate various functions and allow quick installation on pneumatic circuits.

Pneumatic Self-Sealing and Oscillating Fittings - LF 3000

Features/Benefits:

特性/优点：

- 自密封接头

- 在没有连接管时防止流体流动
- 检查和维护时，回路可能保持加压
- 连接后，压缩空气流在两个方向上恢复

- 摆动接头

- 旋转与气缸匹配杆行程
- 防止因过度弯曲而导致管子磨损
- 最佳可靠性和耐用性
- 简化电路装配

市场：

- 工厂自动化
- 车辆装配设施
- 食品和饮料
- 半导体
- 服装
- 包装机械

应用：

- 气动机械设备
- 低压压缩空气输送
- 适用于真空应用

技术：

- 自密封接头
- 摆动接头
- 快插接头
- 按压连接接头
- 气动接头
- 即时接头
- 快速接头
- 连接器

技术特性：

- 流体：压缩空气，其他流体：请咨询我们
- 材料：技术聚合物、镀镍黄铜、NBR
- 压力：真空至 20 巴（10 巴：自密封接头）
- 温度：-20°C 至 +80°C
- 公制：4mm 至 12 mm

法规：

- ISO 14743：气动流体动力，用于热塑性管的推入式连接器
- DI：97/23/EC (PED)
- DI：2002/95/EC (RoHS)，2011/65/EC
- DI：1907/ 2006 (REACH)

产品类型：

- 自密封接头
- 摆动接头

- Self-Sealing Fittings

- Prevents fluid flow when there is no tube connected
- Circuits may remain pressurised when being checked and maintained
- When connected, the compressed air flow is restored in both directions

- Oscillating Fittings

- Rotation matched to cylinder rod stroke
- Prevents tube wear due to excessive flexing
- Optimum reliability and durability
- Simplifies circuit assembly

Markets:

- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications

Technologies:

- Self-Sealing Fittings
- Oscillating Fittings
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:

- Fluids: Compressed Air, Other fluids: please consult us
- Materials: Technical polymer, nickel-plated brass, NBR
- Pressure: Vacuum to 20 bar (10 bar: self-sealing fitting)
- Temperature: -20°C to +80°C
- ? Metric: 4mm to 12 mm

Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- DI : 1907/2006 (REACH)

Product Types:

- Self-Sealing Fittings
- Oscillating Fittings

Technical Specifications

技术规格
