LF 3200快插式接头(3 mm) | #3202 03 00

Parker Fittings接头 Pneumatic Fittings

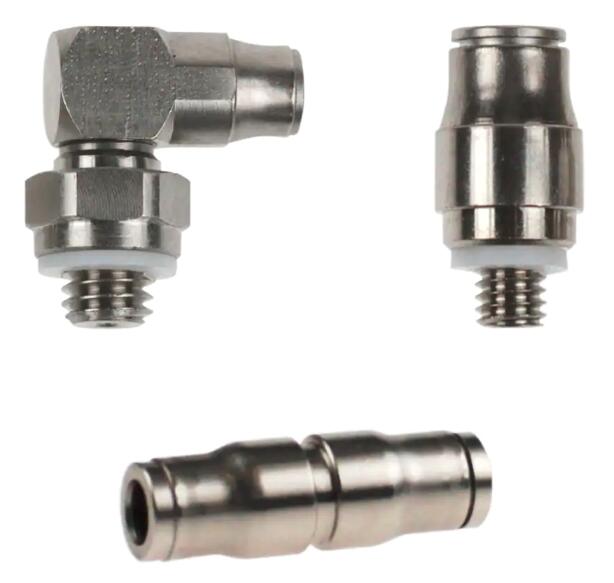

Mini Pneumatic Push-In Fittings (3mm) - LF 3200

微型气动回路是非常有效和敏感的系统，具有良好的运行能力。因此，为了达到机械稳定性和紧凑性的要求，派克乐可利开发了符合人体工程学的微型铜镀镍快插式接头系列。微型气动回路是非常精密和敏感的系统，具有特殊的运行特点。 因此，为了达到机械稳定性和紧凑性的要求，派克乐可利开发了符合人体工程学的微型铜镀镍快插式接头系列。

LF 3200快插式接头(3 mm) | #3202 03 00 Parker Fittings接头 Pneumatic Fittings
Mini Pneumatic Push-In Fittings (3mm) - LF 3200

特点/优点：

- 结构紧凑

- 比市场上其他品牌同类接头体积小25%，可符合更小执行元件的尺寸要求
- 更小的重量可达到更高的效率
- 减少能耗并降低执行元件的负载

- 坚固耐用，性能稳定

- 铜质部件具有优异的抗碰撞性能
- 带卡爪的夹爪系统提高了连接的稳定性和使用寿命
- 出色的耐高压性能

- 性能稳定

- 完整防泄露检测
- 质量和可追溯性的生产批次代码
- 高敏感应用场合的理想选择
- 具有耐腐蚀性能

市场：

- 工厂自动化
- 车辆装配设施
- 食品和饮料
- 半导体
- 服装
- 包装机械

应用：

- 气动机械设备
- 低压压缩空气输送
- 适用于真空应用

技术：

- 微型接头
- 快插接头
- 黄铜快插接头
- 推入式连接接头
- 气动接头
- 即时接头
- 快速接头
- 连接接头

技术特点：

- 流体：压缩空气，非腐蚀性液体
- 材料：化学镀镍黄铜，NBR
- 压力：真空至 20 bar
- 温度：-15°C 至 +80°C
- ? 公制：3mm

法规：

- ISO 14743:气动流体动力，用于热塑管的快插接头
- DI:94/9/EC (ATEX )
- DI:2002/95/EC (RoHS), 2011/65/EC
- RG:1907/2006 (REACH)

产品类型：

- 油口接头
- 管对管接头
- 管对管接头附件

Miniature pneumatic installations are very precise and sensitive systems, having specific operating characteristics.Consequently, Parker Legris has developed this ergonomic range of brass push-in fittings for its mechanical robustness and compactness. Miniature pneumatic installations are very precise and sensitive systems, having specific operating characteristics.
Consequently, Parker Legris has developed this ergonomic range of brass push-in fittings for its mechanical robustness and compactness.

Features/Benefits:

- Compact & Lightweight

- 25% smaller than other fittings on the market for optimum actuator dimensions
- Minimum weight for maximum efficiency
- Reduces energy consumption and limits actuator wear

- Resistance & Performance

- All brass components for excellent impact resistance
- Gripping system with collet for increased robustness and service life
- Excellent resistance to high operating pressures

- Reliability

- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Ideal for very sensitive applications
- Corrosion-resistant

Markets:

- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications


Technologies:

- Miniature Fittings
- Push-In Fittings
- Brass Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:

- Fluids: Compressed Air, Non-corrosive Fluids
- Materials: Chemical nickel-plated brass, NBR
- Pressure: Vacuum to 20 bar
- Temperature: -15°C to +80°C
- ? metric: 3mm

Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- DI: 94/9/EC (ATEX )
- DI: 2002/95/EC (RoHS), 2011/65/EC
- RG: 1907/2006 (REACH)

Product Types:

- Stud Fittings
- Tube-To-Tube Fittings
- Tube-To-Tube Accessories

Technical Specifications

Mini Pneumatic Push-In Fittings (3mm) - LF 3200 型号
