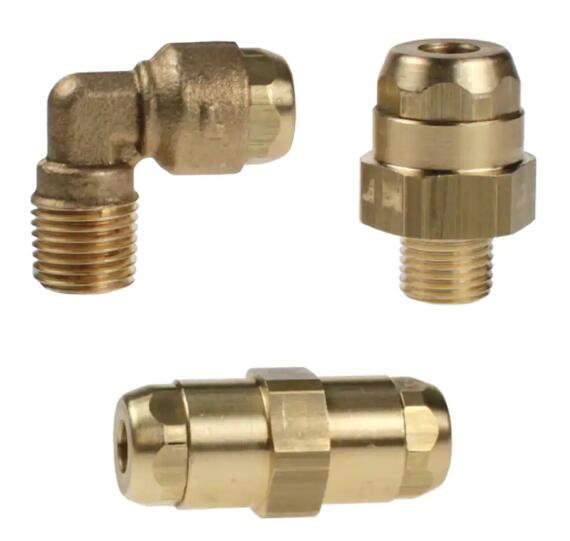

Brass Push-In Fittings for Lubrication and Vacuum Systems - LF 6100

用于润滑和真空系统的黄铜快插接头 - LF 6100 | # 6179 06 13

该配件系列专用于润滑和真空系统，结合了非常高的性能和手动连接。该技术即使在高压下也能确保连接和密封性能。This Fittings range dedicated to lubrication and vacuum systems, combines very high performance and manual connection. This technology secures the connection and sealing performance, even at high pressure. This Fittings range dedicated to lubrication and vacuum systems, combines very high performance and manual connection. This technology secures the connection and sealing performance, even at high pressure.

Brass Push-In Fittings for Lubrication and Vacuum Systems - LF 6100 Brass Push-In Fittings | #6179 06 13
用于润滑和真空系统的黄铜快插接头 - LF 6100 | # 6179 06 13

LF 6100 Brass Push-In Fittings特点/优点：

- 坚固

- 专为机械要求严苛的环境而设计
- 出色的耐压和耐温性
- 冲压黄铜锻件可延长使用寿命

- 安全可靠

- 三个环保证完美密封
- 两个密封 O 形环位于夹紧环之前密封区域不会刮伤管子
- 手动连接以节省时间
- 无流体损失
- 不使用扳手就无法断开管子
- 硬质聚合物管或带槽金属管最高 60 bar
- 在生产

市场中100% 泄漏测试：

- 机床
- 初级金属精炼和加工
- 其他制造
- 建筑设备
- 运输

应用：

- 工业流体在中压下输送
- 润滑
- 测量系统
- 适用于真空应用

技术：

- 黄铜接头
- 润滑接头- 快插
接头
- 推入式接头
- 气动接头
- 快速接头
- 快速接头
- 连接器

技术特性：

- 流体：润滑剂、压缩空气、真空、其他流体和兼容气体
- 材料：黄铜、NBR
- 压力：真空至 60 bar
- 温度：-20°C 至 +120°C
- ? 公制：4-10 mm

规定：

- DI：97/23/EC (PED)
- DI：2002/95/EC (RoHS)，2011/65/EC
- DI：94/9/EC (ATEX)
- RG：1907/2006 (REACH)

产品类型：

- 螺柱接头
- 螺柱弯头
- 等径三通
- 管对管连接器
- 铜垫圈

LF 6100 Brass Push-In Fittings技术规格

Fetaures/Benefits:

- Robust

- Designed for mechanically demanding environments
- Excellent pressure and temperature resistance
- Stamped brass forgings for increased service life

- Secure & Reliable

- Perfect sealing guaranteed by the three rings
- The two sealing O-rings positioned before the gripping ring endure no scratching on the tube in the sealing area
- Manual connection for time-saving
- No Fluid loss
- Tube cannot be disconnected without the use of a spanner
- Up to 60 bar with rigid polymer or grooved metal tubing
- 100% leak-tested in production

Markets:

- Machine Tools
- Primary Metal Refining & Processing
- Miscellaneous Manufacturing
- Construction Equipement
- Transportation

Applications:

- Industrial Fluids Conveying at Medium Pressure
- Lubrication
- Measurement Systems
- Suitable for Vacuum Applications

Technologies:

- Brass Fittings
- Lubrication Fittings
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:

- Fluids: Lubricants, Compressed Air, Vacuum, other fluids and compatible gases
- Materials: Brass, NBR
- Pressure: Vacuum to 60 bar
- Temperature: -20°C to +120°C
- ? metric: 4-10 mm

Regulations:

- DI: 97/23/EC (PED)
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 94/9/EC (ATEX )
- RG: 1907/2006 (REACH)

Product Types:

- Stud Fittings
- Stud Elbow
- Equal Tee
- Tube-to-Tube Connector
- Copper Washer

Technical Specifications

Brass Push-In Fittings for Lubrication and Vacuum Systems - LF 6100 型号
