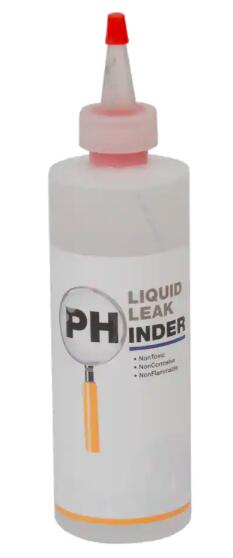

Liquid Leak Detector - PHinder Series

Parker's PHinder liquid leak detection provides the user the ability to easily find suspected leaks in industrial gas applications.





Parker's PHinder Series is a simple, liquid leak detection solution that provides the user the ability to easily find suspected leaks in industrial and instrumentation gas applications. Apply the leak detection solution to the tube/pipe fitting, valve or system connection and observe if bubbles form to demonstrate a leak's actual location. Avoid searching throughout the instrumentation system, and pinpoint the spot to fix.

Markets:
- Chemical
- Petrochemical
- Power
- Research
- Pulp and Paper
- General Industry


Features/Benefits:
- Easy to use 1 Gallon or 8 oz size w/tube
- Non-toxic, non-corrosive, and non-flammable
- Two formulas (27oF - 200oF or -20oF to 200oF)
- Excellent surface adhesion

Applications:
- Test Panels
- Process Line Inspection
- Installation Audits





Technical Specifications

Volume: 1, N/A gal, N/A, 8 oz
Quantity per Box: 4, 12
Minimum Operating Temperature: -33, -2.8 °C, -27, 27 °F
Maximum Operating Temperature: 93 °C, 200 °F



Liquid Leak Detector - PHinder Series 型号

Part Volume (Gallons) Volume (oz.) Box Quantity Minimum Working Temperature (C) Maximum Working Temperature (C)
PHINDER-8OZ-LOW-12CASE N/A 8 12 -33 93
PHINDER-8OZ-STD-12CASE N/A 8 12 -2.8 93
PHINDER-GAL-LOW-4CASE 1 N/A 4 -33 93
PHINDER-GAL-STD-4CASE 1 N/A 4 -2.8 93
