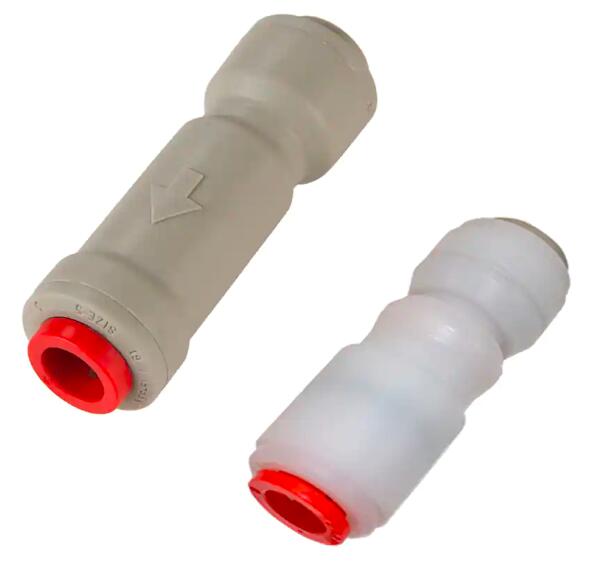

LIQUIfit聚合材料单向阀 - LIQUIfit单向阀 LIQUIfit Polymer Non-Return Valves
Pneumatic Fittings - Parker Fittings接头

LIQUIfit单向阀能满足饮料输送的要求。这些接头可以让流体单方向流动，反向截止。这些接头可以进行管式安装，能够对系统进行整体保护。LIQUIfit non-return valves meet the requirements for conveying beverages. They allow flow in one direction and prevent any return flow.
Fitted in the circuit, they provide total protection. LIQUIfit non-return valves meet the requirements for conveying beverages. They allow flow in one direction and prevent any return flow. Fitted in the circuit, they provide total protection.

Features/Benefits:
特征/优势：

-适用于食品饮料的应用

- 与水，食品以及液体状的食物（液体或者气体）能够适应兼容。
- 非常小的开启压力
- 优异的化学兼容性
- 耐清洗
- 光滑的表面，设计符合相关的卫生标准要求
- EPDM 密封技术

市场：

- 食品以及饮料
- 水

应用:

- 对软化水系统，水处理系统以及净化水系统起到回路保护的作用
- 对饮水分配器，热水以及冷水系统，起到回路保护的作用

技术：

- 符合食品以及饮料行业相关要求
- 单向阀技术
- 止回阀技术
- 功能接头
- 气动回路
- 气动接头

技术参数：

- 适用介质：水，饮料，液态事物
- 材料：EPDM,聚甲醛，工程塑料，不锈钢，不含硅
- 压力：真空至10 bar
- 温度：0°C 到 +65°C
- 开启压力：0.02 bar

符合规范：

- DI: 2002/95/EC (RoHS), 2011/65/EC
- FDA: 21 CFR 177.1550
- NSF 51 (允许的材料)
- NSF 61
- RG: 1907/2006 (REACH)

产品类型：

- 单向阀

- Suitable for Beverage Applications

- Fully compatible for use with water, beverages and liquid food-stuffs (liquids and gas)
- Very low cracking threshold
- Excellent chemical compatibility
- Resistant to cleaning products
- Hygienic design with smooth surfaces
- Fluid direction indicated
- EPDM sealing technology

Markets:

- Food and Beverage
- Water

Applications:

- Circuit Protection for Water Softeners, Water Treatment, Water Purification Systems
- Circuit Protection for Drinks Dispensers, Hot & Cold Water Systems

Technologies:

- Food and beverage
- Non-return valve
- Check valve
- Function fitting
- Pneumatic system
- Pneumatic fittings

Technical Characteristics:

- Fluids: Water, beverages, liquid foodstuffs
- Materials: EPDM, acetal, technical polymer, stainless steel, silicone-free
- Pressure: Vacuum to 10 bar
- Temperature: 0°C to +65°C
- Cracking pressure: 0.02 bar

Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- FDA: 21 CFR 177.1550
- NSF 51 (referenced material)
- NSF 61
- RG: 1907/2006 (REACH)

Product Types:

- Single Non-Return Valve

Technical Specifications

技术规格：

LIQUIfit Polymer Non-Return Valves 型号
