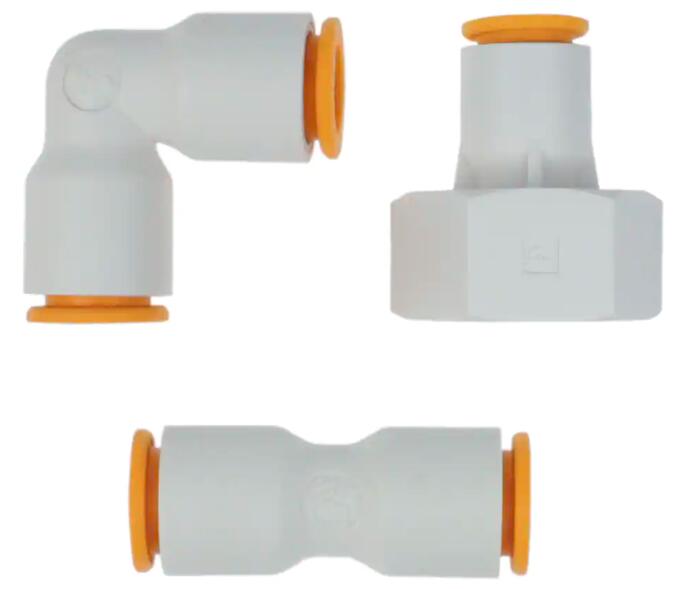

LIQUIfit+ Push-In Fittings for Sensitive Fluids
Parker Fittings接头 - Pneumatic Fittings



For the transfer of sensitive fluids, the LIQUIfit+ range reduces the growth of bacteria in your circuits for 100% cleanliness after cleaning, and can be directly connected to stainless steel tubing, without grooving. Designed for the transfer of sensitive fluids, the LIQUIfit+ range reduces the growth of bacteria in your circuits. By providing you with 100% cleanliness after cleaning, the LIQUIfit+ fittings helps reducing maintenance costs. Those fittings can be directly connected to 304 and 316L stainless steel tubing, without grooving.

Features/Benefits:

- Zero Retention for 100% Cleanliness

- Up to 10 times less microbial growth within the ?tting
- Elimination of 99.9% of bacteria during cleaning operations
- No degradation of the beverage taste
- Preservation of the integrity of sensitive or industrial ?uids
- Extension of the ?tting's life due to the absence of bacteria after cleaning

- Quality & Reliability

- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Quality approved for contact with food
- Excellent chemical resistance (chlorine, cleaning agents, UV...)
- Excellent long-term mechanical resistance
- Safety clip to avoid any untimely disconnection

- Innovative Technology

- Patented push-in connection, unique on stainless steel tubing (without preparation) and on polymer tubing
- Extremely compact
- 100% bio-based material
- Patented sealing technology (FR29461418)
- No tube movement after connection

Markets:

- Food and Beverage
- Medical
- Industrial Chemical Processing
- Pharmaceutical

Applications:

- Sensitive Fluids Conveying up to High Temperatures
- Brewing Systems
- Hot & Cold Drinks Dispensers
- Water Dispensers
- Water Purification Systems


Technologies:
- Push-In Connection and Disconnection
- Push-In Fittings
- Polymer Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:
- Fluids: Beer, Water, Beverages, Industrial Fluids
- Materials: Biopolymer, EPDM
- Pressure: Vacuum to 16 bar
- Temperature: -10°C to +95°C
- ? inch: 5-16" to 1/2"

Regulations:
- DI: 2002/95/EC (RoHS), 2011/65/EC
- RG: 1935/2004/EC
- FDA: 21 CFR
- NSF51
- NSF/ANSI 61 - C HOT

Product Types:
- Stud Fittings
- Equal Tube-To-Tube Connectors
- Unequal Tube-To-Tube Connectors
- Equal Elbow
- Unequal Elbow
- Equal Plug-In Elbow





Technical Specifications

Minimum Operating Temperature: -10 °C, 14 °F
Maximum Operating Pressure: 16 bar, 232 psi, 1,6 MPa
Maximum Operating Temperature: 95 °C, 203 °F
Tube Outside Diameter: 5/16 to 1/2 inch
Materials of Construction: Bio-based Polymer, Rubber
Application: Cooling, Food & Beverage, Vacuum
Specifications Met: DI: 2002/95/EC (RoHs), 2011/65/EC - RG: 1935/2004/EC - DI: 1907/2006 (REACH) - FDA: 21 CFR - NSF51 - NSF/ANSI 61 - C HOT - WRAS
Connection Type: Push-to-Connect, Push-to-Connect/Plug-in, Push-to-Connect/Thread, Thread/Plug-in, Plug-in/Barb
Shape: Straight, 90°, Tee, Y, Cross



LIQUIfit+ Push-In Fittings for Sensitive Fluids 型号

Part Shape Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 2 Tube O.D. (inch) Connection 3 Tube O.D. (inch)
6331 08 00WP3 Plug-in elbow 90° with tailpiece na na 5/16 5/16
6331 60 00WP3 Plug-in elbow 90° with tailpiece na na 3/8 3/8
6332 08 00WP3 Elbow 90° tube / tube na na 5/16 5/16
6332 08 60WP3 Elbow 90° tube / tube na na 5/16 3/8
6332 60 00WP3 Elbow 90° tube / tube na na 3/8 3/8
6332 60 62WP3 Elbow 90° tube / tube na na 3/8 1/2
6332 62 00WP3 Elbow 90° tube / tube na na 1/2 1/2
6333 60 21WP3 Female stud fitting thread BSPP G1/2 3/8 na
6333 60 23WP3 Female stud fitting thread BSPP G5/8 3/8 na
6336 08 00WP3 Tube / tube connector na na 5/16 5/16
6336 08 60WP3 Tube / tube connector na na 5/16 3/8
6336 08 62WP3 Tube / tube connector na na 5/16 1/2
6336 60 00WP3 Tube / tube connector na na 3/8 3/8
6336 60 62WP3 Tube / tube connector na na 3/8 1/2
6336 62 00WP3 Tube / tube connector na na 1/2 1/2
