Crimped Thermoplastic UHP Hose Fittings, LX Fitting Series

Parker High Pressure LX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hose types with working pressure from 90 up to 400 MPa.





Parker Polyflex High Pressure LX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.

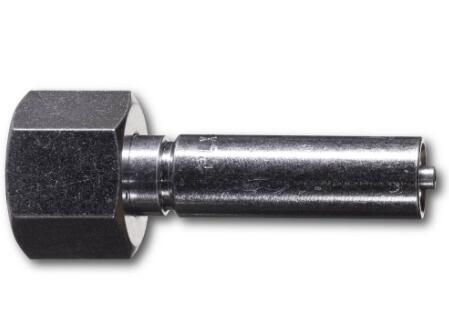

Crimped Thermoplastic UHP Hose Fittings, LX Fitting Series



Markets:
- Construction machinery
- Industrial
- Oil & Gas

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Ultra-high pressure service for construction and shipbuilding industry
- Industrial cleaning
- Media transfer (petroleum, synthetic hydaulic fluids, gas and chemical fluids)
- Suitable for hydraulic pre-tensioning equipment, test rigs, offshore oil applications
- Suitable for hose types with working pressure from 90 up to 400 MPa (13.050 up to 58.000 psi)



Crimped Thermoplastic UHP Hose Fittings, LX Fitting Series型号

Part Connection Thread Size (inch) Length (mm) Length (inch) Shape Style Material Hose I.D. (DN) Hose I.D. (inch) Thread Type Maximum Working Pressure (psi) Hose I.D. (size) Maximum Working Pressure (MPa) Hose I.D. (mm) Connection Thread Size (mm) Fitting Type
101LX-12-12 3/4 124 4.9 Straight National Pipe Tapered (NPT) male Special materials 20 3/4 NPT 10000 -12 69 19 NA 1
101LX-16-16 1 125 4.9 Straight National Pipe Tapered (NPT) male Special materials 25 1 NPT 10000 -16 69 25.4 NA 1
101LX-4-03 1/4 75 3 Straight National Pipe Tapered (NPT) male Special materials 5 3/16 NPT 15000 -3 103.4 4.8 NA 1
101LX-4-04 1/4 80 3.1 Straight National Pipe Tapered (NPT) male Special materials 6 1/4 NPT 15000 -4 103.4 6.4 NA 1
101LX-4-04C 1/4 80 3.1 Straight National Pipe Tapered (NPT) male Stainless Steel 6 1/4 NPT 15000 -4 103.4 6.4 NA 1
101LX-6-04 3/8 80 3.1 Straight National Pipe Tapered (NPT) male Special materials 6 1/4 NPT 15000 -4 103.4 6.4 NA 1
101LX-6-05 3/8 75 3 Straight National Pipe Tapered (NPT) male Special materials 8 5/16 NPT 15000 -5 103.4 7.9 NA 1
101LX-6-06 3/8 76 3 Straight National Pipe Tapered (NPT) male Special materials 10 3/8 NPT 15000 -6 103.4 9.5 NA 1
101LX-8-06 1/2 81 3.2 Straight National Pipe Tapered (NPT) male Special materials 10 3/8 NPT 15000 -6 103.4 9.5 NA 1
101LX-8-06C 1/2 81 3.2 Straight National Pipe Tapered (NPT) male Stainless Steel 10 3/8 NPT 15000 -6 103.4 9.5 NA 1
101LX-8-08 1/2 91 3.6 Straight National Pipe Tapered (NPT) male Special materials 12 1/2 NPT 15000 -8 103.4 12.7 NA 1
101LX-8-08C 1/2 91 3.6 Straight National Pipe Tapered (NPT) male Stainless Steel 12 1/2 NPT 15000 -8 103.4 12.7 NA 1
106LX-12-12C4462 1 1/16 - 12 95 3.7 Straight JIC female swivel fitting Stainless Steel NA NA UNF 5000 NA 34.5 NA NA 6
106LX-16-12C4462 1 5/16 - 12 99 3.9 Straight JIC female swivel fitting Stainless Steel NA NA UNF 10000 NA 69 NA NA 6
106LX-16-16C4462 1 5/16 - 12 77 3 Straight JIC female swivel fitting Stainless Steel NA NA UNF 5000 NA 34.5 NA NA 6
106LX-6-04C 9/16 - 18 66 2.6 Straight JIC female swivel fitting Stainless Steel NA NA UNF 15000 NA 103.5 NA NA 6
106LX-6-05C 9/16 - 18 66 2.6 Straight JIC female swivel fitting Stainless Steel NA NA UNF 10000 NA 69 NA NA 6
106LX-6-06C 9/16 - 18 62 2.4 Straight JIC female swivel fitting Stainless Steel NA NA UNF 10000 NA 69 NA NA 6
106LX-6-06C-M-Subsea 9/16 - 18 87 3.4 Straight JIC female swivel fitting Stainless Steel NA NA UNF 10000 NA 69 NA NA 6
106LX-8-06C 3/4 - 16 66 2.6 Straight JIC female swivel fitting Stainless Steel NA NA UNF 12500 NA 86.5 NA NA 6
106LX-8-06C-M-Subsea 3/4 - 16 87 3.4 Straight JIC female swivel fitting Stainless Steel NA NA UNF 10000 NA 69 NA NA 6
106LX-8-08C 3/4 - 16 94 3.7 Straight JIC female swivel fitting Stainless Steel NA NA UNF 10000 NA 69 NA NA 6
106LX-8-08C-M-Subsea 3/4 - 16 100 3.9 Straight JIC female swivel fitting Stainless Steel NA NA UNF 10000 NA 69 NA NA 6
18KLX-49-48-API17DSV-10K NA 455 17.9 Straight API fl ange, swivel Stainless Steel NA NA NA 10000 NA 69 NA NA 8K
18KLX-65-48-API17DSV-10K NA 482 19 Straight API fl ange, swivel Stainless Steel NA NA NA 10000 NA 69 NA NA 8K
192LX-12-08C 3/4 85 3.3 Straight BSP female swivel (60° cone) Stainless Steel 12 1/2 BSP 18.85 -8 130 12.7 NA 92
192LX-16-12 1 77 3 Straight BSP female swivel (60° cone) High strength carbon steel, zinc plated 20 3/4 BSP 14500 -12 100 19 NA 92
192LX-16-12C4462 1 77 3 Straight BSP female swivel (60° cone) Stainless Steel 20 3/4 BSP 14500 -12 100 19 NA 92
192LX-20-16 1/4 78 3.1 Straight BSP female swivel (60° cone) High strength carbon steel, zinc plated 25 1 BSP 13050 -16 90 25.4 NA 92
192LX-4-03 1/4 64 2.5 Straight BSP female swivel (60° cone) High strength carbon steel, zinc plated 5 3/16 BSP 26100 -3 180 4.8 NA 92
192LX-4-03C 1/4 64 2.5 Straight BSP female swivel (60° cone) Stainless Steel 5 3/16 BSP 26100 -3 180 4.8 NA 92
192LX-6-05 3/8 69 2.7 Straight BSP female swivel (60° cone) High strength carbon steel, zinc plated 8 5/16 BSP 21750 -5 150 7.9 NA 92
192LX-6-05C 3/8 69 2.7 Straight BSP female swivel (60° cone) Stainless Steel 8 5/16 BSP 21750 -5 150 7.9 NA 92
192LX-8-06 1/2 66 2.6 Straight BSP female swivel (60° cone) High strength carbon steel, zinc plated 10 3/8 BSP 20300 -6 140 9.5 NA 92
192LX-8-06C 1/2 66 2.6 Straight BSP female swivel (60° cone) Stainless Steel 10 3/8 BSP 20300 -6 140 9.5 NA 92
192LX-8-08 1/2 75 3 Straight BSP female swivel (60° cone) High strength carbon steel, zinc plated 12 1/2 BSP 18850 -8 130 12.7 NA 92
192LX-8-08C 1/2 75 3 Straight BSP female swivel (60° cone) Stainless Steel 12 1/2 BSP 18850 -8 130 12.7 NA 92
1AYLX-11-08 1 - 12 80 3.1 Straight Type ?M? female swivel High strength carbon steel, zinc plated, 12 1/2 UNF 18850 -8 130 12.7 NA AY
1AYLX-11-08C 1 - 12 80 3.1 Straight Type ?M? female swivel Stainless Steel 12 1/2 UNF 18850 -8 130 12.7 NA AY
1AYLX-16-12 1 5/16-12 82 3.2 Straight Type ?M? female swivel High strength carbon steel, zinc plated, 20 3/4 UNF 14500 -12 100 19 NA AY
1AYLX-6-025 9/16 - 18 64 2.5 Straight Type ?M? female swivel High strength carbon steel, zinc plated, 4 5/32 UNF 31900 -25 220 4 NA AY
1AYLX-6-03 9/16 - 18 66 2.6 Straight Type ?M? female swivel High strength carbon steel, zinc plated, 5 3/16 UNF 26100 -3 180 4.8 NA AY
1AYLX-6-03C 9/16 - 18 67 2.6 Straight Type ?M? female swivel Stainless Steel 5 3/16 UNF 26100 -3 180 4.8 NA AY
1AYLX-6-04C 9/16 - 18 61 2.4 Straight Type ?M? female swivel Stainless Steel 6 1/4 UNF 23780 -4 164 6.4 NA AY
1AYLX-8-05 3/4 - 16 74 2.9 Straight Type ?M? female swivel High strength carbon steel, zinc plated, 8 5/16 UNF 21750 -5 150 7.9 NA AY
1AYLX-8-05C 3/4 - 16 70 2.8 Straight Type ?M? female swivel Stainless Steel 8 5/16 UNF 21750 -5 150 7.9 NA AY
1AYLX-8-06 3/4 - 16 70 2.8 Straight Type ?M? female swivel High strength carbon steel, zinc plated, 10 3/8 UNF 20300 -6 140 9.5 NA AY
1AYLX-8-06C 3/4 - 16 70 2.8 Straight Type ?M? female swivel Stainless Steel 10 3/8 UNF 20300 -6 140 9.5 NA AY
1C3LX-8-025 NA 63 2.5 Straight Metric female swivel light series High strength carbon steel, zinc plated 4 5/32 Metric 31900 -25 220 4 14x1,5 C3
1C3LX-8-03 NA 64 2.5 Straight Metric female swivel light series High strength carbon steel, zinc plated 5 3/16 Metric 26100 -3 180 4.8 14x1.5 C3
1C3LX-8-03C NA 64 2.5 Straight Metric female swivel light series Stainless Steel 5 3/16 Metric 26100 -3 180 4.8 14x1.5 C3
1C3LX-8-04 NA 69 2.7 Straight Metric female swivel light series High strength carbon steel, zinc plated 6 1/4 Metric 23780 -4 164 6.4 14x1.5 C3
1C3LX-8-04C NA 69 2.7 Straight Metric female swivel light series Stainless Steel 6 1/4 Metric 23780 -4 164 6.4 14x1.5 C3
1C6LX-12-05 NA 78 3.1 Straight Metric female swivel heavy series High strength carbon steel, zinc plated 8 5/16 Metric 21750 -5 150 7.9 20x1.5 C6
1C9LX-10-04 NA 76 3 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 6 1/4 Metric 23780 -4 164 6.4 18x1.5 C9
1C9LX-12-06 NA 76 3 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 10 3/8 Metric 20300 -6 140 9.5 20x1.5 C9
1C9LX-14-05 NA 84 3.3 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 8 5/16 Metric 21750 -5 150 7.9 22x1.5 C9
1C9LX-14-06 NA 76 3 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 10 3/8 Metric 20300 -6 140 9.5 22x1.5 C9
1C9LX-14-06C NA 76 3 Straight Metric female swivel heavy series with O-ring Stainless Steel 10 3/8 Metric 20300 -6 140 9.5 22x1.5 C9
1C9LX-16-03 NA 80 3.1 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 5 3/16 Metric 26100 -3 180 4.8 24x1.5 C9
1C9LX-16-05 NA 84 3.3 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 8 5/16 Metric 21750 -5 150 7.9 24x1.5 C9
1C9LX-16-05C NA 84 3.3 Straight Metric female swivel heavy series with O-ring Stainless Steel 8 5/16 Metric 21750 -5 150 7.9 24x1.5 C9
1C9LX-16-06 NA 80 3.1 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 10 3/8 Metric 20300 -6 140 9.5 24x1.5 C9
1C9LX-16-06C NA 80 3.1 Straight Metric female swivel heavy series with O-ring Stainless Steel 10 3/8 Metric 20300 -6 140 9.5 24x1.5 C9
1C9LX-16-08 NA 88 3.5 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 12 1/2 Metric 18850 -8 130 12.7 24x1.5 C9
1C9LX-16-08C NA 88 3.5 Straight Metric female swivel heavy series with O-ring Stainless Steel 12 1/2 Metric 18850 -8 130 12.7 24x1.5 C9
1C9LX-25-12 NA 92 3.6 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 20 3/4 Metric 14500 -12 100 19 36x2 C9
1C9LX-25-12C4462 NA 92 3.6 Straight Metric female swivel heavy series with O-ring Stainless Steel 20 3/4 Metric 14500 -12 100 19 36x2 C9
1C9LX-30-16 NA 98 3.9 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 25 1 Metric 13050 -16 90 25.4 42x2 C9
1C9LX-30-16C4462 NA 102 4 Straight Metric swivel with O-ring Heavy series Stainless Steel NA NA Metric 13050 NA 90 NA 42 x 2 C9
1C9LX-8-025 NA 67 2.6 Straight Metric female swivel heavy series with O-ring High strength carbon steel, zinc plated 4 5/32 Metric 31900 -25 220 4 16x1.5 C9
1D9LX-4-025 1/4 73 2.9 Straight BSP male High strength carbon steel, zinc plated 4 5/32 BSP 31900 -25 220 4 NA D9
1D9LX-4-03 1/4 77 3 Straight BSP male High strength carbon steel, zinc plated 5 3/16 BSP 26100 -3 180 4.8 NA D9
1D9LX-4-04 1/4 80 3.1 Straight BSP male High strength carbon steel, zinc plated 6 1/4 BSP 23780 -4 164 6.4 NA D9
1D9LX-4-05 1/4 77 3 Straight BSP male High strength carbon steel, zinc plated 8 5/16 BSP 21750 -5 150 7.9 NA D9
1D9LX-4-06 1/4 76 3 Straight BSP male High strength carbon steel, zinc plated 10 3/8 BSP 20300 -6 140 9.5 NA D9
1HELX-48-48-FLAT 5 3/8 - 3 1/2 395 15.6 Straight 1502 Hammerlug union male Stainless Steel NA NA ACME 15000 NA 103.5 NA NA HE
1HNLX-48-48 5 3/8 - 3 1/2 405 15.9 Straight 1502 Hammerlug union female Stainless Steel NA NA ACME 15000 NA 103.5 NA NA HN
1MRLX-6-03 NA 92 3.6 Straight Metric female swivel 59° cone High strength carbon steel, zinc plated 5 3/16 Metric 26100 -3 180 4.8 12x1.5 MR
1MRLX-8-03 NA 66 2.6 Straight Metric female swivel 59° cone High strength carbon steel, zinc plated 5 3/16 Metric 26100 -3 180 4.8 14x1.5 MR
1Y2LX-12-08C 3/4 - 16 158 6.2 Straight Medium pressure tube nipple Stainless Steel 12 1/2 UNF - LH 20000 -8 137.9 12.7 NA Y2
1Y2LX-12-12C4462 3/4 - 16 160 6.3 Straight Medium pressure tube nipple Stainless Steel 20 3/4 UNF - LH 20000 -12 137.9 19 NA Y2
1Y2LX-16-16C4462 1 1/4 - 181 7.1 Straight Medium pressure tube nipple Stainless Steel NA NA UNF - LH 20000 NA 138 NA NA Y2
1Y2LX-3-04C 3/8 - 24 109 4.3 Straight Medium pressure tube nipple Stainless Steel 6 1/4 UNF - LH 20000 -4 137.9 6.4 NA Y2
1Y2LX-6-025 3/8 - 24 112 4.4 Straight Medium pressure tube nipple Special materials 4 5/32 UNF - LH 20000 -25 137.9 4 NA Y2
1Y2LX-6-03 3/8 - 24 118 4.6 Straight Medium pressure tube nipple Special materials 5 3/16 UNF - LH 20000 -3 137.9 4.8 NA Y2
1Y2LX-6-04 3/8 - 24 120 4.7 Straight Medium pressure tube nipple Special materials 6 1/4 UNF - LH 20000 -4 137.9 6.4 NA Y2
1Y2LX-6-04MINC625 3/8 - 24 131.5 5.2 Straight Medium pressure tube nipple Stainless Steel NA NA UNF - LH 20000 NA 138 NA NA Y2
1Y2LX-9-05 9/16 - 1 105 4.1 Straight Medium pressure tube nipple Special materials 8 5/16 UNF - LH 20000 -5 137.9 7.9 NA Y2
1Y2LX-9-06C 9/16 - 1 137 5.4 Straight Medium pressure tube nipple Stainless Steel 10 3/8 UNF - LH 20000 -6 137.9 9.5 NA Y2
1Y2LX-9-08 9/16 - 1 110 4.3 Straight Medium pressure tube nipple Special materials 12 1/2 UNF - LH 20000 -8 137.9 12.7 NA Y2
1Y4LX-4-02 1/4 - 28 63 2.5 Straight High pressure tube nipple UNF ? LH thread Stainless Steel NA NA UNF - LH 30000 NA 207 NA NA Y4
1Y9LX-4-03 1/4 72 2.8 Straight BSP male for USIT ring High strength carbon steel, zinc plated 5 3/16 BSP 26100 -3 180 4.8 NA Y9
1Y9LX-6-05 3/8 82 3.2 Straight BSP male for USIT ring High strength carbon steel, zinc plated 8 5/16 BSP 21750 -5 150 7.9 NA Y9
1YALX-1-025 1/4 - 28 87 3.4 Straight High pressure tube nipple UNF ? LH thread Special materials 4 5/32 UNF - LH 31900 -25 220 4 NA YA
1YALX-1-025C 1/4 - 28 87 3.4 Straight High pressure tube nipple UNF ? LH thread Stainless Steel 4 5/32 UNF - LH 31900 -25 220 4 NA YA
1YALX-1-03 1/4 - 28 92 3.6 Straight High pressure tube nipple UNF ? LH thread Special materials 5 3/16 UNF - LH 26100 -3 180 4.8 NA YA
1YALX-1-03C 1/4 - 28 92 3.6 Straight High pressure tube nipple UNF ? LH thread Stainless Steel 5 3/16 UNF - LH 26100 -3 180 4.8 NA YA
1YALX-3-03 3/8 - 24 99 3.9 Straight High pressure tube nipple UNF ? LH thread Special materials 5 3/16 UNF - LH 26100 -3 180 4.8 NA YA
1YALX-3-03C 3/8 - 24 99 3.9 Straight High pressure tube nipple UNF ? LH thread Stainless Steel 5 3/16 UNF - LH 26100 -3 180 4.8 NA YA
1YALX-3-04 3/8 - 24 102 4 Straight High pressure tube nipple UNF ? LH thread Special materials 6 1/4 UNF - LH 23780 -4 164 6.4 NA YA
1YALX-3-05C 3/8 - 24 103 4.1 Straight High pressure tube nipple UNF ? LH thread Stainless Steel 8 5/16 UNF - LH 21750 -5 150 7.9 NA YA
1YALX-6-03 9/16 - 18 108 4.3 Straight High pressure tube nipple UNF ? LH thread Special materials 5 3/16 UNF - LH 26100 -3 180 4.8 NA YA
1YALX-6-03C 9/16 - 18 108 4.3 Straight High pressure tube nipple UNF ? LH thread Stainless Steel 5 3/16 UNF - LH 26100 -3 180 4.8 NA YA
1YALX-6-04 9/16 - 18 112 4.4 Straight High pressure tube nipple UNF ? LH thread Special materials 6 1/4 UNF - LH 23780 -4 164 6.4 NA YA
1YALX-6-05 9/16 - 18 110 4.3 Straight High pressure tube nipple UNF ? LH thread Special materials 8 5/16 UNF - LH 21750 -5 150 7.9 NA YA
1YALX-6-05C 9/16 - 18 110 4.3 Straight High pressure tube nipple UNF ? LH thread Stainless Steel 8 5/16 UNF - LH 21750 -5 150 7.9 NA YA
692LX-16-16C 1/4 78 3.1 Straight BSP female swivel (60° cone) Stainless Steel 25 1 BSP 13050 -16 90 25.4 NA 92
6AYLX-6-2AC 9/16 - 18 64 2.5 Straight Type ?M? female swivel Stainless Steel 4 5/32 UNF 43645 -25 301 4 NA AY
6C9LX-30-16C NA 118 4.6 Straight Metric female swivel heavy series with O-ring Stainless Steel 25 1 Metric 13050 -16 90 25.4 42x2 C9
6Y4LX-4-2AC 1/4 - 28 75 3 Straight High pressure tube nipple UNF ? LH thread Stainless Steel 4 5/32 UNF - LH 58000 -25 400 4 NA Y4
6Y4LX-6-2AC 3/8 - 24 86 3.4 Straight High pressure tube nipple UNF ? LH thread Stainless Steel 4 5/32 UNF - LH 58000 -25 400 4 NA Y4
6YHLX-4-2AC-PL* 1/4 - 28 58 2.3 Straight UNF male nozzle nipple Stainless Steel 4 5/32 UNF 40600 -25 280 4 NA YH
6YHLX-4-2AC-PL-LH* 1/4 - 28 58 2.3 Straight UNF male nozzle nipple Stainless Steel 4 5/32 UNF - LH 40600 -25 280 4 NA YH
6YHLX-4-3C-PL* 1/4 - 28 62 2.4 Straight UNF male nozzle nipple Stainless Steel 5 3/16 UNF 40600 -3 280 4.8 NA YH
6YHLX-4-3C-PL-LH* 1/4 - 28 62 2.4 Straight UNF male nozzle nipple Stainless Steel 5 3/16 UNF - LH 40600 -3 280 4.8 NA YH
6YHLX-6-4C-PL* 3/8 - 24 66 2.6 Straight UNF male nozzle nipple Stainless Steel 6 1/4 UNF 36250 -4 250 6.4 NA YH
6YHLX-6-4C-PL-LH* 3/8 - 24 66 2.6 Straight UNF male nozzle nipple Stainless Steel 6 1/4 UNF - LH 36250 -4 250 6.4 NA YH
