Parker Fittings接头 - Pneumatic Fittings

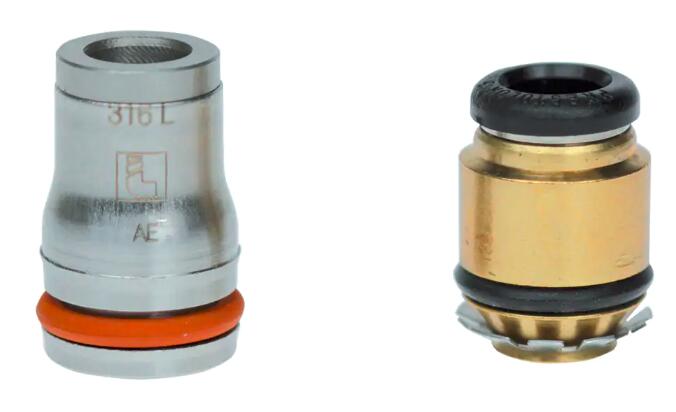

Metal Cartridges 金属埋入式接头

为了兼容多种流体和适应恶劣使用状况(+150?C)，派克乐可利开发了两类埋入式接头。使用我们的金属埋入式接头可以优化安装配置，对于FTL而言，接头还可以拆卸。为了兼容多种流体和适应恶劣使用状况(+150?C)，派克乐可利开发了两类埋入式接头。使用我们的金属埋入式接头可以优化安装配置，对于TL而言，接头还可以拆卸。

For full compatibility with many fluids and severe conditions, Parker Legris has developed two types of patented cartridges.Using our metal cartridges allows for optimisation of installation configurations and for the FTL, the possibility of removal. For full compatibility with many fluids and severe conditions (+150°C), Parker Legris has developed two types of patented cartridges. Using our metal cartridges allows for optimisation of installation configurations and for the FTL, the possibility of removal.

Features/Benefits:
特点/优点：

- LF埋入式接头 LF 3600 LF 3800 LF 3900

- LF 3600、LF 3800和LF 3900接头的优势都适用于埋入式接头技术
- 全金属产品提供理想的机械强度和耐化学性
- 耐高温性(+150?C)
- 可以安装到塑料或金属腔体

- TL埋入式接头

- 相同的腔体适用于多种管径的接头
- 可视化保持和密封系统，可以使用专用工具拆卸

市场：

- 工厂自动化
- 车辆装配设施
- 食物与饮料
- 半导体
- 包装机械
- 制冷

应用：

- 气动机械设备
- 低压压缩空气输送
- 适用于真空应用

技术：

- 耐化学性
- 机械强度
- 密封系统
- 金属埋入式接头
- 埋入式接头技术
- 金属埋入式接头

技术特点：
LF 埋入式接头
- 流体：压缩空气，油脂，润滑剂，水...
- 材质：镀镍黄铜，FKM，不锈钢303，不锈钢316L
- 压力：真空至30bar
- 温度：-20°C至+ 150°C
FTL埋入式接头
- 流体：压缩空气
- 材料：工程聚合物，黄铜，不锈钢，NBR
- 压力：真空至16bar
- 温度：-25°C至+ 80°C

法规：

LF埋入式接头
- DI:97/23/CE (PED)
- RG:21CFR (FDA)
- RG:1935/2004/CE (流量可小至 0.02 l/hr)
- DI:2011/65/CE (RoHS)
- USDA NSF H1: 润滑脂
- ASTM B733-04:自催化镍涂层
- DI:94/9/CE (ATEX)
FTL 埋入式接头
- DI:97/23/CE (PED)
- DI:2011/65/CE (RoHS)

产品类型：

- 一体式埋入接头
- 埋入式接头
- 断开工具

- LF Cartridges, LF 3600, LF 3800, LF 3900

- All the advantages of the LF 3600, LF 3800 and LF 3900 fittings applied to cartridge technology
- All-metal product to provide the greatest mechanical strength and chemical resistance
- Resistant at high temperatures (+150°C)
- Can be installed in either polymer or metal housings

- FTL Cartridge

- Possibility to have several tubing diameters in the same cavity
- Visible retention and sealing system, can be disassembled using the dedicated tool

Markets:

- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Packaging Machinery
- Refrigeration

Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vacuum Applications

Technologies:

- Chemical resistance
- Mechanical strength
- Sealing system
- Metal cartridge
- Cartridge technology
- Metal cartridges

Technical Characteristics:

LF Cartridges
- Fluids: Compressed Air, grease, lubricant, water ...
- Materials: Nickel-plated brass, FKM, stainless steel 303, stainless steel 316L
- Pressure: Vacuum to 30 bar
- Temperature: -20°C to +150°C
FTL Cartridge
- Fluids: Compressed Air
- Materials: Technical polymer, brass, stainless steel, NBR
- Pressure: Vacuum to 16 bar
- Temperature: -25°C to +80°C

Regulations:

LF Cartridges
- DI: 97/23/CE (PED)
- RG: 21CFR (FDA)
- RG: 1935/2004/CE (minimum flow 0.02 l/hr)
- DI: 2011/65/CE (RoHS)
- USDA NSF H1: grease
- ASTM B733-04: self-catalytic nickel coating
- DI: 94/9/CE (ATEX)
FTL Cartridge
- DI: 97/23/CE (PED)
- DI: 2011/65/CE (RoHS)

Product Types:

- One-Piece Cartridge
- Cartridge
- Disconnection Tool

Technical Specifications
技术规格：

Metal Cartridges 型号
