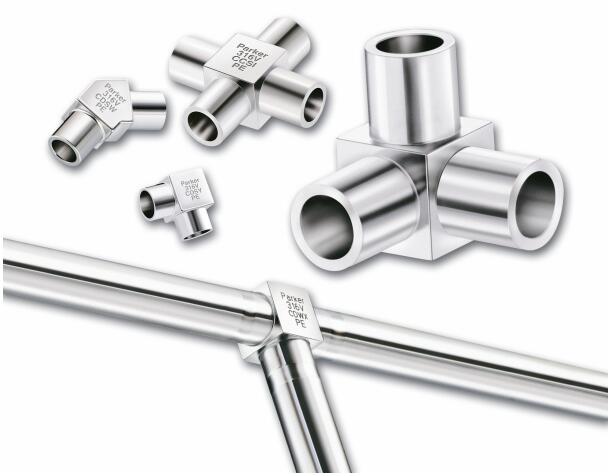

MiniButtweld Ultra-High Purity Tube Buttweld Fitting
MiniButtweld 超纯净微型焊接接头



MiniButtweld 微型焊接接头的加工和表面强化处理防止泄漏,抑制腐蚀,并能安装轨道TIG（钨/惰性气体）焊接设备.优化使用轨道焊接系统,设计用于超高压管道系统. 作为仪器仪表流体控制系统技术的行业先行者，派克汉尼汾Veriflo工厂的MiniButtweld? 微型焊接接头是为超高纯度应用而设计的，这些行业严格要求焊接管道系统的性能和稳定性。微型焊接接头的加工和表面强化处理以免泄漏，抑制腐蚀，并能够安装轨道TIG（钨/惰性气体）焊接设备。因此，MiniButtweld? 微型焊接接头是快速焊接、简便地制造气体分配系统的理想选择。


MiniButtweld微型焊接接头的尺寸范围从1/8英寸到1/2英寸可选，并可在各种结构本体配置中选择用于任何场景（直通接头、三通接头、90°弯通接头、四通接头）。它们是用Veriflo的Vericlean 316L不锈钢经过内部电抛光表面光洁度加工5微米英寸Ra的100级洁净室中清洗和制造的，它们提供具有高耐腐蚀性和高清洁度的MiniButtweld?接头，超过了严格的半切削加工要求的要求。


MiniButtweld 微型焊接接头的尺寸的孔直径匹配，从而有效大幅减少湍流、死区和颗粒包封的风险。创建平滑、防腐蚀的流道实现气体分配系统的理想性能。



MiniButtweld Ultra-High Purity Tube Buttweld Fitting MiniButtweld 超纯净微型焊接接头



市场应用：

- 半导体生产
- 半导体设备集成工厂
- 分析实验室
- 药物分析，生产
- 生物危害
- 航空航天
- 工业生产



典型应用：

- 腐蚀性和特殊性气体
- 半导体实验室气体分配系统
- 半导体设备
- 半导体设备二次配管
- 气体控制柜
- 阀门分配箱系统（VMB）
- 油管系统



特点/优势：

- 表面增强工艺，以免泄漏，抑制腐蚀，并允许与轨道焊接系统一起使用
- 平滑过渡到内径，更小截流区域
- 用Veriflo的Vericlean? 低硫316L不锈钢在洁净室中清洗和制造的
- 高度紧凑的设计允许在紧密空间中弯曲和连接。
- 5 Ra内部电抛光表面光洁度
- 热代码标记；可追溯到原装机检验证书
- 各种结构本体配置可选择


Markets:
- Semiconductor
- Tool Fab
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Applications:
- Corrosive and specialty gases
- Semiconductor Fab Gas Distribution Systems
- Semiconductor Tools
- Tool Hook-ups
- Gas Cabinets
- Valve Manifold Boxes (VMB)
- Tubing Systems

Features/Benefits:
- Unique surface enhancement that prevents outgassing, inhibits corrosion, and allows for use with orbital welding systems
- Smooth transition into the internal diameter minimizes entrapment areas
- Fabricated in Class 100 cleanroom from low sulfur Vericlean 316L stainless steel
- Highly compact design allows for bending and coupling in tight spaces
- 5 Ra internal electropolish surface finish
- Permanently heat code marked; traceable to original mill certificate of test
- Available in a variety of body configurations



Technical Specifications

Configuration: Straights, Elbows, Tribows, Tees, Crosses, reducers, adapters
Body Material: 316L VIM/VAR Stainless Steel
Connection Size: 1/8 to 1/2 in., 6mm
Operating Temperature: up to 482 °F / 250 °C
Pressure Rating: up to 8,500 / 580 bar



MiniButtweld Ultra-High Purity Tube Buttweld Fitting 型号

Part Configuration Body Material Connection Size (inch) Connection Size (mm) Connection 2 Size (inch) Connection 2 Size (mm) Connection 3 Size (inch) Connection 3 Size (mm) Connection 4 Size (inch)
2 MKM-SSV .028 Union Cross 316L VIM/VAR 1/8 in. NA 1/8 in. NA 1/8 in. NA 1/8 in.
2 MKM-SSV .028-PE Union Cross 316L VIM/VAR 1/8 in. NA 1/8 in. NA 1/8 in. NA 1/8 in.
2-2 MEM-SSV .028 90° Union Elbow 316L VIM/VAR 1/8 in. NA 1/8 in. NA NA NA NA
2-2 MEM-SSV .028-PE 90° Union Elbow 316L VIM/VAR 1/8 in. NA 1/8 in. NA NA NA NA
2-2-2 MJM-SSV .028 Union Tee 316L VIM/VAR 1/8 in. NA 1/8 in. NA 1/8 in. NA NA
2-2-2 MJM-SSV .028-PE Union Tee 316L VIM/VAR 1/8 in. NA 1/8 in. NA 1/8 in. NA NA
4 MKM-SSV .035 Union Cross 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA 1/4 in.
4 MKM-SSV .035-PE Union Cross 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA 1/4 in.
4-2 MHM-SSV .035 .028 Reducing Union 316L VIM/VAR 1/4 in. NA 1/8 in. NA NA NA NA
4-2 MHM-SSV .035 .028-PE Reducing Union 316L VIM/VAR 1/4 in. NA 1/8 in. NA NA NA NA
4-4 M1EM1-SSV .035 Extended Leg 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 M1EM1-SSV .035-PE Extended Leg 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 M2EM2-SSV .035 Extended Leg 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 M2EM2-SSV .035-PE Extended Leg 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 MEM-SSV .035 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 MEM-SSV .035-PE 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 MEM1-SSV .035 Extended Leg 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 MEM1-SSV .035-PE Extended Leg 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 MEM2-SSV .035 Extended Leg 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 MEM2-SSV .035-PE Extended Leg 90° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 MVM-SSV .035 45° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4 MVM-SSV .035-PE 45° Union Elbow 316L VIM/VAR 1/4 in. NA 1/4 in. NA NA NA NA
4-4-4 M3JM-SSV .035 Extended Leg Union Tee 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA NA
4-4-4 M3JM-SSV .035-PE Extended Leg Union Tee 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA NA
4-4-4 MJM-SSV .035 Union Tee 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA NA
4-4-4 MJM-SSV .035-PE Union Tee 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA NA
4-4-4 MJM1-SSV .035 Extended Leg Union Tee 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA NA
4-4-4 MJM1-SSV .035-PE Extended Leg Union Tee 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA NA
4-4-4 MOJM-SSV .035 Union Tribow 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA NA
4-4-4 MOJM-SSV .035-PE Union Tribow 316L VIM/VAR 1/4 in. NA 1/4 in. NA 1/4 in. NA NA
6 MKM-SSV .035 Union Cross 316L VIM/VAR 3/8 in. NA 3/8 in. NA 3/8 in. NA 3/8 in.
6 MKM-SSV .035-PE Union Cross 316L VIM/VAR 3/8 in. NA 3/8 in. NA 3/8 in. NA 3/8 in.
6-4 MEM-SSV .035 Reducing Elbow 316L VIM/VAR 3/8 in. NA 1/4 in. NA NA NA NA
6-4 MEM-SSV .035-PE Reducing Elbow 316L VIM/VAR 3/8 in. NA 1/4 in. NA NA NA NA
6-4 MHM-SSV .035 Reducing Union 316L VIM/VAR 3/8 in. NA 1/4 in. NA NA NA NA
6-4 MHM-SSV .035-PE Reducing Union 316L VIM/VAR 3/8 in. NA 1/4 in. NA NA NA NA
6-6 MEM-SSV .035 90° Union Elbow 316L VIM/VAR 3/8 in. NA 3/8 in. NA NA NA NA
6-6 MEM-SSV .035-PE 90° Union Elbow 316L VIM/VAR 3/8 in. NA 3/8 in. NA NA NA NA
6-6 MVM-SSV .035 45° Union Elbow 316L VIM/VAR 3/8 in. NA 3/8 in. NA NA NA NA
6-6 MVM-SSV .035-PE 45° Union Elbow 316L VIM/VAR 3/8 in. NA 3/8 in. NA NA NA NA
6-6-4 MJM-SSV .035 Reducing Tee 316L VIM/VAR 3/8 in. NA 3/8 in. NA 1/4 in. NA NA
6-6-4 MJM-SSV .035-PE Reducing Tee 316L VIM/VAR 3/8 in. NA 3/8 in. NA 1/4 in. NA NA
6-6-6 MJM-SSV .035 Union Tee 316L VIM/VAR 3/8 in. NA 3/8 in. NA 3/8 in. NA NA
6-6-6 MJM-SSV .035-PE Union Tee 316L VIM/VAR 3/8 in. NA 3/8 in. NA 3/8 in. NA NA
6-6-6 MOJM-SSV .035 Union Tribow 316L VIM/VAR 3/8 in. NA 3/8 in. NA 3/8 in. NA NA
6-6-6 MOJM-SSV .035-PE Union Tribow 316L VIM/VAR 3/8 in. NA 3/8 in. NA 3/8 in. NA NA
6M MKM-SSV .028 Union Cross 316L VIM/VAR NA 6mm NA 6mm NA 6mm NA
6M MKM-SSV .028-PE Union Cross 316L VIM/VAR NA 6mm NA 6mm NA 6mm NA
6M-6M-6M MJM-SSV Union Tee 316L VIM/VAR NA 6mm NA 6mm NA 6mm NA
6M-6M-6M MJM-SSV-PE Union Tee 316L VIM/VAR NA 6mm NA 6mm NA 6mm NA
6M-6M-MEM-SSV 90° Union Elbow 316L VIM/VAR NA 6mm NA 6mm NA NA NA
6M-6M-MEM-SSV-PE 90° Union Elbow 316L VIM/VAR NA 6mm NA 6mm NA NA NA
8 MKM-SSV .049 Union Cross 316L VIM/VAR 1/2 in. NA 1/2 in. NA 1/2 in. NA 1/2 in.
8 MKM-SSV .049-PE Union Cross 316L VIM/VAR 1/2 in. NA 1/2 in. NA 1/2 in. NA 1/2 in.
8-4 MEM-SSV .049 .035 Reducing Elbow 316L VIM/VAR 1/2 in. NA 1/4 in. NA NA NA NA
8-4 MEM-SSV .049 .035-PE Reducing Elbow 316L VIM/VAR 1/2 in. NA 1/4 in. NA NA NA NA
8-4 MHM-SSV .049 .035 Reducing Union 316L VIM/VAR 1/2 in. NA 1/4 in. NA NA NA NA
8-4 MHM-SSV .049 .035-PE Reducing Union 316L VIM/VAR 1/2 in. NA 1/4 in. NA NA NA NA
8-6 MEM-SSV .049 .035 Reducing Elbow 316L VIM/VAR 1/2 in. NA 3/8 in. NA NA NA NA
8-6 MEM-SSV .049 .035-PE Reducing Elbow 316L VIM/VAR 1/2 in. NA 3/8 in. NA NA NA NA
8-6 MHM-SSV .049 .035 Reducing Union 316L VIM/VAR 1/2 in. NA 3/8 in. NA NA NA NA
8-6 MHM-SSV .049 .035-PE Reducing Union 316L VIM/VAR 1/2 in. NA 3/8 in. NA NA NA NA
8-8 MEM-SSV .049 90° Union Elbow 316L VIM/VAR 1/2 in. NA 1/2 in. NA NA NA NA
8-8 MEM-SSV .049-PE 90° Union Elbow 316L VIM/VAR 1/2 in. NA 1/2 in. NA NA NA NA
8-8 MVM-SSV .049 45° Union Elbow 316L VIM/VAR 1/2 in. NA 1/2 in. NA NA NA NA
8-8 MVM-SSV .049-PE 45° Union Elbow 316L VIM/VAR 1/2 in. NA 1/2 in. NA NA NA NA
8-8-4 MJM-SSV049049035 Reducing Tee 316L VIM/VAR 1/2 in. NA 1/2 in. NA 1/4 in. NA NA
8-8-4 MJM-SSV049049035-PE Reducing Tee 316L VIM/VAR 1/2 in. NA 1/2 in. NA 1/4 in. NA NA
8-8-6 MJM-SSV049049035 Reducing Tee 316L VIM/VAR 1/2 in. NA 1/2 in. NA 3/8 in. NA NA
8-8-6 MJM-SSV049049035-PE Reducing Tee 316L VIM/VAR 1/2 in. NA 1/2 in. NA 3/8 in. NA NA
8-8-8 MJM-SSV .049 Union Tee 316L VIM/VAR 1/2 in. NA 1/2 in. NA 1/2 in. NA NA
8-8-8 MJM-SSV .049-PE Union Tee 316L VIM/VAR 1/2 in. NA 1/2 in. NA 1/2 in. NA NA
8-8-8 MOJM-SSV .049 Union Tribow 316L VIM/VAR 1/2 in. NA 1/2 in. NA 1/2 in. NA NA
8-8-8 MOJM-SSV .049-PE Union Tribow 316L VIM/VAR 1/2 in. NA 1/2 in. NA 1/2 in. NA NA
