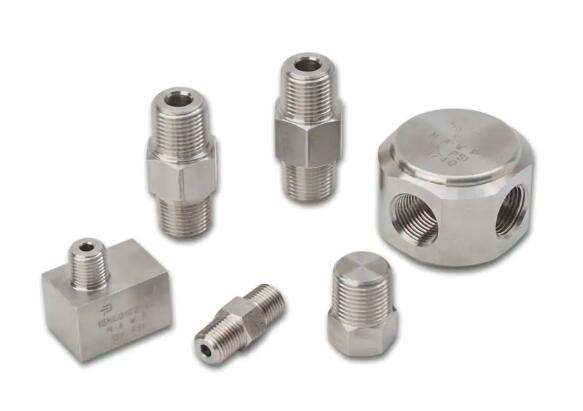

NPT Adapters

Parker's stainless steel NPT adapters have working pressure ratings from 10,000 psi to 15,000 psi, depending on size.





Parker offers a broad range of stainless steel NPT adapters rated from 10,000 psi (1/8" to 1/2" sizes) to 15,000 psi (3/4" and 1" sizes). These adapters are versitile and used in a variety of markets/applications.



NPT Adapters



Features/Benefits:
- Compact size - suitable selection for plumbing in limited or tight space in a compact system
- Highly versitile for end customers and for customer standardization efforts

Typical Markets:
- Waterblast
- Hydraulics
- Oil & Gas



Technical Specifications

Shape: Straight, Cap or Plug
Connection 1 Size: NPT Male or Female, Medium Pressure Male or Female, High Pressure Male or Female, Type "M" Male
Connection 2 Size: NPT Male or Female, Medium Pressure Male, High Pressure Male, JIC Male, BSP Male
Connection 1 Thread Size: 1/16 - 27 NPT to 1 - 11-1/2 NPT,
7/16" - 20 UNF to 1-3/8" - 12 UNF,
3/4" - 14 NPSM, 1" - 14 UNS LH inch
Connection 2 Thread Size: 1/16 - 27 NPT to 1 - 11-1/2 NPT,
7/16 - 20 UNF to 1-5/16 - 12 UNF,
3/4 - 14 NPSM, 1 - 14 UNS LH,
G 3/8 - 19 to G 1/2 - 14 inch
Materials of Construction: Stainless Steel
Overall Length: 0.68 to 4.37 inch, 0.68 to 4.37 mm
Hex Size: 0.375 to 2.75 inch, 9.525 to 69.85 mm
Maximum Operating Pressure: 7,000 to 15,000 psi, 48 to 103 MPa
Width: 1.68, 1.89, 2.15, 2.88, 1.85, 3.83, 1.7, 1.9, 2.70, 3.63, 1.60, 1.80, 2.05, n/a inch, 42.67, 48.01, 54.61, 73.15, 46.99, 97.28, 43.18, 48.26, 68.58, 92.20, 40.64, 45.72, 52.07, n/a mm
Height: 1.68, 1.89, 2.15, 2.88, 1.85, 3.83, 1.7, 1.9, 2.7, 3.63, 1.6, 1.8, 2.05, n/a inch, 42.67, 48.01, 54.61, 73.15, 46.99, 97.28, 43.18, 48.26, 68.58, 92.20, 40.64, 45.72, 52.07, n/a mm



NPT Adapters型号

Part Shape Connection 1 Style Connection 1 Thread Size (inch) Connection 2 Style Connection 2 Thread Size (inch)
01D9-4-6C Straight NPT Male 1/4 - 18 NPT BSP Male G 3/8 - 19
01D9-6-6C Straight NPT Male 3/8 - 18 NPT BSP Male G 3/8 - 19
01D9-8-6C Straight NPT Male 1/2 - 14 NPT BSP Male G 3/8 - 19
01D9-8-8C Straight NPT Male 1/2 - 14 NPT BSP Male G 1/2 - 14
02D9-8-8C Straight NPT Female 1/2 - 14 NPT BSP Male G 1/2 - 14
02Y5-1-9C Straight NPT Female 1/16 - 27 NPT Medium Pressure Male 13/16 - 16 UNF
02Y5-12-12C Straight NPT Female 3/4 - 14 NPT Medium Pressure Male 3/4 - 14 NPSM
02Y5-12-16C Straight NPT Female 3/4 - 14 NPT Medium Pressure Male 1 - 14 UNS LH
02Y5-12-4C Straight NPT Female 3/4 - 14 NPT Medium Pressure Male 7/16 - 20 UNF
02Y5-12-6C Straight NPT Female 3/4 - 14 NPT Medium Pressure Male 9/16 - 18 UNF
02Y5-12-9C Straight NPT Female 3/4 - 14 NPT Medium Pressure Male 13/16 - 16 UNF
02Y5-16-12C Straight NPT Female 1-3/8 - 12 UNF Medium Pressure Male 3/4 - 14 NPSM
02Y5-16-16C Straight NPT Female 1-3/8 - 12 UNF Medium Pressure Male 1 - 14 UNS LH
02Y5-16-6C Straight NPT Female 1-3/8 - 12 UNF Medium Pressure Male 9/16 - 18 UNF
02Y5-16-9C Straight NPT Female 1-3/8 - 12 UNF Medium Pressure Male 13/16 - 16 UNF
02Y5-2-12C Straight NPT Female 1/8 - 27 NPT Medium Pressure Male 3/4 - 14 NPSM
02Y5-2-16C Straight NPT Female 1/8 - 27 NPT Medium Pressure Male 1 - 14 UNF LH
02Y5-2-4C Straight NPT Female 1/8 - 27 NPT Medium Pressure Male 7/16 - 20 UNF
02Y5-2-6C Straight NPT Female 1/8 - 27 NPT Medium Pressure Male 9/16 - 18 UNF
02Y5-2-9C Straight NPT Female 1/8 - 27 NPT Medium Pressure Male 13/16 - 16 UNF
02Y5-4-12C Straight NPT Female 1/4 - 18 NPT Medium Pressure Male 3/4 - 14 NPSM
02Y5-4-16C Straight NPT Female 1/4 - 18 NPT Medium Pressure Male 1 - 14 UNS LH
02Y5-4-4C Straight NPT Female 1/4 - 18 NPT Medium Pressure Male 7/16 - 20 UNF
02Y5-4-6C Straight NPT Female 1/4 - 18 NPT Medium Pressure Male 9/16 - 18 UNF
02Y5-4-9C Straight NPT Female 1/4 - 18 NPT Medium Pressure Male 13/16 - 16 UNF
02Y5-6-12C Straight NPT Female 3/8 - 18 NPT Medium Pressure Male 3/4 - 14 NPSM
02Y5-6-16C Straight NPT Female 3/8 - 18 NPT Medium Pressure Male 1 - 14 UNS LH
02Y5-6-4C Straight NPT Female 3/8 - 18 NPT Medium Pressure Male 7/16 - 20 UNF
02Y5-6-6C Straight NPT Female 3/8 - 18 NPT Medium Pressure Male 9/16 - 18 UNF
02Y5-6-9C Straight NPT Female 3/8 - 18 NPT Medium Pressure Male 13/16 - 16 UNF
02Y5-8-12C Straight NPT Female 1/2 - 14 NPT Medium Pressure Male 3/4 - 14 NPSM
02Y5-8-16C Straight NPT Female 1/2 - 14 NPT Medium Pressure Male 1 - 14 UNS LH
02Y5-8-4C Straight NPT Female 1/2 - 14 NPT Medium Pressure Male 7/16 - 20 UNF
02Y5-8-6C Straight NPT Female 1/2 - 14 NPT Medium Pressure Male 9/16 - 18 UNF
02Y5-8-9C Straight NPT Female 1/2 - 14 NPT Medium Pressure Male 13/16 - 16 UNF
02Y6-1-6C Straight NPT Female 1/16 - 27 NPT High Pressure Male 3/4 - 16 UNF
02Y6-12-6C Straight NPT Female 3/4 - 14 NPT High Pressure Male 3/4 - 16 UNF
02Y6-12-9C Straight NPT Female 3/4 - 14 NPT High Pressure Male 1-1/8 - 12 UNF
02Y6-16-9C Straight NPT Female 1 - 11-1/2 NPT High Pressure Male 1-1/8 - 12 UNF
02Y6-2-4C Straight NPT Female 1/8 - 27 NPT High Pressure Male 9/16 - 18 UNF
02Y6-2-6C Straight NPT Female 1/8 - 27 NPT High Pressure Male 3/4 - 16 UNF
02Y6-2-9C Straight NPT Female 1/8 - 27 NPT High Pressure Male 1-1/8 - 12 UNF
02Y6-4-4C Straight NPT Female 1/4 - 18 NPT High Pressure Male 9/16 - 18 UNF
02Y6-4-6C Straight NPT Female 1/4 - 18 NPT High Pressure Male 3/4 - 16 UNF
02Y6-4-9C Straight NPT Female 1/4 - 18 NPT High Pressure Male 1-1/8 - 12 UNF
02Y6-6-4C Straight NPT Female 3/8 - 18 NPT High Pressure Male 9/16 - 18 UNF
02Y6-6-6C Straight NPT Female 3/8 - 18 NPT High Pressure Male 3/4 - 16 UNF
02Y6-6-9C Straight NPT Female 3/8 - 18 NPT High Pressure Male 1-1/8 - 12 UNF
02Y6-8-4C Straight NPT Female 1/2 - 14 NPT High Pressure Male 9/16 - 18 UNF
02Y6-8-6C Straight NPT Female 1/2 - 14 NPT High Pressure Male 3/4 - 16 UNF
02Y6-8-9C Straight NPT Female 1/2 - 14 NPT High Pressure Male 1-1/8 - 12 UNF
10K0101-12-12C Straight NPT Male 3/4 - 14 NPT NPT Male 3/4 - 14 NPT
10K0101-12-4C Straight NPT Male 3/4 - 14 NPT NPT Male 1/4 - 18 NPT
10K0101-12-6C Straight NPT Male 3/4 - 14 NPT NPT Male 3/8 - 18 NPT
10K0101-16-12C Straight NPT Male 1 - 11-1/2 NPT NPT Male 3/4 - 14 NPT
10K0101-16-16C Straight NPT Male 1 - 11-1/2 NPT NPT Male 1 - 11-1/2 NPT
10K0101-16-4C Straight NPT Male 1 - 11-1/2 NPT NPT Male 1/4 - 18 NPT
10K0101-16-6C Straight NPT Male 1 - 11-1/2 NPT NPT Male 3/8 - 18 NPT
10K0201-12-12C Straight NPT Male 3/4 - 14 NPT NPT Female 3/4 - 14 NPT
10K0201-12-16C Straight NPT Male 3/4 - 14 NPT NPT Female 1 - 11-1/2 NPT
10K0201-12-6C Straight NPT Male 3/4 - 14 NPT NPT Female 3/8 - 18 NPT
10K0201-16-6C Straight NPT Male 1 - 11-1/2 NPT NPT Female 3/8 - 18 NPT
10K0201-16-8C Straight NPT Male 1 - 11-1/2 NPT NPT Female 1/2 - 14 NPT
10K0201-4-12C Straight NPT Male 1/4 - 18 NPT NPT Female 3/4 - 14 NPT
10K0201-6-12C Straight NPT Male 3/8 - 18 NPT NPT Female 3/4 - 14 NPT
10K0201-6-16C Straight NPT Male 3/8 - 18 NPT NPT Female 1 - 11-1/2 NPT
10K0202-12-12C Straight NPT Female 3/4 - 14 NPT NPT Female 3/4 - 14 NPT
10K0202-12-16C Straight NPT Female 3/4 - 14 NPT NPT Female 1 - 11-1/2 NPT
10K0202-12-4C Straight NPT Female 3/4 - 14 NPT NPT Female 1/4 - 18 NPT
10K0202-12-6C Straight NPT Female 3/4 - 14 NPT NPT Female 3/8 - 18 NPT
10K0202-16-16C Straight NPT Female 1 - 11-1/2 NPT NPT Female 1 - 11-1/2 NPT
10K0203-16-16C Straight NPT Female 1 - 11-1/2 NPT JIC Male 1-5/16 - 12 UNF
10K0203-4-6C Straight NPT Female 1/4 - 18 NPT JIC Male 9/16 - 18 UNF
10K0203-4-8C Straight NPT Female 1/4 - 18 NPT JIC Male 3/4 - 16 UNF
10K0203-6-4C Straight NPT Female 3/8 - 18 NPT JIC Male 7/16 - 20 UNF
10K0203-6-6C Straight NPT Female 3/8 - 18 NPT JIC Male 9/16 - 18 UNF
10K0203-6-8C Straight NPT Female 3/8 - 18 NPT JIC Male 3/4 - 16 UNF
10K0203-8-4C Straight NPT Female 1/2 - 14 NPT JIC Male 7/16 - 20 UNF
10K0203-8-6C Straight NPT Female 1/2 - 14 NPT JIC Male 9/16 - 18 UNF
10K0203-8-8C Straight NPT Female 1/2 - 14 NPT JIC Male 3/4 - 16 UNF
10KL02-12C 90 D. Elbow NPT 3/4 - 14 NPT NPT n/a
10KL02-16C 90 D. Elbow NPT 1 - 11-1/2 NPT NPT n/a
10KT02-12C Tee NPT 3/4 - 14 NPT NPT n/a
10KT02-16C Tee NPT 1 - 11-1/2 NPT NPT n/a
10KX02-12C Cross NPT 3/4 - 14 NPT NPT n/a
10KX02-16C Cross NPT 1 - 11-1/2 NPT NPT n/a
15K0101-1-1C Straight NPT Male 1/16 - 27 NPT NPT Male 1/16 - 27 NPT
15K0101-2-1C Straight NPT Male 1/8 - 27 NPT NPT Male 1/16 - 27 NPT
15K0101-2-2C Straight NPT Male 1/8 - 27 NPT NPT Male 1/8 - 27 NPT
15K0101-2-4C Straight NPT Male 1/8 - 27 NPT NPT Male 1/4 - 18 NPT
15K0101-4-4C Straight NPT Male 1/4 - 18 NPT NPT Male 1/4 - 18 NPT
15K0101-6-6C Straight NPT Male 3/8 - 18 NPT NPT Male 3/8 - 18 NPT
15K0101-6-8C Straight NPT Male 3/8 - 18 NPT NPT Male 1/2 - 14 NPT
15K0101-8-8C Straight NPT Male 1/2 - 14 NPT NPT Male 1/2 - 14 NPT
15K0201-1-4C Straight NPT Male 1/16 - 27 NPT NPT Female 1/4 - 18 NPT
15K0201-1-8C Straight NPT Male 1/16 - 27 NPT NPT Female 1/2 - 14 NPT
15K0201-2-1C Straight NPT Male 1/8 - 27 NPT NPT Female 1/16 - 27 NPT
15K0201-2-8C Straight NPT Male 1/8 - 27 NPT NPT Female 1/2 - 14 NPT
15K0201-4-1C Straight NPT Male 1/4 - 18 NPT NPT Female 3/4 - 14 NPT
15K0201-4-6C Straight NPT Female 1/4 - 18 NPT NPT Male 3/8" - 18 NPT
15K0201-4-8C Straight NPT Male 1/4 - 18 NPT NPT Female 1/2 - 14 NPT
15K0201-6-2C Straight NPT Male 3/8 - 18 NPT NPT Female 1/8 - 27 NPT
15K0201-6-6C Straight NPT Male 3/8 - 18 NPT NPT Female 3/8 - 18 NPT
15K0201-6-8C Straight NPT Male 3/8 - 18 NPT NPT Female 1/2 - 14 NPT
15K0201-8-8C Straight NPT Female 1/2 - 14 NP NPT Male 1/2" - 14 NPT
15K0202-2-2C Straight NPT Female 1/8 - 27 NPT NPT Female 1/8 - 27 NPT
15K0202-4-1C Straight NPT Female 1/4 - 18 NPT NPT Female 1/16 - 27 NPT
15K0202-4-4C Straight NPT Female 1/4 - 18 NPT NPT Female 1/4 - 18 NPT
15K0202-6-2C Straight NPT Female 3/8 - 18 NPT NPT Female 1/8 - 27 NPT
15K0202-6-6C Straight NPT Female 3/8 - 18 NPT NPT Female 3/8 - 18 NPT
15K0202-8-1C Straight NPT Female 1/2 - 14 NPT NPT Female 1/16 - 27 NPT
15K0202-8-2C Straight NPT Female 1/2 - 14 NPT NPT Female 1/8 - 27 NPT
15K0202-8-6C Straight NPT Female 1/2 - 14 NPT NPT Female 3/8 - 18 NPT
15K0202-8-8C Straight NPT Female 1/2 - 14 NPT NPT Female 1/2 - 14 NPT
15KL02-12C-45 45 D. Elbow NPT 3/4 - 14 NPT NPT n/a
15KL02-4C 90 D. Elbow NPT 1/4 - 18 NPT NPT n/a
15KL02-4C-45 45 D. Elbow NPT 1/4 - 18 NPT NPT n/a
15KL02-6C 90 D. Elbow NPT 3/8 - 18 NPT NPT n/a
15KL02-6C-45 45 D. Elbow NPT 3/8 - 18 NPT NPT n/a
15KL02-8C 90 D. Elbow NPT 1/2 - 14 NPT NPT n/a
15KL02-8C-45 45 D. Elbow NPT 1/2 - 14 NPT NPT n/a
15KT02-4C Tee NPT 1/4 - 18 NPT NPT n/a
15KT02-6C Tee NPT 3/8 - 18 NPT NPT n/a
15KT02-8C Tee NPT 1/2 - 14 NPT NPT n/a
15KX02-4C Cross NPT 1/4 - 18 NPT NPT n/a
15KX02-6C Cross NPT 3/8 - 18 NPT NPT n/a
15KX02-8C Cross NPT 1/2 - 14 NPT NPT n/a
5Y01-12-12C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Male 3/4 - 14 NPT
5Y01-12-16C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Male 1 - 11-1/2 NPT
5Y01-12-2C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Male 1/8 - 27 NPT
5Y01-12-4C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Male 1/4 - 18 NPT
5Y01-12-6C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Male 3/8 - 18 NPT
5Y01-12-8C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Male 1/2 - 14 NPT
5Y01-16-12C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Male 3/4 - 14 NPT
5Y01-16-16C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Male 1 - 11-1/2 NPT
5Y01-16-2C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Male 1/8 - 27 NPT
5Y01-16-4C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Male 1/4 - 18 NPT
5Y01-16-6C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Male 3/8 - 18 NPT
5Y01-16-8C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Male 1/2 - 14 NPT
5Y01-4-12C Straight Medium Pressure Female 7/16 - 20 UNF NPT Male 3/4 - 14 NPT
5Y01-4-16C Straight Medium Pressure Female 7/16 - 20 UNF NPT Male 1 - 11-1/2 NPT
5Y01-4-2C Straight Medium Pressure Female 7/16 - 20 UNF NPT Male 1/8 - 27 NPT
5Y01-4-4C Straight Medium Pressure Female 7/16 - 20 UNF NPT Male 1/4 - 18 NPT
5Y01-4-6C Straight Medium Pressure Female 7/16 - 20 UNF NPT Male 3/8 - 18 NPT
5Y01-4-8C Straight Medium Pressure Female 7/16 - 20 UNF NPT Male 1/2 - 14 NPT
5Y01-6-12C Straight Medium Pressure Female 9/16 - 18 UNF NPT Male 3/4 - 14 NPT
5Y01-6-16C Straight Medium Pressure Female 9/16 - 18 UNF NPT Male 1 - 11-1/2 NPT
5Y01-6-2C Straight Medium Pressure Female 9/16 - 18 UNF NPT Male 1/8 - 27 NPT
5Y01-6-4C Straight Medium Pressure Female 9/16 - 18 UNF NPT Male 1/4 - 18 NPT
5Y01-6-6C Straight Medium Pressure Female 9/16 - 18 UNF NPT Male 3/8 - 18 NPT
5Y01-6-8C Straight Medium Pressure Female 9/16 - 18 UNF NPT Male 1/2 - 14 NPT
5Y01-9-12C Straight Medium Pressure Female 13/16 - 16 UNF NPT Male 3/4 - 14 NPT
5Y01-9-16C Straight Medium Pressure Female 13/16 - 16 UNF NPT Male 1 - 11-1/2 NPT
5Y01-9-2C Straight Medium Pressure Female 13/16 - 16 UNF NPT Male 1/8 - 27 NPT
5Y01-9-4C Straight Medium Pressure Female 13/16 - 16 UNF NPT Male 1/4 - 18 NPT
5Y01-9-6C Straight Medium Pressure Female 13/16 - 16 UNF NPT Male 3/8 - 18 NPT
5Y01-9-8C Straight Medium Pressure Female 13/16 - 16 UNF NPT Male 1/2 - 14 NPT
5Y02-12-12C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Female Coupling 3/4 - 14 NPT
5Y02-12-16C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Female Coupling 1 - 11-1/2 NPT
5Y02-12-2C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Female Coupling 1/8 - 27 NPT
5Y02-12-4C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Female Coupling 1/4 - 18 NPT
5Y02-12-6C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Female Coupling 3/8 - 18 NPT
5Y02-12-8C Straight Medium Pressure Female 3/4 - 14 NPSM NPT Female Coupling 1/2 - 14 NPT
5Y02-16-12C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Female Coupling 3/4 - 14 NPT
5Y02-16-16C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Female Coupling 1 - 11-1/2 NPT
5Y02-16-2C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Female Coupling 1/8 - 27 NPT
5Y02-16-4C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Female Coupling 1/4 - 18 NPT
5Y02-16-6C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Female Coupling 3/8 - 18 NPT
5Y02-16-8C Straight Medium Pressure Female 1-3/8 - 12 UNF NPT Female Coupling 1/2 - 14 NPT
5Y02-4-12C Straight Medium Pressure Female 7/16 - 20 UNF NPT Female Coupling 3/4 - 14 NPT
5Y02-4-16C Straight Medium Pressure Female 7/16 - 20 UNF NPT Female Coupling 1 - 11-1/2 NPT
5Y02-4-2C Straight Medium Pressure Female 7/16 - 20 UNF NPT Female Coupling 1/8 - 27 NPT
5Y02-4-4C Straight Medium Pressure Female 7/16 - 20 UNF NPT Female Coupling 1/4 - 18 NPT
5Y02-4-6C Straight Medium Pressure Female 7/16 - 20 UNF NPT Female Coupling 3/8 - 18 NPT
5Y02-4-8C Straight Medium Pressure Female 7/16 - 20 UNF NPT Female Coupling 1/2 - 14 NPT
5Y02-6-12C Straight Medium Pressure Female 9/16 - 18 UNF NPT Female Coupling 3/4 - 14 NPT
5Y02-6-16C Straight Medium Pressure Female 9/16 - 18 UNF NPT Female Coupling 1 - 11-1/2 NPT
5Y02-6-2C Straight Medium Pressure Female 9/16 - 18 UNF NPT Female Coupling 1/8 - 27 NPT
5Y02-6-4C Straight Medium Pressure Female 9/16 - 18 UNF NPT Female Coupling 1/4 - 18 NPT
5Y02-6-6C Straight Medium Pressure Female 9/16 - 18 UNF NPT Female Coupling 3/8 - 18 NPT
5Y02-6-8C Straight Medium Pressure Female 9/16 - 18 UNF NPT Female Coupling 1/2 - 14 NPT
5Y02-9-12C Straight Medium Pressure Female 13/16 - 16 UNF NPT Female Coupling 3/4 - 14 NPT
5Y02-9-16C Straight Medium Pressure Female 13/16 - 16 UNF NPT Female Coupling 1 - 11-1/2 NPT
5Y02-9-2C Straight Medium Pressure Female 13/16 - 16 UNF NPT Female Coupling 1/8 - 27 NPT
5Y02-9-4C Straight Medium Pressure Female 13/16 - 16 UNF NPT Female Coupling 1/4 - 18 NPT
5Y02-9-6C Straight Medium Pressure Female 13/16 - 16 UNF NPT Female Coupling 3/8 - 18 NPT
5Y02-9-8C Straight Medium Pressure Female 13/16 - 16 UNF NPT Female Coupling 1/2 - 14 NPT
6Y01-4-12C Straight High Pressure Female 9/16 - 18 UNF NPT Male 3/4 - 14 NPT
6Y01-4-16C Straight High Pressure Female 9/16 - 18 UNF NPT Male 1 - 11-1/2 NPT
6Y01-4-2C Straight High Pressure Female 9/16 - 18 UNF NPT Male 1/8 - 27 NPT
6Y01-4-4C Straight High Pressure Female 9/16 - 18 UNF NPT Male 1/4 - 18 NPT
6Y01-4-6C Straight High Pressure Female 9/16 - 18 UNF NPT Male 3/8 - 18 NPT
6Y01-4-8C Straight High Pressure Female 9/16 - 18 UNF NPT Male 1/2 - 14 NPT
6Y01-6-12C Straight High Pressure Female 3/4 - 16 UNF NPT Male 3/4 - 14 NPT
6Y01-6-16C Straight High Pressure Female 3/4 - 16 UNF NPT Male 1 - 11-1/2 NPT
6Y01-6-1C Straight High Pressure Female 3/4 - 16 UNF NPT Male 1/16 - 27 NPT
6Y01-6-2C Straight High Pressure Female 3/4 - 16 UNF NPT Male 1/8 - 27 NPT
6Y01-6-4C Straight High Pressure Female 3/4 - 16 UNF NPT Male 1/4 - 18 NPT
6Y01-6-6C Straight High Pressure Female 3/4 - 16 UNF NPT Male 3/8 - 18 NPT
6Y01-6-8C Straight High Pressure Female 3/4 - 16 UNF NPT Male 1/2 - 14 NPT
6Y01-9-12C Straight High Pressure Female 1-1/8 - 12 UNF NPT Male 3/4 - 14 NPT
6Y01-9-16C Straight High Pressure Female 1-1/8 - 12 UNF NPT Male 1 - 11-1/2 NPT
6Y01-9-2C Straight High Pressure Female 1-1/8 - 12 UNF NPT Male 1/8 - 27 NPT
6Y01-9-4C Straight High Pressure Female 1-1/8 - 12 UNF NPT Male 1/4 - 18 NPT
6Y01-9-6C Straight High Pressure Female 1-1/8 - 12 UNF NPT Male 3/8 - 18 NPT
6Y01-9-8C Straight High Pressure Female 1-1/8 - 12 UNF NPT Male 1/2 - 14 NPT
6Y02-4-12C Straight High Pressure Female 9/16 - 18 UNF NPT Female 3/4 - 14 NPT
6Y02-4-16C Straight High Pressure Female 9/16 - 18 UNF NPT Female 1 - 11-1/2 NPT
6Y02-4-2C Straight High Pressure Female 9/16 - 18 UNF NPT Female 1/8 - 27 NPT
6Y02-4-4C Straight High Pressure Female 9/16 - 18 UNF NPT Female 1/4 - 18 NPT
6Y02-4-6C Straight High Pressure Female 9/16 - 18 UNF NPT Female 3/8 - 18 NPT
6Y02-4-8C Straight High Pressure Female 9/16 - 18 UNF NPT Female 1/2 - 14 NPT
6Y02-6-12C Straight High Pressure Female 3/4 - 16 UNF NPT Female 3/4 - 14 NPT
6Y02-6-16C Straight High Pressure Female 3/4 - 16 UNF NPT Female 1 - 11-1/2 NPT
6Y02-6-2C Straight High Pressure Female 3/4 - 16 UNF NPT Female 1/8 - 27 NPT
6Y02-6-4C Straight High Pressure Female 3/4 - 16 UNF NPT Female 1/4 - 18 NPT
6Y02-6-6C Straight High Pressure Female 3/4 - 16 UNF NPT Female 3/8 - 18 NPT
6Y02-6-8C Straight High Pressure Female 3/4 - 16 UNF NPT Female 1/2 - 14 NPT
6Y02-9-12C Straight High Pressure Female 1-1/8 - 12 UNF NPT Female 3/4 - 14 NPT
6Y02-9-16C Straight High Pressure Female 1-1/8 - 12 UNF NPT Female 1 - 11-1/2 NPT
6Y02-9-2C Straight High Pressure Female 1-1/8 - 12 UNF NPT Female 1/8 - 27 NPT
6Y02-9-4C Straight High Pressure Female 1-1/8 - 12 UNF NPT Female 1/4 - 18 NPT
6Y02-9-6C Straight High Pressure Female 1-1/8 - 12 UNF NPT Female 3/8 - 18 NPT
6Y02-9-8C Straight High Pressure Female 1-1/8 - 12 UNF NPT Female 1/2 - 14 NPT
7K0201-16-32C Straight NPT Male 1 - 11-1/2 NPT NPT Female 2 - 11-1/2 NPT
Y501-12-12C Straight Medium Pressure Male 3/4 - 14 NPSM NPT Male 3/4 - 14 NPT
Y501-12-16C Straight Medium Pressure Male 3/4 - 14 NPSM NPT Male 1 - 11-1/2 NPT
Y501-12-2C Straight Medium Pressure Male 3/4 - 14 NPSM NPT Male 1/8 - 27 NPT
Y501-12-4C Straight Medium Pressure Male 3/4 - 14 NPSM NPT Male 1/4 - 18 NPT
Y501-12-6C Straight Medium Pressure Male 3/4 - 14 NPSM NPT Male 3/8 - 18 NPT
Y501-12-8C Straight Medium Pressure Male 3/4 - 14 NPSM NPT Male 1/2 - 14 NPT
Y501-16-12C Straight Medium Pressure Male 1 - 14 UNS LH NPT Male 3/4 - 14 NPT
Y501-16-16C Straight Medium Pressure Male 1 - 14 UNS LH NPT Male 1 - 11-1/2 NPT
Y501-16-2C Straight Medium Pressure Male 1-3/8 - 12 UNF NPT Male 1/8 - 27 NPT
Y501-16-4C Straight Medium Pressure Male 1 - 14 UNS LH NPT Male 1/4 - 18 NPT
Y501-16-6C Straight Medium Pressure Male 1 - 14 UNS LH NPT Male 3/8 - 18 NPT
Y501-16-8C Straight Medium Pressure Male 1 - 14 UNS LH NPT Male 1/2 - 14 NPT
Y501-4-4C Straight Medium Pressure Male 7/16 - 20 UNF NPT Male 1/4 - 18 NPT
Y501-4-8C Straight Medium Pressure Male 7/16 - 20 UNF NPT Male 1/2 - 14 NPT
Y501-6-4C Straight Medium Pressure Male 9/16 - 18 UNF NPT Male 1/4 - 18 NPT
Y501-6-6C Straight Medium Pressure Male 9/16 - 18 UNF NPT Male 3/8 - 18 NPT
Y501-6-8C Straight Medium Pressure Male 9/16 - 18 UNF NPT Male 1/2 - 14 NPT
Y501-9-12C Straight Medium Pressure Male 13/16 - 16 UNF NPT Male 3/4 - 14 NPT
Y501-9-16C Straight Medium Pressure Male 13/16 - 16 UNF NPT Male 1 - 11-1/2 NPT
Y501-9-2C Straight Medium Pressure Male 13/16 - 16 UNF NPT Male 1/8 - 27 NPT
Y501-9-4C Straight Medium Pressure Male 13/16 - 16 UNF NPT Male 1/4 - 18 NPT
Y501-9-6C Straight Medium Pressure Male 13/16 - 16 UNF NPT Male 3/8 - 18 NPT
Y501-9-8C Straight Medium Pressure Male 13/16 - 16 UNF NPT Male 1/2 - 14 NPT
Y601-4-12C Straight High Pressure Male 9/16 - 18 UNF NPT Male 3/4 - 14 NPT
Y601-4-2C Straight High Pressure Male 9/16 - 18 UNF NPT Male 1/8 - 27 NPT
Y601-4-4C Straight High Pressure Male 9/16 - 18 UNF NPT Male 1/4 - 18 NPT
Y601-4-6C Straight High Pressure Male 9/16 - 18 UNF NPT Male 3/8 - 18 NPT
Y601-4-8C Straight High Pressure Male 9/16 - 18 UNF NPT Male 1/2 - 14 NPT
Y601-6-4C Straight High Pressure Male 3/4 - 16 UNF NPT Male 1/4 - 18 NPT
Y601-6-6C Straight High Pressure Male 3/4 - 16 UNF NPT Male 3/8 - 18 NPT
Y601-6-8C Straight High Pressure Male 3/4 - 16 UNF NPT Male 1/2 - 14 NPT
Y601-9-12C Straight High Pressure Male 1-1/8 - 12 UNF NPT Male 3/4 - 14 NPT
Y601-9-16C Straight High Pressure Male 1-1/8 - 12 UNF NPT Male 1 - 11-1/2 NPT
Y601-9-4C Straight High Pressure Male 1-1/8 - 12 UNF NPT Male 1/4 - 18 NPT
Y601-9-6C Straight High Pressure Male 1-1/8 - 12 UNF NPT Male 3/8 - 18 NPT
Y601-9-8C Straight High Pressure Male 1-1/8 - 12 UNF NPT Male 1/2 - 14 NPT
YA01-11-12C Straight Type "M" Male 1 - 12 UNF NPT Male 3/4 - 14 NPT
YA01-11-16C Straight Type "M" Male 1 - 12 UNF NPT Male 1 - 11-1/2 NPT
YA01-11-20C Straight Type "M" Male 1 - 12 UNF NPT Male 1-1/4 - 11-1/2 NPT
YA01-11-6C Straight Type "M" Male 1 - 12 UNF NPT Male 3/8 - 18 NPT
YA01-11-8C Straight Type "M" Male 1 - 12 UNF NPT Male 1/2 - 14 NPT
YA01-16-12C Straight Type "M" Male 1-5/16 - 12 UNF NPT Male 3/4 - 14 NPT
YA01-16-16C Straight Type "M" Male 1-5/16 - 12 UNF NPT Male 1 - 11-1/2 NPT
YA01-16-20C Straight Type "M" Male 1-5/16 - 12 UNF NPT Male 1-1/4 - 11-1/2 NPT
YA01-16-24C Straight Type "M" Male 1-5/16 - 12 UNF NPT Male 1-1/2 - 11-1/2 NPT
YA01-16-32C Straight Type "M" Male 1-5/16 - 12 UNF NPT Male 2 - 11-1/2 NPT
YA01-16-8C Straight Type "M" Male 1-5/16 - 12 UNF NPT Male 1/2 - 14 NPT
YA01-6-12C Straight Type "M" Male 9/16 - 18 UNF NPT Male 3/4 - 14 NPT
YA01-6-16C Straight Type "M" Male 9/16 - 18 UNF NPT Male 1 - 11-1/2 NPT
YA01-6-2C Straight Type "M" Male 9/16 - 18 UNF NPT Male 1/8 - 27 NPT
YA01-6-4C Straight Type "M" Male 9/16 - 18 UNF NPT Male 1/4 - 18 NPT
YA01-6-6C Straight Type "M" Male 9/16 - 18 UNF NPT Male 3/8 - 18 NPT
YA01-6-8C Straight Type "M" Male 9/16 - 18 UNF NPT Male 1/2 - 14 NPT
YA01-8-12C Straight Type "M" Male 3/4 - 16 UNF NPT Male 3/4 - 14 NPT
YA01-8-16C Straight Type "M" Male 3/4 - 16 UNF NPT Male 1 - 11-1/2 NPT
YA01-8-4C Straight Type "M" Male 3/4 - 16 UNF NPT Male 1/4 - 18 NPT
YA01-8-6C Straight Type "M" Male 3/4 - 16 UNF NPT Male 3/8 - 18 NPT
YA01-8-8C Straight Type "M" Male 3/4 - 16 UNF NPT Male 1/2 - 14 NPT
YA02-11-12C Straight Type "M" Male 1 - 12 UNF NPT Female 3/4 - 14 NPT
YA02-11-8C Straight Type "M" Male 1 - 12 UNF NPT Female 1/2 - 14 NPT
YA02-16-16C Straight Type "M" Male 1-5/16 - 12 UNF NPT Female 1 - 11-1/2 NPT
YA02-6-16C Straight Type "M" Male 9/16 - 18 UNF NPT Female 1 - 11-1/2 NPT
YA02-6-4C Straight Type "M" Male 9/16 - 18 UNF NPT Female 1/4 - 18 NPT
YA02-6-8C Straight Type "M" Male 9/16 - 18 UNF NPT Female 1/2 - 14 NPT
YA02-8-12C Straight Type "M" Male 3/4 - 16 UNF NPT Female 3/4 - 14 NPT
YA02-8-4C Straight Type "M" Male 3/4 - 16 UNF NPT Female 1/4 - 18 NPT
YA02-8-6C Straight Type "M" Male 3/4 - 16 UNF NPT Female 3/8 -18 NPT
YA02-8-8C Straight Type "M" Male 3/4 - 16 UNF NPT Female 1/2 - 14 NPT









美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
