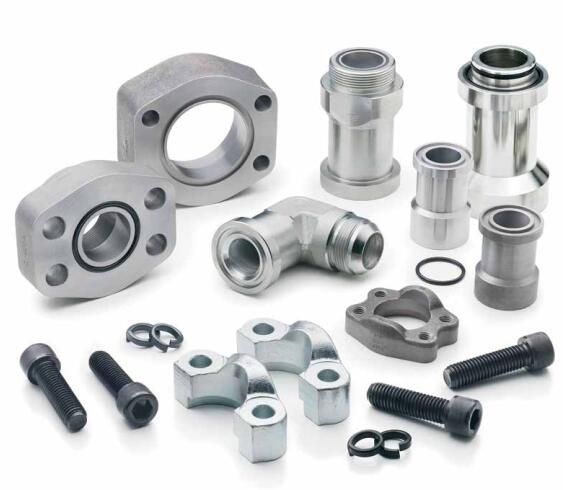

O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters
O 形环面密封，37° 扩口和不扩口代码 61 和 62 法兰适配器

派克带 4 螺栓法兰连接的法兰适配器适用于派克的 Seal-Lok O 型环面密封 (ORFS)、Triple-Lok 37° 扩口、Ferulok 英制扩口接头和承插管焊接，并已在全球范围内实现验收。派克带 4 螺栓法兰连接的法兰适配器符合 SAE J518 和 ISO 6162-1 和 -2。这些经过验证的无泄漏连接适用于 Parker 的 Seal-Lok O 型环面密封 (ORFS)、Triple-Lok 37° 扩口、Ferulok 英制扩口接头和承插管焊接，并已获得全球认可。

Parker's flange adapters with 4-bolt flange connections adapt to Parker's Seal-Lok O-ring Face Seal (ORFS), Triple-Lok 37° flare, Ferulok inch flareless fittings, and socket pipe weld, and have achieved world-wide acceptance. Parker's flange adapters with 4-bolt flange connections conform SAE J518 and ISO 6162-1 and -2. These proven leak-free connections adapt to Parker's Seal-Lok O-ring Face Seal (ORFS), Triple-Lok 37° flare, Ferulok inch flareless fittings, and socket pipe weld, and have achieved world-wide acceptance.

O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters

市场：
- 建筑
- 农业
- 石油和天然气
- 运输
- 采矿
- 林业

特性/优点：
- 适用于 Parker 的 Seal-Lok O 型环面密封 (ORFS)、Triple-Lok 37° 扩口、Ferulok 英寸扩口接头和承插管焊接。
- 与同等尺寸的螺纹端口所需的拧紧扭矩相比，所需的拧紧扭矩更低，因此需要更小的扳手和扳手摆动间隙——便于在狭小空间内组装。
- 提供 13 种配置，可根据要求提供定制设计。
- 使用分裂夹易于拆卸。
- 提供 ” 至 1 ” 尺寸的钢材质，工作压力高达 5000 psi。

应用：
- 液压流体和气体处理连接

Markets:
- Construction
- Agriculture
- Oil & Gas
- Transportation
- Mining
- Forestry

Features/Benefits:
- Adapts to Parker's Seal-Lok O-ring Face Seal (ORFS), Triple-Lok 37° flare, Ferulok inch flareless fittings, and socket pipe weld.
- Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
- 13 configurations available, with custom designs available on request.
- Ease of disassembly with use of split clamps.
- Available in steel in sizes ” through 1 ” with working pressures up to 5000 psi.

Applications:
- Hydraulic fluid and gas handling connections

Technical Specifications

O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters型号
