Parker 摆动弯头 - Parker push-to-connect oscillating elbows
Parker Fittings接头

Parker 的推入式摆动弯头设计用于实现最佳可靠性和耐用性，可防止由于管子过度弯曲而导致管子磨损。作为推入式接头技术的领先者，派克的摆动弯头简化了电路组装。摆动配件具有低摩擦垫圈，使配件能够与气缸活塞的冲程一起旋转。Parker 的摆动弯头无需使用套筒和拧紧压缩式接头所需的螺母，从而减少了组装时间。只需将管子推入接头直至其触底。要拆卸，请按下释放按钮，紧靠主体并从接头中拉出管子。摆动弯头中的 D 型密封件在静态和动态位置对管道外径提供可靠密封。D 型密封件在管道插入过程中会变形，从而降低了插入力，而不会影响密封特性。
与以下 Parker Parflex Division 管一起使用。

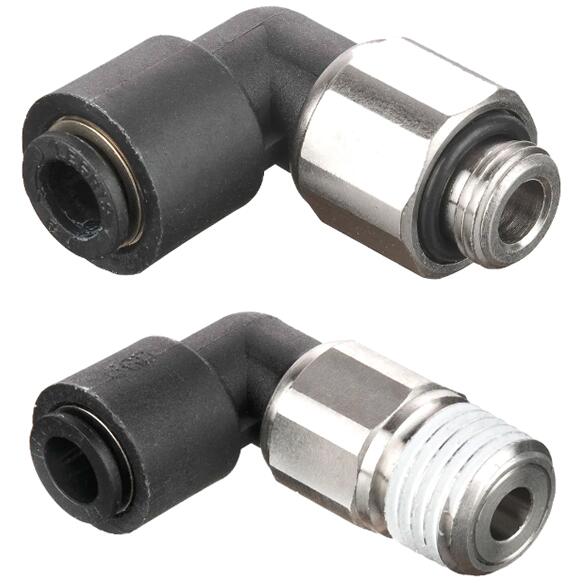

Parker's push-to-connect oscillating elbows - Oscillating Elbows

Parker's push-to-connect oscillating elbows are designed for optimum reliability and durability preventing tube wear due to excessive flexing of the tubing. Being the world's leader in push-to-connect fitting technology Parker's osciliating elbows simplifies circuit assembly. The oscillating fitting features low-friction washers enabling the fitting to rotate in conjunction with the stroke of the cylinder piston. Parker's oscillating elbows reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. To disassemble, press the release button, hold against the body and pull tubing from the fitting. A D-seal in the oscillating elbow provides a positive seal on the O.D. of the tubing in both static and dynamic positions. The D-seal deforms during insertion of the tubing lowering the insertion force without compromising the sealing feature. A thread sealant is applied to all male threads eliminating the possibility of system contamination from PTFE tape.
For use with the following Parker Parflex Division tubing.

- 半刚性尼龙
- 尼龙
- 聚氨酯 95 硬度 Shore A
- 含氟聚合物

市场：
- 气动
- 机器人
- 包装
- 纺织
- 半导体

特性/优点：
- 玻璃纤维增??强尼龙 6.6 主体
- 不锈钢夹环
- 低摩擦垫圈
- 丁腈 D 型密封件在静态和动态位置对管子的外径提供可靠密封
- 丁腈 O 型圈
- 镀镍黄铜螺纹

应用：
- 空气
- 切割
- 惰性气体

- Semi-Rigid nylon
- Nylon
- Polyurethane 95 Durometer Shore A
- Fluoropolymer

Markets:
- Pneumatic
- Robotic
- Packaging
- Textile
- Semi-conductor

Features/Benefits:
- Glass reinforced nylon 6.6 body
- Stainless steel gripping ring
- Low-friction washers
- Nitrile D-seal provides a positive seal on the O.D. of the tube, in both static and dynamic positions
- Nitrile o-ring
- Nickel plated brass threads

Applications:
- Air
- Cutting
- Inert Gases

Technical Specifications

Oscillating Elbows 型号
