Wellhead Grease Fittings, Packing Glands Series
Parker PGI's Packing Glands compress the stem packing, effectively sealing upon the stem of the lockscrew.
![](pic/Grease%20Fittings_20.jpg)

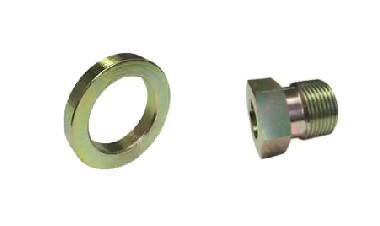

Parker PGI's Packing Glands feature both standard and extended length packing glands. Standard packing glands are produced from 1215 material and are Zinc plated. Additional materials available upon request.
![](pic/Grease%20Fittings_21.jpg)
Wellhead Grease Fittings, Packing Glands Series ![](pic/PDF-Icon.jpg)
Markets:
- Chemical
- Petrochemical
- Oil and Gas
Features/Benefits:
- 1215 Material
- Zinc Plated for protection
Applications:
- Wellhead Equipment
Technical Specifications
Connection Thread Size: |
1-1/2"-6 UNC | 1-1/2"-8 UN | 1-1/2"-10 UN | 1-3/4"-8 UN | 1-5/8"-12 UN | 1-1/2"-12 UNF | 1-3/4"-12 UN inch |
Bore Diameter: |
57/64" | 1-5/32" | 1-1/32" | 53/64" | 1-1/64" inch |
Length: |
1-1/4" | 1-7/8" | 2-3/4" | 2-1/8" | 2-11/16" |
Body Size: |
7/8" | 1-1/4" | 1-5/16" | 1-3/4" | 1-15/16" inch |
Nut Hex Size: |
1-5/8" | 2" | 1-3/4" | 1-1/2" inch |
Body Material: |
1215 |
Heat Treatment: |
Zinc Plated |
Accessories Included: |
Junk Rings Required: JR10-10 | JR11-10 | JR12-10 | JR14-10 | JR20-10 |
