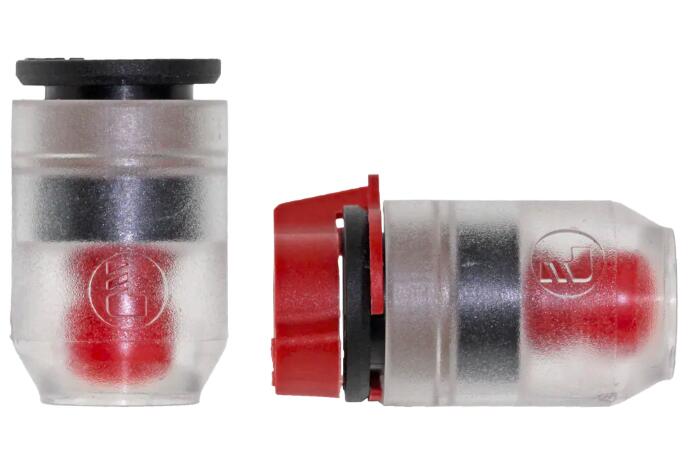

Passive Gas Block Connector

Easy-to-use product, providing quick and efficient sealing of the end of the FTTx* network and thereby long-term protection of the installation.





Easy-to-use product, providing quick and efficient sealing of the end of the FTTx* network and thereby long-term protection of the installation. Those connectors offer more possibilities with fewer references, allow for several microduct/fibre cable combinations and therefore optimise your stock management.



Features/Benefits:

- Stock Optimisation

- More possibilities with fewer references
- 1 connector allows for several microduct/fibre cable combinations

- Easy Handling

- Optic fibre cable visible as it passes through seal, allowing for considerable time-saving
- Visual connection indication
- 100% push-in technology with optic fibre cable sealing
- Ultra compact design

- Longevity & Reliability

- Unique design guaranteeing maximum safety of use
- Gas and watertight up to 1 bar
- UL94 V-2: flame resistance for indoor installations
- Safety clip for preventing risk of accidental disconnection

Markets:

- Telecommunication
- Information Technology

Applications:

- Connector for FTTX Applications
- Air and Water Conveying
- Underground Networks
- Air Blowing
- Water Floating
- Heavy Duty Ducting

Technologies:

- Tube to tube connectors
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Optic fibre connectors

Technical Characteristics:

- Compatible fluids: Air, water
- Materials: polycarbonate, stainless steel, technical polymer, NBR
- Pressure: 0 to 15 bar
- Temperature: -15°C to +45°C
- Storage temperature: -20°C to +80°C

Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- IP68: Seepage resistance to water and dust
- UL94 V-2: Flame resistance
- Patent family FR2924194 (safety clips)

Product Types:

- Equal Tube-to-Tube Connector
- Equal Tube-to-Tube Connector with Red Tamper-Proof Safety Clips
- End Cap
- End Cap with Red Tamper-Proof Safety Clip





Technical Specifications

Application: Fiber Optic, Vacuum
Minimum Operating Temperature: -15 °C, 5 °F
Maximum Operating Pressure: 1 bar, 15 psi, 0,1 MPa
Maximum Operating Temperature: 113 °F, 45 °C
Tube Outside Diameter: 5 to 14 mm
Specifications Met: ISO 14743 - IP68 - UL94 V-2 - Patent family FR2924194 (gas block), ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes, IP68: Seepage resistance to water and dust, UL94 V-2: Flame resistance, Patent family FR2924194 (safety clips)
Connection Type: Push-to-Connect
Shape: Straight
Materials of Construction: Technical Polymer, Rubber
Gripping Ring Material: Stainless steel
Quantity per Box: 50 to 100
Weight: 0,001 to 0,018 kg
Media: Air, water



Passive Gas Block Connector 型号

Part Connection 1 Tube O.D. (mm)
6274 05 00 5
6274 07 00 7
6274 10 00 10
6274 12 00 12
6274 14 00 14
