Hose Fittings

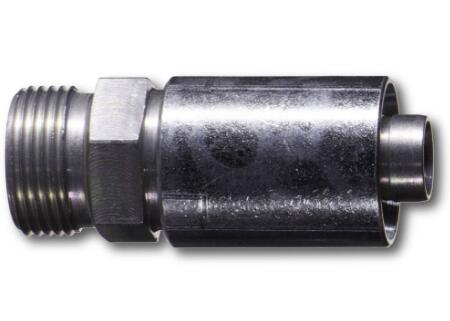

Crimped Thermoplastic Hydraulic Hose Fittings, PC Series

Parker PC Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for PTFE hose types 2030T-CON and 2030TB-CON.





Parker PC Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.

Markets:
- Transportation
- Mobile
- Industrial
- Food & Beverage

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Mobile hydraulics
- Chemical industry
- Media transfer
- Handling
- Industrial hydraulics
- Pneumatics
- Suitable for PTFE hose types 2030T-CON and 2030TB-CON with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)





Technical Specifications

Nominal Hose Inside Diameter: 6, 8, 10, 12, 16, 20, 25, 5 mm
Hose I.D. (size): -4, -5, -6, -8, -10, -12, -16, -3
Hose Inside Diameter: 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 3/16 inch
Connection Type: NPTF, UNF, NPSM, Metric, NA, BSP
Tube Outside Diameter: NA
Length: 2,2, 2,3, 2,5, 2,4, 2,6, 2,8, 3, 3,1, 1,7, 1,8, 1,9, 2, 2,1, 2,9, 3,3, 3,9, 3,2, 3,8, 4,5, 4,4, 2,7, 3,4, 4,6, 4,7 inch
Maximum Operating Pressure: 34,5, 27,5, 24, 21, 17, 41, 20, 63, 42, 25, 16, 10, 55, 43, 35, 28, 31,5, 42,5, 40, 31 MPa
Shape: Straight, 45° Elbow, 90° Elbow
Fitting Type: 01, 03, 06, 07, 0C, 1C, 1D, 37, 39, 3B, 92, B1, B2, C3, C9, CA, CE, CF, D0, D2, D9, U0
Materials of Construction: Galvanised steel



Crimped Thermoplastic Hydraulic Hose Fittings, PC Series 型号

Part Hose I.D. (mm) Style Connection Thread Size (inch) Connection Thread Size (mm) Length (mm) Tube O.D. (mm)
101PC-16-12 19 National Pipe Tapered (NPT) male 1 - 11 1/2 NA 77 NA
101PC-4-04 6.4 National Pipe Tapered (NPT) male 1/4 - 18 NA 55 NA
101PC-6-04 6.4 National Pipe Tapered (NPT) male 3/8 - 18 NA 57 NA
101PC-6-05 7.9 National Pipe Tapered (NPT) male 3/8 - 18 NA 57 NA
101PC-6-06 9.5 National Pipe Tapered (NPT) male 3/8 - 18 NA 59 NA
101PC-8-08 12.7 National Pipe Tapered (NPT) male 1/2 - 14 NA 66 NA
103PC-6-05 7.9 SAE (JIC) 37° male 9/16 - 18 NA 57 NA
103PC-8-06 9.5 SAE (JIC) 37° male 3/4 - 16 NA 62 NA
106PC-10-08 12.7 SAE (JIC) 37° female swivel 7/8 - 20 NA 49 NA
106PC-12-10 15.9 SAE (JIC) 37° female swivel 1 1/16 - 12 NA 50 NA
106PC-16-12 19 SAE (JIC) 37° female swivel 1 5/16 - 12 NA 56 NA
106PC-4-04 6.4 SAE (JIC) 37° female swivel 7/16 - 20 NA 43 NA
106PC-5-04 6.4 SAE (JIC) 37° female swivel 1/2 - 20 NA 43 NA
106PC-6-05 7.9 SAE (JIC) 37° female swivel 9/16 - 18 NA 45 NA
106PC-6-06 9.5 SAE (JIC) 37° female swivel 9/16 - 18 NA 47 NA
106PC-8-06 9.5 SAE (JIC) 37° female swivel 3/4 - 16 NA 48 NA
107PC-4-04 6.4 NPSM female swivel 1/4 - 18 NA 47 NA
107PC-6-06 9.5 NPSM female swivel 3/8 - 18 NA 50 NA
10CPC-10-04 6.4 Metric female swivel 24° with O-ring NA 18x1.5 74 10
11CPC-10-04 6.4 Metric female swivel 24° with O-ring NA 18x1.5 59 10
11CPC-12-05 7.9 Metric female swivel 24° with O-ring NA 20x1.5 59 12
11CPC-16-08 12.7 Metric female swivel 24° with O-ring NA 24x1.5 74 16
11CPC-6-04 6.4 Metric female swivel 24° with O-ring NA 14x1.5 59 6
11DPC-10-05 7.9 Metric standpipe NA NA 59 10
11DPC-10-06 9.5 Metric standpipe NA NA 79 10
11DPC-12-06 9.5 Metric standpipe NA NA 79 12
11DPC-15-08 12.7 Metric standpipe NA NA 65 15
11DPC-18-10 15.9 Metric standpipe NA NA 66 18
11DPC-8-04 6.4 Metric standpipe NA NA 58 8
139PC-12-10 15.9 SAE (JIC) 37° female swivel 1 1/16 - 12 NA 84 NA
139PC-5-04 6.4 SAE (JIC) 37° female swivel 1/2 - 20 NA 59 NA
139PC-6-05 7.9 SAE (JIC) 37° female swivel 9/16 - 18 NA 59 NA
13BPC-12-10 15.9 BSP male 60° flare 3/4 NA 69 NA
13BPC-12-12 19 BSP male 60° flare 3/4 NA 73 NA
13BPC-16-12 19 BSP male 60° flare 1 NA 82 NA
13BPC-16-16 25.4 BSP male 60° flare 1 NA 82 NA
13BPC-20-16 25.4 BSP male 60° flare 1 1/4 NA 84 NA
13BPC-4-04 6.4 BSP male 60° flare 1/4 NA 54 NA
13BPC-6-05 7.9 BSP male 60° flare 3/8 NA 57 NA
13BPC-6-06 9.5 BSP male 60° flare 3/8 NA 59 NA
13BPC-8-06 9.5 BSP male 60° flare 1/2 NA 64 NA
13BPC-8-08 12.7 BSP male 60° flare 1/2 NA 66 NA
192PC-12-10 15.9 BSP female swivel 60° cone 3/4 NA 50 NA
192PC-12-12 19 BSP female swivel 60° cone 3/4 NA 56 NA
192PC-16-16 25.4 BSP female swivel 60° cone 1 NA 57 NA
192PC-4-04 6.4 BSP female swivel 60° cone 1/4 NA 45 NA
192PC-6-05 7.9 BSP female swivel 60° cone 3/8 NA 45 NA
192PC-6-06 9.5 BSP female swivel 60° cone 3/8 NA 48 NA
192PC-8-06 9.5 BSP female swivel 60° cone 1/2 NA 48 NA
192PC-8-08 12.7 BSP female swivel 60° cone 1/2 NA 53 NA
1B2PC-12-12 19 BSP female swivel 60° cone 3/4 NA 100 NA
1B2PC-4-04 6.4 BSP female swivel 60° cone 1/4 NA 59 NA
1B2PC-6-06 9.5 BSP female swivel 60° cone 3/8 NA 60 NA
1B2PC-8-06 9.5 BSP female swivel 60° cone 1/2 NA 60 NA
1B2PC-8-08 12.7 BSP female swivel 60° cone 1/2 NA 74 NA
1C3PC-10-04 6.4 Metric female swivel 24°/60° NA 16x1.5 46 10
1C3PC-10-05 7.9 Metric female swivel 24°/60° NA 16x1.5 46 10
1C3PC-10-06 9.5 Metric female swivel 24°/60° NA 16x1.5 49 10
1C3PC-12-06 9.5 Metric female swivel 24°/60° NA 18x1.5 48 12
1C3PC-15-08 12.7 Metric female swivel 24°/60° NA 22x1.5 51 15
1C3PC-8-04 6.4 Metric female swivel 24°/60° NA 14x1.5 46 8
1C9PC-10-04 6.4 Metric female swivel 24° with O-ring NA 18x1.5 55 10
1C9PC-12-05 7.9 Metric female swivel 24° with O-ring NA 20x1.5 56 12
1C9PC-12-06 9.5 Metric female swivel 24° with O-ring NA 20x1.5 54 12
1C9PC-14-06 9.5 Metric female swivel 24° with O-ring NA 22x1.5 59 14
1C9PC-16-08 12.7 Metric female swivel 24° with O-ring NA 24x1.5 65 16
1C9PC-20-10 15.9 Metric female swivel 24° with O-ring NA 30x2 68 20
1CAPC-10-04 6.4 Metric female swivel 24° with O-ring NA 16x1.5 50 10
1CAPC-10-05 7.9 Metric female swivel 24° with O-ring NA 16x1.5 50 10
1CAPC-10-06 9.5 Metric female swivel 24° with O-ring NA 16x1.5 51 10
1CAPC-12-05 7.9 Metric female swivel 24° with O-ring NA 18x1.5 50 12
1CAPC-12-06 9.5 Metric female swivel 24° with O-ring NA 18x1.5 52 12
1CAPC-15-08 12.7 Metric female swivel 24° with O-ring NA 22x1.5 59 15
1CAPC-18-10 15.9 Metric female swivel 24° with O-ring NA 26x1.5 56 18
1CAPC-22-12 19 Metric female swivel 24° with O-ring NA 30x2 62 22
1CAPC-28-16 25.4 Metric female swivel 24° with O-ring NA 36x2 64 28
1CAPC-6-04 6.4 Metric female swivel 24° with O-ring NA 12x1.5 48 6
1CAPC-8-04 6.4 Metric female swivel 24° with O-ring NA 14x1.5 51 8
1CEPC-10-05 7.9 Metric female swivel 24° with O-ring NA 16x1.5 72 10
1CEPC-10-06 9.5 Metric female swivel 24° with O-ring NA 16x1.5 70 10
1CEPC-12-06 9.5 Metric female swivel 24° with O-ring NA 18x1.5 70 12
1CEPC-15-08 12.7 Metric female swivel 24° with O-ring NA 22x1.5 83 15
1CEPC-18-10 15.9 Metric female swivel 24° with O-ring NA 26x1.5 96 18
1CEPC-22-12 19 Metric female swivel 24° with O-ring NA 30x2 114 22
1CEPC-28-16 25.4 Metric female swivel 24° with O-ring NA 36x2 112 28
1CEPC-8-04 6.4 Metric female swivel 24° with O-ring NA 14x1.5 72 8
1CFPC-10-05 7.9 Metric female swivel 24° with O-ring NA 16x1.5 59 10
1CFPC-12-06 9.5 Metric female swivel 24° with O-ring NA 18x1.5 60 12
1CFPC-15-08 12.7 Metric female swivel 24° with O-ring NA 22x1.5 74 15
1CFPC-18-10 15.9 Metric female swivel 24° with O-ring NA 26x1.5 84 18
1CFPC-22-12 19 Metric female swivel 24° with O-ring NA 30x2 100 22
1CFPC-8-04 6.4 Metric female swivel 24° with O-ring NA 14x1.5 59 8
1D0PC-10-05 7.9 Metric male 24° NA 16x1.5 54 10
1D0PC-10-06 9.5 Metric male 24° NA 16x1.5 57 10
1D0PC-12-06 9.5 Metric male 24° NA 18x1.5 56 12
1D0PC-15-08 12.7 Metric male 24° NA 22x1.5 59 15
1D0PC-22-12 19 Metric male 24° NA 30x2 67 22
1D0PC-8-04 6.4 Metric male 24° NA 14x1.5 51 8
1D0PC-8-05 7.9 Metric male 24° NA 14x1.5 53 8
1D2PC-12-05 7.9 Metric male 24° NA 20x1.5 55 12
1D2PC-12-06 9.5 Metric male 24° NA 22x1.5 57 12
1D2PC-14-05 7.9 Metric male 24° NA 22x1.5 57 14
1D2PC-8-04 6.4 Metric male 24° NA 16x1.5 56 8
1D9PC-4-04 6.4 BSP male 1/4 NA 57 NA
1D9PC-6-05 7.9 BSP male 3/8 NA 58 NA
1D9PC-6-06 9.5 BSP male 3/8 NA 60 NA
1D9PC-8-06 9.5 BSP male 1/2 NA 62 NA
1D9PC-8-08 12.7 BSP male 1/2 NA 64 NA
1U0PC-4-04 6.4 BSP female swivel (ballnose) 1/4 NA 45 NA
1U0PC-6-05 7.9 BSP female swivel (ballnose) 3/8 NA 45 NA
1U0PC-6-06 9.5 BSP female swivel (ballnose) 3/8 NA 48 NA
