permanent-crimp-fittings-cg-series-fittings

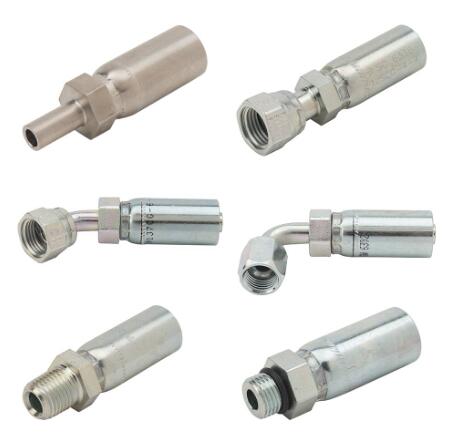

Parker CG Series permanent crimp fittings are used on Parflex hoses and replace Parflex 55, 57, 58 and 58H Series fittings.





Parker CG Series permanent crimp fittings are used on Parflex hoses and replace Parflex 55, 57, 58 and 58H Series fittings. They are available in steel, stainless steel and/or brass. They offer superior performance in diverse operating conditions and reduce the complexity of multiple fittings for Parflex hoses. Check crimpsource for the most up-to-date recommendations. http://www.parker.com/crimpsource



permanent-crimp-fittings-cg-series-fittings



Markets:
- Industrial
- Mobile Equipment
- Transportation
- Oil & Gas
- Marine

Features/Benefits:
- Parkalign dies
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Medium pressure hydraulic applications
- Agricultural equipment
- Construction
- Lubricating oils
- Material Handling equipment
- Machine tools
- Waste and refuse trucks
- Utility equipment
- CNG dispensing/refueling
- High pressure hydraulics, pneumatics and lubrication oils
- High pressure tools, jacks, test apparatus, oilfield pressure control device
- Offshore oil applications
- Suitable for hose types with working pressure up to 43 MPa (5000 psi)



Technical Specifications

Port Size: 0.125 to 1.000 inch
Application: Various
Connection Type: Crimped, JIS, NPSM, NPTF, Pipe, SAE, Seal-Lok, Specialty, and 37° Flare
Hose Inside Diameter: 3/16, 1/4, 5/16, 3/8, 1/2, 3/4, 1 inch, 5, 6, 8, 10, 13, 19, 25 mm
Materials of Construction: Steel, Stainless Steel
Length: 1.88 to 5.03 inch
Shape: Straight, Elbow, Stub End



permanent-crimp-fittings-cg-series-fittings 型号

Part Hose I.D. (inch) Style Connection Thread Size (inch) Material
101CG-12-12 0.75 Male NPTF Pipe - Rigid - Straight 3/4-14 Steel
101CG-12-12C 0.75 Male NPTF Pipe - Rigid - Straight 3/4-14 Stainless Steel
101CG-16-16 1 Male NPTF Pipe - Rigid - Straight 1-11-1/2 Steel
101CG-16-16C 1 Male NPTF Pipe - Rigid - Straight 1-11-1/2 Stainless Steel
101CG-2-3 0.188 Male NPTF Pipe - Rigid - Straight 1/8-27 Steel
101CG-2-4 0.25 Male NPTF Pipe - Rigid - Straight 1/8-27 Steel
101CG-4-3 0.188 Male NPTF Pipe - Rigid - Straight 1/4-18 Steel
101CG-4-4 0.25 Male NPTF Pipe - Rigid - Straight 1/4-18 Steel
101CG-4-4C 0.25 Male NPTF Pipe - Rigid - Straight 1/4-18 Stainless Steel
101CG-4-6 0.375 Male NPTF Pipe - Rigid - Straight 1/4-18 Steel
101CG-4-6C 0.375 Male NPTF Pipe - Rigid - Straight 1/4-18 Stainless Steel
101CG-6-4 0.25 Male NPTF Pipe - Rigid - Straight 3/8-18 Steel
101CG-6-6 0.375 Male NPTF Pipe - Rigid - Straight 3/8-18 Steel
101CG-6-8 0.5 Male NPTF Pipe - Rigid - Straight 3/8-18 Steel
101CG-8-6 0.375 Male NPTF Pipe - Rigid - Straight 1/2-14 Steel
101CG-8-8 0.5 Male NPTF Pipe - Rigid - Straight 1/2-14 Steel
102CG-4-4 0.25 Female NPTF Pipe - Rigid - Straight 1/4-18 Steel
102CG-4-4C 0.25 Female NPTF Pipe - Rigid - Straight 1/4-18 Stainless Steel
102CG-6-4 0.25 Female NPTF Pipe - Rigid - Straight 3/8-18 Steel
103CG-4-4 0.25 Male JIC 37° - Rigid - Straight 7/16-20 Steel
103CG-5-4 0.25 Male JIC 37° - Rigid - Straight 1/2-20 Steel
103CG-6-4 0.25 Male JIC 37° - Rigid - Straight 9/16-18 Steel
103CG-6-6 0.375 Male JIC 37° - Rigid - Straight 9/16-18 Steel
105CG-10-8 0.5 Male SAE Straight Thread with O-ring - Rigid - Straight 7/8-14 Steel
105CG-4-3 0.188 Male SAE Straight Thread with O-ring - Rigid - Straight 7/16-20 Steel
105CG-4-4 0.25 Male SAE Straight Thread with O-ring - Rigid - Straight 7/16-20 Steel
105CG-6-4 0.25 Male SAE Straight Thread with O-ring - Rigid - Straight 9/16-18 Steel
105CG-6-6 0.375 Male SAE Straight Thread with O-ring - Rigid - Straight 9/16-18 Steel
105CG-8-8 0.5 Male SAE Straight Thread with O-ring - Rigid - Straight 3/4-16 Steel
106CG-10-8 0.5 Female JIC 37° - Swivel - Straight 7/8-14 Steel
106CG-12-12 0.75 Female JIC 37° - Swivel - Straight 1-1/16-12 Steel
106CG-12-12C 0.75 Female JIC 37° - Swivel - Straight 1-1/16-12 Stainless Steel
106CG-12-8 0.5 Female JIC 37° - Swivel - Straight 1-1/16-12 Steel
106CG-16-12 0.75 Female JIC 37° - Swivel - Straight 1-5/16-12 Steel
106CG-16-16 1 Female JIC 37° - Swivel - Straight 1-5/16-12 Steel
106CG-16-16C 1 Female JIC 37° - Swivel - Straight 1-5/16-12 Stainless Steel
106CG-4-3 0.188 Female JIC 37° - Swivel - Straight 7/16-20 Steel
106CG-4-4 0.25 Female JIC 37° - Swivel - Straight 7/16-20 Steel
106CG-4-4C 0.25 Female JIC 37° - Swivel - Straight 7/16-20 Stainless Steel
106CG-5-4 0.25 Female JIC 37° - Swivel - Straight 1/2-20 Steel
106CG-6-4 0.25 Female JIC 37° - Swivel - Straight 9/16-18 Steel
106CG-6-4C 0.25 Female JIC 37° - Swivel - Straight 9/16-18 Stainless Steel
106CG-6-6 0.375 Female JIC 37° - Swivel - Straight 9/16-18 Steel
106CG-6-6C 0.375 Female JIC 37° - Swivel - Straight 9/16-18 Stainless Steel
106CG-8-6 0.375 Female JIC 37° - Swivel - Straight 3/4-16 Steel
106CG-8-6C 0.375 Female JIC 37° - Swivel - Straight 3/4-16 Stainless Steel
106CG-8-8 0.5 Female JIC 37° - Swivel - Straight 3/4-16 Steel
106CG-8-8C 0.5 Female JIC 37° - Swivel - Straight 3/4-16 Stainless Steel
107CG-6-6 0.375 Female NPSM Pipe - Swivel - Straight (60° Cone) 3/8-18 Steel
113CG-12-12 0.75 Male NPTF Pipe - Swivel - Straight 3/4-14 Steel
113CG-4-3 0.188 Male NPTF Pipe - Swivel - Straight 1/4-18 Steel
137CG-4-4 0.25 Female JIC 37° - Swivel - 45° Elbow 7/16-20 Steel
137CG-6-6 0.375 Female JIC 37° - Swivel - 45° Elbow 9/16-18 Steel
137CG-8-8 0.5 Female JIC 37° - Swivel - 45° Elbow 3/4-16 Steel
139CG-12-12 0.75 Female JIC 37° - Swivel - 90° Elbow - Short Drop 1-1/16-12 Steel
139CG-4-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/16-20 Steel
139CG-6-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Short Drop 9/16-18 Steel
139CG-6-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Short Drop 9/16-18 Steel
139CG-8-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Short Drop 3/4-16 Steel
139CG-8-8 0.5 Female JIC 37° - Swivel - 90° Elbow - Short Drop 3/4-16 Steel
1ALCG-6-6C 0.375 Female A-Lok? Compression 9/16-20 Stainless Steel
1FUCG-4-4 0.25 Female BSP Parallel Pipe - Swivel - Straight (30° Flare) PF 1/4-19 Steel
1J0CG-4-4 0.25 Rigid w/O-Ring 9/16-18 Steel
1J0CG-6-6-SM 1 Female Seal-Lok - Swivel - Straight - Short - Metric Hex XXXXXXX Steel
1J7CG-12-12 0.75 Female Seal-Lok - Swivel - 45° Elbow 1-3/16-12 Steel
1J7CG-4-4 0.25 Female Seal-Lok - Swivel - 45° Elbow 9/16-18 Steel
1J7CG-8-8 0.5 Female Seal-Lok - Swivel - 45° Elbow 13/16-16 Steel
1J9CG-12-12 0.75 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 1-3/16-12 Steel
1J9CG-4-4 0.25 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 9/16-18 Steel
1J9CG-6-6 0.375 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 11/16-16 Steel
1JCCG-10-8 0.5 Female Seal-Lok - Swivel - Straight - Short 1-14 Steel
1JCCG-12-12 0.75 Female Seal-Lok - Swivel - Straight - Short 1-3/16-12 Steel
1JCCG-12-12C 0.75 Female Seal-Lok - Swivel - Straight - Short 1-3/16-12 Stainless Steel
1JCCG-16-16 1 Female Seal-Lok - Swivel - Straight - Short 1-7/16-12 Steel
1JCCG-16-16C 1 Female Seal-Lok - Swivel - Straight - Short 1-7/16-12 Stainless Steel
1JCCG-4-4 0.25 Female Seal-Lok - Swivel - Straight - Short 9/16-18 Steel
1JCCG-4-4C 0.25 Female Seal-Lok - Swivel - Straight - Short 9/16-18 Stainless Steel
1JCCG-6-4 0.25 Female Seal-Lok - Swivel - Straight - Short 11/16-16 Steel
1JCCG-6-6 0.375 Female Seal-Lok - Swivel - Straight - Short 11/16-16 Steel
1JCCG-6-6C 0.375 Female Seal-Lok - Swivel - Straight - Short 11/16-16 Stainless Steel
1JCCG-8-6 0.375 Female Seal-Lok - Swivel - Straight - Short 13/16-16 Steel
1JCCG-8-8 0.5 Female Seal-Lok - Swivel - Straight - Short 13/16-16 Steel
1JCCG-8-8C 0.5 Female Seal-Lok - Swivel - Straight - Short 13/16-16 Stainless Steel
1JSCG-12-12 0.75 Female Seal-Lok - Swivel - Straight - Long 1-3/16-12 Steel
1JSCG-4-4 0.25 Female Seal-Lok - Swivel - Straight - Long 9/16-18 Steel
1JSCG-6-6 0.375 Female Seal-Lok - Swivel - Straight - Long 11/16-16 Steel
1L9CG-4-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 7/16-20 Steel
1L9CG-6-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 9/16-18 Steel
1TUCG-12-12C 0.75 Universal Tube Stub N/A Stainless Steel
1TUCG-4-4C 0.25 Universal Tube Stub N/A Stainless Steel
1TUCG-6-6C 0.375 Universal Tube Stub N/A Stainless Steel
1TUCG-8-8C 0.5 Universal Tube Stub N/A Stainless Steel
