Parker派克SG-1 系列PFA 去离子水喷枪（1/4 或 3/8 英寸）

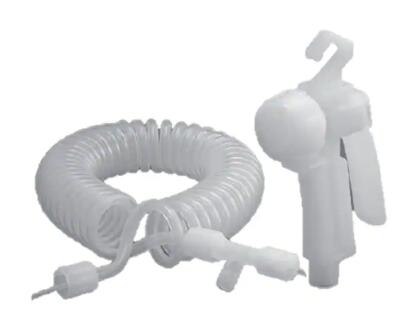

PFA DI Water Spray Gun (1/4 or 3/8 inch) – SG-1 Series
Parker Fittings接头 Tube Fittings

SG-1 系列PFA 去离子水喷枪（1/4 或 3/8 英寸）

Parker派克SG-1 系列 PFA 去离子水喷枪设计用于超高纯度半导体制造应用。可提供 FNPT 或 Parflare 连接，以及可选的盘绕软管，带或不带再循环（高达 80 psig）。PFA 去离子 (DI) 水喷枪适用于超高纯度 (UHP) 半导体应用。它采用带有精密加工密封区域的模制 PFA 主体。这些材料与 PFA 内表面和一体式机加工改性 PTFE 隔膜和提升阀相结合，使 SG-1 系列具有高泄漏完整性和卓越的耐腐蚀性，适用于清洁度至关重要的应用。去离子水喷枪具有擦拭器座，可形成可靠的隔膜密封阀体并提供可靠的通流关闭。其独特的设计消除了对弹性体密封件的需要，同时提供了出色的灵活性和长寿命。它提供 1/4 英寸 FNPT 或 3/8 英寸 Parflare 连接。连接减少了组装和安装时间，同时确保了无污染操作的最小颗粒产生。

可选的再循环套件可用于低死体积、高纯度和可靠的循环。

Parker SG-1 Series PFA DI Water Spray Gun SG-1 系列PFA 去离子水喷枪（1/4 或 3/8 英寸）

PARKER SG-1 Series PFA DI Water Spray Gun is designed for use in ultra-high purity semiconductor manufacturing applications. Available with FNPT or Parflare connections, along with optional coiled hoses, with or without recirculation (up to 80 psig). The PFA Deionized (DI) Water Spray Gun is suitable for use in ultra-high purity (UHP) semiconductor applications. It utilizes a molded PFA body with precision-machined sealing areas. These materials, coupled with PFA interior surfaces and a one-piece machined modified PTFE diaphragm and poppet, afford the SG-1 Series with high leak integrity and exceptional corrosion resistance for performance in applications where cleanliness is critical. The DI water spray gun features a wiper seat, which creates a reliable diaphragm to body seal and provides positive through flow shut-off. Its unique design eliminates the need for elastomer seals, while providing excellent flexibility and long life. It is available with 1/4 inch FNPT or 3/8 inch Parflare connections. The connections reduce assembly and installation time, while ensuring minimal particle generation for contamination-free operation. An optional recirculation kit is available for low dead volume, high purity, and reliable circulation.

市场：
- 半导体
- 分析实验室
- 制药
- 生物制药
- 航空航天
- 工业

特点/优势：
- PFA 内表面和一体式机加工改性 PTFE 隔膜/提升阀提供高弯曲寿命和出色的耐腐蚀性
- 独特的设计消除了对弹性体密封的需求
- 功能齐全，压力范围为 0 至 80 psig
- 标准特征是用于流量的一体式针阀用于安装的控制和面板螺母
- 可选的再循环套件可用于低死体积、高纯度和可靠的循环。
- 环境温度范围：0°F 至 +150° F（-17°C 至 +66° C）
- 流体温度范围：0°F 至 +200° F（-17°C 至 +93° C）

应用：
- 腐蚀性和/或特殊化学品、酸、碱和浆料
- 半导体工具
- CMP/浆料系统
- 去离子水

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- PFA interior surfaces and a one-piece machined modified PTFE diaphragm/poppet provide high flexural life and exceptional corrosion resistance
- Unique design eliminates the need for elastomer seals
- Fully functional from 0 to 80 psig
- Standard features are an integral needle valve for flow control and panel nuts for mounting
- Optional recirculation kit is available for low dead volume, high purity, and reliable circulation.
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +200° F (-17°C to +93° C)

Applications:
- Corrosive and/or specialty chemicals, acids, bases, and slurries
- Semiconductor Tools
- CMP/Slurry Systems
- DI Water

Technical Specifications

PFA DI Water Spray Gun (1/4 or 3/8 inch) – SG-1 Series 型号

技术规格
