Parker派克 UHP PFA 螺纹管件（尺寸从 1/8 英寸到 1 英寸）
UHP PFA Threaded Pipe Fittings (sizes from 1/8 inch - 1 inch)
Parker Veriflo PFA Threaded Pipe Fittings
Parker Fittings接头 Tube Fittings

Parker派克PFA 螺纹管件非常适合超高纯度或腐蚀性化学品处理管道应用。该接头具有高泄漏完整性和极强的耐腐蚀性。它们的尺寸范围从 1/8 到 1 英寸。Parker Veriflo PFA 螺纹管件具有高泄漏完整性和出色的耐腐蚀性，使其成为超高纯度应用和腐蚀性化学品处理线的理想选择。这些接头的尺寸范围从 1/8 英寸到 1 英寸，并提供各种配置以满足客户系统的独特要求，包括弯头、三通、异径管、短节、塞子、衬套和联轴器。这些配件由高纯度、半导体级 PFA 材料制成，可确保清洁操作，同时最大限度地减少表面颗粒、总有机碳 (TOC) 和阴离子的产生。只需用手拧紧扳手大约三到四圈，将接头拧到配合部件上即可实现密封连接。派克 PFA 管件可以适应各种腐蚀性和非腐蚀性过程流体。接头的温度和压力额定值由尺寸决定。1/8 英寸和 3/8 英寸 PFA 接头适用于工作压力高达 125 psig 的管道应用。对于可靠性、耐腐蚀性和清洁度至关重要的操作，它们是一种经济的选择。PFA Threaded Pipe Fittings are ideally suited for ultra-high purity or corrosive chemical handling piping applications. The fittings offer high leak integrity and extreme resistance to corrosion. They are available in sizes ranging from 1/8 to 1 inch.

Parker Veriflo PFA Threaded Pipe Fittings pfa-pipe-fittings

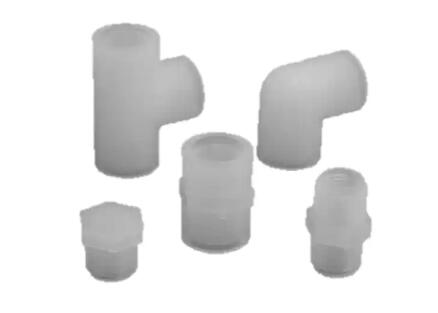

Parker Veriflo PFA Threaded Pipe Fittings offer high leak integrity and exceptional resistance to corrosion, making them ideal for use in ultra-high purity applications and corrosive chemical handling lines. The fittings are available in sizes ranging from 1/8 inch to 1 inch, along with a variety of configurations to meet the unique requirements of customers' systems, including elbows, tees, reducers, nipples, plugs, bushings, and couplings.

The fittings are fabricated from high-purity, semiconductor-grade PFA material, which ensures a clean operation with minimal generation of surface particulates, total organic carbon (TOC) and anions. The leak-tight connection is achieved by simply threading the fitting onto the mating component roughly three to four wrench turns past hand-tight.

Parker PFA pipe fittings can accommodate a wide range of corrosive and non-corrosive process fluids. Temperature and pressure ratings of the fitting are dictated by size. 1/8 inch and 3/8 inch PFA fittings are suitable for use in piping applications with working pressure up to 125 psig. They are an economical choice for operations where reliability, corrosion resistance, and cleanliness are essential.

市场：
- 半导体
- 分析实验室
- 制药
- 生物制药
- 航空航天
- 工业

特性/优势：
- 半导体级 PFA 主体提供卓越的耐腐蚀性
- 密封可最大限度地减少颗粒产生和过程污染
- 非常适合 UHP 和腐蚀性化学应用
- 尺寸范围从 1/8 英寸到 1 英寸
- 各种配置降低了系统复杂性、组装时间和成本
- 最大工作压力：125 psig（用于 1/8 英寸和 3/ 8 英寸接头）

应用：
- 腐蚀性和特殊化学品、酸、碱和浆料
- 半导体工具
- 工具连接件
- 阀组箱 (VMB)
- CMP/浆料系统

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Semiconductor-grade PFA body provides exceptional resistance to corrosion
- Leak-tight seal minimizes particle generation and process contamination
- Ideal for UHP and corrosive chemical applications
- Available in sizes ranging from 1/8 inch to 1 inch
- Variety of configurations reduces system complexity, assembly time, and cost
- Maximum working pressure: 125 psig (for 1/8 inch and 3/8 inch fittings)

Applications:
- Corrosive and specialty chemicals, acids, bases, and slurries
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMB)
- CMP/Slurry systems

Technical Specifications

UHP PFA Threaded Pipe Fittings (sizes from 1/8 inch - 1 inch) 型号
