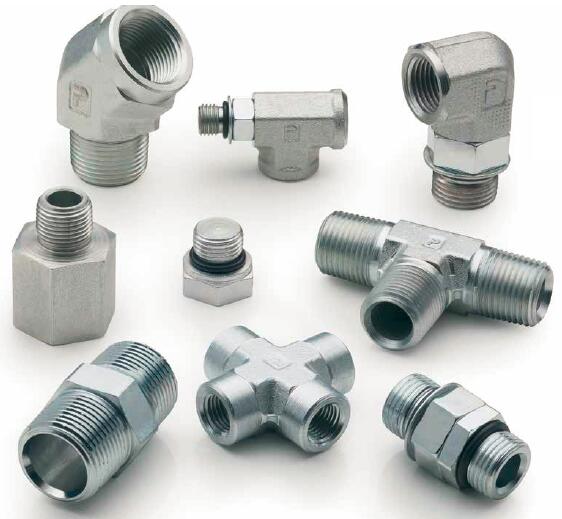

Parker 管件和端口适配器产品 Parker Fittings接头 Parker Adapters
Parker Pipe Fittings and Port Adapters

Parker 的管件和端口适配器产品线提供多种螺纹类型和高静压等级。Parker 的管件和端口适配器产品线提供多种螺纹类型,包括 NPT、NPTF、NPSM、BSPT、BSPP、SAE O 型圈凸台 (ORB)、ISO 6149 和公制。该产品系列中的所有接头和适配器均符合或超过行业规范。Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings. rker's Pipe Fitting and Port Adapter product line offers a wide range of thread types including NPT, NPTF, NPSM, BSPT, BSPP, SAE O-ring Boss (ORB), ISO 6149 and Metric. All fittings and adapters in this product line meet or exceed industry specifications.



Parker Pipe Fittings and Port Adapters Parker 管件和端口适配器产品

市场:
- 建筑
- 军事地面系统
- 空中升降机
- 农业
- 物料搬运
- 军事船舶
- 机床
- 运输

特点/优点:
- 锥形螺纹接头尺寸紧凑,效率高,耐高温。
- 直螺纹接头具有无限重复使用性,弹性密封,安装时无需螺纹密封剂。
- 钢制配件大大超过了 SAE 72 小时无红锈的腐蚀要求,经独立测试机构发现,持续时间高达 1,000 小时。这种增强的性能通过延长设备寿命为客户提供竞争优势,从而增加收入并降低保修成本。
- 提供尺寸为 1/8” 至 2” 的钢、不锈钢和黄铜材质,工作压力高达 7500 psi。
- 派克可调节端口上的坚固端口螺柱采用更长的锁紧螺母制造,几乎消除了垫圈损坏和潜在泄漏,并使组装几乎不会出错。此功能提高了客户的内部效率,并降低了市场上常见的传统 SAE 可调端口端因备用垫圈损坏而导致的返工成本。

应用:
- 液压流体和气体处理连接



Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Machine Tool
- Transportation



Parts Shape Connection Style Connection 1 Style Connection 1 Thread Size (inch) Connection 1 Thread Size (mm) Connection 2 Style Connection 2 Thread Size (inch) Body Material
3/8 X 1/8 FG-S Straight NPT/NPTF to NPT/NPTF Male NPT/NPTF ####### na Female NPT/NPTF ####### Steel
3/8 X 1/8 FG-SS Straight NPT/NPTF to NPT/NPTF Male NPT/NPTF ####### na Female NPT/NPTF ####### Stainless Steel
3/8 X 1/8 GG-B Straight NPT/NPTF to NPT/NPTF Female NPT/NPTF ####### na Female NPT/NPTF ####### Brass
3/8 X 1/8 GG-S Straight NPT/NPTF to NPT/NPTF Female NPT/NPTF ####### na Female NPT/NPTF ####### Steel
3/8 X 1/8 GG-SS Straight NPT/NPTF to NPT/NPTF Female NPT/NPTF ####### na Female NPT/NPTF ####### Stainless Steel
3/8 X 1/8 PTR-B Straight Pipe Reducer Male NPT/NPTF ####### na Female NPT/NPTF ####### Brass
3/8 X 1/8 PTR-S Straight Pipe Reducer Male NPT/NPTF ####### na Female NPT/NPTF ####### Steel
3/8 X 1/8 PTR-SS Straight Pipe Reducer Male NPT/NPTF ####### na Female NPT/NPTF ####### Stainless Steel
3/8 X 2.0 FFF-SS Straight NPT/NPTF to NPT/NPTF - Long Male NPT/NPTF ####### na Male NPT/NPTF ####### Stainless Steel
3/8-10 FHG5-S Straight NPT/NPTF to SAE-ORB Male NPT/NPTF ####### na Female SAE-ORB ####### Steel
3/8-12 FHG5-S Straight NPT/NPTF to SAE-ORB Male NPT/NPTF ####### na Female SAE-ORB 1 1/16-12 Steel
3/8-4 FHG5-S Straight NPT/NPTF to SAE-ORB Male NPT/NPTF ####### na Female SAE-ORB 7/16-20 Steel
3/8-4F4OHG5S Straight BSPP-ORR to SAE-ORB Male BSPP-ORR ####### na Female SAE-ORB 7/16-20 Steel
3/8-5F4OHG5S Straight BSPP-ORR to SAE-ORB Male BSPP-ORR ####### na Female SAE-ORB ####### Steel
3/8-6 FHG5-S Straight NPT/NPTF to SAE-ORB Male NPT/NPTF ####### na Female SAE-ORB 9/16-18 Steel
3/8-6 FHG5-SS Straight NPT/NPTF to SAE-ORB Male NPT/NPTF ####### na Female SAE-ORB 9/16-18 Stainless Steel
3/8-6F4OHG5S Straight BSPP-ORR to SAE-ORB Male BSPP-ORR ####### na Female SAE-ORB 9/16-18 Steel
3/8-8 FHG5-S Straight NPT/NPTF to SAE-ORB Male NPT/NPTF ####### na Female SAE-ORB ####### Steel
3/8-8F3HG5S Straight BSPT to SAE-ORB Male BSPT ####### na Female SAE-ORB ####### Steel
3/8-8F4OHG5S Straight BSPP-ORR to SAE-ORB Male BSPP-ORR ####### na Female SAE-ORB ####### Steel
3/8FF33MS Straight BSPT to BSPT Male BSPT ####### na Male BSPT ####### Steel
3/8FF33MSS Straight BSPT to BSPT Male BSPT ####### na Male BSPT ####### Stainless Steel
3/8GG44MS Straight BSPP TO BSPP Female BSPP ####### na Female BSPP ####### Steel
3/8GG44MSS Straight BSPP TO BSPP Female BSPP ####### na Female BSPP ####### Stainless Steel
3/8HP3MS Plug na Male BSPT ####### na na na Steel
3/8M18FHG8S Straight NPT/NPTF to Metric Straight Thread Male NPT/NPTF ####### na Female Metric Straight Thread na Steel
3/8MMO444MS Tee Female BSPP Tee Female BSPP ####### na Female BSPP ####### Steel
3/8MMO444MSS Tee Female BSPP Tee Female BSPP ####### na Female BSPP ####### Stainless Steel
3/8X1/4FHG4S Straight NPT/NPTF to BSPP Male NPT/NPTF ####### na Female BSPP ####### Steel
3/8X1/4GG44MS Straight BSPP TO BSPP Female BSPP ####### na Female BSPP ####### Steel
3/8X1/4GG44MSS Straight BSPP TO BSPP Female BSPP ####### na Female BSPP ####### Stainless Steel
3/8X1/4PTR34MS Straight BSPT to BSPP Male BSPT ####### na Female BSPP ####### Steel
3/8X1/4PTRMSS Straight BSPT to BSPP Male BSPT ####### na Female BSPP ####### Stainless Steel
3/8X3/8F3HGS Straight BSPT to NPT/NPTF Male BSPT ####### na Female NPT/NPTF ####### Steel
3/8X3/8F4OHGS Straight BSPP-ORR to NPT/NPTF Male BSPP-ORR ####### na Female NPT/NPTF ####### Steel
3/8X3/8F4OHGS FKM Straight BSPP-ORR to NPT/NPTF Male BSPP-ORR ####### na Female NPT/NPTF ####### Steel
3/8X3/8FHG4S Straight NPT/NPTF to BSPP Male NPT/NPTF ####### na Female BSPP ####### Steel
3107/12/12 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107-12-12-SS 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Stainless Steel
3107/12/16 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel 1-11 1/2 Steel
3107/12/6 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/12/8 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107-16-12 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 1-11 1/2 na Female NPSM Swivel ####### Steel
3107-16-16 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 1-11 1/2 na Female NPSM Swivel 1-11 1/2 Steel
3107-16-16-SS 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 1-11 1/2 na Female NPSM Swivel 1-11 1/2 Stainless Steel
3107-16-20 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 1-11 1/2 na Female NPSM Swivel 1 1/4-11 1/2 Steel
3107/2/2 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/2/4 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107-20-16 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 1 1/4-11 1/2 na Female NPSM Swivel 1-11 1/2 Steel
3107-20-20 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 1 1/4-11 1/2 na Female NPSM Swivel 1 1/4-11 1/2 Steel
3107-24-24 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 1 1/2-11 1/2 na Female NPSM Swivel 1 1/2-11 1/2 Steel
3107-24-24-SS 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 1 1/2-11 1/2 na Female NPSM Swivel 1 1/2-11 1/2 Stainless Steel
3107-32-32 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF 2-11 1/2 na Female NPSM Swivel 2-11 1/2 Steel
3107/4/2 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/4/4 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107-4-4-SS 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Stainless Steel
3107/4/6 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/6/4 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/6/6 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107-6-6-SS 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Stainless Steel
3107/6/8 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/8/12 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/8/4 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/8/6 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107/8/8 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3107-8-8-SS 45° Elbow NPT/NPTF to NPSM Swivel Male NPT/NPTF ####### na Female NPSM Swivel ####### Stainless Steel
32 F5OHAO-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Male SAE-ORB 2 1/2-12 Steel
32 F5OHAO-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Male SAE-ORB 2 1/2-12 Steel
32 F5OHAO-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Male SAE-ORB 2 1/2-12 Stainless Steel
32 HP5ON-S Plug Hollow Hex Plug Male SAE-ORB 2 1/2-12 na na na Steel
32 HP5ON-S FKM Plug Hollow Hex Plug 2 1/2-12 na na na Steel
32 P5ON-S Plug Hex Head Plug Male SAE-ORB 2 1/2-12 na na na Steel
32 P5ON-S FKM Plug Hex Head Plug 2 1/2-12 na na na Steel
32 P5ON-SS Plug Hex Head Plug Male SAE-ORB 2 1/2-12 na na na Stainless Steel
32 P5ON-SS FKM Plug Hex Head Plug 2 1/2-12 na na na Stainless Steel
32-1 1/4 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 2 1/2-12 na Female NPT/NPTF 1 1/4-11 1/2 Steel
32-1 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 2 1/2-12 na Female NPT/NPTF 1-11 1/2 Steel
32-12 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Female SAE-ORB 1 1/16-12 Steel
32-16 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Female SAE-ORB 1 5/16-12 Steel
32-2 AOEG-S 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB 2 1/2-12 na Female NPT/NPTF 2-11 1/2 Steel
32-2 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 2 1/2-12 na Male NPT/NPTF 2-11 1/2 Steel
32-2 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 2 1/2-12 na Female NPT/NPTF 2-11 1/2 Steel
32-2 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 2 1/2-12 na Female NPT/NPTF 2-11 1/2 Steel
32-2 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB 2 1/2-12 na Female NPT/NPTF 2-11 1/2 Stainless Steel
32-20 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Female SAE-ORB 1 5/8-12 Steel
32-24 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Female SAE-ORB 1 7/8-12 Steel
32-24 F5OG5-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Female SAE-ORB 1 7/8-12 Steel
32-24 F5OG5-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB 2 1/2-12 na Female SAE-ORB 1 7/8-12 Stainless Steel
3207/12/12 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3207/12/8 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3207-16-12 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF 1-11 1/2 na Female NPSM Swivel ####### Steel
3207-16-16 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF 1-11 1/2 na Female NPSM Swivel 1-11 1/2 Steel
3207/2/2 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3207/2/4 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3207-20-20 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF 1 1/4-11 1/2 na Female NPSM Swivel 1 1/4-11 1/2 Steel
3207-24-24 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF 1 1/2-11 1/2 na Female NPSM Swivel 1 1/2-11 1/2 Steel
3207/4/4 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3207/4/6 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3207/6/4 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### Steel
3207/6/6 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### Steel



Parts Shape Connection Style Connection 1 Style Connection 1 Thread Size (inch) Connection 1 Thread Size (mm) Connection 2 Style Connection 2 Thread Size (inch) O-Ring Material Body Material
3207/6/8 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### na Steel
3207/8/6 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### na Steel
3207/8/8 45° Elbow NPT/NPTF to NPSM Swivel Female NPT/NPTF ####### na Female NPSM Swivel ####### na Steel
####### 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
####### 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
####### 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
####### 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 1 1/16-12 na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
####### 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 1 1/16-12 na Female NPSM Swivel 1-11 1/2 90 Durometer Nitrile Steel
####### 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 1 1/16-12 na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507-16-12 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 1 5/16-12 na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507-16-16 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 1 5/16-12 na Female NPSM Swivel 1-11 1/2 90 Durometer Nitrile Steel
3507-20-16 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 1 5/8-12 na Female NPSM Swivel 1-11 1/2 90 Durometer Nitrile Steel
3507-20-20 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 1 5/8-12 na Female NPSM Swivel 1 1/4-11 1/2 90 Durometer Nitrile Steel
3507-24-24 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 1 7/8-12 na Female NPSM Swivel 1 1/2-11 1/2 90 Durometer Nitrile Steel
3507/4/4 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507/4/6 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507/6/4 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 9/16-18 na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507/6/6 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 9/16-18 na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507/6/8 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB 9/16-18 na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
####### 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507/8/4 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507/8/6 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
3507/8/8 45° Elbow SAE-ORB to NPSM Swivel Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
4 AOEG5-S 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Steel
4 AOEG5-S FKM 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Fluorocarbon Steel
4 AOEG5-SS 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Stainless Steel
4 AOEG5-SS FKM 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Fluorocarbon Stainless Steel
4 AOG5JG5-S Tee Straight Thread Run Tee Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Steel
4 F5OHAO-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 7/16-20 na Male SAE-ORB 7/16-20 90 Durometer Nitrile Steel
4 F5OHAO-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB 7/16-20 90 Durometer Fluorocarbon Steel
4 F5OHAO-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB 7/16-20 90 Durometer Nitrile Stainless Steel
4 F5OHAO-SS FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB 7/16-20 90 Durometer Fluorocarbon Stainless Steel
4 G5G5JAO-S Tee Straight Thread Branch Tee Female SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Steel
4 G5G5JG5-S Tee Female Straight Thread Tee Female SAE-ORB ####### na Female SAE-ORB 7/16-20 na Steel
4 G5HG5-S Straight SAE-ORB to SAE-ORB Female SAE-ORB ####### na Female SAE-ORB 7/16-20 na Steel
4 HP5ON-S Plug Hollow Hex Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Nitrile Steel
4 HP5ON-S FKM Plug Hollow Hex Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Fluorocarbon Steel
4 HP5ON-S ZJ Plug Hollow Hex Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Nitrile Steel, Zinc Nickel
4 HP5ON-SS Plug Hollow Hex Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile Stainless Steel
4 HP5ON-SS FKM Plug Hollow Hex Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Fluorocarbon Stainless Steel
4 HP5ON-SS N0756 Plug Hollow Hex Plug Male SAE-ORB 7/16-20 na na na 75 Durometer Nitrile Stainless Steel
4 P5ON-S Plug Hex Head Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Nitrile Steel
4 P5ON-S FKM Plug Hex Head Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Fluorocarbon Steel
4 P5ON-S N0674 Plug Hex Head Plug Male SAE-ORB 7/16-20 na na na 70 Durometer Nitrile Steel
4 P5ON-S ZJ Plug Hex Head Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Nitrile Steel, Zinc Nickel
4 P5ON-SS Plug Hex Head Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Nitrile Stainless Steel
4 P5ON-SS FKM Plug Hex Head Plug Male SAE-ORB 7/16-20 na na na 90 Durometer Fluorocarbon Stainless Steel
4 P5ON-SS N0756 Plug Hex Head Plug Male SAE-ORB 7/16-20 na na na 75 Durometer Nitrile Stainless Steel
4-1/4 AOEG-S 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
4-1/4 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 7/16-20 na Male NPT/NPTF ####### 90 Durometer Nitrile Steel
4-1/4 F5OF-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB 7/16-20 na Male NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
4-1/4 F5OF-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 7/16-20 na Male NPT/NPTF ####### 90 Durometer Fluorocarbon Stainless Steel
4-1/4 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 7/16-20 na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
4-1/4 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
4-1/4 F5OG-S ZJ Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel, Zinc Nickel
4-1/4 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
4-1/4 F5OG-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Stainless Steel
4-1/4F5OHF42EDS Straight SAE-ORB TO BSPP-ED Male SAE-ORB ####### na Male BSPP-ED ####### 90 Durometer Nitrile Steel
4-1/4F5OHG4S Straight SAE-ORB to BSPP Male SAE-ORB ####### na Female BSPP ####### 90 Durometer Nitrile Steel
4-1/4F5OHG4S FKM Straight SAE-ORB to BSPP Male SAE-ORB ####### na Female BSPP ####### 90 Durometer Fluorocarbon Steel
4-1/8 AOEG-S 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
4-1/8 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Steel
4-1/8 F5OF-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
4-1/8 F5OF-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
4-1/8 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
4-1/8 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
4-1/8 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
4-1/8F5OHF42EDS Straight SAE-ORB TO BSPP-ED Male SAE-ORB ####### na Male BSPP-ED ####### na Steel
4-3/8 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
4-4 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Steel
4-4 F5OG5-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Stainless Steel
4-5 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile Steel
4-6 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Nitrile Steel
4-6 F5OG5-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Fluorocarbon Steel
4-6 F5OG5-S ZJ Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Nitrile Steel, Zinc Nickel
4-6 F5OG5-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Nitrile Stainless Steel
4M10F5OHG8S Straight SAE-ORB to Metric Straight Thread Male SAE-ORB ####### na Female Metric Straight Thread na 90 Durometer Nitrile Steel
4M12F5OHG8S Straight SAE-ORB to Metric Straight Thread Male SAE-ORB ####### na Female Metric Straight Thread na 90 Durometer Nitrile Steel
5 HP5ON-S Plug Hollow Hex Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile Steel
5 HP5ON-S FKM Plug Hollow Hex Plug ####### na na na 90 Durometer Fluorocarbon Steel
5 HP5ON-SS Plug Hollow Hex Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile Stainless Steel
5 HP5ON-SS FKM Plug Hollow Hex Plug ####### na na na 90 Durometer Fluorocarbon Stainless Steel
5 P5ON-S Plug Hex Head Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile Steel
5 P5ON-S FKM Plug Hex Head Plug ####### na na na 90 Durometer Fluorocarbon Steel
5 P5ON-SS Plug Hex Head Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile Stainless Steel
5 P5ON-SS FKM Plug Hex Head Plug ####### na na na 90 Durometer Fluorocarbon Stainless Steel
5-1/4 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Steel
5-1/4 F5OF-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
5-1/4 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
5-1/4 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
5-1/4 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
5-1/4F5OHF42EDS Straight SAE-ORB TO BSPP-ED Male SAE-ORB ####### na Male BSPP-ED ####### 90 Durometer Nitrile Steel
5-1/8 AOEG-S 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
5-1/8 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Steel
5-1/8 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
5-4 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Steel
5-6 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Nitrile Steel
5507/6/6 90° Elbow SAE-ORB to NPSM Swivel - Long Male SAE-ORB 9/16-18 na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
5507/8/6 90° Elbow SAE-ORB to NPSM Swivel - Long Male SAE-ORB ####### na Female NPSM Swivel ####### 90 Durometer Nitrile Steel
####### 90° Elbow NPT/NPTF to NPSM Swivel - Long Male NPT/NPTF ####### na Female NPSM Swivel ####### na Steel



Parts Shape Connection Style Connection 1 Style Connection 1 Thread Size (inch) Connection 1 Thread Size (mm) Connection 2 Style Connection 2 Thread Size (inch) O-Ring Material
5607-16-16 90° Elbow NPT/NPTF to NPSM Swivel - Long Male NPT/NPTF 1-11 1/2 na Female NPSM Swivel 1-11 1/2 na
5607/2/2 90° Elbow NPT/NPTF to NPSM Swivel - Long Male NPT/NPTF ####### na Female NPSM Swivel ####### na
5607/4/4 90° Elbow NPT/NPTF to NPSM Swivel - Long Male NPT/NPTF ####### na Female NPSM Swivel ####### na
5607/6/6 90° Elbow NPT/NPTF to NPSM Swivel - Long Male NPT/NPTF ####### na Female NPSM Swivel ####### na
5607/8/8 90° Elbow NPT/NPTF to NPSM Swivel - Long Male NPT/NPTF ####### na Female NPSM Swivel ####### na
6 AOEG5-S 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 90 Durometer Nitrile
6 AOEG5-S FKM 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 90 Durometer Fluorocarbon
6 AOEG5-S ZJ 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 90 Durometer Nitrile
6 AOEG5-SS 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 90 Durometer Nitrile
6 AOG5JG5-S Tee Straight Thread Run Tee Male SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 90 Durometer Nitrile
6 F5OHAO-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Male SAE-ORB 9/16-18 90 Durometer Nitrile
6 F5OHAO-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Male SAE-ORB 9/16-18 90 Durometer Fluorocarbon
6 F5OHAO-S ZJ Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Male SAE-ORB 9/16-18 90 Durometer Nitrile
6 F5OHAO-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Male SAE-ORB 9/16-18 90 Durometer Nitrile
6 F5OHAO-SS FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Male SAE-ORB 9/16-18 90 Durometer Fluorocarbon
6 G5G5JAO-S Tee Straight Thread Branch Tee Female SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 90 Durometer Nitrile
6 G5G5JG5-S Tee Female Straight Thread Tee Female SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 na
6 G5HG5-S Straight SAE-ORB to SAE-ORB Female SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 na
6 HP5ON-S Plug Hollow Hex Plug Male SAE-ORB 9/16-18 na na na 90 Durometer Nitrile
6 HP5ON-S FKM Plug Hollow Hex Plug 9/16-18 na na na 90 Durometer Fluorocarbon
6 HP5ON-S ZJ Plug Hollow Hex Plug Male SAE-ORB 9/16-18 na na na 90 Durometer Nitrile
6 HP5ON-SS Plug Hollow Hex Plug Male SAE-ORB 9/16-18 na na na 90 Durometer Nitrile
6 HP5ON-SS FKM Plug Hollow Hex Plug 9/16-18 na na na 90 Durometer Fluorocarbon
6 P5ON-S Plug Hex Head Plug Male SAE-ORB 9/16-18 na na na 90 Durometer Nitrile
6 P5ON-S FKM Plug Hex Head Plug Male SAE-ORB 9/16-18 na na na 90 Durometer Fluorocarbon
6 P5ON-S ZJ Plug Hex Head Plug Male SAE-ORB 9/16-18 na na na 90 Durometer Nitrile
6 P5ON-SS Plug Hex Head Plug Male SAE-ORB 9/16-18 na na na 90 Durometer Nitrile
6 P5ON-SS FKM Plug Hex Head Plug Male SAE-ORB 9/16-18 na na na 90 Durometer Fluorocarbon
6 P5ON-SS N0756 Plug Hex Head Plug Male SAE-ORB 9/16-18 na na na 75 Durometer Nitrile
6-1/2 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Nitrile
6-1/2 F5OF-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Fluorocarbon
6-1/2 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-1/2 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-1/2 F5OG-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Fluorocarbon
6-1/4 AOEG-S 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-1/4 AOEG-S FKM 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Fluorocarbon
6-1/4 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Nitrile
6-1/4 F5OF-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Fluorocarbon
6-1/4 F5OF-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Nitrile
6-1/4 F5OF-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Fluorocarbon
6-1/4 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-1/4 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Fluorocarbon
6-1/4 F5OG-S ZJ Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-1/4 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-1/4 F5OG-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Fluorocarbon
6-1/4F5OHF42EDS Straight SAE-ORB TO BSPP-ED Male SAE-ORB 9/16-18 na Male BSPP-ED ####### 90 Durometer Nitrile
6-1/4F5OHG4S Straight SAE-ORB to BSPP Male SAE-ORB 9/16-18 na Female BSPP ####### 90 Durometer Nitrile
6-1/8 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Nitrile
6-1/8 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-1/8 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Fluorocarbon
6-3/8 AOEG-S 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-3/8 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Nitrile
6-3/8 F5OF-S ZJ Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Nitrile
6-3/8 F5OF-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Nitrile
6-3/8 F5OF-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Male NPT/NPTF ####### 90 Durometer Fluorocarbon
6-3/8 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-3/8 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Fluorocarbon
6-3/8 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Nitrile
6-3/8 F5OG-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB 9/16-18 na Female NPT/NPTF ####### 90 Durometer Fluorocarbon
6-3/8F5OHF42EDS Straight SAE-ORB TO BSPP-ED Male SAE-ORB 9/16-18 na Male BSPP-ED ####### 90 Durometer Nitrile
6-3/8F5OHG4S Straight SAE-ORB to BSPP Male SAE-ORB 9/16-18 na Female BSPP ####### 90 Durometer Nitrile
6-4 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 7/16-20 90 Durometer Nitrile
6-4 F5OG5-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 7/16-20 90 Durometer Fluorocarbon
6-4 F5OG5-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 7/16-20 90 Durometer Nitrile
6-4 F5OG5-SS FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 7/16-20 90 Durometer Fluorocarbon
6-5 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB ####### 90 Durometer Nitrile
6-6 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 90 Durometer Nitrile
6-6 F5OG5-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB 9/16-18 90 Durometer Fluorocarbon
6-8 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB ####### 90 Durometer Nitrile
6-8 F5OG5-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB ####### 90 Durometer Fluorocarbon
6-8 F5OG5-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB 9/16-18 na Female SAE-ORB ####### 90 Durometer Nitrile
6M14F5OHG8S Straight SAE-ORB to Metric Straight Thread Male SAE-ORB 9/16-18 na Female Metric Straight Thread na 90 Durometer Nitrile
6M16F5OHG8S Straight SAE-ORB to Metric Straight Thread Male SAE-ORB 9/16-18 na Female Metric Straight Thread na 90 Durometer Nitrile
8 AOEG5-S 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile
8 AOEG5-S FKM 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Fluorocarbon
8 AOEG5-S ZJ 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile
8 AOEG5-SS 90° Elbow SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile
8 AOG5JG5-S Tee Straight Thread Run Tee Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile
8 AOG5JG5-S FKM Tee Straight Thread Run Tee Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Fluorocarbon
8 F5OHAO-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB ####### 90 Durometer Nitrile
8 F5OHAO-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB ####### 90 Durometer Fluorocarbon
8 F5OHAO-S ZJ Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB ####### 90 Durometer Nitrile
8 F5OHAO-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB ####### 90 Durometer Nitrile
8 F5OHAO-SS E0893 Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB ####### 80 Durometer Ethylene-Propylene
8 F5OHAO-SS FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Male SAE-ORB ####### 90 Durometer Fluorocarbon
8 G5G5JAO-S Tee Straight Thread Branch Tee Female SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile
8 G5G5JAO-S FKM Tee Straight Thread Branch Tee ####### na Female SAE-ORB ####### 90 Durometer Fluorocarbon
8 G5G5JG5-S Tee Female Straight Thread Tee Female SAE-ORB ####### na Female SAE-ORB ####### na
8 G5HG5-S Straight SAE-ORB to SAE-ORB Female SAE-ORB ####### na Female SAE-ORB ####### na
8 HP5ON-S Plug Hollow Hex Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile
8 HP5ON-S FKM Plug Hollow Hex Plug ####### na na na 90 Durometer Fluorocarbon
8 HP5ON-S ZJ Plug Hollow Hex Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile
8 HP5ON-SS Plug Hollow Hex Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile
8 HP5ON-SS FKM Plug Hollow Hex Plug ####### na na na 90 Durometer Fluorocarbon
8 HP5ON-SS N0756 Plug Hollow Hex Plug Male SAE-ORB ####### na na na 75 Durometer Nitrile
8 P5ON-S Plug Hex Head Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile
8 P5ON-S FKM Plug Hex Head Plug Male SAE-ORB ####### na na na 90 Durometer Fluorocarbon
8 P5ON-S ZJ Plug Hex Head Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile
8 P5ON-SS Plug Hex Head Plug Male SAE-ORB ####### na na na 90 Durometer Nitrile
8 P5ON-SS FKM Plug Hex Head Plug Male SAE-ORB ####### na na na 90 Durometer Fluorocarbon



Parts Shape Connection Style Connection 1 Style Connection 1 Thread Size (inch) Connection 1 Thread Size (mm) Connection 2 Style Connection 2 Thread Size (inch) O-Ring Material Body Material
8-1/2 AOEG-S 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
8-1/2 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Steel
8-1/2 F5OF-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
8-1/2 F5OF-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
8-1/2 F5OF-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Fluorocarbon Stainless Steel
8-1/2 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
8-1/2 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
8-1/2 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
8-1/2 F5OG-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Stainless Steel
8-1/2F5OHF42EDS Straight SAE-ORB TO BSPP-ED Male SAE-ORB ####### na Male BSPP-ED ####### 90 Durometer Nitrile Steel
8-1/4 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Steel
8-1/4 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
8-1/4 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
8-1/4 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
8-1/4 F5OG-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Stainless Steel
8-1/4F5OHF42EDS Straight SAE-ORB TO BSPP-ED Male SAE-ORB ####### na Male BSPP-ED ####### 90 Durometer Nitrile Steel
8-1/4F5OHG4S Straight SAE-ORB to BSPP Male SAE-ORB ####### na Female BSPP ####### 90 Durometer Nitrile Steel
8-1/8 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
8-1/8 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
8-10 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile Steel
8-10 F5OG5-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Fluorocarbon Steel
8-10 F5OG5-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile Stainless Steel
8-12 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 1 1/16-12 90 Durometer Nitrile Steel
8-3/4 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Steel
8-3/4 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
8-3/8 AOE4G-S 90° Elbow SAE-ORB Long to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
8-3/8 AOE4G-S FKM 90° Elbow SAE-ORB Long to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
8-3/8 AOEG-S 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
8-3/8 AOEG-S FKM 90° Elbow SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
8-3/8 F5OF-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Steel
8-3/8 F5OF-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
8-3/8 F5OF-S ZJ Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Steel, Zinc Nickel
8-3/8 F5OF-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
8-3/8 F5OF-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Male NPT/NPTF ####### 90 Durometer Fluorocarbon Stainless Steel
8-3/8 F5OG-S Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel
8-3/8 F5OG-S FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
8-3/8 F5OG-S ZJ Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Steel, Zinc Nickel
8-3/8 F5OG-SS Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Nitrile Stainless Steel
8-3/8 F5OG-SS FKM Straight SAE-ORB to NPT/NPTF Male SAE-ORB ####### na Female NPT/NPTF ####### 90 Durometer Fluorocarbon Stainless Steel
8-3/8F5OHF42EDS Straight SAE-ORB TO BSPP-ED Male SAE-ORB ####### na Male BSPP-ED ####### 90 Durometer Nitrile Steel
8-3/8F5OHG4S Straight SAE-ORB to BSPP Male SAE-ORB ####### na Female BSPP ####### 90 Durometer Nitrile Steel
8-4 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Steel
8-4 F5OG5-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Fluorocarbon Steel
8-4 F5OG5-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 7/16-20 90 Durometer Nitrile Stainless Steel
8-6 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Nitrile Steel
8-6 F5OG5-S FKM Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Fluorocarbon Steel
8-6 F5OG5-S ZJ Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Nitrile Steel, Zinc Nickel
8-6 F5OG5-SS Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB 9/16-18 90 Durometer Nitrile Stainless Steel
8-8 F5OG5-S Straight SAE-ORB to SAE-ORB Male SAE-ORB ####### na Female SAE-ORB ####### 90 Durometer Nitrile Steel
8M16F5OHG8S Straight SAE-ORB to Metric Straight Thread Male SAE-ORB ####### na Female Metric Straight Thread na 90 Durometer Nitrile Steel
8M18F5OHG8S Straight SAE-ORB to Metric Straight Thread Male SAE-ORB ####### na Female Metric Straight Thread na 90 Durometer Nitrile Steel
M10-1/8F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M10X1 Female NPT/NPTF ####### 90 Durometer Nitrile Steel
M10-1/8F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M10X1 Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
M10-1/8F8OHGS ZJ Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M10X1 Female NPT/NPTF ####### 90 Durometer Nitrile Steel, Zinc Nickel
M10-4F8OHG5S Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M10X1 Female SAE-ORB 7/16-20 90 Durometer Nitrile Steel
M10-4F8OHG5S FKM Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M10X1 Female SAE-ORB 7/16-20 90 Durometer Fluorocarbon Steel
M10-6F8OHG5S Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M10X1 Female SAE-ORB 9/16-18 90 Durometer Nitrile Steel
M10-M12F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M10X1 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M10-M8F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M10X1 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M10F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M10X1 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M10G8HG8S Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Female Metric O-ring Retaining Ring na M10X1 Female Metric O-ring Retaining Ring na na Steel
M12-1/4F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M12X1.5 Female NPT/NPTF ####### 90 Durometer Nitrile Steel
M12-1/4F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M12X1.5 Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
M12-1/4F8OHGS ZJ Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M12X1.5 Female NPT/NPTF ####### 90 Durometer Nitrile Steel, Zinc Nickel
M12-M10F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M12X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M12-M14F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M12X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M12-M16F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M12X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M12A87LPOEG87LPMS 90° Elbow Short ISO 6149 to Short ISO 6149 Male Short ISO 6149 na M12X1.5 Female Short ISO 6149 na 90 Durometer Nitrile Steel
M12F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M12X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M12M10F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M12X1.5 Female ISO 6149 na 90 Durometer Nitrile Steel
M12M10F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M12X1.5 Female ISO 6149 na 90 Durometer Fluorocarbon Steel
M12M14F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M12X1.5 Female ISO 6149 na 90 Durometer Nitrile Steel
M12M14F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M12X1.5 Female ISO 6149 na 90 Durometer Fluorocarbon Steel
M12M16F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M12X1.5 Female ISO 6149 na 90 Durometer Nitrile Steel
M12M16F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M12X1.5 Female ISO 6149 na 90 Durometer Fluorocarbon Steel
M14-1/4F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M14X1.5 Female NPT/NPTF ####### 90 Durometer Nitrile Steel
M14-1/4F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M14X1.5 Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
M14-1/4F8OHGS ZJ Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M14X1.5 Female NPT/NPTF ####### 90 Durometer Nitrile Steel, Zinc Nickel
M14-6F8OHG5S Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M14X1.5 Female SAE-ORB 9/16-18 90 Durometer Nitrile Steel
M14-6F8OHG5S FKM Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M14X1.5 Female SAE-ORB 9/16-18 90 Durometer Fluorocarbon Steel
M14-M12F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M14X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M14-M16F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M14X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M14A87LPOEG87LPMS 90° Elbow Short ISO 6149 to Short ISO 6149 Male Short ISO 6149 na M14X1.5 Female Short ISO 6149 na 90 Durometer Nitrile Steel
M14F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M14X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M14G8HG8S Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Female Metric O-ring Retaining Ring na M14X1.5 Female Metric O-ring Retaining Ring na na Steel
M14M12F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M14X1.5 Female ISO 6149 na 90 Durometer Nitrile Steel
M14M12F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M14X1.5 Female ISO 6149 na 90 Durometer Fluorocarbon Steel
M14P87OMNS Plug Hex Head Plug Male ISO 6149 na M14X1.5 na na 90 Durometer Nitrile Steel
M16-1/2F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M16X1.5 Female NPT/NPTF ####### 90 Durometer Nitrile Steel
M16-1/2F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M16X1.5 Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
M16-3/8F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M16X1.5 Female NPT/NPTF ####### 90 Durometer Nitrile Steel
M16-3/8F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M16X1.5 Female NPT/NPTF ####### 90 Durometer Fluorocarbon Steel
M16-8F8OHG5S Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M16X1.5 Female SAE-ORB ####### 90 Durometer Nitrile Steel
M16-8F8OHG5S FKM Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M16X1.5 Female SAE-ORB ####### 90 Durometer Fluorocarbon Steel
M16-M14F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M16X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M16-M18F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M16X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M16F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M16X1.5 Male Metric O-ring Retaining Ring na 90 Durometer Nitrile Steel
M16G8HG8S Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Female Metric O-ring Retaining Ring na M16X1.5 Female Metric O-ring Retaining Ring na na Steel
M16M14F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M16X1.5 Female ISO 6149 na 90 Durometer Nitrile Steel
M16M18F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M16X1.5 Female ISO 6149 na 90 Durometer Nitrile Steel



Parts Shape Connection Style Connection 1 Style Connection 1 Thread Size (inch) Connection 1 Thread Size (mm) Connection 2 Style Connection 2 Thread Size (mm) O-Ring Material Body Material
M16M18F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M16X1.5 Female ISO 6149 M18X1.5 90 Durometer Fluorocarbon Steel
M18-1/2F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M18X1.5 Female NPT/NPTF na 90 Durometer Nitrile Steel
M18-1/2F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M18X1.5 Female NPT/NPTF na 90 Durometer Fluorocarbon Steel
M18-3/8F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M18X1.5 Female NPT/NPTF na 90 Durometer Nitrile Steel
M18-3/8F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M18X1.5 Female NPT/NPTF na 90 Durometer Fluorocarbon Steel
M18-8F8OHG5S Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M18X1.5 Female SAE-ORB na 90 Durometer Nitrile Steel
M18-8F8OHG5S FKM Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M18X1.5 Female SAE-ORB na 90 Durometer Fluorocarbon Steel
M18-M16F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M18X1.5 Male Metric O-ring Retaining Ring M16X1.5 90 Durometer Nitrile Steel
M18-M20F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M18X1.5 Male Metric O-ring Retaining Ring M20X1.5 90 Durometer Nitrile Steel
M18F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M18X1.5 Male Metric O-ring Retaining Ring M18X1.5 90 Durometer Nitrile Steel
M18G8HG8S Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Female Metric O-ring Retaining Ring na M18X1.5 Female Metric O-ring Retaining Ring M18X1.5 na Steel
M18M16F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M18X1.5 Female ISO 6149 M16X1.5 90 Durometer Nitrile Steel
M18M16F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M18X1.5 Female ISO 6149 M16X1.5 90 Durometer Fluorocarbon Steel
M20F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M20X1.5 Male Metric O-ring Retaining Ring M20X1.5 90 Durometer Nitrile Steel
M20G8HG8S Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Female Metric O-ring Retaining Ring na M20X1.5 Female Metric O-ring Retaining Ring M20X1.5 na Steel
M20M18F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M20X1.5 Female ISO 6149 M18X1.5 90 Durometer Nitrile Steel
M20M18F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M20X1.5 Female ISO 6149 M18X1.5 90 Durometer Fluorocarbon Steel
M20M22F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M20X1.5 Female ISO 6149 M22X1.5 90 Durometer Nitrile Steel
M20M22F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M20X1.5 Female ISO 6149 M22X1.5 90 Durometer Fluorocarbon Steel
M22-1/2F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M22X1.5 Female NPT/NPTF na 90 Durometer Nitrile Steel
M22-1/2F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M22X1.5 Female NPT/NPTF na 90 Durometer Fluorocarbon Steel
M22-1/2F8OHGS ZJ Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M22X1.5 Female NPT/NPTF na 90 Durometer Nitrile Steel, Zinc Nickel
M22-M20F82EDHG8S Straight Metric-ED to Metric O-ring Retaining Ring Female Metric-ED na M20X1.5 Male Metric O-ring Retaining Ring M20X1.5 90 Durometer Nitrile Steel
M22F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M22X1.5 Male Metric O-ring Retaining Ring M22X1.5 90 Durometer Nitrile Steel
M22M20F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M22X1.5 Female ISO 6149 M20X1 90 Durometer Nitrile Steel
M22M20F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M22X1.5 Female ISO 6149 M20X1 90 Durometer Fluorocarbon Steel
M22P87OMNS Plug Hex Head Plug Male ISO 6149 na M22X1.5 na na 90 Durometer Nitrile Steel
M27-12F8OHG5S Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M27X2 Female SAE-ORB na 90 Durometer Nitrile Steel
M27-12F8OHG5S FKM Straight Metric O-Ring Retaining Ring to SAE-ORB Male Metric O-Ring Retaining Ring na M27X2 Female SAE-ORB na 90 Durometer Fluorocarbon Steel
M27-3/4F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M27X2 Female NPT/NPTF na 90 Durometer Nitrile Steel
M27-3/4F8OHGS FKM Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M27X2 Female NPT/NPTF na 90 Durometer Fluorocarbon Steel
M27F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M27X2 Male Metric O-ring Retaining Ring M27X2 90 Durometer Nitrile Steel
M27G8HG8S Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Female Metric O-ring Retaining Ring na M27X2 Female Metric O-ring Retaining Ring M27X2 na Steel
M27M22F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M27X2 Female ISO 6149 M22X1.5 90 Durometer Nitrile Steel
M27M22F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M27X2 Female ISO 6149 M22X1.5 90 Durometer Fluorocarbon Steel
M27M33F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M27X2 Female ISO 6149 M33X2 90 Durometer Nitrile Steel
M27M33F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M27X2 Female ISO 6149 M33X2 90 Durometer Fluorocarbon Steel
M33-1F8OHGS Straight Metric O-Ring Retaining Ring to NPTF Male Metric O-Ring Retaining Ring na M33X2 Female NPT/NPTF na 90 Durometer Nitrile Steel
M33F8OHA8OS Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Male Metric O-ring Retaining Ring na M33X2 Male Metric O-ring Retaining Ring M33X2 90 Durometer Nitrile Steel
M33G8HG8S Straight Metric O-ring Retaining Ring to Metric O-ring Retaining Ring Female Metric O-ring Retaining Ring na M33X2 Female Metric O-ring Retaining Ring M33X2 na Steel
M33M27F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M33X2 Female ISO 6149 M27X2 90 Durometer Nitrile Steel
M33M27F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M33X2 Female ISO 6149 M33X2 90 Durometer Fluorocarbon Steel
M42M33F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M42X2 Female ISO 6149 M42X2 90 Durometer Nitrile Steel
M42M33F87OHG87MS FKM Straight ISO 6149 to ISO 6149 Male ISO 6149 na M42X2 Female ISO 6149 M42X2 90 Durometer Fluorocarbon Steel
M8M10F87OHG87MS Straight ISO 6149 to ISO 6149 Male ISO 6149 na M8X1 Female ISO 6149 M10X1 90 Durometer Nitrile Steel





美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
