• 全黄铜解决方案消除了对腐蚀的担忧
• 设计有更少的潜在泄漏点
• 更小的包络允许更紧密的路由
• 将每个连接的组装时间减少多达 60 秒
• 系统比传统的先导管线软管组件轻 60%

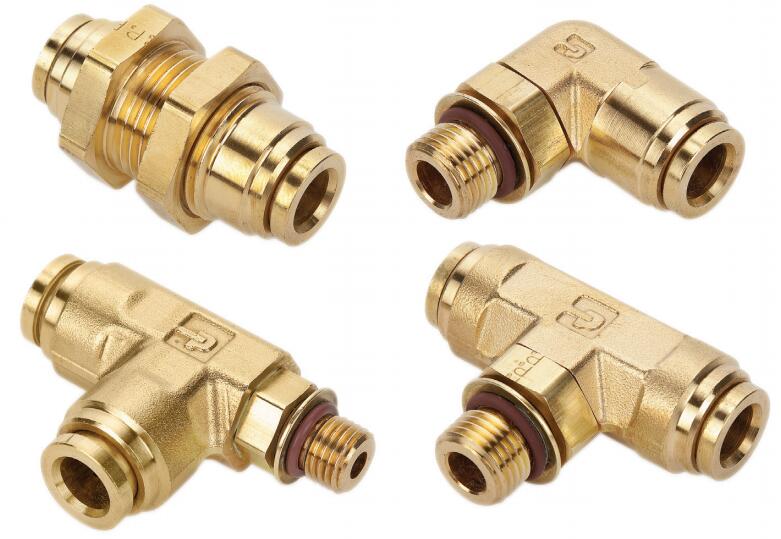

PMH push-to-connect hydraulic fittings are designed to speed up assembly, especially in difficult to reach areas such as hydraulic joystick ports. Parker PMH hydraulic fittings are an ideal solution and include excellent corrosion resistance, a compact envelope, fewer potential leak points and are lightweight. This push to connect hydraulic fitting is designed to speed up assembly, especially in difficult to reach areas such as hydraulic joystick ports. PMH low pressure hydraulic fittings, partnered with XDT tubing from Parflex Division, are for use with low pressure hydraulics (<435 psi) in the Industrial and Mobile Hydraulic Markets. The all brass construction can eliminate corrosion, extending the life of the equipment. PMH hydraulic fittings have been engineered with fewer potential leak points which reduce future warranty costs. PMH fittings offer a smaller envelop, allowing for tighter routings and reducing the complexity of the assembly process. With the PMH push-to-connect fittings system, an assembler simply needs to push the tubing into the pre-installed adapter. PMH low pressure fittings significantly reduce assembly time by 60 seconds per connection. Along with accelerating the assembly, the PMH/XDT system is 60% lighter than traditional pilot line hose assemblies, reducing annual shipping costs and vehicle weight.

市场：
- 工业
- 移动式液压

特性/优点：
- 黄铜主体和夹头
- 丁腈橡胶 O 型圈
- 耐腐蚀
- 重量比标准液压接头轻 60%
- 每个连接减少 60 秒的组装时间
- 紧凑，允许更紧密的布线

应用：
- 试验线
- 液压操纵杆
- 外壳泄油
