Parker Legris 流量控制调节器 - Parker Legris flow control regulators
Parker Legris Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass

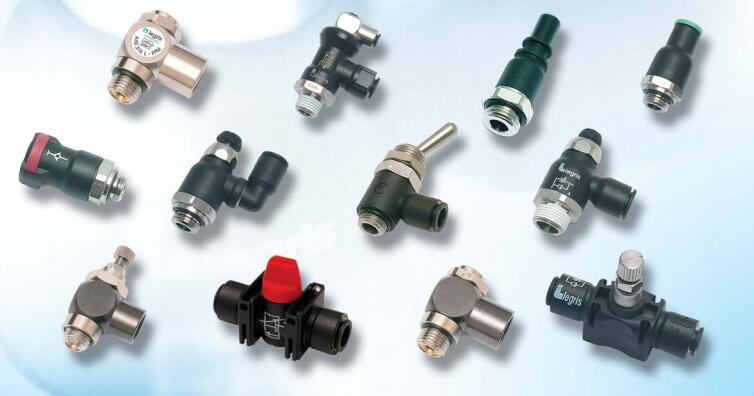

Parker Fittings接头 - Push to Connect Fittings

Parker Legris 流量控制调节器提供精确的调节、准确性和紧凑性，为所有应用提供解决方案。这些流量控制调节器可提供聚合物、镀镍黄铜或铝体、外部或嵌入式调节螺钉。通过允许比标准调节器更高的最大流量和精确调整，该系列产品可帮助您准确地提高生产率和性能。Parker Legris 流量控制调节器采用聚合物、镀镍黄铜或铝制主体、外部或嵌入式调节螺钉，提供精确调节、准确性和紧凑性，为所有应用提供解决方案。

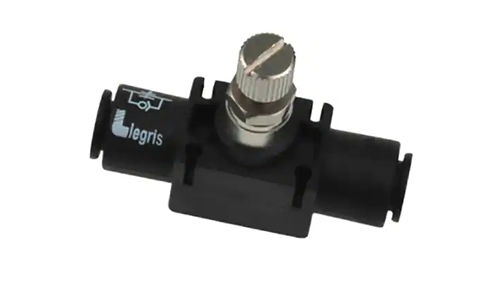

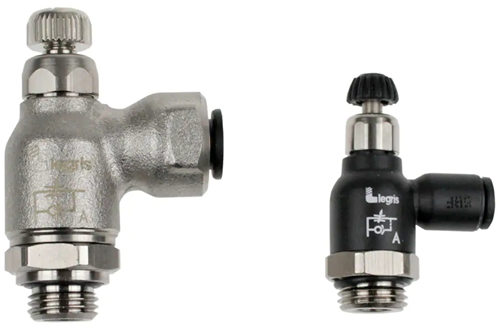

Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass

Parker Legris flow control regulators with polymer, nickel-plated brass or aluminium bodies,external or recessed adjustment screws, offer precise adjustment, accuracy and compactness providing the solution for all applications. Parker Legris flow control regulators offer precise adjustment, accuracy and compactness providing the solution for all applications. Those flow control regulators are available with polymer, nickel-plated brass or aluminium bodies, external or recessed adjustment screws. By allowing a higher maximum flow than standards regulators and precise adjustement, this range of products helps you improve your productivity and performance with accuracy.

特性/优点：

- 提高生产率

- 比标准调节器更高的最大流量
- 全流量且压降最小（7060 型）
- 气缸杆速度的最佳控制
- 生产中 100% 泄漏测试
- 日期编码以保证质量和可追溯性
- 减少压缩空气和能源消耗

- 精度和性能

- 精确调节以实现从初始到最大开度的精确流量调节
- 恒定的缸杆位移速度
- 流量的长期稳定性
- 减轻重量（聚合物版本）
- 机械强度和耐腐蚀性镀镍黄铜版本

- 符合人体工程学和大范围

- 外部调节螺钉：无需工具即可轻松调节且可锁定
- 嵌入式调节螺钉：更紧凑并保护调节机构
- 单向：排气或进气
- 双向：调节空气双向流动
- 360° 定位
- 应要求提供 NPT 版本

市场：

- 工厂自动化
- 车辆装配设施
- 食品和饮料
- 半导体
- 服装
- 包装机械
- 轨道

应用：

- 气动缸控制
- 低压压缩空气流量调节

技术：

- 流量控制
- 双向调节器
- 单向调节器
- 气动控制
- 旋转出口

技术特性：

- 流体：压缩空气。其他流体：联系我们
- 材料：镀镍黄铜、工业聚合物、不锈钢、NBR
- 压力：真空至 10 bar
- 温度：0°C 至 +70°C

规定：

- DI：2002/95/EC (RoHS)
- RG：1907/2006 (REACH)
- DI：97/23/EC (PED)

产品类型：

- 流量调节器，带嵌入式调节螺钉排气/供应，外螺纹 BSPP 和公制螺纹
- 双向流量调节器，带嵌入式调节螺钉，外螺纹 BSPP 和公制螺纹
- 紧凑型流量调节器排气/供给，外螺纹 BSPP / BSPT
- 双向紧凑型流量调节器，外螺纹 BSPP / BSPT
- 微型流量调节器排气，外螺纹 BSPP和公制螺纹 / BSPT
- 微型流量调节器供应，外螺纹 BSPP 和公制螺纹 / BSPT
- 双向微型流量调节器，外螺纹 BSPP 和公制螺纹
- 紧凑型流量调节器旋转出口排气/供应，外螺纹 BSPP / BSPT
- 紧凑型流量调节器旋转出口排气，外螺纹 BSPT
- 微型旋转出口流量调节器排气/供应，外螺纹 BSPP 和公制螺纹/BSPT
- 直列式单向流量调节器
- 双向直列式流量调节器
- 面板安装直插式单向流量调节器
- 直插式单向流量调节器，BSPP 内螺纹
- 连接夹
- 直型流量调节器排气，BSPP 外螺纹
- 紧凑型插入式流量调节器，排气/供应
- 微型插入式流量调节器，排气/供应
- 流量调节器，排气，外螺纹 BSPP 和公制螺纹
- 流量调节器，排气，外螺纹/内螺纹 BSPP 和公制螺纹
- 带黄铜压缩接头的流量调节器，排气，外螺纹 BSPP
- 紧凑型流量调节器，排气/供给，BSPP 外螺纹
- 紧凑型流量调节器，BSPP 外螺纹
- 微型流量调节器排气，BSPP 外螺纹和公制螺纹
- 紧凑型流量调节器排气/供给，外螺纹/母 BSPP 螺纹
- 微型流量调节器排气，外螺纹/内螺纹 BSPP 和公制螺纹
- 流量调节器排气，带黄铜压缩接头，外螺纹 BSPP
- 面板安装式直列流量调节器，内螺纹 BSPP 和公制螺纹

Features/Benefits:

- Improved Productivity

- Higher maximum flow than standard regulators
- Full flow with minimum pressure drop (model 7060)
- Optimal control of the cylinder rod speed
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Reduce compressed air and energy consumption

- Accuracy & Performance

- Precise adjustment for accurate flow regulation from initial to maximum opening
- Constant cylinder rod displacement speed
- Long-term stability of flow
- Reduced weight (polymer version)
- Mechanical strength and corrosion resistance with nickel-plated brass version

- Ergonomics & Large Range

- External adjustment screw: easy to adjust without tooling and lockable
- Recessed adjustment screw: more compact and protects the adjustment mechanism
- Uni-directional: exhaust or inlet
- Bi-directional: adjustment of air flow in both directions
- 360° positioning
- NPT version on request

Markets:

- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery
- Rail

Applications:

- Pneumatic Cylinder Control
- Low Pressure Compressed Air Flow Regulation

Technologies:

- Flow control
- Bi-directional regulator
- Uni-directional regulator
- Pneumatic controls
- Swivel Outlet

Technical Characteristics:

- Fluids: Compressed Air. Other fluids: contact us
- Materials: Nickel-plated brass, technical polymer, stainless steel, NBR
- Pressure: Vacuum to 10 bar
- Temperature: 0°C to +70°C

Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

Product Types:

- Flow Regulator with Recessed Adjustment Screw Exhaust / Supply, Male BSPP and Metric Thread
- Bi-Directional Flow Regulator with Recessed Adjustment Screw, Male BSPP and Metric Thread
- Compact Flow Regulator Exhaust / Supply, Male BSPP / BSPT Thread
- Bi-Directional Compact Flow Regulator, Male BSPP / BSPT Thread
- Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread / BSPT
- Miniature Flow Regulator Supply, Male BSPP and Metric Thread / BSPT
- Bi-Directional Miniature Flow Regulator, Male BSPP and Metric Thread
- Compact Flow Regulator Swivel Outlet Exhaust / Supply, Male BSPP / BSPT Thread
- Compact Flow Regulator Swivel Outlet Exhaust, Male BSPT Thread
- Miniature Swivel Outlet Flow Regulator Exhaust / Supply, Male BSPP and Metric Thread / BSPT
- In-Line One-Way Flow Regulator
- Bi-Directional In-Line Flow Regulator
- Panel-Mountable In-Line One-Way Flow Regulator
- In-Line One-Way Flow Regulator, Female BSPP Thread
- Joining Clips
- Straight Flow Regulator Exhaust, Male BSPP Thread
- Compact Plug-In Flow Regulator, Exhaust / Supply
- Miniature Plug-In Flow Regulator, Exhaust / Supply
- Flow Regulator, Exhaust, Male BSPP and Metric Thread
- Flow Regulator, Exhaust, Male/Female BSPP and Metric Thread
- Flow Regulator with Brass Compression Fitting, Exhaust, Male BSPP Thread
- Compact Flow Regulator, Exhaust / Supply, Male BSPP Thread
- Compact Flow Regulator, Male BSPP Thread
- Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread
- Compact Flow Regulator Exhaust / Supply, Male/Female BSPP Thread
- Miniature Flow Regulator Exhaust, Male/Female BSPP and Metric Thread
- Flow Regulator Exhaust, with Brass Compression Fitting, Male BSPP Thread
- Panel-Mountable In-Line Flow Regulator, Female BSPP and Metric Thread

Technical Specifications

技术规格

• 连接 1 螺纹尺寸（公制）： G1/4
• 抓环： 不锈钢
• 连接 1 螺纹样式： BSPP
• 连接 2 管外径 (mm)： 10
• 连接 2 管外径（英寸）： 呐
• 机身材质： 技术聚合物
• 产品类别： 具有外部调节功能的紧凑型调节器
• 形状： 流量调节器紧凑型班卓琴供应
• 螺母材料： 呐
• O形圈材料： 丁腈橡胶
• 袖子材质： 呐
• 涂层： 呐
• 螺纹密封胶材料： 呐
• 最大工作压力： 10 巴
• 最低工作温度： 0℃
• 最高工作温度： 70℃
• 每箱数量： 5
• 重量： 0.053公斤
• 应用： 气动、机器人、半导体、纺织、汽车工艺、包装
• 媒体： 压缩空气、其他流体：联系我们

Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass 型号
