Pneumatic Manually-Operated Valves

Manually-operated valves offer a reliable and durable system for opening and closing the circuit when the system has to be switched frequently.
They provide a significant reduction in the time needed to work on pneumatic circuits.





Manually-operated valves offer a reliable and durable system for opening and closing the circuit when the system has to be switched frequently.
They provide a significant reduction in the time needed to work on pneumatic circuits.

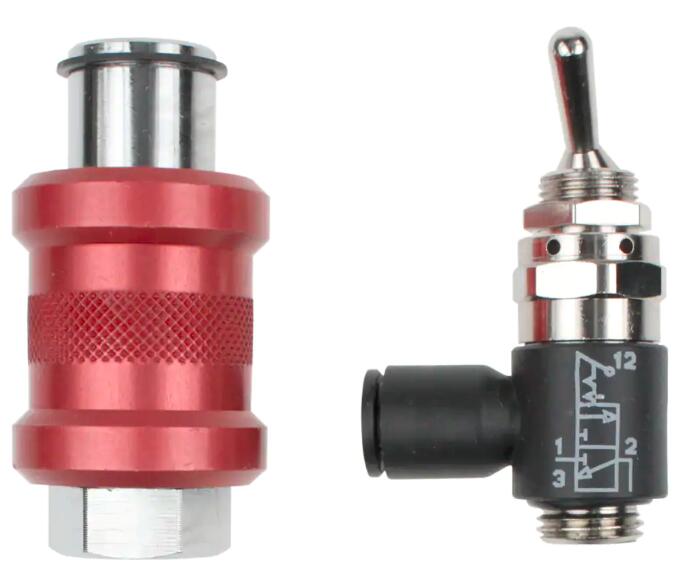

Pneumatic Manually-Operated Valves



Features/Benefits:

- Manual Switch-Operated Valves

- Downstream control supply provided by simply moving the lever
- 2 models available to provide the best solution for the system:
3/2: opening, closing, venting
2/2: opening, closing
- Compact and ergonomic (can be positioned through 360°)
- Push-in connections

- Valves with Sliding Sleeve

- Uni-directional use ensures the downstream circuit is vented
- Operated in the plane of the tube
- Lightweight due to the use of aluminium
- Ideal for complex installations in a restricted space
- Immediate identification of the venting system by the colour (red)

Product Types:

- 3/2 Manual Switch-Operated Valve, Supply, Male BSPP and Metric Thread
- 3/2 Manual Switch-Operated Valve, Control, Male BSPP Thread
- 2/2 Manual Switch-Operated Valve, Male BSPP Thread
- 3/2 Sleeve Valve, Female BSPP and Metric Thread

Markets:

- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging

Application:

- Pneumatic Circuits Repeated Venting

Technical Characteristics:

- Fluids: Compressed air
- Materials: nickel-plated brass, technical polymer, NBR, silicone free
- Pressure: 0 to 10 bar
Model 0669: 0 to 16 bar
- Temperature: -10°C to +80°C
Model 0669: -5°C to +70°C

Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

Technologies:

- Sleeve valve
- Pneumatic systems
- Pressure regulating valve
- Function fitting



Technical Specifications

Application: Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various
Minimum Operating Temperature: -10 °C, 14 °F
Maximum Operating Pressure: 16 bar, 232 psi, 1,6 MPa
Maximum Operating Temperature: 176 °F, 80 °C
Tube Outside Diameter: 4 to 10 mm
Specifications Met: DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED)
Connection Type: Push-to-Connect/Thread
Shape: Straight, 90°
Materials of Construction: Technical Polymer, Nickel Plated Brass, Rubber
O-Ring Material: NBR
Vacuum Pressure Rating: 755 mm-Hg
Quantity per Box: 1 to 2
Weight: 0,022 to 0,323 kg
Media: Compressed air



Pneumatic Manually-Operated Valves 型号

Part Shape Body Material Gripping Ring Handle Diameter Nominal (DN) Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 2 Tube O.D. (mm)
0669 02 19 3/2 sleeve valve female NICKEL PLATED BRASS na na 2,5 Metric M5x0,8 na
0669 04 10 3/2 sleeve valve female NICKEL PLATED BRASS na na 4 BSPP G1/8 na
0669 07 13 3/2 sleeve valve female NICKEL PLATED BRASS na na 7 BSPP G1/4 na
0669 10 17 3/2 sleeve valve female NICKEL PLATED BRASS na na 10 BSPP G3/8 na
0669 14 21 3/2 sleeve valve female NICKEL PLATED BRASS na na 14 BSPP G1/2 na
0669 19 27 3/2 sleeve valve female NICKEL PLATED BRASS na na 19 BSPP G3/4 na
7800 04 10 3/2 manual switch-operated valve supply TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 4
7800 04 19 3/2 manual switch-operated valve supply TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na Metric M5x0,8 4
7800 06 10 3/2 manual switch-operated valve supply TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 6
7800 06 13 3/2 manual switch-operated valve supply TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/4 6
7800 06 19 3/2 manual switch-operated valve supply TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na Metric M5x0,8 6
7800 08 10 3/2 manual switch-operated valve supply TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 8
7800 08 13 3/2 manual switch-operated valve supply TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/4 8
7800 10 13 3/2 manual switch-operated valve supply TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/4 10
7801 04 10 3/2 manual switch-operated valve exhaust TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 4
7801 06 10 3/2 manual switch-operated valve exhaust TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 6
7801 06 13 3/2 manual switch-operated valve exhaust TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/4 6
7801 08 10 3/2 manual switch-operated valve exhaust TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 8
7801 10 13 3/2 manual switch-operated valve exhaust TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/4 10
7802 04 10 2/2 manual switch-operated valve TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 4
7802 06 10 2/2 manual switch-operated valve TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 6
7802 06 13 2/2 manual switch-operated valve TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/4 6
7802 08 10 2/2 manual switch-operated valve TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/8 8
7802 08 13 2/2 manual switch-operated valve TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/4 8
7802 10 13 2/2 manual switch-operated valve TECHNICAL POLYMER STAINLESS STEEL NICKEL PLATED BRASS na BSPP G1/4 10
