气动压力调节器 | #7300 04 10 - Parker Legris pressure regulators
Pneumatic Pressure Regulators

Parker Legris 压力调节器在任何给定的上游压力波动下稳定在输送到气动设备的压力的最大确定值。Parker Legris 压力调节器在任何给定的上游压力波动下稳定在输送到气动设备的压力的最大确定值。通过启用最佳压力设置，这些产品可让您的设备以最大容量运行，进而为您提供节能优势。

Parker Legris pressure regulators stabilise at the maximum determined value of the pressure delivered to the pneumatic equipment at any given fluctuations of the pressure upstream. Parker Legris flow control regulators offer precise adjustment, accuracy and compactness providing the solution for all applications. Those flow control regulators are available with polymer, nickel-plated brass or aluminium bodies, external or recessed adjustment screws. By allowing a higher maximum flow than standards regulators and precise adjustement, this range of products helps you improve your productivity and performance with accuracy.

Features/Benefits:
特点与优势：

- 人体工程学

- 通过滚花螺钉轻松调整输出压力
- 可锁定调整
- 输出压力调整选项标记在螺钉上

- 节能

- 最佳压力的设置使设备能够正常运行
- 安装在歧管中允许将最佳输出压力传送到回路的特定部分
- 设计用于需要控制气缸力的应用：标记、套管、压接气缸等。

市场：

- 工厂自动化
- 服装
- 半导体
- 包装

应用：

- 气动回路压力控制

技术：

- 压力调节器
- 气动设备
- 气动系统
- 气压调节器
- 气动配件

技术特点：

- 流体：压缩空气
- 材料：镀镍黄铜、技术聚合物、腈、不含硅
- 压力：
上游压力：1 至 16 巴
下游压力：1 至 8 巴
- 温度：-10°C 至 +70°C

规定：

- DI：2002/95/EC (RoHS)
- RG：1907/2006 (REACH)
- DI：97/23/EC (PED)

产品类型：

- 压力调节器，外螺纹 BSPP

- Improved Productivity
- Higher maximum flow than standard regulators
- Full flow with minimum pressure drop (model 7060)
- Optimal control of the cylinder rod speed
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Reduce compressed air and energy consumption- Accuracy & Performance
- Precise adjustment for accurate flow regulation from initial to maximum opening
- Constant cylinder rod displacement speed
- Long-term stability of flow
- Reduced weight (polymer version)
- Mechanical strength and corrosion resistance with nickel-plated brass version - Ergonomics & Large Range
- External adjustment screw: easy to adjust without tooling and lockable
- Recessed adjustment screw: more compact and protects the adjustment mechanism
- Uni-directional: exhaust or inlet
- Bi-directional: adjustment of air flow in both directions
- 360° positioning- NPT version on request

Markets:

- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery
- Rail

Applications:

- Pneumatic Cylinder Control
- Low Pressure Compressed Air Flow Regulation

Technologies:

- Flow control
- Bi-directional regulator
- Uni-directional regulator
- Pneumatic controls
- Swivel OutletTechnical

Technical Specifications

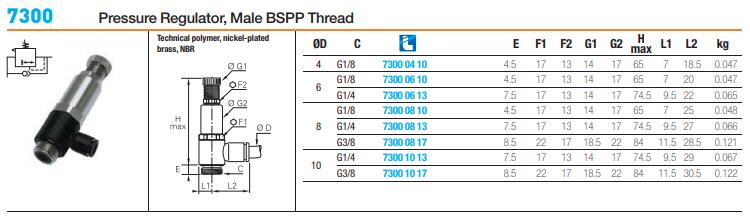

Pneumatic Pressure Regulators 型号
