气动传感器接头- Parker 气动传感器接头具有独特的传感器，可检测气缸到达其行程末端时的压降。当压力下降到背压阈值以下时，它们会产生气动或电动输出信号。派克气动传感接头可以在气缸行进至末端，缸内背压即将消失时做动，输出气/电压或电子信号，以作为其他控制之用。The parker pneumatic sensor fittings has a unique sensor that detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop below their back pressure threshold. The parker pneumatic sensor fittings has a unique sensor that detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

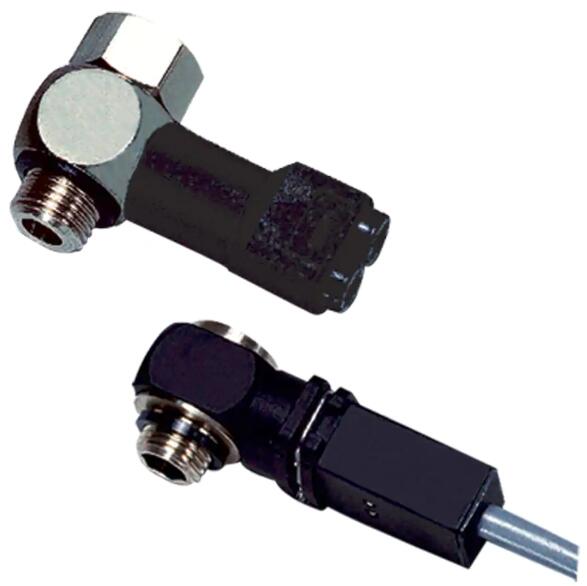

Pneumatic Sensor Fittings

Features/Benefits:
特征/优势：

- 使用方便

- 适合不同回路的变化：可替代位移传感器

- 带气压输出讯号

- 安装在气动回路中
- 2种安装方式：
- 提供长期压力(P1)：当达到背压值时，输出气压信号
- 背压来自对面的控制阀-气缸回路：由于输出压力讯号由(P1)决定，因此在行程过程中不会出现意外的气压信号(S)输出

- 带电子输出讯号

- 结合了电子和气动的技术
- 仅与不间断电源安装到一起(BU)
- 当达到背压值时，使产生电子信号

市场：

- 工厂自动化
- 纺织机械
- 半导体
- 包装

应用：

- 气动回路压降检测

技术：

- 压力传感器
- 电力传感器
- 气动传感器
- 气动回路安装
- 压力调节器
- 气动系统
- 气动接头

技术参数：

- 流体：压缩空气
- 材料：黄铜，工程塑料，丁腈橡胶，不含硅成分
- 压力范围： 3至8 bar
- 温度范围： -15°C 至 +60°C
- 背压： 0.85至1 ba
- 切换时间：7818型: 3ms

符合规范：

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

产品类型：

- 气动传感接头，BSPP和公制外螺纹
- 气动传感接头，BSPP内/外螺纹
- 电/气传感接头，BSPP和公制内/外螺纹

- Easy-to-Use

- Suited to changes of series: no adjustment to position detectors is necessary

- With Pneumatic Output

- Totally pneumatic installation
- 2 possible installations:
Supplied with permanent pressure (P1): produces a pneumatic signal when the back pressure threshold is reached
Supplied from the control valve-cylinder circuit on the opposite side: no unexpected pneumatic signal (S) can appear during pressurisation due to the actuating pressure which supplies the sensor fitting (P1)

- With Electrical Output

- Combined electrical and pneumatic installation
- Installation with continuous electrical supply only (BU)
- Guarantees an electrical signal when the back pressure threshold is reached

Markets:

- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging

Application:

- Pneumatic Circuits Pressure Drop Detection


Technologies:

- Pressure sensor
- Electric sensor
- Pneumatic sensors
- Pneumatic installation
- Pressure regulator
- Pneumatic system
- Pneumatic fittings

Technical Characteristics:

- Fluids: Compressed air
- Materials: brass, technical polymer, NBR, silicone free
- Pressure: 3 to 8 bar
- Temperature: -15°C to +60°C
- Back pressure: 0.85 to 1 bar
- Switching time: Model 7818: 3ms

Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

Product Types:

- Pneumatic Sensor Fitting, Male BSPP and Metric Thread
- Pneumatic Sensor, Male/Female BSPP Thread
- Pneumatic/Electric Sensor, Male/Female BSPP and Metric Thread

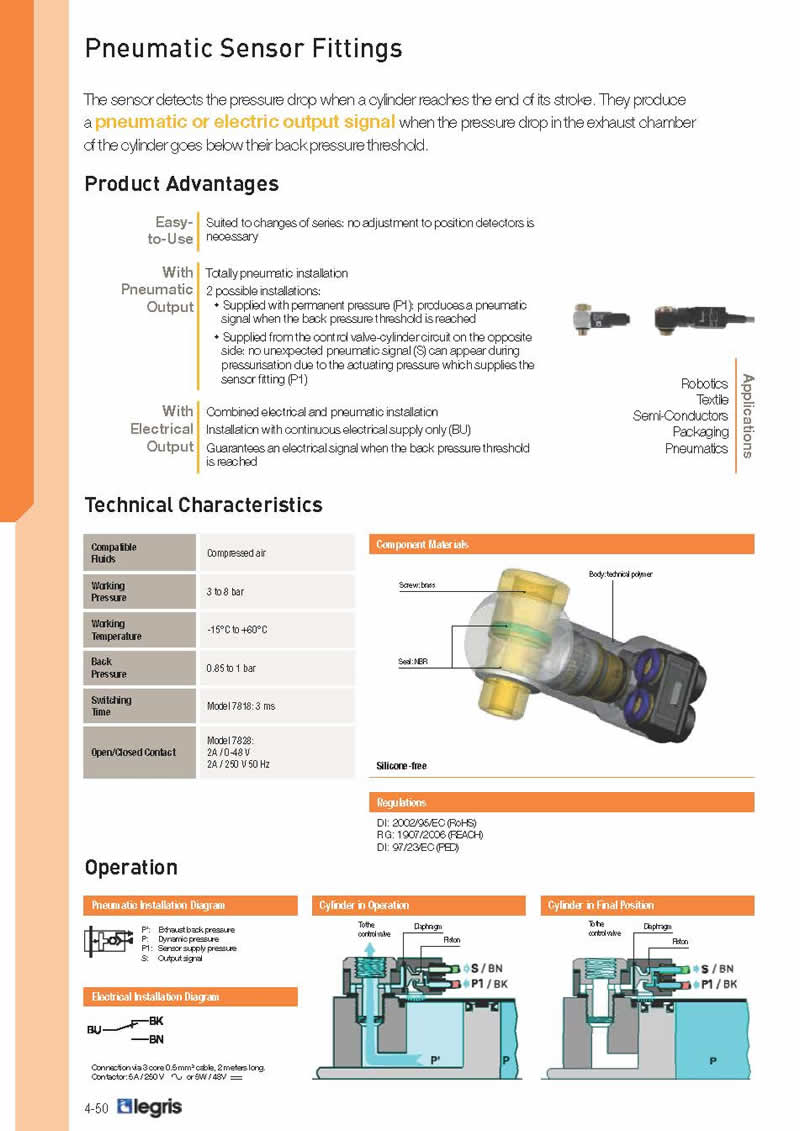

Technical Specifications

Pneumatic Sensor Fittings 型号
