气动塑料快换接头 Pneumatic Snap Fittings
Parker Fittings接头 - Push to Connect Fittings

快换接头无需排空整个系统即可隔离回路。它们便于反复连接和断开，确保绝对安全。塑料快换接头无需排空整个系统即可隔离回路。它们便于反复连接和断开，有效提高安全性。这些接头的设计是为了保障在系统需要频繁地断开与连接操作时，保护整个系统的安全性。The snap fittings enable a circuit to be isolated without the need to vent the complete system. They are designed to facilitate repeated connections and disconnections in total safety. The snap fittings enable a circuit to be isolated without the need to vent the complete system. They are designed to facilitate repeated connections and disconnections in total safety.

Features/Benefits:
特征/优势：

- 性能和安全

- 在执行工作过程中，实现系统的部分排气
- 在维护操作过程中，节省能源和时间
- 根据需要，通过保持压力，保护人员安全
- 可听见的咔哒声，表明连接成功
- 通过彩色环进行回路识别（根据要求）

市场：

- 工厂自动化
- 纺织机械
- 半导体
- 包装

应用

- 气动控制面板上管路多次重复的连接以及断开
- 不需要彻底排气，气动系统即可实现分离

技术：

- 快速连接
- 快速接头
- 气动接头
- 空气接头
- 功能接头
- 气动系统

技术参数：

- 介质：压缩空气
- 材料：铜镀镍，工程塑料，丁腈橡胶，不含硅
- 压力：0至10bar
- 温度：-20°C 到 +80°C

符合规范:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

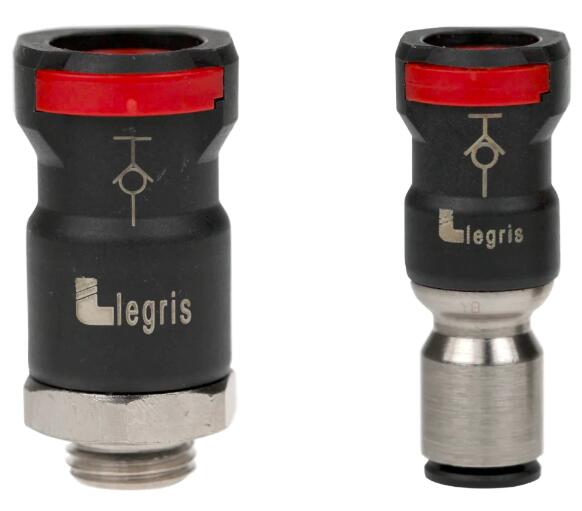

产品类型：

- 接头体，带快插式接头
- 接头体，BSPP外螺纹
- 插头体，带快插式接头
- 插头体，BSPP外螺纹

- Performance & Safety

- Partial venting of systems while work is carried out
- Energy and time saving during maintenance operations
- Protection of individuals by maintaining pressure if necessary
- Audible click indicates connection
- Circuit identification by coloured rings (on request)

Markets:

- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging

Application:

- Repeated Connections and Disconnections on Pneumatic Control Panels
- Pneumatic Circuits Isolation without Fully Venting


Technologies:

- Snap connectors
- Snap fitting
- Pneumatic fittings
- Air fittings
- Function fitting
- Pneumatic system

Technical Characteristics:

- Fluids: Compressed air
- Materials: nickel-plated brass, technical polymer, NBR, silicone free
- Pressure: 0 to 10 bar
- Temperature: -20°C to +80°C

Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

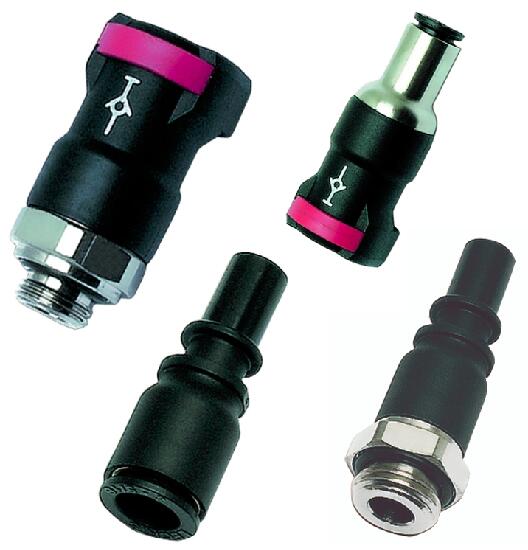

Product Types:

- Body with Push-In Connection
- Body with Male BSPP Thread
- Straight Probe, Push-In Connection
- Straight Probe, Male BSPP Thread

技术规格：

Technical Specifications

Pneumatic Snap Fittings 型号
