Push to Connect Fittings
Pneumatic Soft Start Fittings

These fittings protect your system by preventing sudden shocks.
On start-up, they control the pressure increase in the downstream circuit; this helps prevent the risk of industrial accidents.





These fittings protect your system by preventing sudden shocks.

On start-up, they control the pressure increase in the downstream circuit; this helps prevent the risk of industrial accidents.





Features/Benefits:

- Protection of Equipment & Personnel
- Prevents the risk of damage after any stoppage which requires the system to be vented
- Returns the control valve to its initial position in total safety
- Adjustment of the pressurisation speed
- Protects the adjustment mechanism using a recessed adjustment screw

- Mounted on FRL

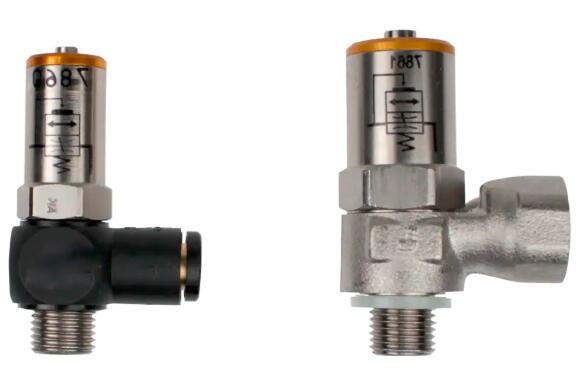

- Models 7860 and 7861: yellow identification washer
- Protection for the whole system
- Simultaneous pressurisation speed of the whole system

- Mounted on Control Valve
- Models 7870 and 7871: black identification washer
- Protection of individual circuits
- Mounted on the control valve, it optimises the pressurisation speed of a specific cylinder

Markets:

- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging

Application:

- Pneumatic Circuits Protection


Technologies:

- Control valve
- Isolating valve
- Pressure regulator
- Pneumatic system
- Pressure regulating valve

Technical Characteristics:

- Fluids: Compressed air
- Materials: nickel-plated brass, technical polymer, NBR, silicone free
- Pressure: 3 to 10 bar
- Temperature: -15°C to +60°C

Regulations:

- DI: 2002/95/CE (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/CE (PED)

Product Types:

- Soft Start Fitting for Isolating Valve, Male BSPP Thread
- Soft Start Fitting for Isolating Valve, Male/Female BSPP Thread
- Soft Start Fitting for Control Valve, Male BSPP Thread
- Soft Start Fitting for Control Valve, Male/Female BSPP Thread





Technical Specifications

Application: Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various
Minimum Operating Temperature: -15 °C, 5 °F
Maximum Operating Pressure: 1 MPa, 10 bar, 145 psi
Maximum Operating Temperature: 140 °F, 60 °C
Tube Outside Diameter: 8 to 12 mm
Shape: 90°
Specifications Met: DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/CE (RoHS), RG: 1907/2006 (REACH), DI: 97/23/CE (PED)
Connection Type: Push-to-Connect/Thread
Materials of Construction: Technical Polymer, Nickel Plated Brass, Rubber
Quantity per Box: 1
Weight: 0,064 to 0,152 kg
Media: Compressed air



Pneumatic Soft Start Fittings 型号

Part Shape Body Material Gripping Ring Connection 1 Thread Size (metric) Connection 2 Tube O.D. (mm)

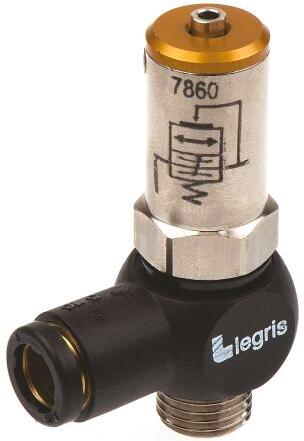

7860 08 13 Soft start for isolating valve TECHNICAL POLYMER STAINLESS STEEL G1/4 8
7860 10 13 Soft start for isolating valve TECHNICAL POLYMER STAINLESS STEEL G1/4 10
7860 10 17 Soft start for isolating valve TECHNICAL POLYMER STAINLESS STEEL G3/8 10
7860 12 17 Soft start for isolating valve TECHNICAL POLYMER STAINLESS STEEL G3/8 12
7860 12 21 Soft start for isolating valve TECHNICAL POLYMER STAINLESS STEEL G1/2 12

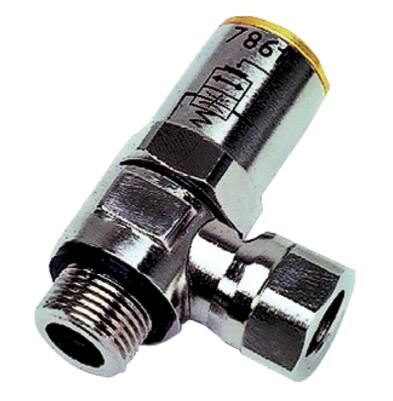

7861 13 13 Soft start for isolating valve female NICKEL PLATED BRASS na G1/4 na
7861 17 17 Soft start for isolating valve female NICKEL PLATED BRASS na G3/8 na
7870 08 13 Soft start for control valve TECHNICAL POLYMER STAINLESS STEEL G1/4 8
7870 10 13 Soft start for control valve TECHNICAL POLYMER STAINLESS STEEL G1/4 10
7870 10 17 Soft start for control valve TECHNICAL POLYMER STAINLESS STEEL G3/8 10

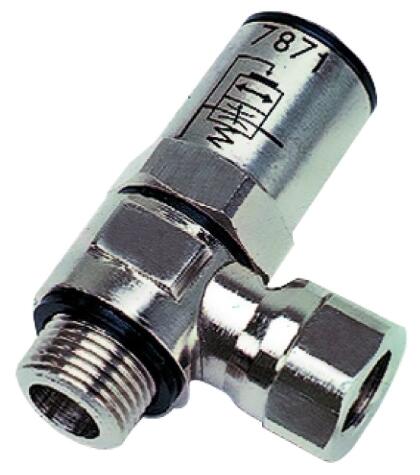

7871 13 13 Soft start for control valve female NICKEL PLATED BRASS na G1/4 na
7871 17 17 Soft start for control valve female NICKEL PLATED BRASS na G3/8 na
