Polymer Cartridges: LF 3000 and LIQUIfit Carstick, Quick Fitting

This range of patented cartridges guarantees the sealing system's integrity before and after assembly in non-threaded cavities. The compact design of the one-piece Carstick enables automation of your manufacturing process, improving reliability. Parker Legris has developed the range of patented Carstick cartridges guaranteeing the integrity of the sealing system before and after assembly in non-threaded cavities. The compact design of the one-piece Carstick cartridge enables automation of your manufacturing process and improves the
reliability of your system.

PRODUCT ADVANTAGES:

> Time-Saving
- No thread to be machined for inserting the fi tting into its cavity
- Seal pre-assembled, greased and protected
- Self-centring of the cartridge in the cavity
- Product protected against contamination, from manufacture to installation
- Possible to have several diameters of tube in the same cavity (Quick Fitting)

> Proven Technology
- Technical performances of the LF 3000
- Push-in connection
- Full flow
- Optimum flow at pressure and vacuum
- LIQUIfit Carstick compatible with drinking water and food fluids

> Automated Installation
- Ensures that the product will be correctly assembled
- Connection fully integrated in the cavity
- Carstick packaging designed for an automatic assembly process

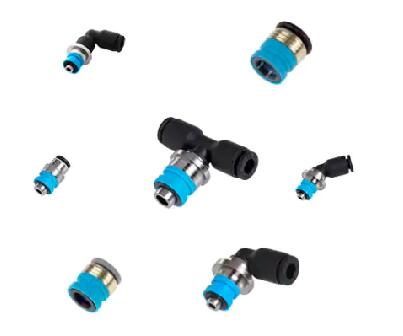

PRODUCT TYPES:
- Carstick cartridge
- Quick Fitting Reducer
- Quick Fitting Elbow
- Quick Fitting Extended Elbow
- Quick Fitting 45° Elbow
- Quick Fitting Tee
- LIQUIfit cartridge

APPLICATIONS:
- Robotics
- Automotive Process
- Pneumatics
- Semi-Conductors
- Water & Beverage
- Packaging
- Vacuum

TECHNICAL CHARACTERISTICS:
LF 3000 Carstick and Quick Fitting
- Fluids: Compressed Air
- Materials: Technical polymer, brass or chemical nickel-plated brass, NBR, EPDM, FKM, stainless steel
- Pressure: Vacuum to 20 bar
- Temperature: -20°C to +80°C
LIQUIfit Carstick
- Fluids: Food fluids, inert gases
- Materials: Technical polymer, nickel-plated brass, NBR
- Pressure: Vacuum to 16 bar
- Temperature: -10°C to +95°C

REGULATIONS:
LF 3000 Carstick and Quick Fitting
- ISO 14743: Pneumatic fluid power, push-in fittings for thermoplastic tubes
- DI: 2002/95/CE (RoHS), 2011/65/CE
- DI: 97/23/CE (PED)
LIQUIfit Carstick
- RG: 1935/2004/CE
- FDA: 21 CFR 177.1550
- NSF 51 to 95°C
- ACS
- DM 174 (Italy)
- DI: 2002/95/CE (RoHS), 2011/65/CE
- DI: 97/23/CE (PED)
- WRAS
- NSF/ANSI 61 - C HOT
- KTW: cartridges on request
