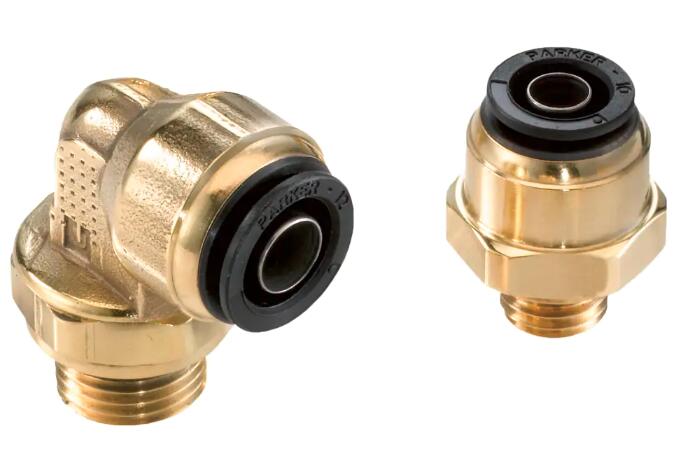

Prestomatic 2 Push-In Fittings

To meet severe and demanding applications such as pneumatic circuits in rail and road transportation, Prestomatic 2 fittings conform to the international standards offering
robustness, reliability and mechanical resistance.





To meet severe and demanding applications such as pneumatic circuits in rail and road transportation, Prestomatic 2 fittings conform to the international standards offering
robustness, reliability and mechanical resistance.



Prestomatic 2 Push-In Fittings



Features/Benefits:

- Versatility

- Extreme compactness for space-saving
- High robustness
- Excellent mechanical properties adapted to severe working conditions
- Integrated metallic tube support reinforces tube alignment and tube retention for:
excellent resistance to vibration
sealing ensured over time
increased resistance to tube removal
- Fully re-usable to reduce maintenance costs

- High Performance

- Positive hold by an innovative gripping ring design allowing absorption of vibration and pulsating pressure
- Twist-free assembly allowing free tube rotation even under pressure and high resistance to tube expansion
- Extreme temperature resistance: up to -50°C for increased lifespan

- Reliability

- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Suitable with flexible tubing in braking system

Markets:

- Rail
- On-Highway Vehicles

Applications:

- Compressed Air Conveying from Very Low to High Temperature
- Suitable for Onboard Applications Requiring Mechanical Resistance
- Air Braking Systems
- Air Suspension
- Chassis
- Engine Braking
- Gearbox
- Pantograph
- Motricity Control

Technologies:

- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Rail Transportation
- Road Transportation

Technical Characteristics:

- Compatible fluids: Compressed air
- Materials: Brass, nitrile, stainless steel, polyamide
- Pressure: 0 to 25 bar
- Temperature: -40°C to +100°C (For lower temperature applications, please consult us)

Regulations:

- EN 45545-2: HL3, R22, R24, R25 classification can be attained when used with fireproof tubing
Fully adapted to transportation braking system applications with tubing:
- DIN 74324-1
- DIN 73378
- NF-R12-632-2

Product Types:

- Stud Fitting, Male Metric Thread
- Stud Fitting, Male NPT thread
- Equal Mixed Bulkhead Adapter
- 90° Elbow, Male Metric Thread
- 45° Elbow, Male Metric Thread
- Stud Branch Tee, Male Metric Thread
- Stud Branch Tee, Male Metric Thread, In-Line Test Point
- Equal Connector
- Equal Bulkhead Connector
- Equal and Unequal 90° Plug-In Elbow
- Equal and Unequal Tee
- 90° Elbow, Male/Female Metric Thread
- 45° Elbow, Male/Female Metric Thread
- Female Run Tee, Male Metric Thread
- Branch Tee, Male/Female Metric Thread
- Tee with Mounting Boss, Female Metric Thread
- Increaser, Male/Female Metric Thread
- Reducer, Male/Female Metric Thread
- Conversion Fitting, Male Metric/Female NPT Thread
- Conversion Fitting, Male Metric/Female BSPP Thread
- Straight Male Adaptor, Male Metric Thread
- Bulkhead Union, Female Metric Thread
- Bulkhead Union, Male/Female Metric Thread
- Stud Test Point, Male Metric Thread
- Test Point 90° Elbow, Male Metric Thread
- Test Point 45° Elbow, Male Metric Thread
- Drain Valve, Male Metric Thread
- Plug, Male Metric Thread
- Blanking Plug
- Bulkhead Locknut



Technical Specifications

Application: Transportation
Minimum Operating Temperature: -40 °C, -40 °F
Maximum Operating Pressure: 25 bar, 363 psi, 2,5 MPa
Maximum Operating Temperature: 212 °F, 100 °C
Tube Outside Diameter: 6 to 16 mm, 0,24 to 0,63 inch
Materials of Construction: Brass, Rubber
Specifications Met: DIN 74324-1 - DIN 73378 - NF-R12-632-2, EN 45545-2: HL3, R22, R24, R25 classification can be attained when used with fireproof tubing. Fully adapted to transportation braking system applications with tubing: DIN 74324-1, DIN 73378, NF-R12-632-2
Connection Type: Push-to-Connect, Push-to-Connect/Thread, Push-to-Connect/Plug-in
Shape: Straight, 90°, 45°, Tee
Nut Material: BRASS
Gripping Ring Material: STAINLESS STEEL
Quantity per Box: 1 to 500
Weight: 0,020 to 0,092 kg
Media: Compressed air



Prestomatic 2 Push-In Fittings 型号

Part Shape Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 2 Thread Size (metric) Connection 3 Thread Size (metric) Connection 4 Tube O.D. (mm)
C8UNPMB10M16 90° Elbow Metric M16x1,5 na na D:10
C8UNPMB10M22 90° Elbow Metric M22x1,5 na na D:10
C8UNPMB12M12 90° Elbow Metric M12x1,5 na na D:12
C8UNPMB12M16 90° Elbow Metric M16x1,5 na na D:12
C8UNPMB12M22 90° Elbow Metric M22x1,5 na na D:12
C8UNPMB16M16 90° Elbow Metric M16x1,5 na na D:16
C8UNPMB16M22 90° Elbow Metric M22x1,5 na na D:16
C8UNPMB6M10 90° Elbow Metric M10x1 na na D:6
C8UNPMB6M12 90° Elbow Metric M12x1,5 na na D:6
C8UNPMB6M22 90° Elbow Metric M22x1,5 na na D:6
C8UNPMB8M12 90° Elbow Metric M12x1,5 na na D:8
C8UNPMB8M14 90° Elbow Metric M14x1,5 na na D:8
C8UNPMB8M16 90° Elbow Metric M16x1,5 na na D:8
C8UNPMB8M22 90° Elbow Metric M22x1,5 na na D:8
F2NPMB10-1/2 Stud Fitting NPT Thread Metric NPT1/2 na na D:10
F2NPMB10-1/4 Stud Fitting NPT Thread Metric NPT1/4 na na D:10
F2NPMB12-1/2 Stud Fitting NPT Thread Metric NPT1/2 na na D:12
F2NPMB12-3/8 Stud Fitting NPT Thread Metric NPT3/8 na na D:12
F2NPMB6-1/4 Stud Fitting NPT Thread Metric NPT1/4 na na D:6
F2NPMB6-1/8 Stud Fitting NPT Thread Metric NPT1/8 na na D:6
F2NPMB8-1/4 Stud Fitting NPT Thread Metric NPT1/4 na na D:8
F2NPMB8-3/8 Stud Fitting NPT Thread Metric NPT3/8 na na D:8
F8UNPMB10M12 Stud Fitting Metric Thread Metric M12x1,5 na na D:10
F8UNPMB10M14 Stud Fitting Metric Thread Metric M14x1,5 na na D:10
F8UNPMB10M16 Stud Fitting Metric Thread Metric M16x1,5 na na D:10
F8UNPMB10M22 Stud Fitting Metric Thread Metric M22x1,5 na na D:10
F8UNPMB12M12 Stud Fitting Metric Thread Metric M12x1,5 na na D:12
F8UNPMB12M16 Stud Fitting Metric Thread Metric M16x1,5 na na D:12
F8UNPMB12M22 Stud Fitting Metric Thread Metric M22x1,5 na na D:12
F8UNPMB16M16 Stud Fitting Metric Thread Metric M16x1,5 na na D:16
F8UNPMB16M22 Stud Fitting Metric Thread Metric M22x1,5 na na D:16
F8UNPMB6M10 Stud Fitting Metric Thread Metric M10x1 na na D:6
F8UNPMB6M12 Stud Fitting Metric Thread Metric M12x1,5 na na D:6
F8UNPMB6M16 Stud Fitting Metric Thread Metric M16x1,5 na na D:6
F8UNPMB6M22 Stud Fitting Metric Thread Metric M22x1,5 na na D:6
F8UNPMB8M12 Stud Fitting Metric Thread Metric M12x1,5 na na D:8
F8UNPMB8M14 Stud Fitting Metric Thread Metric M14x1,5 na na D:8
F8UNPMB8M16 Stud Fitting Metric Thread Metric M16x1,5 na na D:8
F8UNPMB8M22 Stud Fitting Metric Thread Metric M22x1,5 na na D:8
HNPMB10 Equal Connector Metric na na na D:10
HNPMB12 Equal Connector Metric na na na D:12
HNPMB16 Equal Connector Metric na na na D:16
HNPMB6 Equal Connector Metric na na na D:6
HNPMB8 Equal Connector Metric na na na D:8
JNPMB10 Equal and Unequal Tee Metric na na na D:10 - D1:10 - D2:10
JNPMB10-10-6 Equal and Unequal Tee Metric na na na D:10 - D1:10 - D2:6
JNPMB10-6-10 Equal and Unequal Tee Metric na na na D:10 - D1:6 - D2:10
JNPMB12 Equal and Unequal Tee Metric na na na D:12 - D1:12 - D2:12
JNPMB12-12-6 Equal and Unequal Tee Metric na na na D:12 - D1:12 - D2:6
JNPMB16 Equal and Unequal Tee Metric na na na D:16 - D1:16 - D2:16
JNPMB8 Equal and Unequal Tee Metric na na na D:8 - D1:8 - D2:8
JNPMB8-8-12 Equal and Unequal Tee Metric na na na D:8 - D1:12 - D2:8
M12M16F8UG8B Increaser Metric Thread Metric M12x1,5 M16x1,5 na na
M12MMS8UB Branch Tee Metric Thread Metric M12x1,5 M12x1,5 na na
M12MRO8UB Female Run Tee Metric M12x1,5 M12x1,5 na na
M12P8UNBL Plug Metric Thread Metric M12x1,5 na na na
M14P8UNBL Plug Metric Thread Metric M14x1,5 na na na
M16-1/4F8UG4B Conversion Fitting BSPP Thread Metric M16x1,5 G1/4 na na
M16-1/4F8UGB Conversion Fitting NPT Thread Metric M16x1,5 NPT1/4 na na
M16-1/8F8UG4B Conversion Fitting BSPP Thread Metric M16x1,5 G1/8 na na
M16F8UHA8UB Straight Male Adaptor Metric M16x1,5 M16x1,5 na na
M16M12F8UG8B Reducer Metric Thread Metric M16x1,5 M12x1,5 na na
M16M16D8C8UB 90° Elbow Metric Thread Metric M16x1,5 M16x1,5 na na
M16M16D8V8UB 45° Elbow Metric Thread Metric M16x1,5 M16x1,5 na na
M16M16M22MMS8UB Branch Tee Metric Thread Metric M22x1,5 M16x1,5 na na
M16M22D8C8UB 90° Elbow Metric Thread Metric M22x1,5 M16x1,5 na na
M16M22F8UHA8UB Straight Male Adaptor Metric M16x1,5 M22x1,5 na na
M16M22M16MRO8UB Female Run Tee Metric Thread Metric M22x1,5 M16x1,5 na na
M16M22WG8F8UB Bulkhead Union, Male/Female Metric Thread Metric M22x1,5 M16x1,5 M22x1,5 na
M16MMO8BKT Tee with Mounting Boss Metric M16x1,5 na na na
M16MMS8UB Branch Tee Metric Thread Metric M16x1,5 M16x1,5 na na
M16MRO8UB Female Run Tee Metric Thread Metric M16x1,5 M16x1,5 na na
M16P8UNBL Plug Metric Thread Metric M16x1,5 na na na
M16WG8F8UB Bulkhead Union, Male/Female Metric Thread Metric M16x1,5 M16x1,5 M22x1,5 na
M16WGG88BH27 Bulkhead Union, Female Metric Thread Metric M16x1,5 M16x1,5 M22x1,5 na
M22-3/8F8UGB Conversion Fitting NPT Thread Metric M22x1,5 NPT3/8 na na
M22D8C8UB 90° Elbow Metric Thread Metric M22x1,5 M22x1,5 na na
M22F8UHA8UB Straight Male Adaptor Metric Thread Metric M22x1,5 M22x1,5 na na
M22M16F8UG8B Reducer Metric Thread Metric M22x1,5 M16x1,5 na na
M22M16WGG88B Bulkhead Union, Female Metric Thread Metric M22x1,5 M16x1,5 M26x1,5 na
M22MRO8UB Female Run Tee Metric Thread Metric M22x1,5 M22x1,5 na na
M22P8UNBL13 Plug Metric Thread Metric M22x1,5 na na na
PPRF8UM16 Stud Test Point Metric M16x1,5 M16x1,5 na na
PPRF8UM22 Stud Test Point Metric M22x1,5 M16x1,5 na na
S8UNPMB10M16 Stud Branch Tee Metric Thread Metric M16x1,5 na na D:10
S8UNPMB10M22 Stud Branch Tee Metric Thread Metric M22x1,5 na na D:10
S8UNPMB10PPAM16 Stud Branch Tee Metric Thread Metric M16x1,5 M16x1,5 na D:10
S8UNPMB12M16 Stud Branch Tee Metric Thread Metric M16x1,5 na na D:12
S8UNPMB12M22 Stud Branch Tee Metric Thread Metric M22x1,5 na na D:12
S8UNPMB12PPAM16 Stud Branch Tee Metric Thread Metric M16x1,5 M16x1,5 na D:12
S8UNPMB12PPAM22 Stud Branch Tee Metric Thread Metric M22x1,5 M16x1,5 na D:12
S8UNPMB16M22 Stud Branch Tee Metric Thread Metric M22x1,5 na na D:16
S8UNPMB8M16 Stud Branch Tee Metric Thread Metric M16x1,5 na na D:8
S8UNPMB8M22 Stud Branch Tee Metric Thread Metric M22x1,5 na na D:8
T2ENPMB10 Equal and Unequal 90° Plug-In Elbow Metric na na na D:10 - D2:12
T2ENPMB12 Equal and Unequal 90° Plug-In Elbow Metric na na na D:12 - D2:12
T2ENPMB6 Equal and Unequal 90° Plug-In Elbow Metric na na na D:6 - D2:8
V8UNPMB10M22 45° Elbow Metric Thread Metric M22x1,5 na na D:10
V8UNPMB12M16 45° Elbow Metric Thread Metric M16x1,5 na na D:12
V8UNPMB12M22 45° Elbow Metric Thread Metric M22x1,5 na na D:12
V8UNPMB16M22 45° Elbow Metric Thread Metric M22x1,5 na na D:16
V8UNPMB8M16 45° Elbow Metric Thread Metric M16x1,5 na na D:8
VDPF8UM22L13 Drain Valve Metric M22x1,5 na na na
WEONPMB12-12L Equal Mixed Bulkhead Adapter Metric M18x1,5 na na D:12 - D2:12
WEONPMB8-10L Equal Mixed Bulkhead Adapter Metric M16x1,5 na na D:8 - D2:10
WEONPMB8-12L Equal Mixed Bulkhead Adapter Metric M18x1,5 na na D:8 - D2:12
WEONPMB8-8L Equal Mixed Bulkhead Adapter Metric M14x1,5 na na D:8 - D2:8
WL8NBM16X1.5 Bulkhead Locknut Metric M16x1,5 na na na
WL8NBM18X1.5 Bulkhead Locknut Metric M18x1,5 na na na
WL8NBM20X1.5 Bulkhead Locknut Metric M20x1,5 na na na
WL8NBM22X1.5 Bulkhead Locknut Metric M22x1,5 na na na
WL8NBM24X1.5 Bulkhead Locknut Metric M24x1,5 na na na
WNPMB10 Equal Bulkhead Connector Metric M22x1,5 na na D:10
WNPMB12 Equal Bulkhead Connector Metric M24x1,5 na na D:12
WNPMB6 Equal Bulkhead Connector Metric M18x1,5 na na D:6
WNPMB8 Equal Bulkhead Connector Metric M20x1,5 na na D:8









美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
