PTFE Hose “True-Bore” Fittings - PAGE Series

PAGE Series Fittings are “True-Bore” crimp fittings used only with “True-Bore” hoses from the Parflex PAGE product line.They are two piece fittings with the collars sold separately and designed to keep total fitting inventory costs at a minimum





PAGE Series Fittings are “True-Bore” crimp fittings that are used only with “True-Bore” hoses from the Parflex PAGE product line. They are unique because they are two piece fittings with the barbed inserts used on all hoses and collars are sold separately unique to the hose type and are designed to keep total fitting inventory costs at a minimum. Where possible, collars are designed to fit hoses by size rather than by hose series.

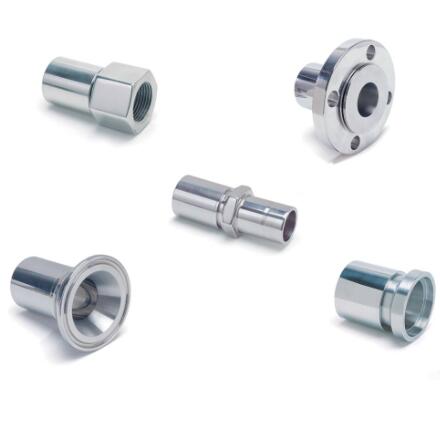

“True-Bore” Fittings are manufactured in Stainless Steel and offered in a Cam & Groove, Sanitary, Pipe, JIC, Seal-Lok, A-Lok or Flange constructions. PAGE also offers flare through fittings for heavy wall convoluted hoses in sanitary and flanged style fittings. This feature allows for the media to only touch the fluoropolymer hose material from end to end thus ending the need to replace assemblies that have had chemical attack of the end fittings. Fluoropolymer encapsulated fittings are also available in several styles of end fittings and limited sizes. It is important to note that the PAGE fitting call-out does not follow traditional Parker fitting nomenclature; the end size and hose size are reversed. For a list of compatible hoses and detailed technical specifications, refer to the literature on the Product Support tab.



PTFE Hose “True-Bore” Fittings - PAGE Series




Markets:
- Fluid Handling
- Industrial
- Paint
- Chemical
- Pharmaceutical
- Food & Beverage
- Semiconductor

Features/Benefits:
- Fitting collars are designed to fit hoses by size rather than by hose series; i.e. SC300 will work on many convoluted hoses rather than only on one specific series of hose
- Interchangeable fitting collars keep inventory at a minimum
- Fittings are crimp style for permanent attachment

Applications:
- Fluid Handling
- Chemical Transfer
- Paint
- Pharmaceutical
- Food & Beverage
- Cosmetics
- Semiconductor
- Ground Support
- Industrial

Technical Specifications:
- PAGE fittings require a PAGE collar (sold separately)
- The PAGE fitting call-out does not follow traditional Parker fitting nomenclature; the end size and hose size are reversed
- Can never be crimped in a Parkrimp system. Only use adjustable crimpers of 100-150 ton capacity.



Technical Specifications

Shape: Straight
Application: Various
Connection Type: Crimped, Cam & Groove, Acme Thread, I-Line Sanitary, Pipe, NPTF, 37° Flare, Seal-lok, Compression
Hose Inside Diameter: 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4 inch, 6, 10, 13, 19, 25, 32, 38, 51, 64, 76, 10,2 mm
Materials of Construction: Stainless Steel
Connection Thread Size: varies
Length: Varies



PTFE Hose “True-Bore” Fittings - PAGE Series 型号

Part Style Hose I.D. (inch) Port Connection (inch) Material
04-04FJX-S Female JIC 37° - Swivel - Straight 0.25 0.25 Stainless Steel
04-04FORFS-S Female Seal-Lok - Swivel - Straight - Short 0.25 0.25 Stainless Steel
04-04FP-S Female NPTF Pipe - Rigid - Straight 0.25 0.25 Stainless Steel
04-04MP-S Male NPTF Pipe - Rigid - Straight 0.25 0.25 Stainless Steel
04-04MSAN-S Mini Sanitary Flange 0.25 0.25 Stainless Steel
04-04PLCF-S Female A-Lok Compression 0.25 0.25 Stainless Steel
04-04TUBE-S Male Standpipe - Rigid - "V" Notch 0.25 0.25 Stainless Steel
04-08MSAN-S Mini Sanitary Flange 0.25 0.5 Stainless Steel
06-06FJX-S Female JIC 37° - Swivel - Straight 0.375 0.375 Stainless Steel
06-06FORFS-S Female Seal-Lok - Swivel - Straight - Short 0.375 0.375 Stainless Steel
06-06FP-S Female NPTF Pipe - Rigid - Straight 0.375 0.375 Stainless Steel
06-06MP-S Male NPTF Pipe - Rigid - Straight 0.375 0.375 Stainless Steel
06-06MSAN-S Mini Sanitary Flange 0.375 0.375 Stainless Steel
06-06PLCF-S Female A-Lok Compression 0.375 0.375 Stainless Steel
06-06TUBE-S Male Standpipe - Rigid - "V" Notch 0.375 0.375 Stainless Steel
06-08MSAN-S Mini Sanitary Flange 0.375 0.5 Stainless Steel
06-12MSAN-S Mini Sanitary Flange 0.375 0.75 Stainless Steel
08-08FJX-S Female JIC 37° - Swivel - Straight 0.5 0.5 Stainless Steel
08-08FORFS-S Female Seal-Lok - Swivel - Straight - Short 0.5 0.5 Stainless Steel
08-08FP-S Female NPTF Pipe - Rigid - Straight 0.5 0.5 Stainless Steel
08-08MP-S Male NPTF Pipe - Rigid - Straight 0.5 0.5 Stainless Steel
08-08MSAN-S Mini Sanitary Flange 0.5 0.5 Stainless Steel
08-08PLCF-S Female A-Lok Compression 0.5 0.5 Stainless Steel
08-08SAN-S Sanitary Flange Step Up/Down 0.5 0.5 Stainless Steel
08-08SFR-S Sanitary Flange Retainer 0.5 0.5 Stainless Steel
08-08TUBE-S Male Standpipe - Rigid - "V" Notch 0.5 0.5 Stainless Steel
08-12MSAN-S Mini Sanitary Flange 0.5 0.75 Stainless Steel
08-16SAN-S Sanitary Flange Step Up/Down 0.5 1 Stainless Steel
08-24SAN-S Sanitary Flange Step Up/Down 0.5 1.5 Stainless Steel
08-PF150 ANSI B16.5 Flange 0.5 na Carbon Steel
08-PF154 ANSI B16.5 Flange 0.5 na 304 Stainless
08-PF156 ANSI B16.5 Flange 0.5 na 316 Stainless
12-12E-S Male Cam and Groove 0.75 0.75 Stainless Steel
12-12FJX-S Female JIC 37° - Swivel - Straight 0.75 0.75 Stainless Steel
12-12FORFS-S Female Seal-Lok - Swivel - Straight - Short 0.75 0.75 Stainless Steel
12-12FP-S Female NPTF Pipe - Rigid - Straight 0.75 0.75 Stainless Steel
12-12MP-S Male NPTF Pipe - Rigid - Straight 0.75 0.75 Stainless Steel
12-12MSAN-S Mini Sanitary Flange 0.75 0.75 Stainless Steel
12-12PLCF-S Female A-Lok Compression 0.75 0.75 Stainless Steel
12-12SAN-S Sanitary Flange Step Down 0.75 0.75 Stainless Steel
12-12SFR-S Sanitary Flange Retainer 0.75 0.75 Stainless Steel
12-12TUBE-S Male Standpipe - Rigid - "V" Notch 0.75 0.75 Stainless Steel
12-24SAN-S Sanitary Flange Step Up/Down 0.75 1.5 Stainless Steel
12-PF150 ANSI B16.5 Flange 0.75 na Carbon Steel
12-PF154 ANSI B16.5 Flange 0.75 na 304 Stainless
12-PF156 ANSI B16.5 Flange 0.75 na 316 Stainless
16-16CL-S Female Cam and Groove 1 1 Stainless Steel
16-16E-S Male Cam and Groove 1 1 Stainless Steel
16-16FBS-S Female Sanitary Bevel Seat 1 1 Stainless Steel
16-16FIL-S Female I-Line Sanitary 1 1 Stainless Steel
16-16FJX-S Female JIC 37° - Swivel - Straight 1 1 Stainless Steel
16-16FORFS-S Female Seal-Lok - Swivel - Straight - Short 1 1 Stainless Steel
16-16FP-S Female NPTF Pipe - Rigid - Straight 1 1 Stainless Steel
16-16MBS-S Male Sanitary Bevel Seat 1 1 Stainless Steel
16-16MIL-S Male I-Line Sanitary 1 1 Stainless Steel
16-16MP-S Male NPTF Pipe - Rigid - Straight 1 1 Stainless Steel
16-16MSAN-S Mini Sanitary Flange 1 1 Stainless Steel
16-16PLCF-S Female A-Lok Compression 1 1 Stainless Steel
16-16SAN-S Sanitary Flange Step Up/Down 1 1 Stainless Steel
16-16SFR-S Sanitary Flange Retainer 1 1 Stainless Steel
16-16TUBE-S Male Standpipe - Rigid - "V" Notch 1 1 Stainless Steel
16-24SAN-S Sanitary Flange Step Up/Down 1 1.5 Stainless Steel
16-PF150 ANSI B16.5 Flange 1 na Carbon Steel
16-PF154 ANSI B16.5 Flange 1 na 304 Stainless
16-PF156 ANSI B16.5 Flange 1 na 316 Stainless
20-20E-S Male Cam and Groove 1.25 1.25 Stainless Steel
20-20FJX-S Female JIC 37° - Swivel - Straight 1.25 1.25 Stainless Steel
20-20FP-S Female NPTF Pipe - Rigid - Straight 1.25 1.25 Stainless Steel
20-20MP-S Male NPTF Pipe - Rigid - Straight 1.25 1.25 Stainless Steel
20-20SFR-S Sanitary Flange Retainer 1.25 1.25 Stainless Steel
20-20TUBE-S Male Standpipe - Rigid - "V" Notch 1.25 1.25 Stainless Steel
20-PF150 ANSI B16.5 Flange 1.25 na Carbon Steel
20-PF154 ANSI B16.5 Flange 1.25 na 304 Stainless
20-PF156 ANSI B16.5 Flange 1.25 na 316 Stainless
24-24CL-S Female Cam and Groove 1.5 1.5 Stainless Steel
24-24E-S Male Cam and Groove 1.5 1.5 Stainless Steel
24-24FBS-S Female Sanitary Bevel Seat 1.5 1.5 Stainless Steel
24-24FIL-S Female I-Line Sanitary 1.5 1.5 Stainless Steel
24-24FJX-S Female JIC 37° - Swivel - Straight 1.5 1.5 Stainless Steel
24-24FORFS-S Female Seal-Lok - Swivel - Straight - Short 1.5 1.5 Stainless Steel
24-24FP-S Female NPTF Pipe - Rigid - Straight 1.5 1.5 Stainless Steel
24-24MBS-S Male Sanitary Bevel Seat 1.5 1.5 Stainless Steel
24-24MIL-S Male I-Line Sanitary 1.5 1.5 Stainless Steel
24-24MP-S Male NPTF Pipe - Rigid - Straight 1.5 1.5 Stainless Steel
24-24SAN-S Sanitary Flange Step Up/Down 1.5 1.5 Stainless Steel
24-24SFR-S Sanitary Flange Retainer 1.5 1.5 Stainless Steel
24-PF150 ANSI B16.5 Flange 1.5 na Carbon Steel
24-PF154 ANSI B16.5 Flange 1.5 na 304 Stainless
24-PF156 ANSI B16.5 Flange 1.5 na 316 Stainless
32-32CL-S Female Cam and Groove 2 2 Stainless Steel
32-32E-S Male Cam and Groove 2 2 Stainless Steel
32-32FBS-S Female Sanitary Bevel Seat 2 2 Stainless Steel
32-32FIL-S Female I-Line Sanitary 2 2 Stainless Steel
32-32FJX-S Female JIC 37° - Swivel - Straight 2 2 Stainless Steel
32-32FP-S Female NPTF Pipe - Rigid - Straight 2 2 Stainless Steel
32-32MBS-S Male Sanitary Bevel Seat 2 2 Stainless Steel
32-32MIL-S Male I-Line Sanitary 2 2 Stainless Steel
32-32MP-S Male NPTF Pipe - Rigid - Straight 2 2 Stainless Steel
32-32SFR-S Sanitary Flange Retainer 2 2 Stainless Steel
32-PF150 ANSI B16.5 Flange 2 na Carbon Steel
32-PF154 ANSI B16.5 Flange 2 na 304 Stainless
32-PF156 ANSI B16.5 Flange 2 na 316 Stainless
40-40FBS-S Female Sanitary Bevel Seat 2.5 2.5 Stainless Steel
40-40FIL-S Female I-Line Sanitary 2.5 2.5 Stainless Steel
40-40FJX-S Female JIC 37° - Swivel - Straight 2.5 2.5 Stainless Steel
40-40MBS-S Male Sanitary Bevel Seat 2.5 2.5 Stainless Steel
40-40MIL-S Male I-Line Sanitary 2.5 2.5 Stainless Steel
40-40MP-S Male NPTF Pipe - Rigid - Straight 2.5 2.5 Stainless Steel
40-40SAN-S Sanitary Flange Step Up/Down 2.5 2.5 Stainless Steel
40-40SFR-S Sanitary Flange Retainer 2.5 2.5 Stainless Steel
40-PF150 ANSI B16.5 Flange 2.5 na Carbon Steel
40-PF154 ANSI B16.5 Flange 2.5 na 304 Stainless
40-PF156 ANSI B16.5 Flange 2.5 na 316 Stainless
48-48CL-S Female Cam and Groove 3 3 Stainless Steel
48-48E-S Male Cam and Groove 3 3 Stainless Steel
48-48FBS-S Female Sanitary Bevel Seat 3 3 Stainless Steel
48-48FIL-S Female I-Line Sanitary 3 3 Stainless Steel
48-48MBS-S Male Sanitary Bevel Seat 3 3 Stainless Steel
48-48MIL-S Male I-Line Sanitary 3 3 Stainless Steel
48-48MP-S Male NPTF Pipe - Rigid - Straight 3 3 Stainless Steel
48-48SAN-S Sanitary Flange Step Up/Down 3 3 Stainless Steel
48-48SFR-S Sanitary Flange Retainer 3 3 Stainless Steel
48-PF150 ANSI B16.5 Flange 3 na Carbon Steel
48-PF154 ANSI B16.5 Flange 3 na 304 Stainless
48-PF156 ANSI B16.5 Flange 3 na 316 Stainless
64-64CL-S Female Cam and Groove 4 4 Stainless Steel
64-64E-S Male Cam and Groove 4 4 Stainless Steel
64-64FBS-S Female Sanitary Bevel Seat 4 4 Stainless Steel
64-64MBS-S Male Sanitary Bevel Seat 4 4 Stainless Steel
64-64MP-S Male NPTF Pipe - Rigid - Straight 4 4 Stainless Steel
64-64SAN-S Sanitary Flange Step Up/Down 4 4 Stainless Steel
64-64SFR-S Sanitary Flange Retainer 4 4 Stainless Steel
64-PF150 ANSI B16.5 Flange 4 na Carbon Steel
64-PF154 ANSI B16.5 Flange 4 na 304 Stainless
64-PF156 ANSI B16.5 Flange 4 na 316 Stainless
