Permanent Fittings for Marine Power Tilt Hose – 92 Series
Parker's 92 Series fittings are assembled onto PTH Marine Power Tilt Hose. The series is available in stainless steel construction only.
Parker's 92 Series fittings are used with PTH Marine Power Tilt Hose from the Parflex division. Fittings are available with an SAE male inverted thread. The PTH hose and 92 series fittings can be crimped with any of the Parker ParKrimp machines. The dies for these crimpers include Parker's exclusive Parkalign system, featuring a positive-stop design that positions the fitting in the die to assist users in obtaining a perfect crimp every time.
Markets:
- Marine
Features/Benefits:
- Non-standard Ferrule-Fix design available that affords salvaging of bent tube section and allows for quick and easy repair on the job
- Fittings are crimp style for permanent attachment
- Fitting configurations available in stainless steel only
Applications:
- Power tilt mechanisms for outboard and stern drive engines
- Trim Tab assemblies
- Jack Plate assemblies
Technical Specifications
| Port Size: |
0.188 inch |
| Shape: |
Straight, 45°, 90° |
| Application: |
Marine |
| Connection Type: |
Crimped, Specialty, 45° Inverted Flare |
| Hose Inside Diameter: |
3/16 inch, 5 mm |
| Materials of Construction: |
Steel, Stainless Steel |
| Connection Thread Size: |
3/8-24 inch |
| Length: |
1.37 - 2.36 inch |
| Fitting Material: |
Steel, Stainless Steel |
| Product Style: |
Crimp (Permanent) |
Permanent Fittings for Marine Power Tilt Hose – 92 Series 型号
| Part |
Hose I.D. (inch) |
Style |
Shape |
| 11192-3-3 |
0.125 |
Male Ferulok Flareless-Rigid-Straight (24° Cone with Nut & Ferrule) |
Straight |
| 12892-3-3C |
0.125 |

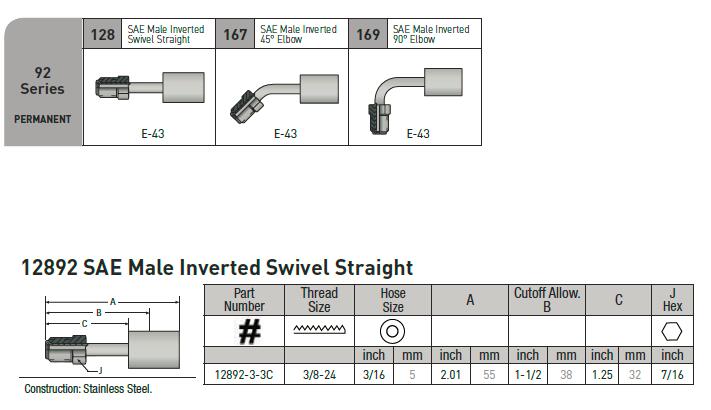

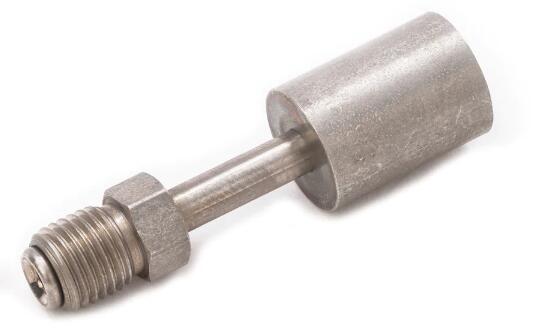

Male Inverted SAE 45° - Swivel - Straight |
Straight |
| 16792-3-3C |
0.125 |

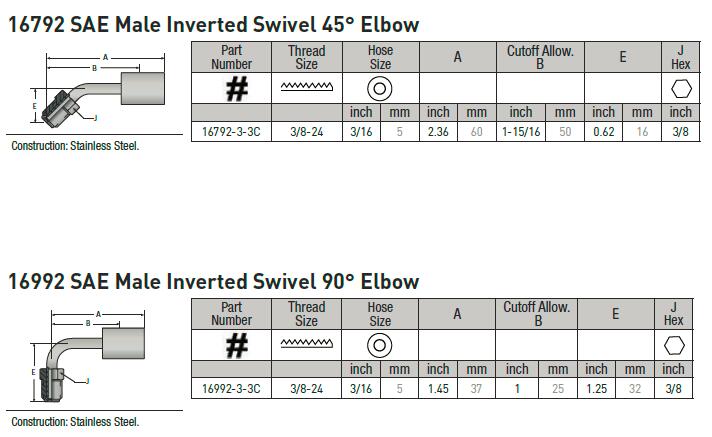

Male Inverted SAE 45° - Swivel - 45° Elbow |
45° Elbow |
| 16992-3-3C |
0.125 |

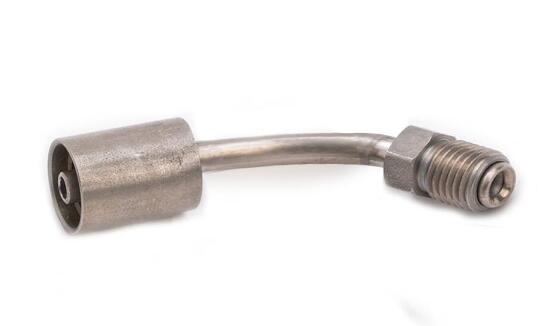

Male Inverted SAE 45° - Swivel - 90° Elbow |
90° Elbow |
|
