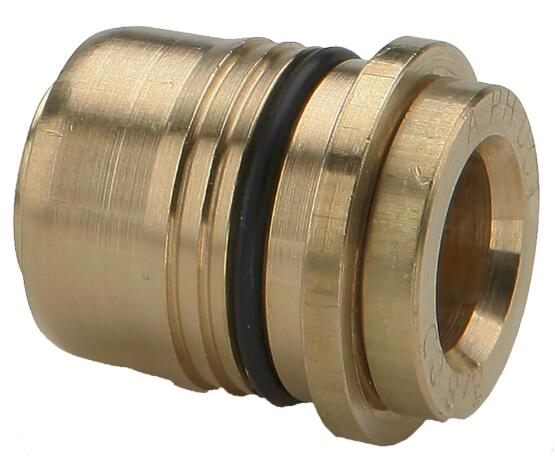

派克用于交通行业快插式埋入接头
Push-to-Connect Cartridges, Transportation

派克的SAE埋入式接头允许用户消除安装和组装常规管螺纹配件所需的空间和劳动力。派克设计开发了SAE埋入式接头，使用无螺纹的埋入孔进行装配，实现了安装前后，整个系统的密封完整性。这种紧凑型设计能够保障生产过程装配的自动化进程，同时增加了系统的稳定性。而且埋入式接头与元件浑然一体，无需使用螺纹安装，也就免除了螺纹连接处可能存在的泄漏。使用埋入式接头，也无需像压缩式接头那样拧紧螺母，尤其适合于安装空间有限，需要多回路安装的应用场合，同时也降低了安装时间。使用埋入式接头也减少了误用螺纹，或者是安装不到位或者过度安装导致返工的情况发生。该系列SAE埋入式接头符合D.O.T.FMVSS571.106标准以及SAE J2231标准的相关的性能要求，埋入孔设计需符合SAE J2494-4的要求，埋入孔材料需符合6061-T6标准铝材料。如果使用其他材料而不是6061-T的话，则埋入孔尺寸需要参考J2494-4标准进行轻微调整。

Parker's SAE encapsulated cartridge allows the user to eliminate the space and labor required to install and assemble a conventional pipe thread fitting. Parker has developed an SAE encapsulated cartridge guaranteeing the integrity of the sealing system before and after assembly in non-threaded cavities. The compact design of the one –piece cartridge enables automation of your manufacturing process and improves the reliability of your system. The cartridge becomes an integral of the component, eliminating threaded connections and the possibility of spiral leakage along the mating threads. Cartridges eliminate the tightening of compression nuts allowing for more compact assemblies and reduced assembly times. Cartridges reduce costly rework due to cross threading and over/under torqueing of the fitting. The SAE encapsulated cartridge meets performance requirements of D.O.T. FMVSS571.106 and SAE J2231 and the proposed dimensional standards of SAE J2494-4 in 6061-T6 aluminum. Cavity dimensions specified by SAE J2494-4 need to be adjusted slightly for optimum performance in material other than 6061-T.

市场：

- 工业技术
- 气动技术
- 过滤
- 半导体
- 生命科学
- 自动化
- 重卡

特征/优势：

- 当埋入式接头压入安装孔时，可以自动对中调整
- 快插式连接技术
- 无需加工螺纹，可以直接将接头压入埋入孔
- 预先安装密封圈，并且经黄油润滑以及保护了接头不受损坏
- 从加工制造到总装的过程中，都免于污染进入接头内部
- 大包装设计，适用于自动装配过程
- SAE & NSF 两种形式埋入接头可供

应用：

- 空气管路
- 水路
- 饮料分配器
- 汽车控制设备
- 包装
- 标签机
- 机器人

Markets:
- Industrial
- Pneumatic
- Filtration
- Semi-conductor
- Life Science
- Automation
- Heavy Duty Truck

Features/Benefits:
- Self-centering of the cartridge in the cavity
- Push-in connection
- No thread to be machined for inserting the fitting into its cavity
- Seal pre-assembled, greased and protected
- Product protected against contamination, from manufacture to installation
- Packaging designed for automation assembly process
- SAE & NSF cartridges available

Applications:
- Air lines
- Water lines
- Beverage dispensing
- Cab controls
- Packaging
- Labeling
- Robotics

Technical Specifications

Push-to-Connect Cartridges, Transportation 型号
