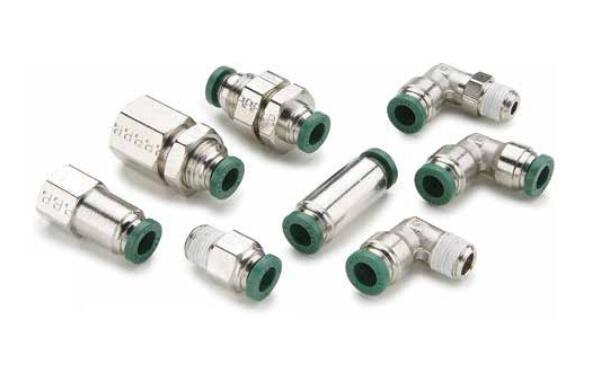

Parker 的 Prestolok PLP 按压式接头 - 即插即用镀镍快速接头，Prestolo PLP
Push-to-Connect nickel plated instant fittings, Prestolok PLP

Parker 的 Prestolok PLP 按压式接头提供更高的吞吐量、更高的效率、更小的占地面积、更快的组装和减少泄漏的创新。作为推入式接头技术的世界领先者，派克的 Prestolok PLP 镀镍黄铜接头提供了一种将管子连接到接头以创建流体分配网络的简单方法。Prestolok PLP 推入式金属配件无需使用套筒和拧紧压缩式配件所需的螺母，从而缩短了装配时间。只需将管子推入接头直至其触底。要拆卸，请按下释放按钮，紧靠主体并从接头中拉出管子。螺纹密封剂应用于所有外螺纹，消除了 PTFE 胶带污染系统的可能性。

Parker's Prestolok PLP push-to-connect fittings
Push-to-Connect nickel plated instant fittings, Prestolok PLP



Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation. Being the world's leader in push-to-connect fitting technology Parker's Prestolok PLP nickel plated brass fittings provide a simple way of connecting tubes to a fitting in order to create a fluid distribution network. Prestolok PLP push in metal fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. To disassemble, press the release button, hold against the body and pull tubing from the fitting. A thread sealant is applied to all male threads eliminating the possibility of system contamination from PTFE tape.



与以下 Parker Parflex Division 管一起使用。
- 聚乙烯
- 聚丙烯
- 柔性尼龙
- 半刚性尼龙
- 聚氨酯 90 硬度肖氏 A
- 聚氨酯 > 95 硬度肖氏 A

市场：
- 工业
- 汽车
- 半导体
- 包装
- 机器人
- 气候控制
- 纺织
- 真空

特性和优点：
- 紧凑的一体式管??接头
- 可在所有外螺纹形状上旋转，以便在紧凑的地方组装和精确定位
- 预涂白色丙烯酸密封剂
- NPT、UNF、BSPT、BSPP 和公制螺纹
- 耐腐蚀
- 推力-to-Connect 用于快速组装和拆卸
- 1/8" - 1/2", 4mm - 14mm

应用：
- 空气管路
- 惰性气体
- 油管路
- 真空管路

技术规格：
- NPT 螺纹
- 不锈钢抓环
- 丁腈密封件
- 镀镍黄铜主体
- 聚缩醛释放按钮

可根据要求提供定制配置和尺寸。联系我们获取更多信息。



Use with the following Parker Parflex Division tubing.
- Polyethylene
- Polypropylene
- Flexible Nylon
- Semi-rigid Nylon
- Polyurethane 90 Durometer Shore A
- Polyurethane >95 Durometer Shore A

Markets:
- Industrial
- Automotive
- Semi-conductor
- Packaging
- Robotics
- Climate control
- Textile
- Vacuum

Features and Benefits:
- Compact one-piece tube fitting
- Swivels on all male threaded shapes for assembly in tight places and for precise positioning
- Pre-applied white acrylic sealant
- NPT, UNF, BSPT, BSPP and Metric threads
- Corrosion resistance
- Push-to-Connect for fast assembly and disassembly
- 1/8" - 1/2", 4mm - 14mm

Applications:
- Air lines
- Inert gases
- Oil lines
- Vacuum lines

Technical Specifications:
- NPT Threads
- Stainless steel grab ring
- Nitrile seal
- Nickel plated brass body
- Polyacetal release button

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

技术规格

  • 连接 2 管外径（英寸）： 1/8
  • 连接 1 管外径（英寸）： 1/8
  • 形状： 球座
  • 连接 2 螺纹尺寸（英寸）： 呐
  • 内部十六进制： 不
  • 连接 2 螺纹尺寸 (mm)： 呐
  • 连接 2 样式： 一键连接
  • 连接 1 样式： 一键连接
  • 风格： 管对管
  • 机身材质： 镀镍黄铜
  • 最低工作温度： 0°F，-18°C
  • 最高工作温度： 200 华氏度，93 摄氏度
  • 最大工作压力： 300 磅/平方英寸，20 巴
  • 管材： 聚乙烯、聚丙烯、尼龙、刚性尼龙、聚氨酯 90-95 硬度计
  • 密封材料： 腈
  • 抓环材料： 不锈钢
  • 纽扣材质： 聚缩醛
  • 连接类型： NPTF、UNF、BSPT、BSPP
  • 真空压力等级： 28 英寸-汞
  • 应用： 气动、包装、纺织、半导体、机器人



Push-to-Connect nickel plated instant fittings, Prestolok PLP 型号

Part Shape Style Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Tube O.D. (inch) Connection 2 Thread Size (mm) Connection 2 Style Internal Hex
164PLP-2 Tee Tube to Tube 2020/1/8 Push-to-Connect na 1/8 na Push-to-Connect No
164PLP-3 Tee Tube to Tube 2020/3/16 Push-to-Connect na 3/16 na Push-to-Connect No
164PLP-4 Tee Tube to Tube 2020/1/4 Push-to-Connect na 1/4 na Push-to-Connect No
164PLP-5 Tee Tube to Tube 2020/5/16 Push-to-Connect na 5/16 na Push-to-Connect No
164PLP-5/32 Tee Tube to Tube 5/32 Push-to-Connect na 5/32 na Push-to-Connect No
164PLP-6 Tee Tube to Tube 2020/3/8 Push-to-Connect na 3/8 na Push-to-Connect No
164PLP-8 Tee Tube to Tube 2020/1/2 Push-to-Connect na 1/2 na Push-to-Connect No
165PLP-2 90° Elbow Tube to Tube 2020/1/8 Push-to-Connect na 1/8 na Push-to-Connect No
165PLP-4 90° Elbow Tube to Tube 2020/1/4 Push-to-Connect na 1/4 na Push-to-Connect No
165PLP-5 90° Elbow Tube to Tube 2020/5/16 Push-to-Connect na 5/16 na Push-to-Connect No
165PLP-5/32 90° Elbow Tube to Tube 5/32 Push-to-Connect na 5/32 na Push-to-Connect No
165PLP-6 90° Elbow Tube to Tube 3/8 Push-to-Connect na 3/8 na Push-to-Connect No
165PLP-8 90° Elbow Tube to Tube 2020/1/2 Push-to-Connect na 1/2 na Push-to-Connect No
169PLP-2-0 90° Elbow Tube to Pipe 2020/1/8 Push-to-Connect 10-32 na na UNF No
169PLP-4-0 90° Elbow Tube to Pipe 2020/1/4 Push-to-Connect 10-32 na na UNF No
169PLP-5/32-0 90° Elbow Tube to Pipe 5/32 Push-to-Connect 10-32 na na UNF No
169PLPNS532-4LT 90° Elbow Tube to Pipe 5/32 Push-to-Connect 2001/4/28 na na SAE-LT No
172PLP-4-0 Branch Tee Tube to Pipe 1/4 Push-to-Connect 10-32 na na UNF No
4-1/4PLPHBF4-B Connector Tube to Pipe 1/4 Push-to-Connect na na 1/4 BSPP No
4-1/8PLPHBF4-B Connector Tube to Pipe 1/4 Push-to-Connect na na 1/8 BSPP No
4-3/8PLPHBF4-B Connector Tube to Pipe 1/4 Push-to-Connect na na 3/8 BSPP No
6-1/2PLPHBF4-B Connector Tube to Pipe 3/8 Push-to-Connect na na 1/2 BSPP No
6-1/4PLPHBF4-B Connector Tube to Pipe 3/8 Push-to-Connect na na 1/4 BSPP No
6-3/8PLPHBF4-B Connector Tube to Pipe 3/8 Push-to-Connect 3/8 na na BSPP No
62PLP-2 Union Tube to Tube 1/8 Push-to-Connect na 1/8 na Push-to-Connect No
62PLP-3 Union Tube to Tube 3/16 Push-to-Connect na 3/16 na Push-to-Connect No
62PLP-4 Union Tube to Tube 1/4 Push-to-Connect na 1/4 na Push-to-Connect No
62PLP-4-2 Union Tube to Tube 1/4 Push-to-Connect na 1/8 na Push-to-Connect No
62PLP-4-5/32 Union Tube to Tube 1/4 Push-to-Connect na 5/32 na Push-to-Connect No
62PLP-4-6 Union Tube to Tube 1/4 Push-to-Connect na 3/8 na Push-to-Connect No
62PLP-5 Union Tube to Tube 5/16 Push-to-Connect na 5/16 na Push-to-Connect No
62PLP-5/32 Union Tube to Tube 5/32 Push-to-Connect na 5/32 na Push-to-Connect No
62PLP-5/32-2 Union Tube to Tube 5/32 Push-to-Connect na 1/8 na Push-to-Connect No
62PLP-6 Union Tube to Tube 3/8 Push-to-Connect na 3/8 na Push-to-Connect No
62PLP-6-8 Union Tube to Tube 3/8 Push-to-Connect na 1/2 na Push-to-Connect No
62PLP-8 Union Tube to Tube 1/2 Push-to-Connect na 1/2 na Push-to-Connect No
62PLPBH-2 Bulkhead Tube to Tube 1/8 Push-to-Connect na 1/8 na Push-to-Connect No
62PLPBH-4 Bulkhead Tube to Tube 1/4 Push-to-Connect na 1/4 na Push-to-Connect No
62PLPBH-5 Bulkhead Tube to Tube 5/16 Push-to-Connect na 5/16 na Push-to-Connect No
62PLPBH-5/32 Bulkhead Tube to Tube 5/32 Push-to-Connect na 5/32 na Push-to-Connect No
62PLPBH-6 Bulkhead Tube to Tube 3/8 Push-to-Connect na 3/8 na Push-to-Connect No
62PLPBH-8 Bulkhead Tube to Tube 1/2 Push-to-Connect na 1/2 na Push-to-Connect No
66LF-2-2 Connector Tube to Pipe 1/8 Push-to-Connect 1/8 na na Female Pipe No
66LF-2-4 Connector Tube to Pipe 1/8 Push-to-Connect 1/4 na na Female Pipe No
66LF-3-2 Connector Tube to Pipe 3/16 Push-to-Connect 1/8 na na Female Pipe No
66LF-3-4 Connector Tube to Pipe 3/16 Push-to-Connect 1/4 na na Female Pipe No
66LF-4-2 Connector Tube to Pipe 1/4 Push-to-Connect 1/8 na na Female Pipe No
66LF-4-4 Connector Tube to Pipe 1/4 Push-to-Connect 1/4 na na Female Pipe No
66LF-5-2 Connector Tube to Pipe 5/16 Push-to-Connect 1/8 na na Female Pipe No
66LF-5-4 Connector Tube to Pipe 5/16 Push-to-Connect 1/4 na na Female Pipe No
66LF-5/32-2 Connector Tube to Pipe 5/32 Push-to-Connect 1/8 na na Female Pipe No
66LF-5/32-4 Connector Tube to Pipe 5/32 Push-to-Connect 1/4 na na Female Pipe No
66LF-6-2 Connector Tube to Pipe 3/8 Push-to-Connect 1/8 na na Female Pipe No
66LF-6-4 Connector Tube to Pipe 3/8 Push-to-Connect 1/4 na na Female Pipe No
66LF-6-6 Connector Tube to Pipe 3/8 Push-to-Connect 3/8 na na Female Pipe No
66LF-8-4 Connector Tube to Pipe 1/2 Push-to-Connect 1/4 na na Female Pipe No
66LF-8-6 Connector Tube to Pipe 1/2 Push-to-Connect 3/8 na na Female Pipe No
66LF-8-8 Connector Tube to Pipe 1/2 Push-to-Connect 1/2 na na Female Pipe No
66PLP-2-2 Connector Tube to Female Pipe 1/8 Push-to-Connect 1/8 na na Female Pipe No
66PLP-2-4 Connector Tube to Female Pipe 1/8 Push-to-Connect 1/4 na na Female Pipe No
66PLP-3-2 Connector Tube to Female Pipe 3/16 Push-to-Connect 1/8 na na Female Pipe No
66PLP-4-2 Connector Tube to Female Pipe 1/4 Push-to-Connect 1/8 na na Female Pipe No
66PLP-4-4 Connector Tube to Female Pipe 1/4 Push-to-Connect 1/4 na na Female Pipe No
66PLP-5-2 Connector Tube to Female Pipe 5/16 Push-to-Connect 1/8 na na Female Pipe No
66PLP-5-4 Connector Tube to Female Pipe 5/16 Push-to-Connect 1/4 na na Female Pipe No
66PLP-5/32-2 Connector Tube to Female Pipe 5/32 Push-to-Connect 1/8 na na Female Pipe No
66PLP-5/32-4 Connector Tube to Female Pipe 5/32 Push-to-Connect 1/4 na na Female Pipe No
66PLP-6-4 Connector Tube to Female Pipe 3/8 Push-to-Connect 1/4 na na Female Pipe No
66PLP-6-6 Connector Tube to Female Pipe 3/8 Push-to-Connect 3/8 na na Female Pipe No
66PLPBH-4-4 Bulkhead Tube to Female Pipe 1/4 Push-to-Connect 1/4 na na Female Pipe No
66PLPBH-5/32-4 Bulkhead Tube to Female Pipe 5/32 Push-to-Connect 1/4 na na Female Pipe No
66PLPBH-6-6 Bulkhead Tube to Female Pipe 3/8 Push-to-Connect 3/8 na na Female Pipe No
66PLPBH-8-6 Bulkhead Tube to Female Pipe 1/2 Push-to-Connect 3/8 na na Female Pipe No
68LFR-2-0 Round Body Connector Tube to Pipe 1/8 Push-to-Connect 10-32 na na UNF Yes
68LFR-4-0 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 10-32 na na UNF Yes
68LFR-4-1 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 1/16 na na Male Pipe Yes
68LFR-4-M5 Round Body Connector Tube to Pipe 1/4 Push-to-Connect na na M5x0.8 METRIC Yes
68LFR-4-M7 Round Body Connector Tube to Pipe 1/4 Push-to-Connect na na M7x1 METRIC Yes
68LFR-5/32-0 Round Body Connector Tube to Pipe 5/32 Push-to-Connect 10-32 na na UNF Yes
68PLP-2-0 Connector Tube to Pipe 1/8 Push-to-Connect 10-32 na na UNF No
68PLP-4-0 Connector Tube to Pipe 1/4 Push-to-Connect 10-32 na na UNF No
68PLP-5/32-0 Connector Tube to Pipe 5/32 Push-to-Connect 10-32 na na UNF No
68PLP-5/32-4LT Connector Tube to Pipe 5/32 Push-to-Connect 1/4-28 na na SAE-LT No
68PLPR-2-0 Round Body Connector Tube to Pipe 1/8 Push-to-Connect 10-32 na na UNF No
68PLPR-4-0 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 10-32 na na UNF No
68PLPR-5/32-0 Round Body Connector Tube to Pipe 5/32 Push-to-Connect 10-32 na na UNF No
8-1/2PLPHBF4-B Connector Tube to Pipe 1/2 Push-to-Connect 1/2 na na BSPP No
8-3/8PLPHBF4-B Connector Tube to Pipe 1/2 Push-to-Connect na na 3/8 BSPP No
W169PLP-2-1 90° Elbow Swivel Tube to Pipe 1/8 Push-to-Connect 1/16 na na Male Pipe No
W169PLP-2-2 90° Elbow Swivel Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-2-4 90° Elbow Swivel Tube to Pipe 1/8 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-3-2 90° Elbow Swivel Tube to Pipe 3/16 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-4-1 90° Elbow Swivel Tube to Pipe 1/4 Push-to-Connect 1/16 na na Male Pipe No
W169PLP-4-2 90° Elbow Swivel Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-4-4 90° Elbow Swivel Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-4-6 90° Elbow Swivel Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe No
W169PLP-5-2 90° Elbow Swivel Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-5-4 90° Elbow Swivel Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-5/32-1 90° Elbow Swivel Tube to Pipe 5/32 Push-to-Connect 1/16 na na Male Pipe No
W169PLP-5/32-2 90° Elbow Swivel Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-5/32-4 90° Elbow Swivel Tube to Pipe 5/32 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-6-2 90° Elbow Swivel Tube to Pipe 3/8 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-6-4 90° Elbow Swivel Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-6-6 90° Elbow Swivel Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W169PLP-6-8 90° Elbow Swivel Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe No
W169PLP-8-4 90° Elbow Swivel Tube to Pipe 1/2 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-8-6 90° Elbow Swivel Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W169PLP-8-8 90° Elbow Swivel Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W169PLPNS-2-2 90° Elbow Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W169PLPNS-4-2 90° Elbow Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W169PLPNS-4-4 90° Elbow Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W169PLPNS-5-2 90° Elbow Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W169PLPNS-5-4 90° Elbow Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W169PLPNS-6-4 90° Elbow Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W169PLPNS-6-6 90° Elbow Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W169PLPNS-6-8 90° Elbow Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe No
W169PLPNS-8-6 90° Elbow Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W169PLPNS-8-8 90° Elbow Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W169PLPNS5/32-2 90° Elbow Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W169PLPNS5/32-4 90° Elbow Tube to Pipe 5/32 Push-to-Connect 1/4 na na Male Pipe No
W171PLP-2-2 Run Tee Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W171PLP-4-2 Run Tee Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W171PLP-4-4 Run Tee Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W171PLP-4-6 Run Tee Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe No
W171PLP-5-2 Run Tee Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W171PLP-5-4 Run Tee Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W171PLP-5/32-2 Run Tee Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W171PLP-6-4 Run Tee Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W171PLP-6-6 Run Tee Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W171PLP-8-6 Run Tee Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W171PLP-8-8 Run Tee Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W172PLP-2-2 Branch Tee Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-3-2 Branch Tee Tube to Pipe 3/16 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-4-2 Branch Tee Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-4-4 Branch Tee Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W172PLP-4-6 Branch Tee Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe No
W172PLP-5-2 Branch Tee Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-5-4 Branch Tee Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W172PLP-5/32-2 Branch Tee Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-6-4 Branch Tee Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W172PLP-6-6 Branch Tee Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W172PLP-6-8 Branch Tee Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe No
W172PLP-8-4 Branch Tee Tube to Pipe 1/2 Push-to-Connect 1/4 na na Male Pipe No
W172PLP-8-6 Branch Tee Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W172PLP-8-8 Branch Tee Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W68LF-2-1 Connector Tube to Pipe 1/8 Push-to-Connect 1/16 na na Male Pipe Yes
W68LF-2-2 Connector Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-2-2R Connector Tube to Pipe 1/8 Push-to-Connect na na 1/8 BSPT Yes
W68LF-2-4 Connector Tube to Pipe 1/8 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-3-2 Connector Tube to Pipe 3/16 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-3-2R Connector Tube to Pipe 3/16 Push-to-Connect na na 1/8 BSPT Yes
W68LF-3-4 Connector Tube to Pipe 3/16 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-3-4R Connector Tube to Pipe 3/16 Push-to-Connect na na 1/4 BSPT Yes
W68LF-4-2 Connector Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-4-2R Connector Tube to Pipe 1/4 Push-to-Connect na na 1/8 BSPT Yes
W68LF-4-4 Connector Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-4-4R Connector Tube to Pipe 1/4 Push-to-Connect na na 1/4 BSPT Yes
W68LF-4-6 Connector Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe Yes
W68LF-5-2 Connector Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-5-2R Connector Tube to Pipe 5/16 Push-to-Connect na na 1/8 BSPT Yes
W68LF-5-4 Connector Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-5-4R Connector Tube to Pipe 5/16 Push-to-Connect na na 1/4 BSPT Yes
W68LF-5-6 Connector Tube to Pipe 5/16 Push-to-Connect 3/8 na na Male Pipe Yes
W68LF-5-6R Connector Tube to Pipe 5/16 Push-to-Connect na na 3/8 BSPT Yes
W68LF-5-8R Connector Tube to Pipe 5/16 Push-to-Connect na na 1/2 BSPT Yes
W68LF-5/32-2 Connector Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-5/32-2R Connector Tube to Pipe 5/32 Push-to-Connect na na 1/8 BSPT Yes
W68LF-5/32-4 Connector Tube to Pipe 5/32 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-5/32-4R Connector Tube to Pipe 5/32 Push-to-Connect na na 1/4 BSPT Yes
W68LF-6-2 Connector Tube to Pipe 3/8 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-6-4 Connector Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-6-4R Connector Tube to Pipe 3/8 Push-to-Connect na na 1/4 BSPT Yes
W68LF-6-6 Connector Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe Yes
W68LF-6-6R Connector Tube to Pipe 3/8 Push-to-Connect na na 3/8 BSPT Yes
W68LF-6-8 Connector Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe Yes
W68LF-6-8R Connector Tube to Pipe 3/8 Push-to-Connect na na 1/2 BSPT Yes
W68LF-8-4 Connector Tube to Pipe 1/2 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-8-4R Connector Tube to Pipe 1/2 Push-to-Connect na na 1/4 BSPT Yes
W68LF-8-6 Connector Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe Yes
W68LF-8-6R Connector Tube to Pipe 1/2 Push-to-Connect na na 3/8 BSPT Yes
W68LF-8-8 Connector Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe Yes
W68LF-8-8R Connector Tube to Pipe 1/2 Push-to-Connect na na 1/2 BSPT Yes
W68PLP-2-1 Connector Tube to Pipe 1/8 Push-to-Connect 1/16 na na Male Pipe No
W68PLP-2-2 Connector Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-2-4 Connector Tube to Pipe 1/8 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-3-2 Connector Tube to Pipe 3/16 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-3-4 Connector Tube to Pipe 3/16 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-4-1 Connector Tube to Pipe 1/4 Push-to-Connect 1/16 na na Male Pipe No
W68PLP-4-2 Connector Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-4-4 Connector Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-4-6 Connector Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe No
W68PLP-5-2 Connector Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-5-4 Connector Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-5-6 Connector Tube to Pipe 5/16 Push-to-Connect 3/8 na na Male Pipe No
W68PLP-5/32-1 Connector Tube to Pipe 5/32 Push-to-Connect 1/16 na na Male Pipe No
W68PLP-5/32-2 Connector Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-5/32-4 Connector Tube to Pipe 5/32 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-6-2 Connector Tube to Pipe 3/8 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-6-4 Connector Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-6-6 Connector Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W68PLP-6-8 Connector Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe No
W68PLP-8-4 Connector Tube to Pipe 1/2 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-8-6 Connector Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W68PLP-8-8 Connector Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W68PLPR-4-1 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 1/16 na na Male Pipe No
W68PLPR-4-2 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W68PLPR-4-4 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W68PLPR-5/32-1 Round Body Connector Tube to Pipe 5/32 Push-to-Connect 1/16 na na Male Pipe No
W68PLPR-5/32-2 Round Body Connector Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No









美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
