Hose Fittings

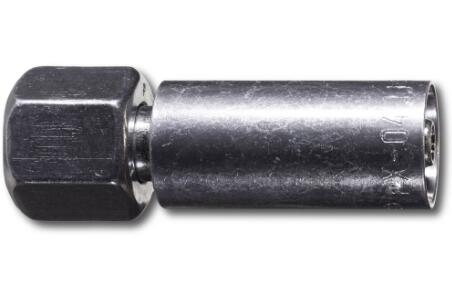

Crimped Thermoplastic Hydraulic Hose Fittings, PX-LPG Series
Parker PX -LPG Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for LPG-hose type 8LPG.
Parker PX-LPG Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.
Crimped Thermoplastic Hydraulic Hose Fittings, PX-LPG Series
Markets:
- Transportation & Automotive
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Automotive and truck industry
- Suitable for LPG-hose type 8LPG with working pressure up to 3 MPa (425 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
DN10, 6, 5, 8 |
| Hose I.D. (size): |
-6, -4, -3, -5 |
| Hose Inside Diameter: |
3/8, 1/4, 3/16, 5/16 inch |
| Connection Thread Size: |
3/4-16 , NA, 7/16-20, 1/4, 3/4-1 inch |
| Connection Type: |
UNF, NA, Metric, BSP, UNS |
| Tube Outside Diameter: |
NA, 8, 10, 5,5 mm, NA, 1/4, 1/4", 1/4? inch |
| Length: |
33,6, 36,3, 37, 35, 36,5, 41, 42,3, 45,3, 34,5, 30, 35,4, 39, 30,3 mm, 1,3, 1,4, 1,5, 1,6, 1,7, 1,8, 1,2 inch |
| Shape: |
Straight |
| Fitting Type: |
08, 1D, 28, 49, 7A, PH, U0, 29, C3 |
| Materials of Construction: |
Galvanised steel |
Crimped Thermoplastic Hydraulic Hose Fittings, PX-LPG Series 型号
|
