Pioneer Universal Agricultural Male Tip (1/2”), ISO 5675, Ball / Poppet / Connect Under Pressure - 8010 Series Nipples

Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.





8010 Series Nipples (hydraulic) 3000 psi, connect with 1/2 "" size 4000, 4200, 5000, 8200, 9200,Series Couplers and are interchangeable with other products complying with ISO 5675 requirements. Parker's 8010 Nipples are available with a ball valve, poppet valve, or pressure relieving (connect under pressure) valve. They are the universal standard male tip of the agricultural industry, commonly referred to as the Pioneer tip.

Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Valve Options: Ball, Poppet, Pressure Relieving Poppet (DC)
- Port Ends: Female NPTF, Female ORB, Female BSPP
- Seal Options on poppet valves: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Agriculture
- Industrial
- Construction

Features/Benefits:
- Globally interchanges with any other nipples or tips conforming to ISO 5675
- Valve option styles include ball, poppet, and connect under pressure (DC) poppet
- Hardened locking ball groove resists wear for increased durability and protection from Brinelling
- Shielded valve and positive valve stop prevents flow checking for smooth performance
- DC valve version allows connection under system pressure on the coupler side and residual pressure (up to 3000 psi) on the nipple side

Applications:
- Tractor attachments
- Agricultural farm equipment
- Hydraulic Loaders
- Add-on hydraulic circuits
- Hydraulic tools
- Ag/mobile attachments





Technical Specifications

Application: Hydraulic, general purpose
Maximum Operating Pressure: 3000 psi, 207 bar
Brand: Pioneer
Fitting Connection Type: Female Thread
Interchange Type: ISO 5675
Materials of Construction: Steel
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Valve Type: Poppet, Ball, Connect under pressure poppet
Body Size: 1/2 inch
Flow Rate: 12 Gal/min
Seal Material: Nitrile | na
Media: Hydraulic
Coupling Half: Nipple
Minimum Operating Temperature: -40 °F
Thread Size: Female
Plating Type: Zinc with clear trivalent chromate
Specifications Met: ISO 5675

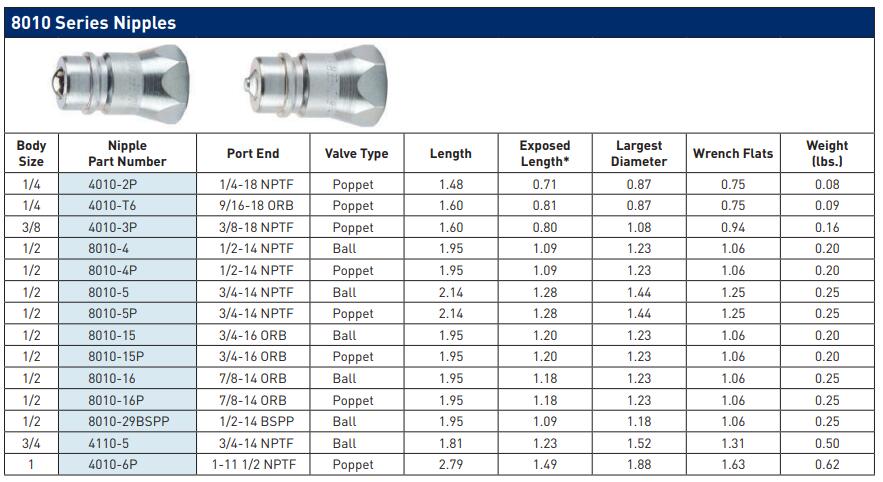

Pioneer Universal Agricultural Male Tip (1/2”), ISO 5675, Ball / Poppet / Connect Under Pressure - 8010 Series Nipples 型号

Part Port Connection (inch) Valve Style Connection Type
8010-15 3/4 - 16 Ball ORB
8010-15P 3/4 - 16 Poppet ORB
8010-15P-DC 3/4 - 16 Connect under pressure poppet ORB
8010-16 7/8 - 14 Ball ORB
8010-16P 7/8 - 14 Poppet ORB
8010-29BSPP 1/2 - 14 Ball BSPP
8010-4 1/2 - 14 Ball NPTF
8010-4P 1/2 - 14 Poppet NPTF
8010-4P-DC 1/2 - 14 Connect under pressure poppet NPTF
8010-5 3/4 - 14 Ball NPTF
8010-5P 3/4 - 14 Poppet NPTF
