Parker Quick Couplings
Push to Connect Air Hose and Tool Quick Couplings (pneumatic, air), Industrial Interchange - 30 Series Couplers

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.





30 Series Couplers (pneumatic, air) up to 300 psi connect with Industrial Interchange Nipples. They are push-to-connect style, single shut off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. 30 Series couplers have steel, tubular style valves that deliver high flow with minimal pressure drop. Couplers are available in a range of sizes and fitting ends to be versatile for use in a wide variety of applications with air or fluid pressures up to 300 psi.

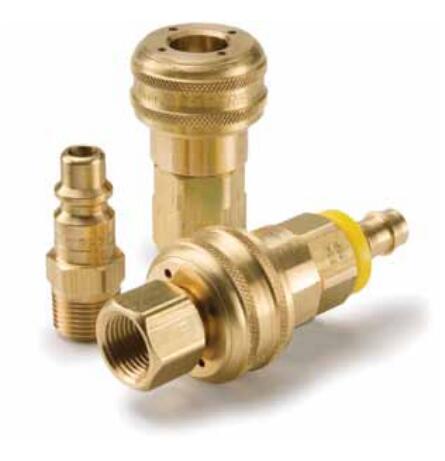

Push to Connect Air Hose and Tool Quick Couplings (pneumatic, air), Industrial Interchange - 30 Series Couplers



Technical Characteristics:
- Sizes: 1/4” – 3/4”
- Material: Brass
- Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation

Features/Benefits:
- Push-to-connect sleeve makes connection easy with one hand
- Large knurled diameter provides easy operation when gloves are worn
- High flow valves with minimal pressure drop for efficient performance
- Global connectivity with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards
- Optional sleeve-lock adds protection against accidental disconnection
- Optional stainless steel springs and brass valves are also offered for corrosion resistance

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns



Technical Specifications

Body Size: 1/4, 3/8, 1/2, 3/4 inch
Maximum Operating Pressure: 300 psi, 20 bar
Valve Type: High Flow Air, Tubular
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: ISO 6150 B
Materials of Construction: Brass
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Media: Low pressure fluids and compressed air
Coupling Half: Coupler
Minimum Operating Temperature: -40 °F
Seal Material: Nitrile
Application: Pneumatic
Specifications Met: Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Sleeve Type: Push to connect
Lock Type: Pawls



Push to Connect Air Hose and Tool Quick Couplings (pneumatic, air), Industrial Interchange - 30 Series Couplers 型号

Part Body Size (inch) Body Material Connection Type Thread Style Connection Thread Size (inch) Connection Hose I.D. (inch)
B30-3B 1/4 Brass Hose barb na na 1/4
B30-3BP 1/4 Brass Push-Lok hose barb na na 1/4
B30-4B 1/4 Brass Hose barb na na 5/16
B30-5B 1/4 Brass Hose barb na na 3/8
B30-5BP 1/4 Brass Push-Lok hose barb na na 3/8
B32 1/4 Brass NPTF Male 1/4 - 18 na
B32A 1/4 Brass NPTF Male 1/8 - 27 na
B32E 1/4 Brass NPTF Male 3/8 - 18 na
B33 1/4 Brass NPTF Female 1/4 - 18 na
B33A 1/4 Brass NPTF Female 1/8 - 27 na
B33E 1/4 Brass NPTF Female 3/8 - 18 na
B34 3/8 Brass NPTF Male 3/8 - 18 na
B34-5B 3/8 Brass Hose barb na na 3/8
B34-5BP 3/8 Brass Push-Lok hose barb na na 3/8
B34-6B 3/8 Brass Hose barb na na 1/2
B34C 3/8 Brass NPTF Male 1/4 - 18 na
B34F 3/8 Brass NPTF Male 1/2 - 14 na
B35 3/8 Brass NPTF Female 3/8 - 18 na
B35C 3/8 Brass NPTF Female 1/4 - 18 na
B35F 3/8 Brass NPTF Female 1/2 - 14 na
B36 1/2 Brass NPTF Male 1/2 - 14 na
B36-6B 1/2 Brass Hose barb na na 1/2
B36-6BP 1/2 Brass Push-Lok hose barb na na 1/2
B36-7B 1/2 Brass Hose barb na na 3/4
B36E 1/2 Brass NPTF Male 3/8 - 18 na
B36G 1/2 Brass NPTF Male 3/4 - 14 na
B37 1/2 Brass NPTF Female 1/2 - 14 na
B37E 1/2 Brass NPTF Female 3/8 - 18 na
B37G 1/2 Brass NPTF Female 3/4 - 14 na
B38 3/4 Brass NPTF Male 3/4 - 14 na
B38-7B 3/4 Brass Hose barb na na 3/4
B38-8B 3/4 Brass Hose barb na na 1
B38J 3/4 Brass NPTF Male 1 - 11 1/2 na
B39 3/4 Brass NPTF Female 3/4 - 14 na
B39F 3/4 Brass NPTF Female 1/2 - 14 na
B39J 3/4 Brass NPTF Female 1 - 11 1/2 na
