Parker Quick Couplings

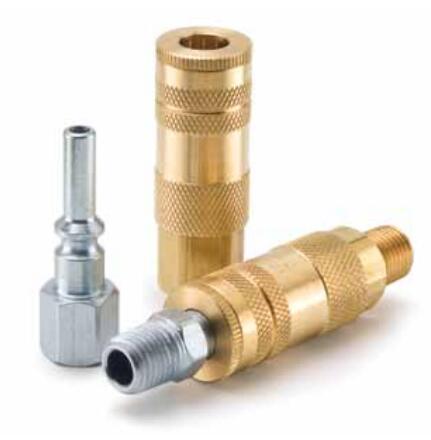

Air Hose and Tool Quick Couplings (pneumatic, air) Lincoln Long Stem Interchange - 70 Series Nipples

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.





70 Series Nipples (pneumatic, air) up to 300 psi connect with 70 Series Couplers and interchange with the Lincoln Long Stem design. These are manual sleeve, single shut off quick couplings. Nipples are available in 1/4" size with a pressure rating of 300 psi.



Air Hose and Tool Quick Couplings (pneumatic, air) Lincoln Long Stem Interchange - 70 Series Nipples



Technical Characteristics:
- Size: 1/4”
- Material: Steel
- Port Ends: Female NPTF, Male NPTF

Markets:
- Industrial
- Construction
- Factory automation
- Automotive service and repair

Features/Benefits:
- Interchangeable with Lincoln Long Stem nipples
- Steel nipples are case hardened for durability
- Non-valved nipples mate with valved couplers for a single shut off connection

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns
- Paint applicators



Technical Specifications

Maximum Operating Pressure: 300 psi, 20 bar
Valve Type: No Valve, Unvalved
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread
Interchange Type: Lincoln
Materials of Construction: Steel
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Body Size: 1/4 inch
Media: Low pressure fluids and compressed air
Coupling Half: Nipple
Minimum Operating Temperature: -40 °F
Application: Pneumatic
Specifications Met: Connects with Lincoln?s ?Long Stem? series



Air Hose and Tool Quick Couplings (pneumatic, air) Lincoln Long Stem Interchange - 70 Series Nipples 型号

Part Connection Thread Size (inch) Thread Style Connection Type
L2C 1/4 - 18 Male NPTF
L3C 1/4 - 18 Female NPTF
