Quick Coupling with Atlas Copco Profile, Series 33

Quick coupling system with nominal diameter 8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.





Parker's Series 33 is a steel industrial coupling with Atlas Copco-Profile. It is especially suited to use with gaseous media in industry.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop.

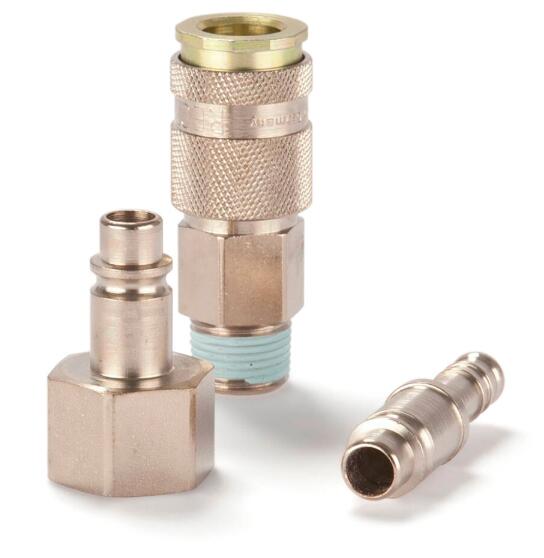

Quick Coupling with Atlas Copco Profile, Series 33



Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 8.0 mm
Application: Pneumatic & Fluid Handling
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: Atlas Copco
Maximum Operating Pressure: 500 psi, 35 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Pneumatic Media
Valve Type: High Flow Air, Poppet
Seal Material: NBR
Valve Included: Yes or No acc. to the version
Version: Single Shut-Off
Length: 34 up to 73 mm
Hex Size: 14 up to 24 mm
Outside Diameter: 14 to 23 mm
Materials of Construction: Steel
Flow Rate: 1400 L/min



Quick Coupling with Atlas Copco Profile, Series 33 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D.
33KAAK13SPN Coupling Male Thread - tapered 1/4 na
33KAAK17SPN Coupling Male Thread - tapered 3/8 na
33KAAK21SPN Coupling Male Thread - tapered 1/2 na
33KAIW13SPN Coupling Female Thread - parallel 1/4 na
33KAIW17SPN Coupling Female Thread - parallel 3/8 na
33KAIW21SPN Coupling Female Thread - parallel 1/2 na
33KATF06SPN Coupling Hose Barb na 6
33KATF08SPN Coupling Hose Barb na 8
33KATF10SPN Coupling Hose Barb na 10
33KATF13SPN Coupling Hose Barb na 13
33SFAK10SXN Plug Male Thread - tapered 1/8 na
33SFAK13SXN Plug Male Thread - tapered 1/4 na
33SFAK17SXN Plug Male Thread - tapered 3/8 na
33SFAK21SXN Plug Male Thread - tapered 1/2 na
33SFIW10SXN Plug Female Thread - parallel 1/8 na
33SFIW13SXN Plug Female Thread - parallel 1/4 na
33SFIW17SXN Plug Female Thread - parallel 3/8 na
33SFIW21SXN Plug Female Thread - parallel 1/2 na
33SFTF06SXN Plug Hose Barb na 6
33SFTF08SXN Plug Hose Barb na 8
33SFTF10SXN Plug Hose Barb na 10
33SFTF13SXN Plug Hose Barb na 13
