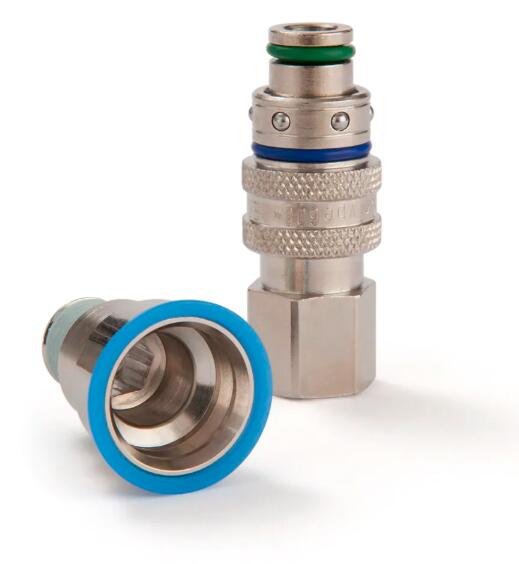

Quick Coupling with French Profile, Series 608/612

Quick coupling system with nominal diameter 8/12 for tempering and cooling applications up to 20 bar. Coupling system with with French Profile. Available made of brass.





Parker's Quick Coupling Series 608/612 (French series) has been specially developed for cooling in the field of plastic injection machines / molds. By using vertical plug inserts, the cooling connection can be installed directly in the mold / machine, so the external contour has no protruding extension components. This allows easy and safe handling during the work process and prevents damage to the coupling and the mold.
This system is supplied as a “straight-through coupling“ with no valves. The coding of the in and outlets can be represented by simple fixing of the colored clips / rings onto the coupling and plug.

The use of the locking balls means that an optimum grip of the plug connection is guaranteed, even with forces that are applied laterally. The simple unlocking mechanism, which is optimized by knurling at the end of the sleeve, can be operated by pulling back once on the sleeve.



Quick Coupling with French Profile, Series 608/612



Markets:
- Industrial

Features/Benefits:
- Color coding by fixing colored clips onto the coupling and the plug
- Optimum grip of the plug connection due to the locking balls
- Simple unlocking mechanism

Applications:
- Mold cooling
- Cooling and tempering lines



Technical Specifications

Minimum Operating Temperature: -15 °C
Valve Included: without
Application: Mold
Brand: Rectus
Diameter: Nominal: 8 to 12 mm
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: French Profile
Maximum Operating Pressure: 290.08 psi, 20 bar
Maximum Operating Temperature: 392 °F, 200 °C
Media: Water
Valve Type: No Valve
Hex Size: 6 to 17 mm
Outside Diameter: 20 to 28 mm
Materials of Construction: Brass
Seal Material: FKM



Quick Coupling with French Profile, Series 608/612 型号

Part Diameter Nominal (DN) Type Connection Type Connection Thread Size (inch) Connection Thread Size (mm) Hose I.D. Length (mm)
608KFIW13MVN 8 Coupling Female Thread 1/4 na na 54
608KFTF08MVN 8 Coupling Hose Barb na na 8 65
608KFTF10MVN 8 Coupling Hose Barb na na 10 65
608KFTF12MVN 8 Coupling Hose Barb na na 12 65
608KFTH10MVN 8 Coupling Hose Barb 45° na na 10 51
608KFTH12MVN 8 Coupling Hose Barb 45° na na 12 51
608KFTP10MVN 8 Coupling Push-Lok na na 10 61,5
608KFTP13MVN 8 Coupling Push-Lok na na 13 65
608KFTR10MVN 8 Coupling Hose Barb 90° na na 10 51
608KFTR12MVN 8 Coupling Hose Barb 90° na na 12 51
608SFAH10MXN 8 Plug Male Thread 45° 1/8 na na 33
608SFAH13MXN 8 Plug Male Thread 45° 1/4 na na 35
608SFAM10MXN 8 Plug Male Thread na 10x1 na 32
608SFAR10MXN 8 Plug Male Thread 90° 1/8 na na 34
608SFAR13MXN 8 Plug Male Thread 90° 1/4 na na 37
608SFAR17MXN 8 Plug Male Thread 90° 3/8 na na 37
608SFAW10MXN 8 Plug Male Thread 1/8 na na 32
608SFAW13MXN 8 Plug Male Thread 1/4 na na 33
608SFAW17MXN 8 Plug Male Thread 3/8 na na 24
608SFIW10MXN 8 Plug Female Thread 1/8 na na 35
608SFIW13MXN 8 Plug Female Thread 1/4 na na 40
608VN1005MXN 8 Extension Plug Male Thread 1/8 na na 50
608VN1010MXN 8 Extension Plug Male Thread 1/8 na na 100
608VN1015MXN 8 Extension Plug Male Thread 1/8 na na 150
608VN1305MXN 8 Extension Plug Male Thread 1/4 na na 50
608VN1310MXN 8 Extension Plug Male Thread 1/4 na na 100
608VN1315MXN 8 Extension Plug Male Thread 1/4 na na 150
608VN1320MXN 8 Extension Plug Male Thread 1/4 na na 200
612KFTF13MVN 12 Coupling Hose Barb na na 13 77
612KFTF16MVN 12 Coupling Hose Barb na na 16 77
612KFTH13MVN 12 Coupling Hose Barb 45° na na 13 55
612KFTH16MVN 12 Coupling Hose Barb 45° na na 16 55
612KFTR13MVN 12 Coupling Hose Barb 90° na na 13 59
612KFTR16MVN 12 Coupling Hose Barb 90° na na 16 62
612SFAW17MXN 12 Plug Male Thread 3/8 na na 41
612SFAW21MXN 12 Plug Male Thread 1/2 na na 44
612SFAW26MXN 12 Plug Male Thread 3/4 na na 32
612SFIW17MXN 12 Plug Female Thread 3/8 na na 49
612SFIW21MXN 12 Plug Female Thread 1/2 na na 50
