Parker Quick Couplings

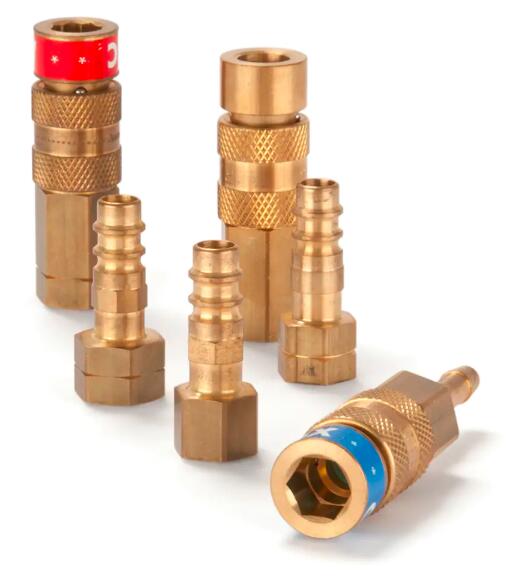

Coded Quick Coupling especially for fuel gas and oxygen, Series 65-67
Coded quick coupling system with nominal diameter 7.4 especially for use with fuel gas and oxygen up to 35 bar. Available made of ungreased brass.
Parker's Coded Quick Coupling Series 65-67 is a coupling system with coding developed specifically for use with fuel gas and oxygen on pressure regulators / welding torches etc. Our "RectuKey" coding system prevents mixing up media. Up to three different media can be safely (non-interchangeable) connected with the standard version.
Coded Quick Coupling especially for fuel gas and oxygen, Series 65-67
Markets:
- Machinery Construction
- Life Science
- Process
- Rescue Equipment
Features/Benefits:
- No mix-ups between media due to the color and mechanical coding of coupling and plug
Applications:
- Gas Transfer
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 7,4 mm |
| Application: |
Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases |
| Valve Type: |
High Flow Air |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
46 to 90 mm |
| Hex Size: |
17 to 19 mm |
| Outside Diameter: |
22 mm |
| Materials of Construction: |
Brass |
| Seal Material: |
FKM, EPDM |
| Flow Rate: |
800 L/min |
Coded Quick Coupling especially for fuel gas and oxygen, Series 65-67 型号
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Application |
| 65KSIW13MVX |
Coupling |
Male Thread - parallel - right |
1/4 |
na |
Oxygen |
| 65KSIW17MVX |
Coupling |
Male Thread - parallel - right |
3/8 |
na |
Oxygen |
| 65KSTF06MVX |
Coupling |
Hose Barb |
na |
6 |
Oxygen |
| 65KSTF09MVX |
Coupling |
Hose Barb |
na |
9 |
Oxygen |
| 65SSIW13MXX |
Plug |
Male Thread - parallel - right |
1/4 |
na |
Oxygen |
| 65SSIW17MXX |
Plug |
Male Thread - parallel - right |
3/8 |
na |
Oxygen |
| 65SSTF06MXX |
Plug |
Hose Barb |
na |
6 |
Oxygen |
| 65SSTF09MXX |
Plug |
Hose Barb |
na |
9 |
Oxygen |
| 66KSIL13MEX |
Coupling |
Male Thread - parallel - left |
1/4 |
na |
Fuel Gas |
| 66KSIL17MEX |
Coupling |
Male Thread - parallel - left |
3/8 |
na |
Fuel Gas |
| 66KSTF06MEX |
Coupling |
Hose Barb |
na |
6 |
Fuel Gas |
| 66KSTF09MEX |
Coupling |
Hose Barb |
na |
9 |
Fuel Gas |
| 66SSIL13MXX |
Plug |
Male Thread - parallel - left |
1/4 |
na |
Fuel Gas |
| 66SSIL17MXX |
Plug |
Male Thread - parallel - left |
3/8 |
na |
Fuel Gas |
| 66SSTF06MXX |
Plug |
Hose Barb |
na |
6 |
Fuel Gas |
| 66SSTF09MXX |
Plug |
Hose Barb |
na |
9 |
Fuel Gas |
| 67KSIL13MVX |
Coupling |
Male Thread - parallel - left |
1/4 |
na |
Var. Media |
| 67KSIL17MVX |
Coupling |
Male Thread - parallel - left |
3/8 |
na |
Var. Media |
| 67KSTF06MVX |
Coupling |
Hose Barb |
na |
6 |
Var. Media |
| 67KSTF09MVX |
Coupling |
Hose Barb |
na |
9 |
Var. Media |
| 67SSIL13MXX |
Plug |
Male Thread - parallel - left |
1/4 |
na |
Var. Media |
| 67SSIL17MXX |
Plug |
Male Thread - parallel - left |
3/8 |
na |
Var. Media |
| 67SSTF06MXX |
Plug |
Hose Barb |
na |
6 |
Var. Media |
| 67SSTF09MXX |
Plug |
Hose Barb |
na |
9 |
Var. Media |
|
