Permanent Crimp Fittings - SF Series

Parker permanent crimp fittings – SF series are qualified for use with 56DH/568DH Diagnostic hose with a -1.5 (.09”) I.D.





Parker's SF Series fittings are crimp style permanent fittings qualified for use with the Parker 56DH/568DH Diagnostic Hose. These compact fittings are used in hydraulic and pneumatic systems where a small O.D. hose is necessary. They are available in straight and 90° elbow shapes to accommodate different application requirements.

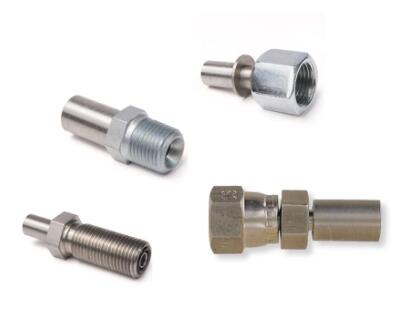

Permanent Crimp Fittings - SF Series



Markets:
- Industrial
- Agriculture
- Construction
- Mobile Equipment
- Transportation

Features/Benefits:
- Available in straight and 90° elbow shapes to accommodate different application requirements
- Parkalign? dies

Applications:
- Hydraulic and pneumatic systems where a small O.D. hose is necessary
- Hydraulic diagnostic hoses



Technical Specifications

Port Size: 0.125 - 0.250 inch
Shape: Straight
Application: Diagnostics, Hydraulics
Connection Type: Crimped, Pipe, 37° Flare, Seal-Lok
Hose Inside Diameter: 2.3 mm, 0.09 inch
Length: 1.13 - 2.06 inch
Connection Thread Size: Varies
Materials of Construction: Steel
Product Style: Crimp (Permanent)



Permanent Crimp Fittings - SF Series 型号

Part Port Connection (inch) Hose I.D. (inch) Style
101SF-2-1 0.125 0.09 Male NPTF Pipe - Rigid - Straight
106SF-2-1 0.125 0.09 Female JIC 37° - Swivel - Straight
1JBSF-4-1 0.25 0.09 Male Seal-Lok - Bulkhead without Locknut - Straight (with o-ring)
1JSSF-4-1 0.25 0.09 Female Seal-Lok - Swivel - Straight - Long
