Parker 派克CPI系列单卡套接头
Parker Fittings Compression Fittings

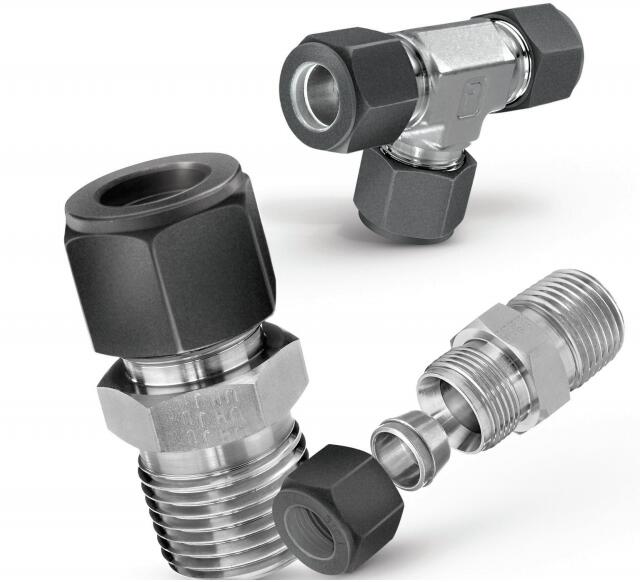

Parker CPI Series Single Ferrule Compression Fitting Tube Fitting

派克CPI 系列单卡套接头在过程仪表控制系统中能够提供有效的密封，良好的抗震、抗热循环性能。多种材质可选。派克CPI单卡套接头为加工过程、电力和仪器仪表应用等行业提供无泄漏密封连接。单卡套结构使管接头组装十分方便，并且具有卓越的抗震性能。搒单卡套弹性变形为接头本体和紧固螺帽之间提供一个恒定张力。CPI管接头由316 不锈钢制备而成，其他材料还包括：6Mo合金，825合金，625合金 以及 C-276合金。直通接头用冷加工工艺制造，而其他形状接头通过细晶粒锻造工艺制得。该管接头适用于不同规格的管道，英制管外径从1/16” 到 2”，公制管外径从2mm 到 25mm。尺寸均按照行业高质量标准来控制。

Parker CPI Series Single Ferrule Compression Fitting Tube Fitting
Parker 派克CPI系列单卡套接头

Parker's single ferrule compression fittings, CPI Tube Fittings are designed to effectively seal and also resist vibration and thermo-cycling conditions in process, and instrumentation system connections. Available in a wide range of material .Parker CPI single ferrule compression tube fittings are designed as leak free connections for process, power, and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The “spring loaded” effect of the single ferrule creates a constant tension between the fitting body and fitting nut. CPI tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings. The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D. These gaugeable tube fittings are manufactured to the highest industry quality standards.

市场：

- 化工
- 石化
- 电力
- 核能
- 油气
- 制浆造纸

特征和优势：

- 单卡套提供简易安装
- 紧固螺母经二硫化钼涂层处理，提供低安装扭矩
- 派克的Suparcase表面处理硬化工艺使卡套具有卓越的抗腐蚀性能
- 硬化处理的卡套具有优异的性能

应用：

- 仪表风管线
- 伴热管线
- 过程控制管线

Markets:

- Chemical
- Petro-Chemical
- Power
- Nuclear
- Oil and Gas
- Pulp and Paper

Features/Benefits:

- Single Ferrule for easy makeup
- Molybdenium Disulfide coated nuts for low torque make-up
- Parker Suparcase ferrule for superior corrosion resistant
- Hardened ferrules provide optimum performance

Applications:

- Instrument Air Lines
- Heat Trace systems
- Process Lines

Technical Specifications
技术规格：

• 连接 1 尺寸： 1/16"
• 管件尺寸： 1/16"
• 连接3螺纹尺寸（英寸）： N/A
• 材料： 316 Stainless Steel
• 连接 2 尺寸： N/A
• 形式： Components
• 形状： Ferrule
• 管道外径： 1/16 inch
• 形状： Ferrule
• 连接 1 尺寸： 1/16"
• 连接 2 尺寸： N/A
• 连接 3 螺纹尺寸： N/A
• 结构材料： 316 Stainless Steel
• 产品风格： Components

Tube Fitting,Single Ferrule Compression Fitting - CPI Series型号

Part Tube Size Shape Connection 1 Size Connection 2 Size Connection 3 Thread Size (inch) Material Style
1 TZ-SS 1/16" Ferrule 1/16" N/A N/A 316 Stainless Steel Components
1-1 CBZ-S 1/16" Male Elbow 1/16" 1/16" N/A Steel Tube to Male Pipe
1-1 CBZ-SS 1/16" Male Elbow 1/16" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
1-1 EBZ-S 1/16" Union Elbow 1/16" 1/16" N/A Steel Tube to Tube Union
1-1 EBZ-SS 1/16" Union Elbow 1/16" 1/16" N/A 316 Stainless Steel Tube to Tube Union
1-1 FBZ-S 1/16" NPT Male Connector 1/16" 1/16" N/A Steel Tube to Male Pipe
1-1 FBZ-SS 1/16" NPT Male Connector 1/16" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
1-1 FH2BZ-S 1/16" NPT Male Bulkhead Connector 1/16" 1/16" N/A Steel Tube to Male Pipe
1-1 FH2BZ-SS 1/16" NPT Male Bulkhead Connector 1/16" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
1-1 GBZ-S 1/16" NPT Female Connector 1/16" 1/16" N/A Steel Tube to Female Pipe
1-1 GBZ-SS 1/16" NPT Female Connector 1/16" 1/16" N/A 316 Stainless Steel Tube to Female Pipe
1-1 HBZ-S 1/16" Union 1/16" 1/16" N/A Steel Tube to Tube Union
1-1 HBZ-SS 1/16" Union 1/16" 1/16" N/A 316 Stainless Steel Tube to Tube Union
1-1 WBZ-S 1/16" Bulkhead Union 1/16" 1/16" N/A Steel Tube to Tube
1-1 WBZ-SS 1/16" Bulkhead Union 1/16" 1/16" N/A 316 Stainless Steel Tube to Tube
1-1-1 JBZ-S 1/16" Union Tee 1/16" 1/16" 1/16" Steel Tube to Tube Union
1-1-1 JBZ-SS 1/16" Union Tee 1/16" 1/16" 1/16" 316 Stainless Steel Tube to Tube Union
1-2 CBZ-S 1/16" Male Elbow 1/16" 1/8" N/A Steel Tube to Male Pipe
1-2 CBZ-SS 1/16" Male Elbow 1/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
1-2 FBZ-S 1/16" NPT Male Connector 1/16" 1/8" N/A Steel Tube to Male Pipe
1-2 FBZ-SS 1/16" NPT Male Connector 1/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
1-2 FH2BZ-S 1/16" NPT Male Bulkhead Connector 1/16" 1/8" N/A Steel Tube to Male Pipe
1-2 FH2BZ-SS 1/16" NPT Male Bulkhead Connector 1/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
1-2 GBZ-S 1/16" NPT Female Connector 1/16" 1/8" N/A Steel Tube to Female Pipe
1-2 GBZ-SS 1/16" NPT Female Connector 1/16" 1/8" N/A 316 Stainless Steel Tube to Female Pipe
1-4 FBZ-S 1/16" NPT Male Connector 1/16" 1/4" N/A Steel Tube to Male Pipe
1-4 FBZ-SS 1/16" NPT Male Connector 1/16" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
10 BZ-B 5/8" Tube Nut 5/8" N/A N/A Brass Components
10 KBZ-S 5/8" Union Cross 5/8" N/A N/A Steel Tube to Tube Union
10 KBZ-SS 5/8" Union Cross 5/8" N/A N/A 316 Stainless Steel Tube to Tube Union
10-10 EBZ-S 5/8" Union Elbow 5/8" 5/8" N/A Steel Tube to Tube Union
10-10 EBZ-SS 5/8" Union Elbow 5/8" 5/8" N/A 316 Stainless Steel Tube to Tube Union
10-10 HBZ-S 5/8" Union 5/8" 5/8" N/A Steel Tube to Tube Union
10-10 HBZ-SS 5/8" Union 5/8" 5/8" N/A 316 Stainless Steel Tube to Tube Union
10-10 WBZ-S 5/8" Bulkhead Union 5/8" 5/8" N/A Steel Tube to Tube
10-10 WBZ-SS 5/8" Bulkhead Union 5/8" 5/8" N/A 316 Stainless Steel Tube to Tube
10-10-10 JBZ-S 5/8" Union Tee 5/8" 5/8" 5/8" Steel Tube to Tube Union
10-10-10 JBZ-SS 5/8" Union Tee 5/8" 5/8" 5/8" 316 Stainless Steel Tube to Tube Union
10-12 CBZ-S 5/8" Male Elbow 5/8" 3/4" N/A Steel Tube to Male Pipe
10-12 CBZ-SS 5/8" Male Elbow 5/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
10-12 FBZ-S 5/8" NPT Male Connector 5/8" 3/4" N/A Steel Tube to Male Pipe
10-12 FBZ-SS 5/8" NPT Male Connector 5/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
10-12 GBZ-S 5/8" NPT Female Connector 5/8" 3/4" N/A Steel Tube to Female Pipe
10-12 GBZ-SS 5/8" NPT Female Connector 5/8" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
10-6 CBZ-S 5/8" Male Elbow 5/8" 3/8" N/A Steel Tube to Male Pipe
10-6 CBZ-SS 5/8" Male Elbow 5/8" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
10-6 EBZ-S 5/8" Drop Size Elbows 5/8" 3/8" N/A Steel Tube to Tube
10-6 EBZ-SS 5/8" Drop Size Elbows 5/8" 3/8" N/A 316 Stainless Steel Tube to Tube
10-6 FBZ-S 5/8" NPT Male Connector 5/8" 3/8" N/A Steel Tube to Male Pipe
10-6 FBZ-SS 5/8" NPT Male Connector 5/8" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
10-6 FH2BZ-S 5/8" NPT Male Bulkhead Connector 5/8" 3/8" N/A Steel Tube to Male Pipe
10-6 FH2BZ-SS 5/8" NPT Male Bulkhead Connector 5/8" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
10-6 GBZ-S 5/8" NPT Female Connector 5/8" 3/8" N/A Steel Tube to Female Pipe
10-6 GBZ-SS 5/8" NPT Female Connector 5/8" 3/8" N/A 316 Stainless Steel Tube to Female Pipe
10-6 HBZ-S 5/8" Reducing Union 5/8" 3/8" N/A Steel Tube to Tube
10-6 HBZ-SS 5/8" Reducing Union 5/8" 3/8" N/A 316 Stainless Steel Tube to Tube
10-8 CBZ-S 5/8" Male Elbow 5/8" 1/2" N/A Steel Tube to Male Pipe
10-8 CBZ-SS 5/8" Male Elbow 5/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
10-8 EBZ-S 5/8" Drop Size Elbows 5/8" 1/2" N/A Steel Tube to Tube
10-8 EBZ-SS 5/8" Drop Size Elbows 5/8" 1/2" N/A 316 Stainless Steel Tube to Tube
10-8 FBZ-S 5/8" NPT Male Connector 5/8" 1/2" N/A Steel Tube to Male Pipe
10-8 FBZ-SS 5/8" NPT Male Connector 5/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
10-8 FH2BZ-S 5/8" NPT Male Bulkhead Connector 5/8" 1/2" N/A Steel Tube to Male Pipe
10-8 FH2BZ-SS 5/8" NPT Male Bulkhead Connector 5/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
10-8 GBZ-S 5/8" NPT Female Connector 5/8" 1/2" N/A Steel Tube to Female Pipe
10-8 GBZ-SS 5/8" NPT Female Connector 5/8" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
10-8 HBZ-S 5/8" Reducing Union 5/8" 1/2" N/A Steel Tube to Tube
10-8 HBZ-SS 5/8" Reducing Union 5/8" 1/2" N/A 316 Stainless Steel Tube to Tube
12 FNZ-SS 3/4" Plug 3/4" N/A N/A 316 Stainless Steel Components
12 KBZ-S 3/4" Union Cross 3/4" N/A N/A Steel Tube to Tube Union
12 KBZ-SS 3/4" Union Cross 3/4" N/A N/A 316 Stainless Steel Tube to Tube Union
12 PNBZ-SS 3/4" Cap 3/4" N/A N/A 316 Stainless Steel Components
12 TZ-SS 3/4" Ferrule 3/4" N/A N/A 316 Stainless Steel Components
12-10 HBZ-S 3/4" Reducing Union 3/4" 5/8" N/A Steel Tube to Tube
12-10 HBZ-SS 3/4" Reducing Union 3/4" 5/8" N/A 316 Stainless Steel Tube to Tube
12-12 CBZ-B 3/4" Male Elbow 3/4" 3/4" N/A Brass Tube to Male Pipe
12-12 CBZ-S 3/4" Male Elbow 3/4" 3/4" N/A Steel Tube to Male Pipe
12-12 CBZ-SS 3/4" Male Elbow 3/4" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
12-12 EBZ-S 3/4" Union Elbow 3/4" 3/4" N/A Steel Tube to Tube Union
12-12 EBZ-SS 3/4" Union Elbow 3/4" 3/4" N/A 316 Stainless Steel Tube to Tube Union
12-12 FBZ-B 3/4" NPT Male Connector 3/4" 3/4" N/A Brass Tube to Male Pipe
12-12 FBZ-S 3/4" NPT Male Connector 3/4" 3/4" N/A Steel Tube to Male Pipe
12-12 FBZ-SS 3/4" NPT Male Connector 3/4" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
12-12 FH2BZ-S 3/4" NPT Male Bulkhead Connector 3/4" 3/4" N/A Steel Tube to Male Pipe
12-12 FH2BZ-SS 3/4" NPT Male Bulkhead Connector 3/4" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
12-12 GBZ-S 3/4" NPT Female Connector 3/4" 3/4" N/A Steel Tube to Female Pipe
12-12 GBZ-SS 3/4" NPT Female Connector 3/4" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
12-12 HBZ-B 3/4" Union 3/4" 3/4" N/A Brass Tube to Tube Union
12-12 HBZ-S 3/4" Union 3/4" 3/4" N/A Steel Tube to Tube Union
12-12 HBZ-SS 3/4" Union 3/4" 3/4" N/A 316 Stainless Steel Tube to Tube Union
12-12 WBZ-S 3/4" Bulkhead Union 3/4" 3/4" N/A Steel Tube to Tube
12-12 WBZ-SS 3/4" Bulkhead Union 3/4" 3/4" N/A 316 Stainless Steel Tube to Tube
12-12-12 JBZ-S 3/4" Union Tee 3/4" 3/4" 3/4" Steel Tube to Tube Union
12-12-12 JBZ-SS 3/4" Union Tee 3/4" 3/4" 3/4" 316 Stainless Steel Tube to Tube Union
12-12-12 OBZ-SS 3/4" Female Branch Tee 3/4" 3/4" 3/4" 316 Stainless Steel Tube to Female Pipe
12-16 FBZ-S 3/4" NPT Male Connector 3/4" 1" N/A Steel Tube to Male Pipe
12-16 FBZ-SS 3/4" NPT Male Connector 3/4" 1" N/A 316 Stainless Steel Tube to Male Pipe
12-4 EBZ-S 3/4" Drop Size Elbows 3/4" 1/4" N/A Steel Tube to Tube
12-4 EBZ-SS 3/4" Drop Size Elbows 3/4" 1/4" N/A 316 Stainless Steel Tube to Tube
12-4 HBZ-S 3/4" Reducing Union 3/4" 1/4" N/A Steel Tube to Tube
12-4 HBZ-SS 3/4" Reducing Union 3/4" 1/4" N/A 316 Stainless Steel Tube to Tube
12-6 EBZ-S 3/4" Drop Size Elbows 3/4" 3/8" N/A Steel Tube to Tube
12-6 EBZ-SS 3/4" Drop Size Elbows 3/4" 3/8" N/A 316 Stainless Steel Tube to Tube
12-6 HBZ-S 3/4" Reducing Union 3/4" 3/8" N/A Steel Tube to Tube
12-6 HBZ-SS 3/4" Reducing Union 3/4" 3/8" N/A 316 Stainless Steel Tube to Tube
12-8 CBZ-S 3/4" Male Elbow 3/4" 1/2" N/A Steel Tube to Male Pipe
12-8 CBZ-SS 3/4" Male Elbow 3/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
12-8 EBZ-S 3/4" Drop Size Elbows 3/4" 1/2" N/A Steel Tube to Tube
12-8 EBZ-SS 3/4" Drop Size Elbows 3/4" 1/2" N/A 316 Stainless Steel Tube to Tube
12-8 FBZ-S 3/4" NPT Male Connector 3/4" 1/2" N/A Steel Tube to Male Pipe
12-8 FBZ-SS 3/4" NPT Male Connector 3/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
12-8 FH2BZ-S 3/4" NPT Male Bulkhead Connector 3/4" 1/2" N/A Steel Tube to Male Pipe
12-8 FH2BZ-SS 3/4" NPT Male Bulkhead Connector 3/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
12-8 GBZ-S 3/4" NPT Female Connector 3/4" 1/2" N/A Steel Tube to Female Pipe
12-8 GBZ-SS 3/4" NPT Female Connector 3/4" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
12-8 HBZ-S 3/4" Reducing Union 3/4" 1/2" N/A Steel Tube to Tube
12-8 HBZ-SS 3/4" Reducing Union 3/4" 1/2" N/A 316 Stainless Steel Tube to Tube
14 KBZ-S 7/8" Union Cross 7/8" N/A N/A Steel Tube to Tube Union
14 KBZ-SS 7/8" Union Cross 7/8" N/A N/A 316 Stainless Steel Tube to Tube Union
14-12 CBZ-S 7/8" Male Elbow 7/8" 3/4" N/A Steel Tube to Male Pipe
14-12 CBZ-SS 7/8" Male Elbow 7/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
14-12 FBZ-S 7/8" NPT Male Connector 7/8" 3/4" N/A Steel Tube to Male Pipe
14-12 FBZ-SS 7/8" NPT Male Connector 7/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
14-12 FH2BZ-S 7/8" NPT Male Bulkhead Connector 7/8" 3/4" N/A Steel Tube to Male Pipe
14-12 FH2BZ-SS 7/8" NPT Male Bulkhead Connector 7/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
14-12 GBZ-S 7/8" NPT Female Connector 7/8" 3/4" N/A Steel Tube to Female Pipe
14-12 GBZ-SS 7/8" NPT Female Connector 7/8" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
14-14 EBZ-S 7/8" Union Elbow 7/8" 7/8" N/A Steel Tube to Tube Union
14-14 EBZ-SS 7/8" Union Elbow 7/8" 7/8" N/A 316 Stainless Steel Tube to Tube Union
14-14 HBZ-S 7/8" Union 7/8" 7/8" N/A Steel Tube to Tube Union
14-14 HBZ-SS 7/8" Union 7/8" 7/8" N/A 316 Stainless Steel Tube to Tube Union
14-14 WBZ-S 7/8" Bulkhead Union 7/8" 7/8" N/A Steel Tube to Tube
14-14 WBZ-SS 7/8" Bulkhead Union 7/8" 7/8" N/A 316 Stainless Steel Tube to Tube
14-14-14 JBZ-S 7/8" Union Tee 7/8" 7/8" 7/8" Steel Tube to Tube Union
14-14-14 JBZ-SS 7/8" Union Tee 7/8" 7/8" 7/8" 316 Stainless Steel Tube to Tube Union
14-16 FBZ-S 7/8" NPT Male Connector 7/8" 1" N/A Steel Tube to Male Pipe
14-16 FBZ-SS 7/8" NPT Male Connector 7/8" 1" N/A 316 Stainless Steel Tube to Male Pipe
14-4 EBZ-S 7/8" Drop Size Elbows 7/8" 1/4" N/A Steel Tube to Tube
14-4 EBZ-SS 7/8" Drop Size Elbows 7/8" 1/4" N/A 316 Stainless Steel Tube to Tube
16 KBZ-S 1" Union Cross 1" N/A N/A Steel Tube to Tube Union
16 KBZ-SS 1" Union Cross 1" N/A N/A 316 Stainless Steel Tube to Tube Union
16-1 Z3HCZ7-S 1" Column End Fitting Low Internal Volume 1" 1/16" N/A Steel Analytical Fittings
16-1 Z3HCZ7-SS 1" Column End Fitting Low Internal Volume 1" 1/16" N/A 316 Stainless Steel Analytical Fittings
16-12 CBZ-S 1" Male Elbow 1" 3/4" N/A Steel Tube to Male Pipe
16-12 CBZ-SS 1" Male Elbow 1" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
16-12 EBZ-S 1" Drop Size Elbows 1" 3/4" N/A Steel Tube to Tube
16-12 EBZ-SS 1" Drop Size Elbows 1" 3/4" N/A 316 Stainless Steel Tube to Tube
16-12 FBZ-S 1" NPT Male Connector 1" 3/4" N/A Steel Tube to Male Pipe
16-12 FBZ-SS 1" NPT Male Connector 1" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
16-12 FH2BZ-S 1" NPT Male Bulkhead Connector 1" 3/4" N/A Steel Tube to Male Pipe
16-12 FH2BZ-SS 1" NPT Male Bulkhead Connector 1" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
16-12 GBZ-S 1" NPT Female Connector 1" 3/4" N/A Steel Tube to Female Pipe
16-12 GBZ-SS 1" NPT Female Connector 1" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
16-12 HBZ-S 1" Reducing Union 1" 3/4" N/A Steel Tube to Tube
16-12 HBZ-SS 1" Reducing Union 1" 3/4" N/A 316 Stainless Steel Tube to Tube
16-16 CBZ-S 1" Male Elbow 1" 1" N/A Steel Tube to Male Pipe
16-16 CBZ-SS 1" Male Elbow 1" 1" N/A 316 Stainless Steel Tube to Male Pipe
16-16 EBZ-S 1" Union Elbow 1" 1" N/A Steel Tube to Tube Union
16-16 EBZ-SS 1" Union Elbow 1" 1" N/A 316 Stainless Steel Tube to Tube Union
16-16 FBZ-S 1" NPT Male Connector 1" 1" N/A Steel Tube to Male Pipe
16-16 FBZ-SS 1" NPT Male Connector 1" 1" N/A 316 Stainless Steel Tube to Male Pipe
16-16 FH2BZ-S 1" NPT Male Bulkhead Connector 1" 1" N/A Steel Tube to Male Pipe
16-16 FH2BZ-SS 1" NPT Male Bulkhead Connector 1" 1" N/A 316 Stainless Steel Tube to Male Pipe
16-16 GBZ-S 1" NPT Female Connector 1" 1" N/A Steel Tube to Female Pipe
16-16 GBZ-SS 1" NPT Female Connector 1" 1" N/A 316 Stainless Steel Tube to Female Pipe
16-16 HBZ-S 1" Union 1" 1" N/A Steel Tube to Tube Union
16-16 HBZ-SS 1" Union 1" 1" N/A 316 Stainless Steel Tube to Tube Union
16-16 WBZ-S 1" Bulkhead Union 1" 1" N/A Steel Tube to Tube
16-16 WBZ-SS 1" Bulkhead Union 1" 1" N/A 316 Stainless Steel Tube to Tube
16-16-16 JBZ-S 1" Union Tee 1" 1" 1" Steel Tube to Tube Union
16-16-16 JBZ-SS 1" Union Tee 1" 1" 1" 316 Stainless Steel Tube to Tube Union
16-8 EBZ-S 1" Drop Size Elbows 1" 1/2" N/A Steel Tube to Tube
16-8 EBZ-SS 1" Drop Size Elbows 1" 1/2" N/A 316 Stainless Steel Tube to Tube
16-8 FBZ-S 1" NPT Male Connector 1" 1/2" N/A Steel Tube to Male Pipe
16-8 FBZ-SS 1" NPT Male Connector 1" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
16-8 HBZ-S 1" Reducing Union 1" 1/2" N/A Steel Tube to Tube
16-8 HBZ-SS 1" Reducing Union 1" 1/2" N/A 316 Stainless Steel Tube to Tube
2 BZ-SS 1/8" Tube Nut 1/8" N/A N/A 316 Stainless Steel Components
2 FNZ-SS 1/8" Plug 1/8" N/A N/A 316 Stainless Steel Components
2 KBZ-S 1/8" Union Cross 1/8" N/A N/A Steel Tube to Tube Union
2 KBZ-SS 1/8" Union Cross 1/8" N/A N/A 316 Stainless Steel Tube to Tube Union
2 TZ-SS 1/8" Ferrule 1/8" N/A N/A 316 Stainless Steel Components
2-1 CBZ-S 1/8" Male Elbow 1/8" 1/16" N/A Steel Tube to Male Pipe
2-1 CBZ-SS 1/8" Male Elbow 1/8" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
2-1 FBZ-S 1/8" NPT Male Connector 1/8" 1/16" N/A Steel Tube to Male Pipe
2-1 FBZ-SS 1/8" NPT Male Connector 1/8" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
2-1 HBZ-S 1/8" Reducing Union 1/8" 1/16" N/A Steel Tube to Tube
2-1 HBZ-SS 1/8" Reducing Union 1/8" 1/16" N/A 316 Stainless Steel Tube to Tube
2-1 Z2HCZ-S 1/8" Column End Fitting with Frit 1/8" 1/16" N/A Steel Analytical Fittings
2-1 Z2HCZ-SS 1/8" Column End Fitting with Frit 1/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
2-1 Z2HCZ7-S 1/8" Column End Fitting Low Internal Volume with Frit 1/8" 1/16" N/A Steel Analytical Fittings
2-1 Z2HCZ7-SS 1/8" Column End Fitting Low Internal Volume with Frit 1/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
2-1 ZHCZ-S 1/8" Column End Fitting (without Frit) 1/8" 1/16" N/A Steel Analytical Fittings
2-1 ZHCZ-SS 1/8" Column End Fitting (without Frit) 1/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
2-1 ZHCZ7-S 1/8" Column End Fitting Low Internal Volume (without Frit) 1/8" 1/16" N/A Steel Analytical Fittings
2-1 ZHCZ7-SS 1/8" Column End Fitting Low Internal Volume (without Frit) 1/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
2-2 CBZ-S 1/8" Male Elbow 1/8" 1/8" N/A Steel Tube to Male Pipe
2-2 CBZ-SS 1/8" Male Elbow 1/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
2-2 EBZ-S 1/8" Union Elbow 1/8" 1/8" N/A Steel Tube to Tube Union
2-2 EBZ-SS 1/8" Union Elbow 1/8" 1/8" N/A 316 Stainless Steel Tube to Tube Union
2-2 FBZ-S 1/8" NPT Male Connector 1/8" 1/8" N/A Steel Tube to Male Pipe
2-2 FBZ-SS 1/8" NPT Male Connector 1/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
2-2 FH2BZ-S 1/8" NPT Male Bulkhead Connector 1/8" 1/8" N/A Steel Tube to Male Pipe
2-2 FH2BZ-SS 1/8" NPT Male Bulkhead Connector 1/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
2-2 GBZ-B 1/8" NPT Female Connector 1/8" 1/8" N/A Brass Tube to Female Pipe
2-2 GBZ-S 1/8" NPT Female Connector 1/8" 1/8" N/A Steel Tube to Female Pipe
2-2 GBZ-SS 1/8" NPT Female Connector 1/8" 1/8" N/A 316 Stainless Steel Tube to Female Pipe
2-2 HBZ-S 1/8" Union 1/8" 1/8" N/A Steel Tube to Tube Union
2-2 HBZ-SS 1/8" Union 1/8" 1/8" N/A 316 Stainless Steel Tube to Tube Union
2-2 WBZ-S 1/8" Bulkhead Union 1/8" 1/8" N/A Steel Tube to Tube
2-2 WBZ-SS 1/8" Bulkhead Union 1/8" 1/8" N/A 316 Stainless Steel Tube to Tube
2-2-2 JBZ-S 1/8" Union Tee 1/8" 1/8" 1/8" Steel Tube to Tube Union
2-2-2 JBZ-SS 1/8" Union Tee 1/8" 1/8" 1/8" 316 Stainless Steel Tube to Tube Union
2-2-2 OBZ-B 1/8" Female Branch Tee 1/8" 1/8" 1/8" Brass Tube to Female Pipe
2-2-2 SBZ-SS 1/8" Male Branch Tee 1/8" 1/8" 1/8" 316 Stainless Steel Tube to Male Pipe
2-4 CBZ-B 1/8" Male Elbow 1/8" 1/4" N/A Brass Tube to Male Pipe
2-4 CBZ-S 1/8" Male Elbow 1/8" 1/4" N/A Steel Tube to Male Pipe
2-4 CBZ-SS 1/8" Male Elbow 1/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
2-4 FBZ-S 1/8" NPT Male Connector 1/8" 1/4" N/A Steel Tube to Male Pipe
2-4 FBZ-SS 1/8" NPT Male Connector 1/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
2-4 GBZ-S 1/8" NPT Female Connector 1/8" 1/4" N/A Steel Tube to Female Pipe
2-4 GBZ-SS 1/8" NPT Female Connector 1/8" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
2-4 WBZ-S 1/8" Bulkhead Union 1/8" 1/4" N/A Steel Tube to Tube
2-4 WBZ-SS 1/8" Bulkhead Union 1/8" 1/4" N/A 316 Stainless Steel Tube to Tube
2-6 FBZ-S 1/8" NPT Male Connector 1/8" 3/8" N/A Steel Tube to Male Pipe
2-6 FBZ-SS 1/8" NPT Male Connector 1/8" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
2-8 FBZ-S 1/8" NPT Male Connector 1/8" 1/2" N/A Steel Tube to Male Pipe
2-8 FBZ-SS 1/8" NPT Male Connector 1/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
20-20 CBZ-S 1-1/4" Male Elbow 1-1/4" 1-1/4" N/A Steel Tube to Male Pipe
20-20 CBZ-SS 1-1/4" Male Elbow 1-1/4" 1-1/4" N/A 316 Stainless Steel Tube to Male Pipe
20-20 EBZ-S 1-1/4" Union Elbow 1-1/4" 1-1/4" N/A Steel Tube to Tube Union
20-20 EBZ-SS 1-1/4" Union Elbow 1-1/4" 1-1/4" N/A 316 Stainless Steel Tube to Tube Union
20-20 FBZ-S 1-1/4" NPT Male Connector 1-1/4" 1-1/4" N/A Steel Tube to Male Pipe
20-20 FBZ-SS 1-1/4" NPT Male Connector 1-1/4" 1-1/4" N/A 316 Stainless Steel Tube to Male Pipe
20-20 GBZ-S 1-1/4" NPT Female Connector 1-1/4" 1-1/4" N/A Steel Tube to Female Pipe
20-20 GBZ-SS 1-1/4" NPT Female Connector 1-1/4" 1-1/4" N/A 316 Stainless Steel Tube to Female Pipe
20-20 HBZ-S 1-1/4" Union 1-1/4" 1-1/4" N/A Steel Tube to Tube Union
20-20 HBZ-SS 1-1/4" Union 1-1/4" 1-1/4" N/A 316 Stainless Steel Tube to Tube Union
20-20-20 JBZ-S 1-1/4" Union Tee 1-1/4" 1-1/4" 1-1/4" Steel Tube to Tube Union
20-20-20 JBZ-SS 1-1/4" Union Tee 1-1/4" 1-1/4" 1-1/4" 316 Stainless Steel Tube to Tube Union
24-24 CBZ-S 1-1/2" Male Elbow 1-1/2" 1-1/2" N/A Steel Tube to Male Pipe
24-24 CBZ-SS 1-1/2" Male Elbow 1-1/2" 1-1/2" N/A 316 Stainless Steel Tube to Male Pipe
24-24 EBZ-S 1-1/2" Union Elbow 1-1/2" 1-1/2" N/A Steel Tube to Tube Union
24-24 EBZ-SS 1-1/2" Union Elbow 1-1/2" 1-1/2" N/A 316 Stainless Steel Tube to Tube Union
24-24 FBZ-S 1-1/2" NPT Male Connector 1-1/2" 1-1/2" N/A Steel Tube to Male Pipe
24-24 FBZ-SS 1-1/2" NPT Male Connector 1-1/2" 1-1/2" N/A 316 Stainless Steel Tube to Male Pipe
24-24 GBZ-S 1-1/2" NPT Female Connector 1-1/2" 1-1/2" N/A Steel Tube to Female Pipe
24-24 GBZ-SS 1-1/2" NPT Female Connector 1-1/2" 1-1/2" N/A 316 Stainless Steel Tube to Female Pipe
24-24 HBZ-S 1-1/2" Union 1-1/2" 1-1/2" N/A Steel Tube to Tube Union
24-24 HBZ-SS 1-1/2" Union 1-1/2" 1-1/2" N/A 316 Stainless Steel Tube to Tube Union
24-24-24 JBZ-S 1-1/2" Union Tee 1-1/2" 1-1/2" 1-1/2" Steel Tube to Tube Union
24-24-24 JBZ-SS 1-1/2" Union Tee 1-1/2" 1-1/2" 1-1/2" 316 Stainless Steel Tube to Tube Union
3 BZ-B 3/16" Tube Nut 3/16" N/A N/A Brass Components
3 KBZ-S 3/16" Union Cross 3/16" N/A N/A Steel Tube to Tube Union
3 KBZ-SS 3/16" Union Cross 3/16" N/A N/A 316 Stainless Steel Tube to Tube Union
3 TZ-B 3/16" Ferrule 3/16" N/A N/A Brass Components
3-1 FBZ-S 3/16" NPT Male Connector 3/16" 1/16" N/A Steel Tube to Male Pipe
3-1 FBZ-SS 3/16" NPT Male Connector 3/16" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
3-1 HBZ-S 3/16" Reducing Union 3/16" 1/16" N/A Steel Tube to Tube
3-1 HBZ-SS 3/16" Reducing Union 3/16" 1/16" N/A 316 Stainless Steel Tube to Tube
3-2 CBZ-S 3/16" Male Elbow 3/16" 1/8" N/A Steel Tube to Male Pipe
3-2 CBZ-SS 3/16" Male Elbow 3/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
3-2 EBZ-S 3/16" Drop Size Elbows 3/16" 1/8" N/A Steel Tube to Tube
3-2 EBZ-SS 3/16" Drop Size Elbows 3/16" 1/8" N/A 316 Stainless Steel Tube to Tube
3-2 FBZ-S 3/16" NPT Male Connector 3/16" 1/8" N/A Steel Tube to Male Pipe
3-2 FBZ-SS 3/16" NPT Male Connector 3/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
3-2 FH2BZ-S 3/16" NPT Male Bulkhead Connector 3/16" 1/8" N/A Steel Tube to Male Pipe
3-2 FH2BZ-SS 3/16" NPT Male Bulkhead Connector 3/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
3-2 FH4BZ-SS 3/16" Thermocouple Connector 3/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
3-2 GBZ-S 3/16" NPT Female Connector 3/16" 1/8" N/A Steel Tube to Female Pipe
3-2 GBZ-SS 3/16" NPT Female Connector 3/16" 1/8" N/A 316 Stainless Steel Tube to Female Pipe
3-2 HBZ-S 3/16" Reducing Union 3/16" 1/8" N/A Steel Tube to Tube
3-2 HBZ-SS 3/16" Reducing Union 3/16" 1/8" N/A 316 Stainless Steel Tube to Tube
3-3 EBZ-S 3/16" Union Elbow 3/16" 3/16" N/A Steel Tube to Tube Union
3-3 EBZ-SS 3/16" Union Elbow 3/16" 3/16" N/A 316 Stainless Steel Tube to Tube Union
3-3 HBZ-S 3/16" Union 3/16" 3/16" N/A Steel Tube to Tube Union
3-3 HBZ-SS 3/16" Union 3/16" 3/16" N/A 316 Stainless Steel Tube to Tube Union
3-3 WBZ-S 3/16" Bulkhead Union 3/16" 3/16" N/A Steel Tube to Tube
3-3 WBZ-SS 3/16" Bulkhead Union 3/16" 3/16" N/A 316 Stainless Steel Tube to Tube
3-3-3 JBZ-B 3/16" Union Tee 3/16" 3/16" 3/16" Brass Tube to Tube Union
3-3-3 JBZ-S 3/16" Union Tee 3/16" 3/16" 3/16" Steel Tube to Tube Union
3-3-3 JBZ-SS 3/16" Union Tee 3/16" 3/16" 3/16" 316 Stainless Steel Tube to Tube Union
3-4 CBZ-S 3/16" Male Elbow 3/16" 1/4" N/A Steel Tube to Male Pipe
3-4 CBZ-SS 3/16" Male Elbow 3/16" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
3-4 FBZ-S 3/16" NPT Male Connector 3/16" 1/4" N/A Steel Tube to Male Pipe
3-4 FBZ-SS 3/16" NPT Male Connector 3/16" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
3-4 GBZ-S 3/16" NPT Female Connector 3/16" 1/4" N/A Steel Tube to Female Pipe
3-4 GBZ-SS 3/16" NPT Female Connector 3/16" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
32-32 CBZ-S 2" Male Elbow 2" 2" N/A Steel Tube to Male Pipe
32-32 CBZ-SS 2" Male Elbow 2" 2" N/A 316 Stainless Steel Tube to Male Pipe
32-32 EBZ-S 2" Union Elbow 2" 2" N/A Steel Tube to Tube Union
32-32 EBZ-SS 2" Union Elbow 2" 2" N/A 316 Stainless Steel Tube to Tube Union
32-32 FBZ-S 2" NPT Male Connector 2" 2" N/A Steel Tube to Male Pipe
32-32 FBZ-SS 2" NPT Male Connector 2" 2" N/A 316 Stainless Steel Tube to Male Pipe
32-32 GBZ-S 2" NPT Female Connector 2" 2" N/A Steel Tube to Female Pipe
32-32 GBZ-SS 2" NPT Female Connector 2" 2" N/A 316 Stainless Steel Tube to Female Pipe
32-32 HBZ-S 2" Union 2" 2" N/A Steel Tube to Tube Union
32-32 HBZ-SS 2" Union 2" 2" N/A 316 Stainless Steel Tube to Tube Union
32-32-32 JBZ-S 2" Union Tee 2" 2" 2" Steel Tube to Tube Union
32-32-32 JBZ-SS 2" Union Tee 2" 2" 2" 316 Stainless Steel Tube to Tube Union
4 BZ-B 1/4" Tube Nut 1/4" N/A N/A Brass Components
4 BZ-SS 1/4" Tube Nut 1/4" N/A N/A 316 Stainless Steel Components
4 FNZ-B 1/4" Plug 1/4" N/A N/A Brass Components
4 FNZ-SS 1/4" Plug 1/4" N/A N/A 316 Stainless Steel Components
4 KBZ-S 1/4" Union Cross 1/4" N/A N/A Steel Tube to Tube Union
4 KBZ-SS 1/4" Union Cross 1/4" N/A N/A 316 Stainless Steel Tube to Tube Union
4 PNBZ-SS 1/4" Cap 1/4" N/A N/A 316 Stainless Steel Components
4 TIZ .125-SS 1/4" Insert 1/4" N/A N/A 316 Stainless Steel Components
4 TZ-B 1/4" Ferrule 1/4" N/A N/A Brass Components
4 TZ-SS 1/4" Ferrule 1/4" N/A N/A 316 Stainless Steel Components
4-1 CBZ-S 1/4" Male Elbow 1/4" 1/16" N/A Steel Tube to Male Pipe
4-1 CBZ-SS 1/4" Male Elbow 1/4" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
4-1 FBZ-S 1/4" NPT Male Connector 1/4" 1/16" N/A Steel Tube to Male Pipe
4-1 FBZ-SS 1/4" NPT Male Connector 1/4" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
4-1 HBZ-S 1/4" Reducing Union 1/4" 1/16" N/A Steel Tube to Tube
4-1 HBZ-SS 1/4" Reducing Union 1/4" 1/16" N/A 316 Stainless Steel Tube to Tube
4-1 Z2HCZ-S 1/4" Column End Fitting with Frit 1/4" 1/16" N/A Steel Analytical Fittings
4-1 Z2HCZ-SS 1/4" Column End Fitting with Frit 1/4" 1/16" N/A 316 Stainless Steel Analytical Fittings
4-1 Z2HCZ7-S 1/4" Column End Fitting Low Internal Volume with Frit 1/4" 1/16" N/A Steel Analytical Fittings
4-1 Z2HCZ7-SS 1/4" Column End Fitting Low Internal Volume with Frit 1/4" 1/16" N/A 316 Stainless Steel Analytical Fittings
4-1 Z3HCZ7-S 1/4" Column End Fitting Low Internal Volume 1/4" 1/16" N/A Steel Analytical Fittings
4-1 Z3HCZ7-SS 1/4" Column End Fitting Low Internal Volume 1/4" 1/16" N/A 316 Stainless Steel Analytical Fittings
4-1 ZHCZ-S 1/4" Column End Fitting (without Frit) 1/4" 1/16" N/A Steel Analytical Fittings
4-1 ZHCZ-SS 1/4" Column End Fitting (without Frit) 1/4" 1/16" N/A 316 Stainless Steel Analytical Fittings
4-1 ZHCZ7-S 1/4" Column End Fitting Low Internal Volume (without Frit) 1/4" 1/16" N/A Steel Analytical Fittings
4-1 ZHCZ7-SS 1/4" Column End Fitting Low Internal Volume (without Frit) 1/4" 1/16" N/A 316 Stainless Steel Analytical Fittings
4-12 FBZ-S 1/4" NPT Male Connector 1/4" 3/4" N/A Steel Tube to Male Pipe
4-12 FBZ-SS 1/4" NPT Male Connector 1/4" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
4-2 CBZ-B 1/4" Male Elbow 1/4" 1/8" N/A Brass Tube to Male Pipe
4-2 CBZ-S 1/4" Male Elbow 1/4" 1/8" N/A Steel Tube to Male Pipe
4-2 CBZ-SS 1/4" Male Elbow 1/4" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
4-2 EBZ-S 1/4" Drop Size Elbows 1/4" 1/8" N/A Steel Tube to Tube
4-2 EBZ-SS 1/4" Drop Size Elbows 1/4" 1/8" N/A 316 Stainless Steel Tube to Tube
4-2 FBZ-B 1/4" NPT Male Connector 1/4" 1/8" N/A Brass Tube to Male Pipe
4-2 FBZ-S 1/4" NPT Male Connector 1/4" 1/8" N/A Steel Tube to Male Pipe
4-2 FBZ-SS 1/4" NPT Male Connector 1/4" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
4-2 FH2BZ-S 1/4" NPT Male Bulkhead Connector 1/4" 1/8" N/A Steel Tube to Male Pipe
4-2 FH2BZ-SS 1/4" NPT Male Bulkhead Connector 1/4" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
4-2 GBZ-S 1/4" NPT Female Connector 1/4" 1/8" N/A Steel Tube to Female Pipe
4-2 GBZ-SS 1/4" NPT Female Connector 1/4" 1/8" N/A 316 Stainless Steel Tube to Female Pipe
4-2 HBZ-S 1/4" Reducing Union 1/4" 1/8" N/A Steel Tube to Tube
4-2 HBZ-SS 1/4" Reducing Union 1/4" 1/8" N/A 316 Stainless Steel Tube to Tube
4-2 WBZ-S 1/4" Bulkhead Union 1/4" 1/8" N/A Steel Tube to Tube
4-2 WBZ-SS 1/4" Bulkhead Union 1/4" 1/8" N/A 316 Stainless Steel Tube to Tube
4-2-4 RBZ-SS 1/4" Male Run Tee 1/4" 1/8" 1/4" 316 Stainless Steel Tube to Male Pipe
4-3 HBZ-S 1/4" Reducing Union 1/4" 3/16" N/A Steel Tube to Tube
4-3 HBZ-SS 1/4" Reducing Union 1/4" 3/16" N/A 316 Stainless Steel Tube to Tube
4-4 CBZ-B 1/4" Male Elbow 1/4" 1/4" N/A Brass Tube to Male Pipe
4-4 CBZ-S 1/4" Male Elbow 1/4" 1/4" N/A Steel Tube to Male Pipe
4-4 CBZ-SS 1/4" Male Elbow 1/4" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
4-4 DBZ-SS 1/4" Female Elbow 1/4" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
4-4 EBZ-S 1/4" Union Elbow 1/4" 1/4" N/A Steel Tube to Tube Union
4-4 EBZ-SS 1/4" Union Elbow 1/4" 1/4" N/A 316 Stainless Steel Tube to Tube Union
4-4 FBZ-B 1/4" NPT Male Connector 1/4" 1/4" N/A Brass Tube to Male Pipe
4-4 FBZ-S 1/4" NPT Male Connector 1/4" 1/4" N/A Steel Tube to Male Pipe
4-4 FBZ-SS 1/4" NPT Male Connector 1/4" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
4-4 FH2BZ-S 1/4" NPT Male Bulkhead Connector 1/4" 1/4" N/A Steel Tube to Male Pipe
4-4 FH2BZ-SS 1/4" NPT Male Bulkhead Connector 1/4" 1/4" N/A 316 Stainless Steel Tube to Male Pipe

- Parker 派克CPI系列单卡套接头Parker
CPI Series Single Ferrule Compression Fitting Tube Fitting

4-4 GBZ-S 1/4" NPT Female Connector 1/4" 1/4" N/A Steel Tube to Female Pipe
4-4 GBZ-SS 1/4" NPT Female Connector 1/4" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
4-4 HBZ-B 1/4" Union 1/4" 1/4" N/A Brass Tube to Tube Union
4-4 HBZ-S 1/4" Union 1/4" 1/4" N/A Steel Tube to Tube Union
4-4 HBZ-SS 1/4" Union 1/4" 1/4" N/A 316 Stainless Steel Tube to Tube Union
4-4 T2HF-SS 1/4" Tube End Adapter 1/4" 1/4" N/A 316 Stainless Steel Port Connectors
4-4 WBZ-B 1/4" Bulkhead Union 1/4" 1/4" N/A Brass Tube to Tube
4-4 WBZ-S 1/4" Bulkhead Union 1/4" 1/4" N/A Steel Tube to Tube
4-4 WBZ-SS 1/4" Bulkhead Union 1/4" 1/4" N/A 316 Stainless Steel Tube to Tube
4-4-4 JBZ-B 1/4" Union Tee 1/4" 1/4" 1/4" Brass Tube to Tube Union
4-4-4 JBZ-S 1/4" Union Tee 1/4" 1/4" 1/4" Steel Tube to Tube Union
4-4-4 JBZ-SS 1/4" Union Tee 1/4" 1/4" 1/4" 316 Stainless Steel Tube to Tube Union
4-4-4 OBZ-SS 1/4" Female Branch Tee 1/4" 1/4" 1/4" 316 Stainless Steel Tube to Female Pipe
4-4-4 RBZ-SS 1/4" Male Run Tee 1/4" 1/4" 1/4" 316 Stainless Steel Tube to Male Pipe
4-6 CBZ-S 1/4" Male Elbow 1/4" 3/8" N/A Steel Tube to Male Pipe
4-6 CBZ-SS 1/4" Male Elbow 1/4" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
4-6 FBZ-S 1/4" NPT Male Connector 1/4" 3/8" N/A Steel Tube to Male Pipe
4-6 FBZ-SS 1/4" NPT Male Connector 1/4" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
4-6 FH2BZ-S 1/4" NPT Male Bulkhead Connector 1/4" 3/8" N/A Steel Tube to Male Pipe
4-6 FH2BZ-SS 1/4" NPT Male Bulkhead Connector 1/4" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
4-6 GBZ-S 1/4" NPT Female Connector 1/4" 3/8" N/A Steel Tube to Female Pipe
4-6 GBZ-SS 1/4" NPT Female Connector 1/4" 3/8" N/A 316 Stainless Steel Tube to Female Pipe
4-8 CBZ-S 1/4" Male Elbow 1/4" 1/2" N/A Steel Tube to Male Pipe
4-8 CBZ-SS 1/4" Male Elbow 1/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
4-8 FBZ-B 1/4" NPT Male Connector 1/4" 1/2" N/A Brass Tube to Male Pipe
4-8 FBZ-S 1/4" NPT Male Connector 1/4" 1/2" N/A Steel Tube to Male Pipe
4-8 FBZ-SS 1/4" NPT Male Connector 1/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
4-8 FH2BZ-S 1/4" NPT Male Bulkhead Connector 1/4" 1/2" N/A Steel Tube to Male Pipe
4-8 FH2BZ-SS 1/4" NPT Male Bulkhead Connector 1/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
4-8 GBZ-S 1/4" NPT Female Connector 1/4" 1/2" N/A Steel Tube to Female Pipe
4-8 GBZ-SS 1/4" NPT Female Connector 1/4" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
5 KBZ-S 5/16" Union Cross 5/16" N/A N/A Steel Tube to Tube Union
5 KBZ-SS 5/16" Union Cross 5/16" N/A N/A 316 Stainless Steel Tube to Tube Union
5-2 CBZ-S 5/16" Male Elbow 5/16" 1/8" N/A Steel Tube to Male Pipe
5-2 CBZ-SS 5/16" Male Elbow 5/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
5-2 EBZ-S 5/16" Drop Size Elbows 5/16" 1/8" N/A Steel Tube to Tube
5-2 EBZ-SS 5/16" Drop Size Elbows 5/16" 1/8" N/A 316 Stainless Steel Tube to Tube
5-2 FBZ-S 5/16" NPT Male Connector 5/16" 1/8" N/A Steel Tube to Male Pipe
5-2 FBZ-SS 5/16" NPT Male Connector 5/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
5-2 FH2BZ-S 5/16" NPT Male Bulkhead Connector 5/16" 1/8" N/A Steel Tube to Male Pipe
5-2 FH2BZ-SS 5/16" NPT Male Bulkhead Connector 5/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
5-2 GBZ-S 5/16" NPT Female Connector 5/16" 1/8" N/A Steel Tube to Female Pipe
5-2 GBZ-SS 5/16" NPT Female Connector 5/16" 1/8" N/A 316 Stainless Steel Tube to Female Pipe
5-2 HBZ-S 5/16" Reducing Union 5/16" 1/8" N/A Steel Tube to Tube
5-2 HBZ-SS 5/16" Reducing Union 5/16" 1/8" N/A 316 Stainless Steel Tube to Tube
5-4 CBZ-S 5/16" Male Elbow 5/16" 1/4" N/A Steel Tube to Male Pipe
5-4 CBZ-SS 5/16" Male Elbow 5/16" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
5-4 EBZ-S 5/16" Drop Size Elbows 5/16" 1/4" N/A Steel Tube to Tube
5-4 EBZ-SS 5/16" Drop Size Elbows 5/16" 1/4" N/A 316 Stainless Steel Tube to Tube
5-4 FBZ-S 5/16" NPT Male Connector 5/16" 1/4" N/A Steel Tube to Male Pipe
5-4 FBZ-SS 5/16" NPT Male Connector 5/16" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
5-4 FH2BZ-S 5/16" NPT Male Bulkhead Connector 5/16" 1/4" N/A Steel Tube to Male Pipe
5-4 FH2BZ-SS 5/16" NPT Male Bulkhead Connector 5/16" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
5-4 GBZ-S 5/16" NPT Female Connector 5/16" 1/4" N/A Steel Tube to Female Pipe
5-4 GBZ-SS 5/16" NPT Female Connector 5/16" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
5-4 HBZ-S 5/16" Reducing Union 5/16" 1/4" N/A Steel Tube to Tube
5-4 HBZ-SS 5/16" Reducing Union 5/16" 1/4" N/A 316 Stainless Steel Tube to Tube
5-5 EBZ-S 5/16" Union Elbow 5/16" 5/16" N/A Steel Tube to Tube Union
5-5 EBZ-SS 5/16" Union Elbow 5/16" 5/16" N/A 316 Stainless Steel Tube to Tube Union
5-5 HBZ-S 5/16" Union 5/16" 5/16" N/A Steel Tube to Tube Union
5-5 HBZ-SS 5/16" Union 5/16" 5/16" N/A 316 Stainless Steel Tube to Tube Union
5-5 WBZ-S 5/16" Bulkhead Union 5/16" 5/16" N/A Steel Tube to Tube
5-5 WBZ-SS 5/16" Bulkhead Union 5/16" 5/16" N/A 316 Stainless Steel Tube to Tube
5-5-5 JBZ-S 5/16" Union Tee 5/16" 5/16" 5/16" Steel Tube to Tube Union
5-5-5 JBZ-SS 5/16" Union Tee 5/16" 5/16" 5/16" 316 Stainless Steel Tube to Tube Union
5-6 FBZ-S 5/16" NPT Male Connector 5/16" 3/8" N/A Steel Tube to Male Pipe
5-6 FBZ-SS 5/16" NPT Male Connector 5/16" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
5-6 GBZ-S 5/16" NPT Female Connector 5/16" 3/8" N/A Steel Tube to Female Pipe
5-6 GBZ-SS 5/16" NPT Female Connector 5/16" 3/8" N/A 316 Stainless Steel Tube to Female Pipe
5-8 FBZ-S 5/16" NPT Male Connector 5/16" 1/2" N/A Steel Tube to Male Pipe
5-8 FBZ-SS 5/16" NPT Male Connector 5/16" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
6 BZ-SS 3/8" Tube Nut 3/8" N/A N/A 316 Stainless Steel Components
6 FNZ-SS 3/8" Plug 3/8" N/A N/A 316 Stainless Steel Components
6 KBZ-S 3/8" Union Cross 3/8" N/A N/A Steel Tube to Tube Union
6 KBZ-SS 3/8" Union Cross 3/8" N/A N/A 316 Stainless Steel Tube to Tube Union
6 PNBZ-SS 3/8" Cap 3/8" N/A N/A 316 Stainless Steel Components
6 TIZ .250-SS 3/8" Insert 3/8" N/A N/A 316 Stainless Steel Components
6 TZ-SS 3/8" Ferrule 3/8" N/A N/A 316 Stainless Steel Components
6-1 HBZ-S 3/8" Reducing Union 3/8" 1/16" N/A Steel Tube to Tube
6-1 HBZ-SS 3/8" Reducing Union 3/8" 1/16" N/A 316 Stainless Steel Tube to Tube
6-1 Z2HCZ-S 3/8" Column End Fitting with Frit 3/8" 1/16" N/A Steel Analytical Fittings
6-1 Z2HCZ-SS 3/8" Column End Fitting with Frit 3/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
6-1 Z2HCZ7-S 3/8" Column End Fitting Low Internal Volume with Frit 3/8" 1/16" N/A Steel Analytical Fittings
6-1 Z2HCZ7-SS 3/8" Column End Fitting Low Internal Volume with Frit 3/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
6-1 Z3HCZ7-S 3/8" Column End Fitting Low Internal Volume 3/8" 1/16" N/A Steel Analytical Fittings
6-1 Z3HCZ7-SS 3/8" Column End Fitting Low Internal Volume 3/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
6-1 ZHCZ-S 3/8" Column End Fitting (without Frit) 3/8" 1/16" N/A Steel Analytical Fittings
6-1 ZHCZ-SS 3/8" Column End Fitting (without Frit) 3/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
6-1 ZHCZ7-S 3/8" Column End Fitting Low Internal Volume (without Frit) 3/8" 1/16" N/A Steel Analytical Fittings
6-1 ZHCZ7-SS 3/8" Column End Fitting Low Internal Volume (without Frit) 3/8" 1/16" N/A 316 Stainless Steel Analytical Fittings
6-12 CBZ-S 3/8" Male Elbow 3/8" 3/4" N/A Steel Tube to Male Pipe
6-12 CBZ-SS 3/8" Male Elbow 3/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
6-12 FBZ-S 3/8" NPT Male Connector 3/8" 3/4" N/A Steel Tube to Male Pipe
6-12 FBZ-SS 3/8" NPT Male Connector 3/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
6-12 GBZ-S 3/8" NPT Female Connector 3/8" 3/4" N/A Steel Tube to Female Pipe
6-12 GBZ-SS 3/8" NPT Female Connector 3/8" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
6-2 CBZ-S 3/8" Male Elbow 3/8" 1/8" N/A Steel Tube to Male Pipe
6-2 CBZ-SS 3/8" Male Elbow 3/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
6-2 EBZ-S 3/8" Drop Size Elbows 3/8" 1/8" N/A Steel Tube to Tube
6-2 EBZ-SS 3/8" Drop Size Elbows 3/8" 1/8" N/A 316 Stainless Steel Tube to Tube
6-2 FBZ-S 3/8" NPT Male Connector 3/8" 1/8" N/A Steel Tube to Male Pipe
6-2 FBZ-SS 3/8" NPT Male Connector 3/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
6-2 FH2BZ-S 3/8" NPT Male Bulkhead Connector 3/8" 1/8" N/A Steel Tube to Male Pipe
6-2 FH2BZ-SS 3/8" NPT Male Bulkhead Connector 3/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
6-2 GBZ-S 3/8" NPT Female Connector 3/8" 1/8" N/A Steel Tube to Female Pipe
6-2 GBZ-SS 3/8" NPT Female Connector 3/8" 1/8" N/A 316 Stainless Steel Tube to Female Pipe
6-2 HBZ-S 3/8" Reducing Union 3/8" 1/8" N/A Steel Tube to Tube
6-2 HBZ-SS 3/8" Reducing Union 3/8" 1/8" N/A 316 Stainless Steel Tube to Tube
6-4 CBZ-B 3/8" Male Elbow 3/8" 1/4" N/A Brass Tube to Male Pipe
6-4 CBZ-S 3/8" Male Elbow 3/8" 1/4" N/A Steel Tube to Male Pipe
6-4 CBZ-SS 3/8" Male Elbow 3/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
6-4 DBZ-SS 3/8" Female Elbow 3/8" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
6-4 EBZ-S 3/8" Drop Size Elbows 3/8" 1/4" N/A Steel Tube to Tube
6-4 EBZ-SS 3/8" Drop Size Elbows 3/8" 1/4" N/A 316 Stainless Steel Tube to Tube
6-4 FBZ-B 3/8" NPT Male Connector 3/8" 1/4" N/A Brass Tube to Male Pipe
6-4 FBZ-S 3/8" NPT Male Connector 3/8" 1/4" N/A Steel Tube to Male Pipe
6-4 FBZ-SS 3/8" NPT Male Connector 3/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
6-4 FH2BZ-S 3/8" NPT Male Bulkhead Connector 3/8" 1/4" N/A Steel Tube to Male Pipe
6-4 FH2BZ-SS 3/8" NPT Male Bulkhead Connector 3/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
6-4 GBZ-S 3/8" NPT Female Connector 3/8" 1/4" N/A Steel Tube to Female Pipe
6-4 GBZ-SS 3/8" NPT Female Connector 3/8" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
6-4 HBZ-S 3/8" Reducing Union 3/8" 1/4" N/A Steel Tube to Tube
6-4 HBZ-SS 3/8" Reducing Union 3/8" 1/4" N/A 316 Stainless Steel Tube to Tube
6-4 T2HF-SS 3/8" Tube End Adapter 3/8" 1/4" N/A 316 Stainless Steel Port Connectors
6-4 TRBZ-SS 3/8" Tube End Reducer 3/8" 1/4" N/A 316 Stainless Steel Port Connectors
6-4-6 RBZ-SS 3/8" Male Run Tee 3/8" 1/4" 3/8" 316 Stainless Steel Tube to Male Pipe
6-5 EBZ-S 3/8" Drop Size Elbows 3/8" 5/16" N/A Steel Tube to Tube
6-5 EBZ-SS 3/8" Drop Size Elbows 3/8" 5/16" N/A 316 Stainless Steel Tube to Tube
6-5 HBZ-S 3/8" Reducing Union 3/8" 5/16" N/A Steel Tube to Tube
6-5 HBZ-SS 3/8" Reducing Union 3/8" 5/16" N/A 316 Stainless Steel Tube to Tube
6-6 CBZ-B 3/8" Male Elbow 3/8" 3/8" N/A Brass Tube to Male Pipe
6-6 CBZ-S 3/8" Male Elbow 3/8" 3/8" N/A Steel Tube to Male Pipe
6-6 CBZ-SS 3/8" Male Elbow 3/8" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
6-6 DBZ-SS 3/8" Female Elbow 3/8" 3/8" N/A 316 Stainless Steel Tube to Female Pipe
6-6 EBZ-B 3/8" Union Elbow 3/8" 3/8" N/A Brass Tube to Tube Union
6-6 EBZ-S 3/8" Union Elbow 3/8" 3/8" N/A Steel Tube to Tube Union
6-6 EBZ-SS 3/8" Union Elbow 3/8" 3/8" N/A 316 Stainless Steel Tube to Tube Union
6-6 FBZ-B 3/8" NPT Male Connector 3/8" 3/8" N/A Brass Tube to Male Pipe
6-6 FBZ-S 3/8" NPT Male Connector 3/8" 3/8" N/A Steel Tube to Male Pipe
6-6 FBZ-SS 3/8" NPT Male Connector 3/8" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
6-6 FH2BZ-S 3/8" NPT Male Bulkhead Connector 3/8" 3/8" N/A Steel Tube to Male Pipe
6-6 FH2BZ-SS 3/8" NPT Male Bulkhead Connector 3/8" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
6-6 GBZ-S 3/8" NPT Female Connector 3/8" 3/8" N/A Steel Tube to Female Pipe
6-6 GBZ-SS 3/8" NPT Female Connector 3/8" 3/8" N/A 316 Stainless Steel Tube to Female Pipe
6-6 HBZ-B 3/8" Union 3/8" 3/8" N/A Brass Tube to Tube Union
6-6 HBZ-S 3/8" Union 3/8" 3/8" N/A Steel Tube to Tube Union
6-6 HBZ-SS 3/8" Union 3/8" 3/8" N/A 316 Stainless Steel Tube to Tube Union
6-6 P2T2-SS 3/8" Push Lok Tube Adapter 3/8" 3/8" N/A 316 Stainless Steel Port Connectors
6-6 WBZ-S 3/8" Bulkhead Union 3/8" 3/8" N/A Steel Tube to Tube
6-6 WBZ-SS 3/8" Bulkhead Union 3/8" 3/8" N/A 316 Stainless Steel Tube to Tube
6-6-4 OBZ-SS 3/8" Female Branch Tee 3/8" 3/8" 3/8" 316 Stainless Steel Tube to Female Pipe
6-6-4 SBZ-SS 3/8" Male Branch Tee 3/8" 3/8" 1/4" 316 Stainless Steel Tube to Male Pipe
6-6-6 JBZ-B 3/8" Union Tee 3/8" 3/8" 3/8" Brass Tube to Tube Union
6-6-6 JBZ-S 3/8" Union Tee 3/8" 3/8" 3/8" Steel Tube to Tube Union
6-6-6 JBZ-SS 3/8" Union Tee 3/8" 3/8" 3/8" 316 Stainless Steel Tube to Tube Union
6-6-6 SBZ-SS 3/8" Male Branch Tee 3/8" 3/8" 3/8" 316 Stainless Steel Tube to Male Pipe
6-8 CBZ-B 3/8" Male Elbow 3/8" 1/2" N/A Brass Tube to Male Pipe
6-8 CBZ-S 3/8" Male Elbow 3/8" 1/2" N/A Steel Tube to Male Pipe
6-8 CBZ-SS 3/8" Male Elbow 3/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
6-8 FBZ-B 3/8" NPT Male Connector 3/8" 1/2" N/A Brass Tube to Male Pipe
6-8 FBZ-S 3/8" NPT Male Connector 3/8" 1/2" N/A Steel Tube to Male Pipe
6-8 FBZ-SS 3/8" NPT Male Connector 3/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
6-8 FH2BZ-S 3/8" NPT Male Bulkhead Connector 3/8" 1/2" N/A Steel Tube to Male Pipe
6-8 FH2BZ-SS 3/8" NPT Male Bulkhead Connector 3/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
6-8 GBZ-S 3/8" NPT Female Connector 3/8" 1/2" N/A Steel Tube to Female Pipe
6-8 GBZ-SS 3/8" NPT Female Connector 3/8" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
8 BZ-SS 1/2" Tube Nut 1/2" N/A N/A 316 Stainless Steel Components
8 FNZ-SS 1/2" Plug 1/2" N/A N/A 316 Stainless Steel Components
8 KBZ-S 1/2" Union Cross 1/2" N/A N/A Steel Tube to Tube Union
8 KBZ-SS 1/2" Union Cross 1/2" N/A N/A 316 Stainless Steel Tube to Tube Union
8 PNBZ-SS 1/2" Cap 1/2" N/A N/A 316 Stainless Steel Components
8 TZ-B 1/2" Ferrule 1/2" N/A N/A Brass Components
8 TZ-SS 1/2" Ferrule 1/2" N/A N/A 316 Stainless Steel Components
8-1 Z3HCZ7-S 1/2" Column End Fitting Low Internal Volume 1/2" 1/16" N/A Steel Analytical Fittings
8-1 Z3HCZ7-SS 1/2" Column End Fitting Low Internal Volume 1/2" 1/16" N/A 316 Stainless Steel Analytical Fittings
8-12 CBZ-S 1/2" Male Elbow 1/2" 3/4" N/A Steel Tube to Male Pipe
8-12 CBZ-SS 1/2" Male Elbow 1/2" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
8-12 FBZ-S 1/2" NPT Male Connector 1/2" 3/4" N/A Steel Tube to Male Pipe
8-12 FBZ-SS 1/2" NPT Male Connector 1/2" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
8-12 FH2BZ-S 1/2" NPT Male Bulkhead Connector 1/2" 3/4" N/A Steel Tube to Male Pipe
8-12 FH2BZ-SS 1/2" NPT Male Bulkhead Connector 1/2" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
8-12 GBZ-S 1/2" NPT Female Connector 1/2" 3/4" N/A Steel Tube to Female Pipe
8-12 GBZ-SS 1/2" NPT Female Connector 1/2" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
8-16 FBZ-S 1/2" NPT Male Connector 1/2" 1" N/A Steel Tube to Male Pipe
8-16 FBZ-SS 1/2" NPT Male Connector 1/2" 1" N/A 316 Stainless Steel Tube to Male Pipe
8-2 FBZ-S 1/2" NPT Male Connector 1/2" 1/8" N/A Steel Tube to Male Pipe
8-2 FBZ-SS 1/2" NPT Male Connector 1/2" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
8-2 HBZ-S 1/2" Reducing Union 1/2" 1/8" N/A Steel Tube to Tube
8-2 HBZ-SS 1/2" Reducing Union 1/2" 1/8" N/A 316 Stainless Steel Tube to Tube
8-4 CBZ-S 1/2" Male Elbow 1/2" 1/4" N/A Steel Tube to Male Pipe
8-4 CBZ-SS 1/2" Male Elbow 1/2" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
8-4 EBZ-S 1/2" Drop Size Elbows 1/2" 1/4" N/A Steel Tube to Tube
8-4 EBZ-SS 1/2" Drop Size Elbows 1/2" 1/4" N/A 316 Stainless Steel Tube to Tube
8-4 FBZ-S 1/2" NPT Male Connector 1/2" 1/4" N/A Steel Tube to Male Pipe
8-4 FBZ-SS 1/2" NPT Male Connector 1/2" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
8-4 FH2BZ-S 1/2" NPT Male Bulkhead Connector 1/2" 1/4" N/A Steel Tube to Male Pipe
8-4 FH2BZ-SS 1/2" NPT Male Bulkhead Connector 1/2" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
8-4 GBZ-S 1/2" NPT Female Connector 1/2" 1/4" N/A Steel Tube to Female Pipe
8-4 GBZ-SS 1/2" NPT Female Connector 1/2" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
8-4 HBZ-S 1/2" Reducing Union 1/2" 1/4" N/A Steel Tube to Tube
8-4 HBZ-SS 1/2" Reducing Union 1/2" 1/4" N/A 316 Stainless Steel Tube to Tube
8-5 EBZ-S 1/2" Drop Size Elbows 1/2" 5/16" N/A Steel Tube to Tube
8-5 EBZ-SS 1/2" Drop Size Elbows 1/2" 5/16" N/A 316 Stainless Steel Tube to Tube
8-6 CBZ-S 1/2" Male Elbow 1/2" 3/8" N/A Steel Tube to Male Pipe
8-6 CBZ-SS 1/2" Male Elbow 1/2" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
8-6 EBZ-S 1/2" Drop Size Elbows 1/2" 3/8" N/A Steel Tube to Tube
8-6 EBZ-SS 1/2" Drop Size Elbows 1/2" 3/8" N/A 316 Stainless Steel Tube to Tube
8-6 FBZ-S 1/2" NPT Male Connector 1/2" 3/8" N/A Steel Tube to Male Pipe
8-6 FBZ-SS 1/2" NPT Male Connector 1/2" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
8-6 FH2BZ-S 1/2" NPT Male Bulkhead Connector 1/2" 3/8" N/A Steel Tube to Male Pipe
8-6 FH2BZ-SS 1/2" NPT Male Bulkhead Connector 1/2" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
8-6 GBZ-S 1/2" NPT Female Connector 1/2" 3/8" N/A Steel Tube to Female Pipe
8-6 GBZ-SS 1/2" NPT Female Connector 1/2" 3/8" N/A 316 Stainless Steel Tube to Female Pipe
8-6 HBZ-S 1/2" Reducing Union 1/2" 3/8" N/A Steel Tube to Tube
8-6 HBZ-SS 1/2" Reducing Union 1/2" 3/8" N/A 316 Stainless Steel Tube to Tube
8-6 TRBZ-SS 1/2" Tube End Reducer 1/2" 3/8" N/A 316 Stainless Steel Port Connectors
8-6 XHBZ-SS 1/2" 37 Flare to Tube Connector 1/2" 3/8" N/A 316 Stainless Steel 37 Flare to CPI
8-8 CBZ-B 1/2" Male Elbow 1/2" 1/2" N/A Brass Tube to Male Pipe
8-8 CBZ-S 1/2" Male Elbow 1/2" 1/2" N/A Steel Tube to Male Pipe
8-8 CBZ-SS 1/2" Male Elbow 1/2" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
8-8 DBZ-SS 1/2" Female Elbow 1/2" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
8-8 EBZ-B 1/2" Union Elbow 1/2" 1/2" N/A Brass Tube to Tube Union
8-8 EBZ-S 1/2" Union Elbow 1/2" 1/2" N/A Steel Tube to Tube Union
8-8 EBZ-SS 1/2" Union Elbow 1/2" 1/2" N/A 316 Stainless Steel Tube to Tube Union
8-8 FBZ-B 1/2" NPT Male Connector 1/2" 1/2" N/A Brass Tube to Male Pipe
8-8 FBZ-S 1/2" NPT Male Connector 1/2" 1/2" N/A Steel Tube to Male Pipe
8-8 FBZ-SS 1/2" NPT Male Connector 1/2" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
8-8 FH2BZ-S 1/2" NPT Male Bulkhead Connector 1/2" 1/2" N/A Steel Tube to Male Pipe
8-8 FH2BZ-SS 1/2" NPT Male Bulkhead Connector 1/2" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
8-8 GBZ-S 1/2" NPT Female Connector 1/2" 1/2" N/A Steel Tube to Female Pipe
8-8 GBZ-SS 1/2" NPT Female Connector 1/2" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
8-8 HBZ-B 1/2" Union 1/2" 1/2" N/A Brass Tube to Tube Union
8-8 HBZ-S 1/2" Union 1/2" 1/2" N/A Steel Tube to Tube Union
8-8 HBZ-SS 1/2" Union 1/2" 1/2" N/A 316 Stainless Steel Tube to Tube Union
8-8 T2HF-SS 1/2" Tube End Adapter 1/2" 1/2" N/A 316 Stainless Steel Port Connectors
8-8 WBZ-S 1/2" Bulkhead Union 1/2" 1/2" N/A Steel Tube to Tube
8-8 WBZ-SS 1/2" Bulkhead Union 1/2" 1/2" N/A 316 Stainless Steel Tube to Tube
8-8-8 JBZ-B 1/2" Union Tee 1/2" 1/2" 1/2" Brass Tube to Tube Union
8-8-8 JBZ-S 1/2" Union Tee 1/2" 1/2" 1/2" Steel Tube to Tube Union
8-8-8 JBZ-SS 1/2" Union Tee 1/2" 1/2" 1/2" 316 Stainless Steel Tube to Tube Union
8-8-8 OBZ-SS 1/2" Female Branch Tee 1/2" 1/2" 1/2" 316 Stainless Steel Tube to Female Pipe
8-8-8 RBZ-SS 1/2" Male Run Tee 1/2" 1/2" 1/2" 316 Stainless Steel Tube to Male Pipe
8-8-8 SBZ-SS 1/2" Male Branch Tee 1/2" 1/2" 1/2" 316 Stainless Steel Tube to Male Pipe
EBZ 10-10-S 10 mm Union Elbow 10 mm 10 mm N/A Steel Tube to Tube Union
EBZ 10-10-SS 10 mm Union Elbow 10 mm 10 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 12-12-S 12 mm Union Elbow 12 mm 12 mm N/A Steel Tube to Tube Union
EBZ 12-12-SS 12 mm Union Elbow 12 mm 12 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 14-14-S 14 mm Union Elbow 14 mm 14 mm N/A Steel Tube to Tube Union
EBZ 14-14-SS 14 mm Union Elbow 14 mm 14 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 15-15-S 15 mm Union Elbow 15 mm 15 mm N/A Steel Tube to Tube Union
EBZ 15-15-SS 15 mm Union Elbow 15 mm 15 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 16-16-S 16 mm Union Elbow 16 mm 16 mm N/A Steel Tube to Tube Union
EBZ 16-16-SS 16 mm Union Elbow 16 mm 16 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 18-18-S 18 mm Union Elbow 18 mm 18 mm N/A Steel Tube to Tube Union
EBZ 18-18-SS 18 mm Union Elbow 18 mm 18 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 20-20-S 20 mm Union Elbow 20 mm 20 mm N/A Steel Tube to Tube Union
EBZ 20-20-SS 20 mm Union Elbow 20 mm 20 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 22-22-S 22 mm Union Elbow 22 mm 22 mm N/A Steel Tube to Tube Union
EBZ 22-22-SS 22 mm Union Elbow 22 mm 22 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 25-25-S 25 mm Union Elbow 25 mm 25 mm N/A Steel Tube to Tube Union
EBZ 25-25-SS 25 mm Union Elbow 25 mm 25 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 3-3-S 3 mm Union Elbow 3 mm 3 mm N/A Steel Tube to Tube Union
EBZ 3-3-SS 3 mm Union Elbow 3 mm 3 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 4-4-S 4 mm Union Elbow 4 mm 4 mm N/A Steel Tube to Tube Union
EBZ 4-4-SS 4 mm Union Elbow 4 mm 4 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 6-6-S 6 mm Union Elbow 6 mm 6 mm N/A Steel Tube to Tube Union
EBZ 6-6-SS 6 mm Union Elbow 6 mm 6 mm N/A 316 Stainless Steel Tube to Tube Union
EBZ 8-8-S 8 mm Union Elbow 8 mm 8 mm N/A Steel Tube to Tube Union
EBZ 8-8-SS 8 mm Union Elbow 8 mm 8 mm N/A 316 Stainless Steel Tube to Tube Union
GBZ 10-1/2-S 10 mm NPT Female Connector 10 mm 1/2" N/A Steel Tube to Female Pipe
GBZ 10-1/2-SS 10 mm NPT Female Connector 10 mm 1/2" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 10-1/4-S 10 mm NPT Female Connector 10 mm 1/4" N/A Steel Tube to Female Pipe
GBZ 10-1/4-SS 10 mm NPT Female Connector 10 mm 1/4" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 10-3/8-S 10 mm NPT Female Connector 10 mm 3/8" N/A Steel Tube to Female Pipe
GBZ 10-3/8-SS 10 mm NPT Female Connector 10 mm 3/8" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 12-1/2-S 12 mm NPT Female Connector 12 mm 1/2" N/A Steel Tube to Female Pipe
GBZ 12-1/2-SS 12 mm NPT Female Connector 12 mm 1/2" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 12-1/4-S 12 mm NPT Female Connector 12 mm 1/4" N/A Steel Tube to Female Pipe
GBZ 12-1/4-SS 12 mm NPT Female Connector 12 mm 1/4" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 12-3/8-S 12 mm NPT Female Connector 12 mm 3/8" N/A Steel Tube to Female Pipe
GBZ 12-3/8-SS 12 mm NPT Female Connector 12 mm 3/8" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 16-1/2-S 16 mm NPT Female Connector 16 mm 1/2" N/A Steel Tube to Female Pipe
GBZ 16-1/2-SS 16 mm NPT Female Connector 16 mm 1/2" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 16-3/8-S 16 mm NPT Female Connector 16 mm 3/8" N/A Steel Tube to Female Pipe
GBZ 16-3/8-SS 16 mm NPT Female Connector 16 mm 3/8" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 20-1/2-S 20 mm NPT Female Connector 20 mm 1/2" N/A Steel Tube to Female Pipe
GBZ 20-1/2-SS 20 mm NPT Female Connector 20 mm 1/2" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 20-3/4-S 20 mm NPT Female Connector 20 mm 3/4" N/A Steel Tube to Female Pipe
GBZ 20-3/4-SS 20 mm NPT Female Connector 20 mm 3/4" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 22-3/4-S 22 mm NPT Female Connector 22 mm 3/4" N/A Steel Tube to Female Pipe
GBZ 22-3/4-SS 22 mm NPT Female Connector 22 mm 3/4" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 25-1-S 25 mm NPT Female Connector 25 mm 1" N/A Steel Tube to Female Pipe
GBZ 25-1-SS 25 mm NPT Female Connector 25 mm 1" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 25-3/4-S 25 mm NPT Female Connector 25 mm 3/4" N/A Steel Tube to Female Pipe
GBZ 25-3/4-SS 25 mm NPT Female Connector 25 mm 3/4" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 3-1/4-S 3 mm NPT Female Connector 3 mm 1/4" N/A Steel Tube to Female Pipe
GBZ 3-1/4-SS 3 mm NPT Female Connector 3 mm 1/4" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 3-1/8-S 3 mm NPT Female Connector 3 mm 1/8" N/A Steel Tube to Female Pipe
GBZ 3-1/8-SS 3 mm NPT Female Connector 3 mm 1/8" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 4-1/8-S 4 mm NPT Female Connector 4 mm 1/8" N/A Steel Tube to Female Pipe
GBZ 4-1/8-SS 4 mm NPT Female Connector 4 mm 1/8" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 6-1/2-S 6 mm NPT Female Connector 6 mm 1/2" N/A Steel Tube to Female Pipe
GBZ 6-1/2-SS 6 mm NPT Female Connector 6 mm 1/2" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 6-1/4-S 6 mm NPT Female Connector 6 mm 1/4" N/A Steel Tube to Female Pipe
GBZ 6-1/4-SS 6 mm NPT Female Connector 6 mm 1/4" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 6-1/8-S 6 mm NPT Female Connector 6 mm 1/8" N/A Steel Tube to Female Pipe
GBZ 6-1/8-SS 6 mm NPT Female Connector 6 mm 1/8" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 6-3/8-S 6 mm NPT Female Connector 6 mm 3/8" N/A Steel Tube to Female Pipe
GBZ 6-3/8-SS 6 mm NPT Female Connector 6 mm 3/8" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 8-1/4-S 8 mm NPT Female Connector 8 mm 1/4" N/A Steel Tube to Female Pipe
GBZ 8-1/4-SS 8 mm NPT Female Connector 8 mm 1/4" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 8-1/8-S 8 mm NPT Female Connector 8 mm 1/8" N/A Steel Tube to Female Pipe
GBZ 8-1/8-SS 8 mm NPT Female Connector 8 mm 1/8" N/A 316 Stainless Steel Tube to Female Pipe
GBZ 8-3/8-S 8 mm NPT Female Connector 8 mm 3/8" N/A Steel Tube to Female Pipe
GBZ 8-3/8-SS 8 mm NPT Female Connector 8 mm 3/8" N/A 316 Stainless Steel Tube to Female Pipe
HBZ 10-1/4-S 10 mm Conversion Union 10 mm 1/4" N/A Steel Tube to Tube
HBZ 10-1/4-SS 10 mm Conversion Union 10 mm 1/4" N/A 316 Stainless Steel Tube to Tube
HBZ 10-1/8-S 10 mm Conversion Union 10 mm 1/8" N/A Steel Tube to Tube
HBZ 10-1/8-SS 10 mm Conversion Union 10 mm 1/8" N/A 316 Stainless Steel Tube to Tube
HBZ 10-10-S 10 mm Union 10 mm 10 mm N/A Steel Tube to Tube Union
HBZ 10-10-SS 10 mm Union 10 mm 10 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 10-3/8-S 10 mm Conversion Union 10 mm 3/8" N/A Steel Tube to Tube
HBZ 10-3/8-SS 10 mm Conversion Union 10 mm 3/8" N/A 316 Stainless Steel Tube to Tube
HBZ 10-6-S 10 mm Reducing Union 10 mm 6 mm N/A Steel Tube to Tube
HBZ 10-6-SS 10 mm Reducing Union 10 mm 6 mm N/A 316 Stainless Steel Tube to Tube
HBZ 10-8-S 10 mm Reducing Union 10 mm 8 mm N/A Steel Tube to Tube
HBZ 10-8-SS 10 mm Reducing Union 10 mm 8 mm N/A 316 Stainless Steel Tube to Tube
HBZ 12-1/2-S 12 mm Conversion Union 12 mm 1/2" N/A Steel Tube to Tube
HBZ 12-1/2-SS 12 mm Conversion Union 12 mm 1/2" N/A 316 Stainless Steel Tube to Tube
HBZ 12-10-S 12 mm Reducing Union 12 mm 10 mm N/A Steel Tube to Tube
HBZ 12-10-SS 12 mm Reducing Union 12 mm 10 mm N/A 316 Stainless Steel Tube to Tube
HBZ 12-12-S 12 mm Union 12 mm 12 mm N/A Steel Tube to Tube Union
HBZ 12-12-SS 12 mm Union 12 mm 12 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 12-3/8-S 12 mm Conversion Union 12 mm 3/8" N/A Steel Tube to Tube
HBZ 12-3/8-SS 12 mm Conversion Union 12 mm 3/8" N/A 316 Stainless Steel Tube to Tube
HBZ 12-6-S 12 mm Reducing Union 12 mm 6 mm N/A Steel Tube to Tube
HBZ 12-6-SS 12 mm Reducing Union 12 mm 6 mm N/A 316 Stainless Steel Tube to Tube
HBZ 12-8-S 12 mm Reducing Union 12 mm 8 mm N/A Steel Tube to Tube
HBZ 12-8-SS 12 mm Reducing Union 12 mm 8 mm N/A 316 Stainless Steel Tube to Tube
HBZ 14-14-S 14 mm Union 14 mm 14 mm N/A Steel Tube to Tube Union
HBZ 14-14-SS 14 mm Union 14 mm 14 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 15-1/2-S 15 mm Conversion Union 15 mm 1/2" N/A Steel Tube to Tube
HBZ 15-1/2-SS 15 mm Conversion Union 15 mm 1/2" N/A 316 Stainless Steel Tube to Tube
HBZ 15-15-S 15 mm Union 15 mm 15 mm N/A Steel Tube to Tube Union
HBZ 15-15-SS 15 mm Union 15 mm 15 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 16-10-S 16 mm Reducing Union 16 mm 10 mm N/A Steel Tube to Tube
HBZ 16-10-SS 16 mm Reducing Union 16 mm 10 mm N/A 316 Stainless Steel Tube to Tube
HBZ 16-12-S 16 mm Reducing Union 16 mm 12 mm N/A Steel Tube to Tube
HBZ 16-12-SS 16 mm Reducing Union 16 mm 12 mm N/A 316 Stainless Steel Tube to Tube
HBZ 16-16-S 16 mm Union 16 mm 16 mm N/A Steel Tube to Tube Union
HBZ 16-16-SS 16 mm Union 16 mm 16 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 16-3/8-S 16 mm Conversion Union 16 mm 3/8" N/A Steel Tube to Tube
HBZ 16-3/8-SS 16 mm Conversion Union 16 mm 3/8" N/A 316 Stainless Steel Tube to Tube
HBZ 18-12-S 18 mm Reducing Union 18 mm 12 mm N/A Steel Tube to Tube
HBZ 18-12-SS 18 mm Reducing Union 18 mm 12 mm N/A 316 Stainless Steel Tube to Tube
HBZ 18-18-S 18 mm Union 18 mm 18 mm N/A Steel Tube to Tube Union
HBZ 18-18-SS 18 mm Union 18 mm 18 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 18-3/4-S 18 mm Conversion Union 18 mm 3/4" N/A Steel Tube to Tube
HBZ 18-3/4-SS 18 mm Conversion Union 18 mm 3/4" N/A 316 Stainless Steel Tube to Tube
HBZ 2-2-S 2 mm Union 2 mm 2 mm N/A Steel Tube to Tube Union
HBZ 2-2-SS 2 mm Union 2 mm 2 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 20-20-S 20 mm Union 20 mm 20 mm N/A Steel Tube to Tube Union
HBZ 20-20-SS 20 mm Union 20 mm 20 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 22-22-S 22 mm Union 22 mm 22 mm N/A Steel Tube to Tube Union
HBZ 22-22-SS 22 mm Union 22 mm 22 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 25-18-S 25 mm Reducing Union 25 mm 18 mm N/A Steel Tube to Tube
HBZ 25-18-SS 25 mm Reducing Union 25 mm 18 mm N/A 316 Stainless Steel Tube to Tube
HBZ 25-20-S 25 mm Reducing Union 25 mm 20 mm N/A Steel Tube to Tube
HBZ 25-20-SS 25 mm Reducing Union 25 mm 20 mm N/A 316 Stainless Steel Tube to Tube
HBZ 25-25-S 25 mm Union 25 mm 25 mm N/A Steel Tube to Tube Union
HBZ 25-25-SS 25 mm Union 25 mm 25 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 3-1/8-S 3 mm Conversion Union 3 mm 1/8" N/A Steel Tube to Tube
HBZ 3-1/8-SS 3 mm Conversion Union 3 mm 1/8" N/A 316 Stainless Steel Tube to Tube
HBZ 3-2-S 3 mm Reducing Union 3 mm 2 mm N/A Steel Tube to Tube
HBZ 3-2-SS 3 mm Reducing Union 3 mm 2 mm N/A 316 Stainless Steel Tube to Tube
HBZ 3-3-S 3 mm Union 3 mm 3 mm N/A Steel Tube to Tube Union
HBZ 3-3-SS 3 mm Union 3 mm 3 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 4-1/4-S 4 mm Conversion Union 4 mm 1/4" N/A Steel Tube to Tube
HBZ 4-1/4-SS 4 mm Conversion Union 4 mm 1/4" N/A 316 Stainless Steel Tube to Tube
HBZ 4-1/8-S 4 mm Conversion Union 4 mm 1/8" N/A Steel Tube to Tube
HBZ 4-1/8-SS 4 mm Conversion Union 4 mm 1/8" N/A 316 Stainless Steel Tube to Tube
HBZ 4-4-S 4 mm Union 4 mm 4 mm N/A Steel Tube to Tube Union
HBZ 4-4-SS 4 mm Union 4 mm 4 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 6-1/4-S 6 mm Conversion Union 6 mm 1/4" N/A Steel Tube to Tube
HBZ 6-1/4-SS 6 mm Conversion Union 6 mm 1/4" N/A 316 Stainless Steel Tube to Tube
HBZ 6-1/8-S 6 mm Conversion Union 6 mm 1/8" N/A Steel Tube to Tube
HBZ 6-1/8-SS 6 mm Conversion Union 6 mm 1/8" N/A 316 Stainless Steel Tube to Tube
HBZ 6-2-S 6 mm Reducing Union 6 mm 2 mm N/A Steel Tube to Tube
HBZ 6-2-SS 6 mm Reducing Union 6 mm 2 mm N/A 316 Stainless Steel Tube to Tube
HBZ 6-3-S 6 mm Reducing Union 6 mm 3 mm N/A Steel Tube to Tube
HBZ 6-3-SS 6 mm Reducing Union 6 mm 3 mm N/A 316 Stainless Steel Tube to Tube
HBZ 6-4-S 6 mm Reducing Union 6 mm 4 mm N/A Steel Tube to Tube
HBZ 6-4-SS 6 mm Reducing Union 6 mm 4 mm N/A 316 Stainless Steel Tube to Tube
HBZ 6-5/16-S 6 mm Conversion Union 6 mm 5/16" N/A Steel Tube to Tube
HBZ 6-5/16-SS 6 mm Conversion Union 6 mm 5/16" N/A 316 Stainless Steel Tube to Tube
HBZ 6-6-S 6 mm Union 6 mm 6 mm N/A Steel Tube to Tube Union
HBZ 6-6-SS 6 mm Union 6 mm 6 mm N/A 316 Stainless Steel Tube to Tube Union
HBZ 8-1/4-S 8 mm Conversion Union 8 mm 1/4" N/A Steel Tube to Tube
HBZ 8-1/4-SS 8 mm Conversion Union 8 mm 1/4" N/A 316 Stainless Steel Tube to Tube
HBZ 8-3/8-S 8 mm Conversion Union 8 mm 3/8" N/A Steel Tube to Tube
HBZ 8-3/8-SS 8 mm Conversion Union 8 mm 3/8" N/A 316 Stainless Steel Tube to Tube
HBZ 8-6-S 8 mm Reducing Union 8 mm 6 mm N/A Steel Tube to Tube
HBZ 8-6-SS 8 mm Reducing Union 8 mm 6 mm N/A 316 Stainless Steel Tube to Tube
HBZ 8-8-S 8 mm Union 8 mm 8 mm N/A Steel Tube to Tube Union
HBZ 8-8-SS 8 mm Union 8 mm 8 mm N/A 316 Stainless Steel Tube to Tube Union
JBZ 10-10-10-S 10 mm Union Tee 10 mm 10 mm 10 mm Steel Tube to Tube Union
JBZ 10-10-10-SS 10 mm Union Tee 10 mm 10 mm 10 mm 316 Stainless Steel Tube to Tube Union
JBZ 12-12-12-S 12 mm Union Tee 12 mm 12 mm 12 mm Steel Tube to Tube Union
JBZ 12-12-12-SS 12 mm Union Tee 12 mm 12 mm 12 mm 316 Stainless Steel Tube to Tube Union
JBZ 14-14-14-S 14 mm Union Tee 14 mm 14 mm 14 mm Steel Tube to Tube Union
JBZ 14-14-14-SS 14 mm Union Tee 14 mm 14 mm 14 mm 316 Stainless Steel Tube to Tube Union
JBZ 15-15-15-S 15 mm Union Tee 15 mm 15 mm 15 mm Steel Tube to Tube Union
JBZ 15-15-15-SS 15 mm Union Tee 15 mm 15 mm 15 mm 316 Stainless Steel Tube to Tube Union
JBZ 16-16-16-S 16 mm Union Tee 16 mm 16 mm 16 mm Steel Tube to Tube Union
JBZ 16-16-16-SS 16 mm Union Tee 16 mm 16 mm 16 mm 316 Stainless Steel Tube to Tube Union
JBZ 18-18-18-S 18 mm Union Tee 18 mm 18 mm 18 mm Steel Tube to Tube Union
JBZ 18-18-18-SS 18 mm Union Tee 18 mm 18 mm 18 mm 316 Stainless Steel Tube to Tube Union
JBZ 2-2-2-S 2 mm Union Tee 2 mm 2 mm 2 mm Steel Tube to Tube Union
JBZ 2-2-2-SS 2 mm Union Tee 2 mm 2 mm 2 mm 316 Stainless Steel Tube to Tube Union
JBZ 20-20-20-S 20 mm Union Tee 20 mm 20 mm 20 mm Steel Tube to Tube Union
JBZ 20-20-20-SS 20 mm Union Tee 20 mm 20 mm 20 mm 316 Stainless Steel Tube to Tube Union
JBZ 22-22-22-S 22 mm Union Tee 22 mm 22 mm 22 mm Steel Tube to Tube Union
JBZ 22-22-22-SS 22 mm Union Tee 22 mm 22 mm 22 mm 316 Stainless Steel Tube to Tube Union
JBZ 25-25-25-S 25 mm Union Tee 25 mm 25 mm 25 mm Steel Tube to Tube Union
JBZ 25-25-25-SS 25 mm Union Tee 25 mm 25 mm 25 mm 316 Stainless Steel Tube to Tube Union
JBZ 3-3-3-S 3 mm Union Tee 3 mm 3 mm 3 mm Steel Tube to Tube Union
JBZ 3-3-3-SS 3 mm Union Tee 3 mm 3 mm 3 mm 316 Stainless Steel Tube to Tube Union
JBZ 4-4-4-S 4 mm Union Tee 4 mm 4 mm 4 mm Steel Tube to Tube Union
JBZ 4-4-4-SS 4 mm Union Tee 4 mm 4 mm 4 mm 316 Stainless Steel Tube to Tube Union
JBZ 6-6-6-S 6 mm Union Tee 6 mm 6 mm 6 mm Steel Tube to Tube Union
JBZ 6-6-6-SS 6 mm Union Tee 6 mm 6 mm 6 mm 316 Stainless Steel Tube to Tube Union
JBZ 8-8-8-S 8 mm Union Tee 8 mm 8 mm 8 mm Steel Tube to Tube Union
JBZ 8-8-8-SS 8 mm Union Tee 8 mm 8 mm 8 mm 316 Stainless Steel Tube to Tube Union
KBZ 10-S 10 mm Union Cross 10 mm N/A N/A Steel Tube to Tube Union
KBZ 10-SS 10 mm Union Cross 10 mm N/A N/A 316 Stainless Steel Tube to Tube Union
KBZ 12-S 12 mm Union Cross 12 mm N/A N/A Steel Tube to Tube Union
KBZ 12-SS 12 mm Union Cross 12 mm N/A N/A 316 Stainless Steel Tube to Tube Union
KBZ 16-S 16 mm Union Cross 16 mm N/A N/A Steel Tube to Tube Union
KBZ 16-SS 16 mm Union Cross 16 mm N/A N/A 316 Stainless Steel Tube to Tube Union
KBZ 18-S 18 mm Union Cross 18 mm N/A N/A Steel Tube to Tube Union
KBZ 18-SS 18 mm Union Cross 18 mm N/A N/A 316 Stainless Steel Tube to Tube Union
KBZ 3-S 3 mm Union Cross 3 mm N/A N/A Steel Tube to Tube Union
KBZ 3-SS 3 mm Union Cross 3 mm N/A N/A 316 Stainless Steel Tube to Tube Union
KBZ 4-S 4 mm Union Cross 4 mm N/A N/A Steel Tube to Tube Union
KBZ 4-SS 4 mm Union Cross 4 mm N/A N/A 316 Stainless Steel Tube to Tube Union
KBZ 6-S 6 mm Union Cross 6 mm N/A N/A Steel Tube to Tube Union
KBZ 6-SS 6 mm Union Cross 6 mm N/A N/A 316 Stainless Steel Tube to Tube Union
KBZ 8-S 8 mm Union Cross 8 mm N/A N/A Steel Tube to Tube Union
KBZ 8-SS 8 mm Union Cross 8 mm N/A N/A 316 Stainless Steel Tube to Tube Union
WBZ 10-10-S 10 mm Bulkhead Union 10 mm 10 mm N/A Steel Tube to Tube
WBZ 10-10-SS 10 mm Bulkhead Union 10 mm 10 mm N/A 316 Stainless Steel Tube to Tube
WBZ 12-12-S 12 mm Bulkhead Union 12 mm 12 mm N/A Steel Tube to Tube
WBZ 12-12-SS 12 mm Bulkhead Union 12 mm 12 mm N/A 316 Stainless Steel Tube to Tube
WBZ 15-15-S 15 mm Bulkhead Union 15 mm 15 mm N/A Steel Tube to Tube
WBZ 15-15-SS 15 mm Bulkhead Union 15 mm 15 mm N/A 316 Stainless Steel Tube to Tube
WBZ 16-16-S 16 mm Bulkhead Union 16 mm 16 mm N/A Steel Tube to Tube
WBZ 16-16-SS 16 mm Bulkhead Union 16 mm 16 mm N/A 316 Stainless Steel Tube to Tube
WBZ 18-18-S 18 mm Bulkhead Union 18 mm 18 mm N/A Steel Tube to Tube
WBZ 18-18-SS 18 mm Bulkhead Union 18 mm 18 mm N/A 316 Stainless Steel Tube to Tube
WBZ 20-20-S 20 mm Bulkhead Union 20 mm 20 mm N/A Steel Tube to Tube
WBZ 20-20-SS 20 mm Bulkhead Union 20 mm 20 mm N/A 316 Stainless Steel Tube to Tube
WBZ 25-25-S 25 mm Bulkhead Union 25 mm 25 mm N/A Steel Tube to Tube
WBZ 25-25-SS 25 mm Bulkhead Union 25 mm 25 mm N/A 316 Stainless Steel Tube to Tube
WBZ 3-3-S 3 mm Bulkhead Union 3 mm 3 mm N/A Steel Tube to Tube
WBZ 3-3-SS 3 mm Bulkhead Union 3 mm 3 mm N/A 316 Stainless Steel Tube to Tube
WBZ 4-4-S 4 mm Bulkhead Union 4 mm 4 mm N/A Steel Tube to Tube
WBZ 4-4-SS 4 mm Bulkhead Union 4 mm 4 mm N/A 316 Stainless Steel Tube to Tube
WBZ 6-6-S 6 mm Bulkhead Union 6 mm 6 mm N/A Steel Tube to Tube
WBZ 6-6-SS 6 mm Bulkhead Union 6 mm 6 mm N/A 316 Stainless Steel Tube to Tube
WBZ 8-8-S 8 mm Bulkhead Union 8 mm 8 mm N/A Steel Tube to Tube
WBZ 8-8-SS 8 mm Bulkhead Union 8 mm 8 mm N/A 316 Stainless Steel Tube to Tube
